Home Products Sealing Machine Tube Sealing Machine YTK-909 Cosmetic Industry Automatic Tube
YTK-909 Cosmetic Industry Automatic Tube Filling And Sealing Machine Electric Plastic Soft Tube Filling Sealing MachineYTK-909 Cosmetic Industry Automatic Tube Filling And Sealing Machine Electric Plastic Soft Tube Filling Sealing MachineYTK-909 Cosmetic Industry Automatic Tube Filling And Sealing Machine Electric Plastic Soft Tube Filling Sealing Machine

YTK-909 Cosmetic Industry Automatic Tube Filling And Sealing Machine Electric Plastic Soft Tube Filling Sealing Machine

  • Product Item:YTK-909
  • Dimension(L*W*H): 850*600*650mm
  • Tube length: 70-210m
  • Weight: 75 KG
  • Capacity: 8-15 PCS/min
  • Aluminum Tube Sealing Welding Machine Induction Ultrasonic Soft Plastic Plastic Cosmetic Tube Sealer Cosmetic Cream
    Inquiry Send Email

    Description

    This tube sealer is applicable to toothpaste, cosmetic, pharmaceutical, food, industry product and other soft tube sealing. Extensional organization of the machine is made of aluminum alloy and stainless steel.


    Specification

    Model
    YTK-007
    Power supply
    AC220V/50Hz or 110v/60Hz
    Ultrasonic power
    2600W
    Frequency
    20KHZ
    Tube length
    70-210mm
    Tube diameter
    13-50 mm
    H.S Code
    8422309090
    N.W/GW
    75KGS/110KGS
    Pack size
    850×600×650mm(0.54CBM)


    Features
    1.It's applicable to toothpaste, cosmetic, pharmaceutical, food, industry product and other soft tube sealing.
    2.Extensional organization of the machine is made of aluminum alloy and stainless steel.

    3.The working platform is easily to operate that is independent man-machine operating interface and can be two dimension direction adjustment.

    4.The ultrasound power supply adopts Taiwan movement circuitry, ultrasound parts use famous brands.

    5.It's with the function of overload protection, phase difference protection, and power-fail protection

    6.The ultrasound output power is big enough to ensure the sealing quality of different kinds material and specifications soft tubes.

    7.It's with the function of automatically cutting.

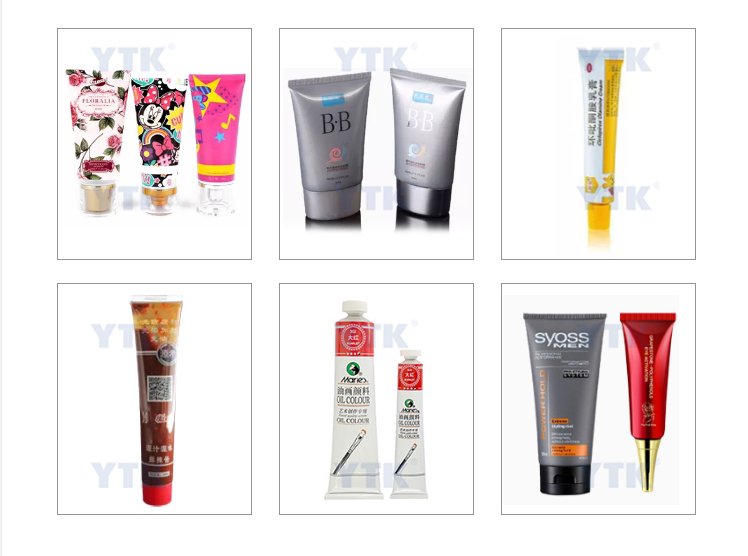

    Application


    Details Images

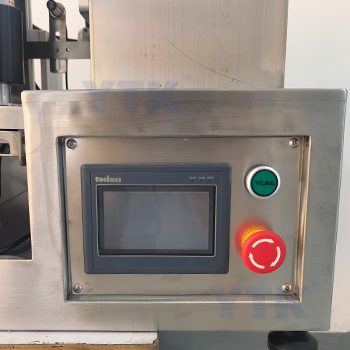

    Touch screen interface

    Friendly for operation PLC and HMI all-in-one control design,make operation and maintenance more simple and convenient

    Auto frequency tracking ultrasonic power generator,fool-proof operation


    Independent research and development of digital auto frequency tracking ultrasonic power generator,no need to manually adjust the frequency.With power compensation function,machine power will not decrease due to long time use.Flexible power regulation based on tube material and size,output,lowest failure rate,longer service life than ordinary electric control cabinet.

    Safety acrylic cover


    Protection cover,safety and beautiful design,anti-clamping hand

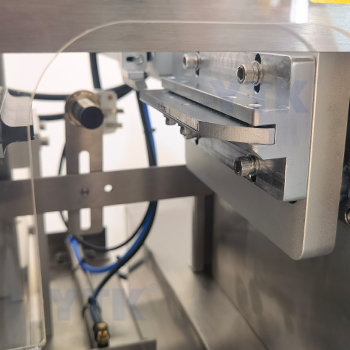

    Anvil card slot design
    It can detect the bottle once the bottle pass Anvil card slot design

    Add positioning device at color mark tracking station


    More stable in color mark tracking minimum the tube deformation influence to the accuracy.
