Description

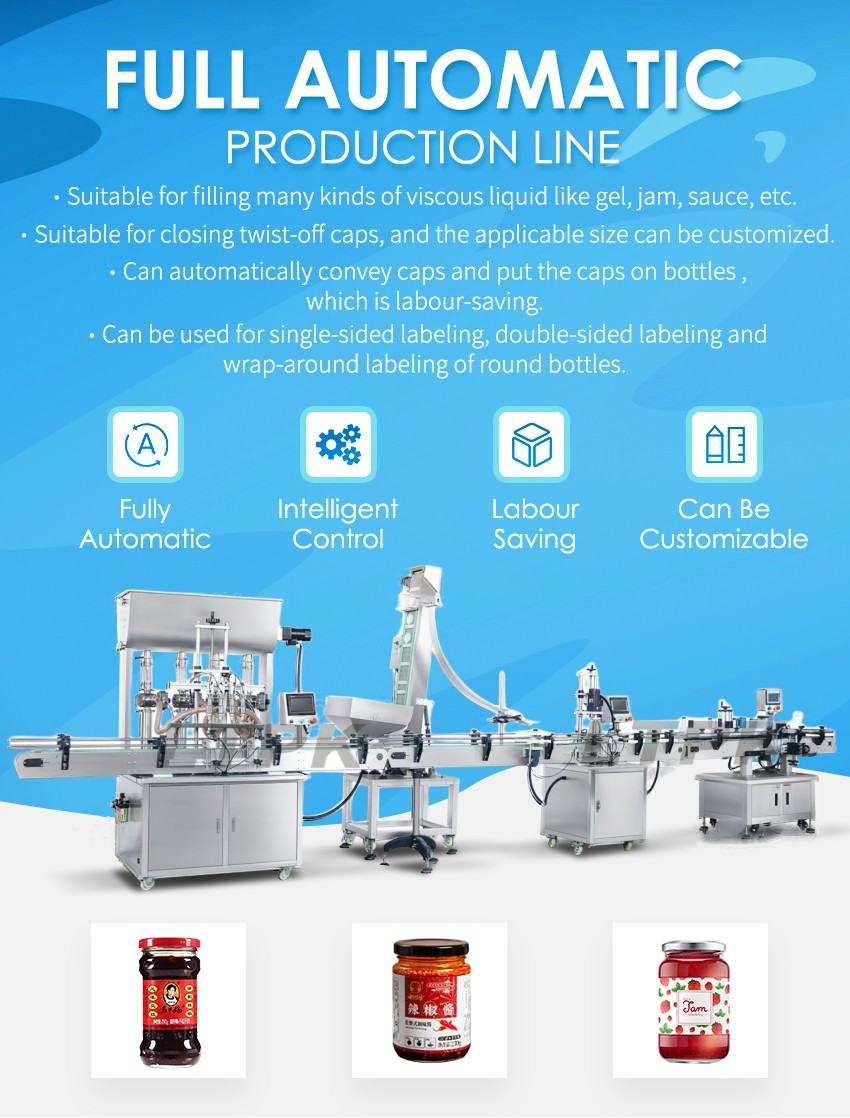

This fully automatic production line is consisted of bottle turntable, filling machine, cap feeding machine capping machine, labeling machine and bottle sorting machine. It has a high degree of automation, good stability,and convenient adjustment.It is equipped with a cap feeding machine, can automatically feed bottle caps which can save labor greatly. This machine is suitable for food, daily chemical, agriculture and cosmetics industries.
Technical Parameters
Model : LT-QZDG4
Voltage :110/220V 50-60HZ 800W
Filling Range :5-100ml/10-300ml/50-500ml/100-1000ml/500-3000ml/1000-5000ml
Working Speed(base on water) : 20-50bottles/min
Filling Accuracy: ≤±1%
Air Pressure :0.5-0.7Mpa
Machine Weight: 260kg
Package Weight: About 380kg (100-1000ml 4Heads)
Machine Size : 2000*1200*2300mm
Package Size: About 1410*1220*2130mm (100-1000ml 4Heads)
Machine Model :LT-SC440
Working voltage :AC220V/110V 50-60HZ
Bottle height :≤200mm
Bottle caps diameter: customize
Working speed :20-30 bottles/minute(depending on bottle and caps)
Working pressure: 0.4-0.6 MPa
Conveyor size :100mm(W)*1950mm(L)
Package size :About 2000*820*1800mm
Net weight/Gross weight: About 211kg/272kg
Model:LT-260 Labeling Machine
Power supply: AC220V 50Hz/60Hz 1000W
Labeling capacity(bottles/min) :25-50 bottles/min(depends on bottle size)
Labeling accuracy(mm) :±1.0mm
Suitable Bottle Diameter :Φ12-100mm
Label size(mm) :(L)20-300mm (H)15-150mm
Roll inside diameter(mm): Φ76mm
Roll outside diameter(mm): Φ350mm
Conveyor Size :112*2000mm(W)
Machine size About: (L)2000*(W)820*(H)1380(mm)
Machine weight About :180kg
Packing Size :About (L)2100*(W)890*(H)1520(mm)
Package weight :About 250kg
