High performance automatic production assembly Line high-speed plane Labeling Machine Head Label ApplicatorHigh performance automatic production assembly Line high-speed plane Labeling Machine Head Label ApplicatorHigh performance automatic production assembly Line high-speed plane Labeling Machine Head Label Applicator

High performance automatic production assembly Line high-speed plane Labeling Machine Head Label Applicator

  • Product Item:YTK-FL170
  • Labeling machine size:About 860*650*750mm
  • Labeling machine weight:About 76kg
  • Label roll size:15-150mm(H)*25-300mm(L)
  • Machine voltage:110/220V 50*60HZ 1.5KW
  • label printer double side and round bottle labeling machine
    Inquiry Send Email

    Description

    This one is the assembly labeling machine which can work with the conveyor belt and realize automatic production or work as the single-alone operation machine.It is suitable for labeling stickers on flat surface like book,box,pouch bags.


    Specification
    Machine model
    YTK-170 (with paging machine)
    Machine voltage
    110/220V 50*60HZ 1.5KW
    Labeling speed
    0-200 pieces/min(based on labeling materials and label size)
    Label roll size
    15-150mm(H)*25-300mm(L)
    Labeling accuracy
    ±1%
    Label roll inner diameter
    76mm
    Label roll outer diameter
    350mm
    labeling machine size
    About 860*650*750mm
    Labeling machine weight
    About 76kg
    Paging Machine size
    About 1600*560*400mm
    Paging Machine weight
    About 67kg


    Application
    Details Display

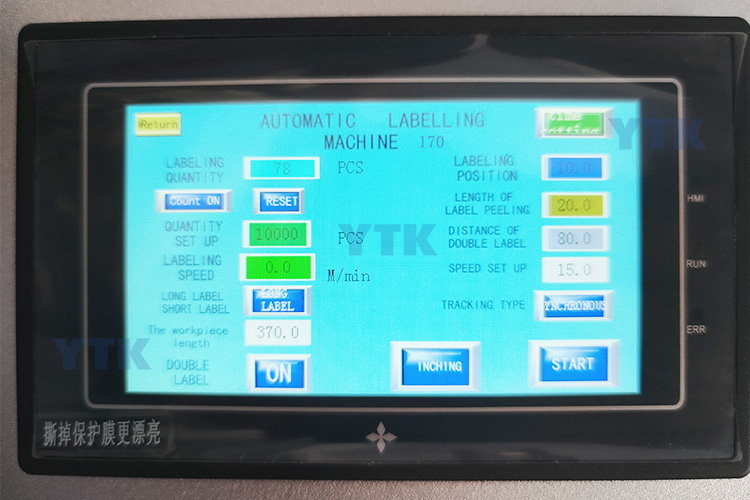

    Equipped with touch screen control panel,this is more convenient to adjust working parameter and watch the working status in real time.Different kinds of language can be customized as operation need,please contact us if you need this.

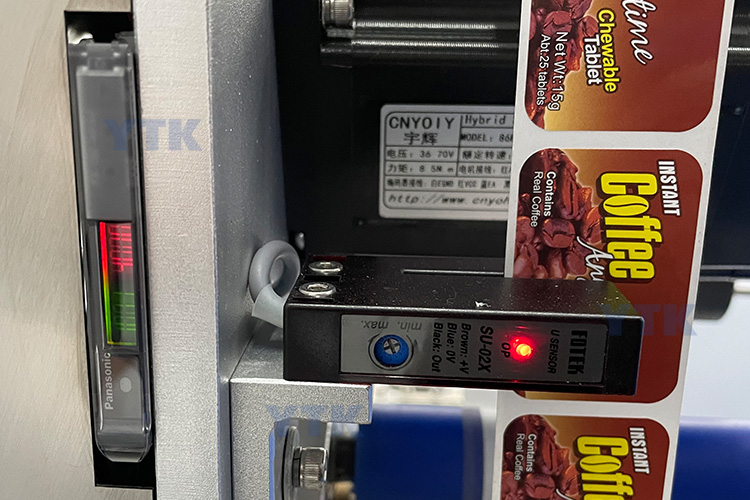

    The label sensor can detect label stickers based on transmittance,this can prevent from wasting label stickers.The sensitivity can be adjusted according to operation need,it improves labeling accuracy.

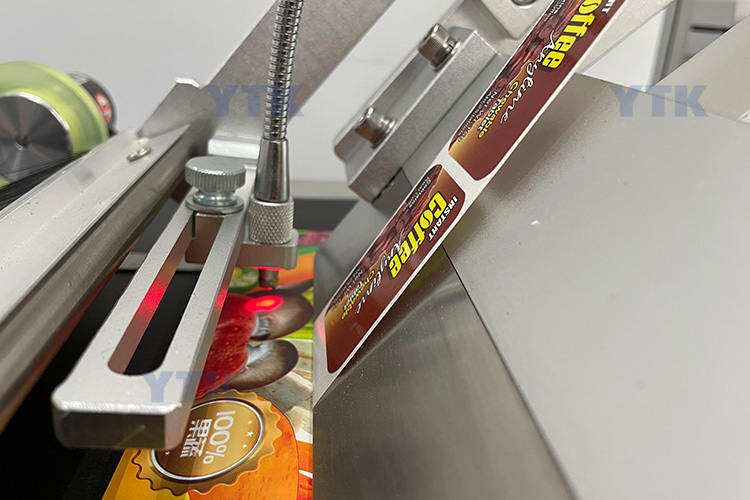

    Equipped with high quality electric eye,it will detect passing by labeling object like book,box,pouch bags.And the separating plate will separate label stickers and the brush will help to press label stickers and ensure there is no bubble under label stickers.

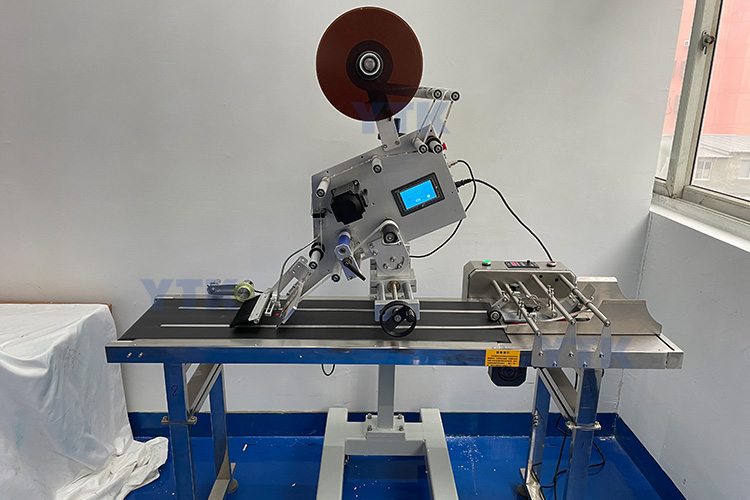

    This machine can be connected to the conveyor belt and realize automated production or work as the single-alone operation machine,this makes the operation more flexible.

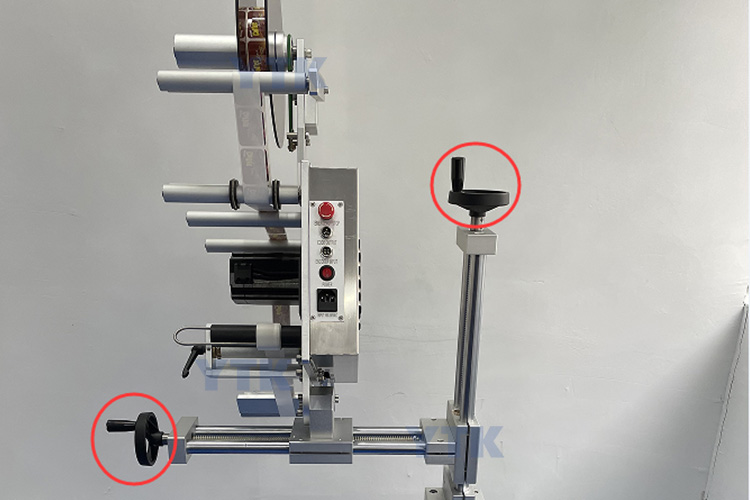

    The working height and labeling head position can be adjusted according to label object size,this can improves labeling accuracy.
