Home Products Filling Machine Liquid Filling Machine Automatic Desktop 4 Heads Peristaltic Pu
Automatic Desktop 4 Heads Peristaltic Pump Liquid Bottle Filling Machine With ConveyorAutomatic Desktop 4 Heads Peristaltic Pump Liquid Bottle Filling Machine With ConveyorAutomatic Desktop 4 Heads Peristaltic Pump Liquid Bottle Filling Machine With Conveyor

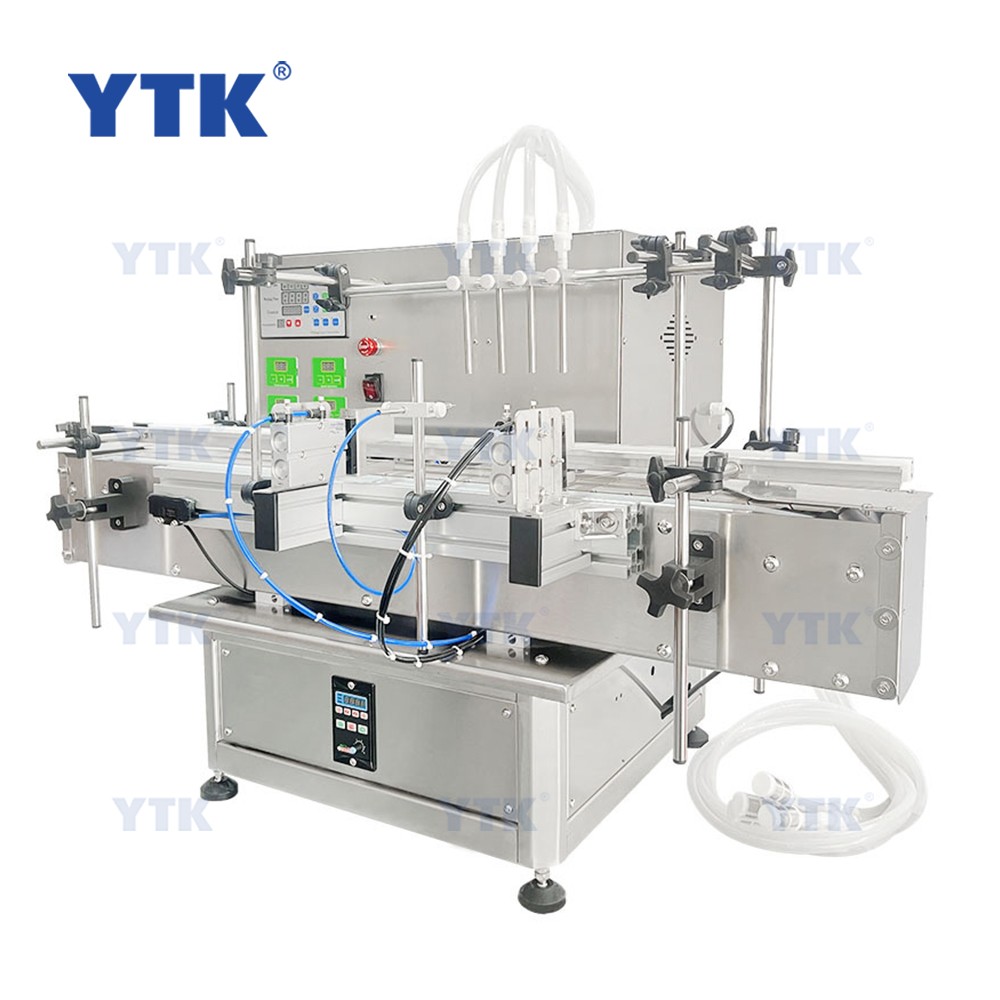

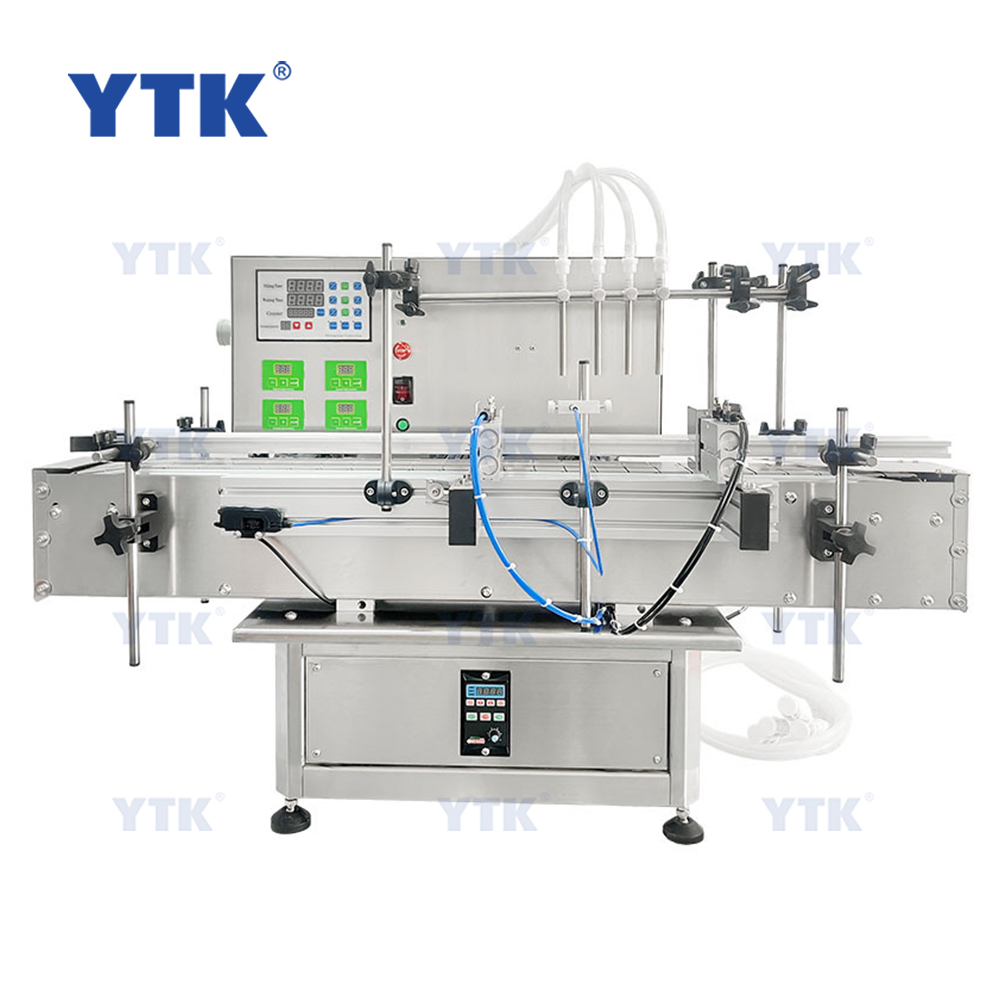

Automatic Desktop 4 Heads Peristaltic Pump Liquid Bottle Filling Machine With Conveyor

  • Product Item:YTK=PPF4H
  • Air pressure: 0.3-0.4mpa
  • Dimension(L*W*H): About 1150*650*820mm
  • Weight: 89 KG
  • Delay range: 0.01s-999.9s
  • 4 Diving Heads Peristaltic Pump Liquid Bottle Filling Machine
    Inquiry Send Email

    Description

    Products Description
    >It is easy to change filling hose when fill different kinds of materials,this can prevent from mixing up filling materials like perfume aroma. >Chain conveyor belt is with larger loading capacity,suitable for filling large volume. >This one is with diving nozzle,it is better for foamy liquid.
    Parameters
    Machine model
    YTK-PPF4H
    Power supply
    110/220V 50-60HZ 300W
    Maximum flow velocity
    6000ml/min (Each nozzle and based on water )
    Working speed
    20-30 bottles/min
    Air pressure
    0.3-0.4mpa
    Filling accuracy
    ≤±1%( for water)
    Dimension of filling nozzle
    Standard 8mm and 6mm
    Delay range
    0.01s-999.9s
    Count range
    1-99999 times
    Size of air compressor connector
    OD 6/8mm
    Package size
    About 1150*650*820mm
    Net weight/Gross weight
    About 59kg/89kg
    Application
    Desktop full automatic machine is very efficient with high cost performance.It is widely used in medicine, daily chemical and other industries such as essential oils, perfumes, juice liquid etc.Machine with peristaltic pump is easy to change tube. Liquid won't pass through the pump.It is good choice for strong corrosive liquid such as biological liquid, eye drops,sulfuric acid, hydrochloric acid,disinfectant,etc.To replace with fluorine rubber tubes,it can also use to essential oils,solvents,etc.
    Details Images

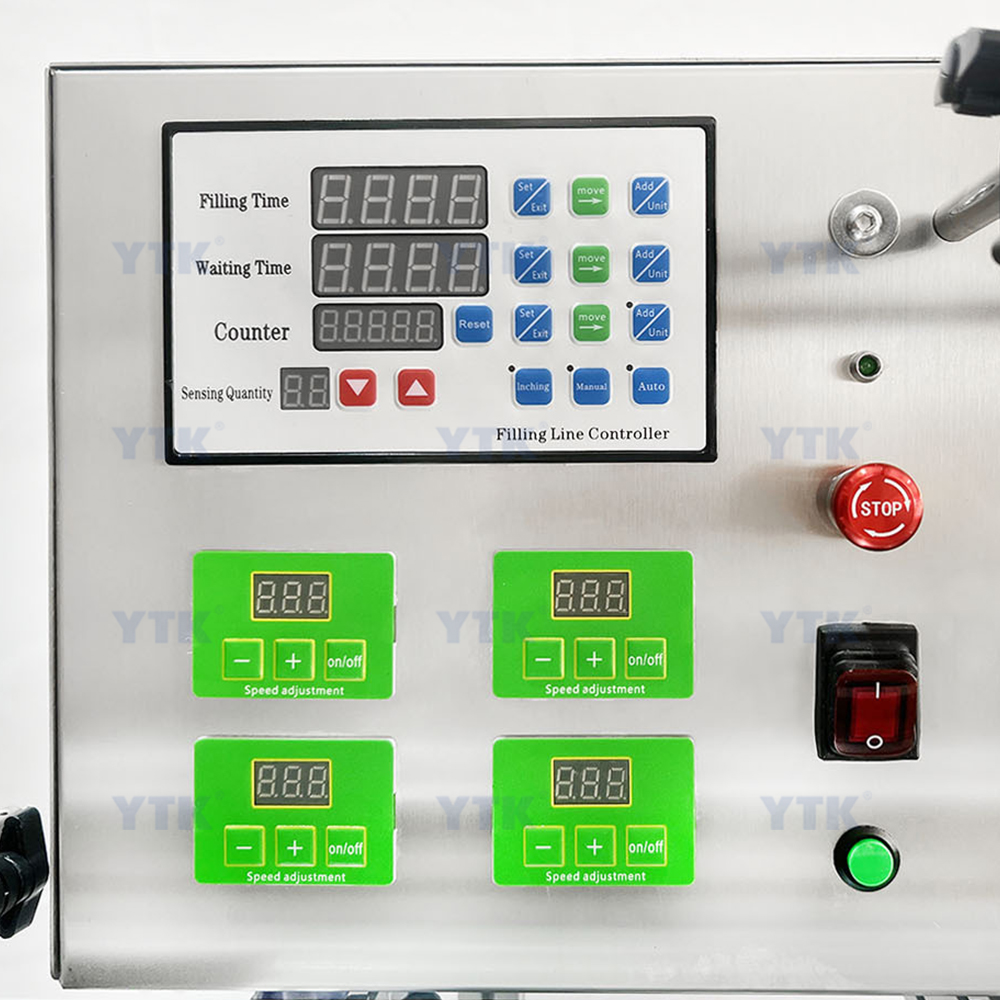

    Simple operation panel,can show the detailed setting parameter like the filling time and filling speed,these can be simply controlled according to production need during work.

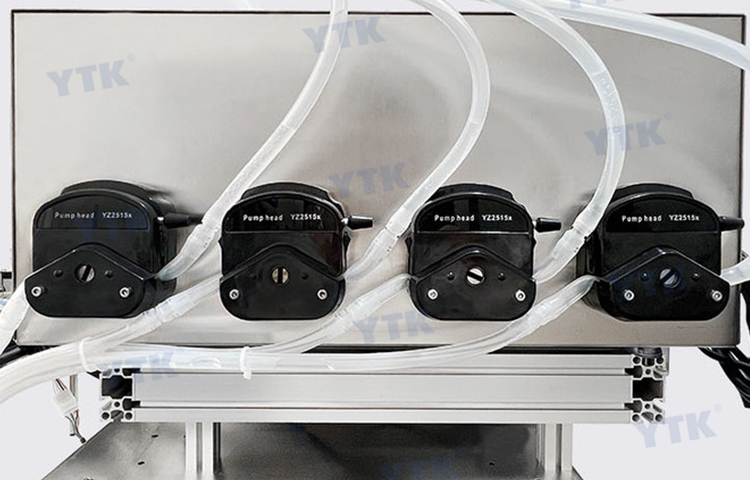

    Equipped with peristaltic pump,the advantage of this kind of pump is that the liquid will not pass through the pump during working,this can ensure the production quality.The machine has reasonable design,it is easier to change filling hose,this is good for filling liquid with different colors or fragrance.

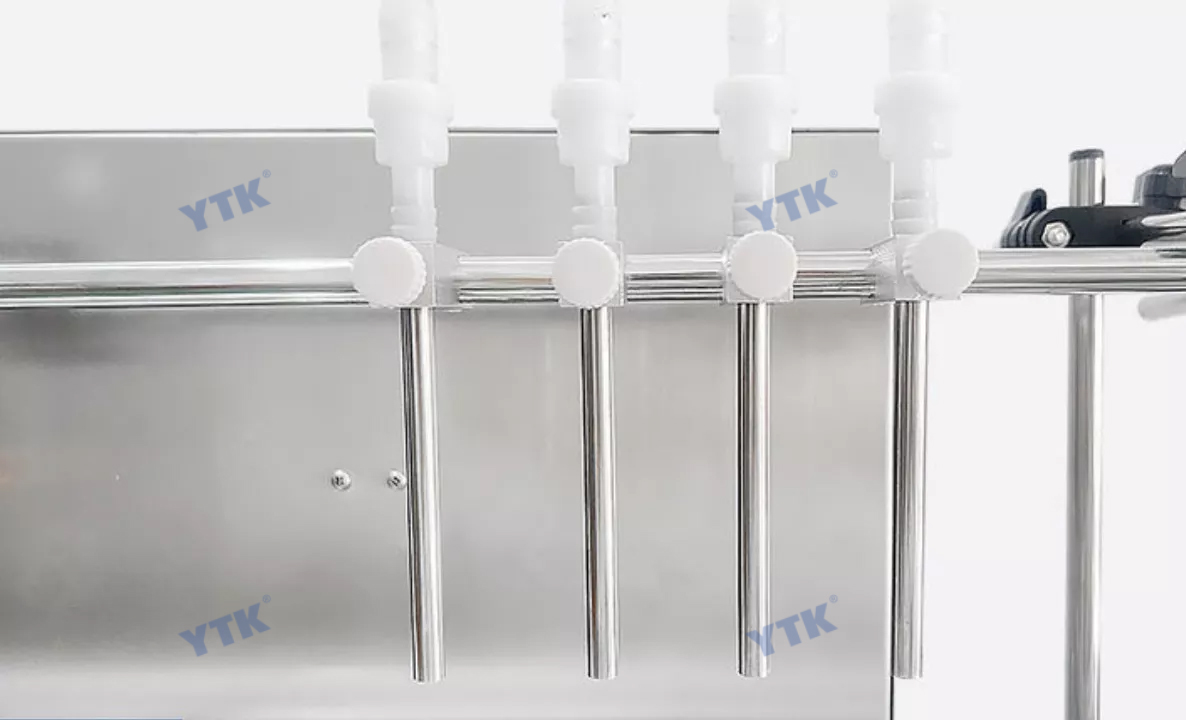

    There are 4 filling nozzles and each one of them can be controlled separately.The height of filling nozzle can be changed by adjusting bracket height.

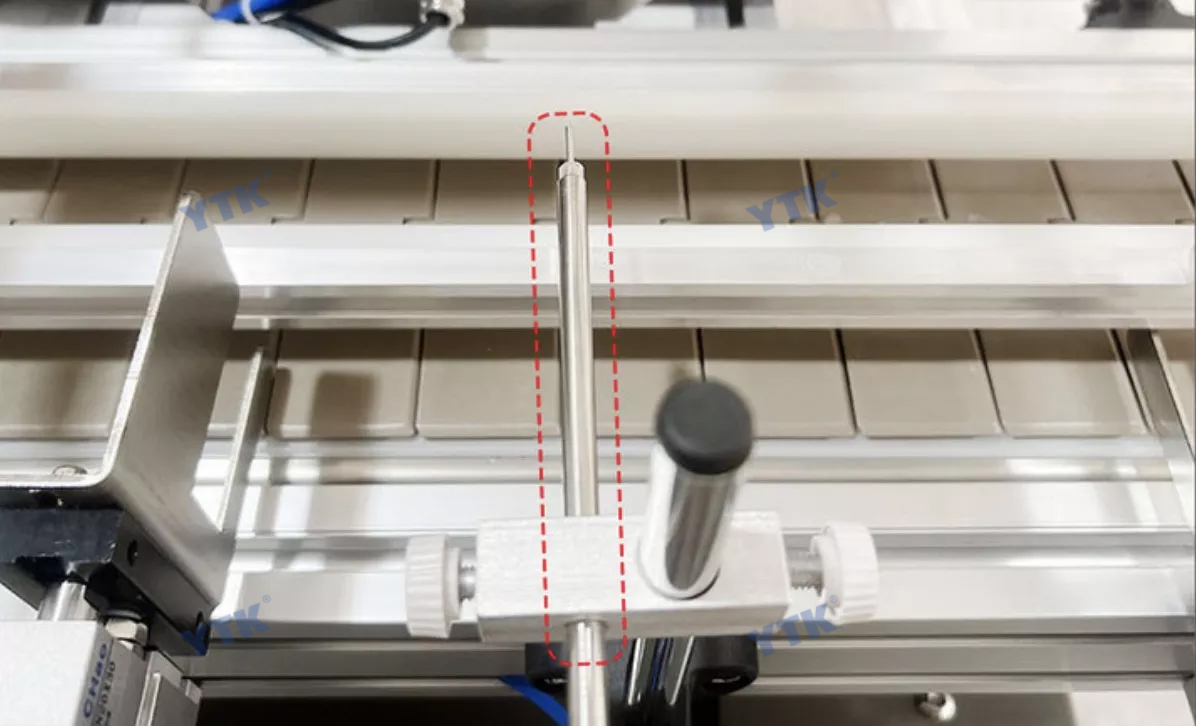

    The high quality electric eye can detect passing by containers precisely and control the machine to fill liquid, achieves automated production.This can reduce the production error.

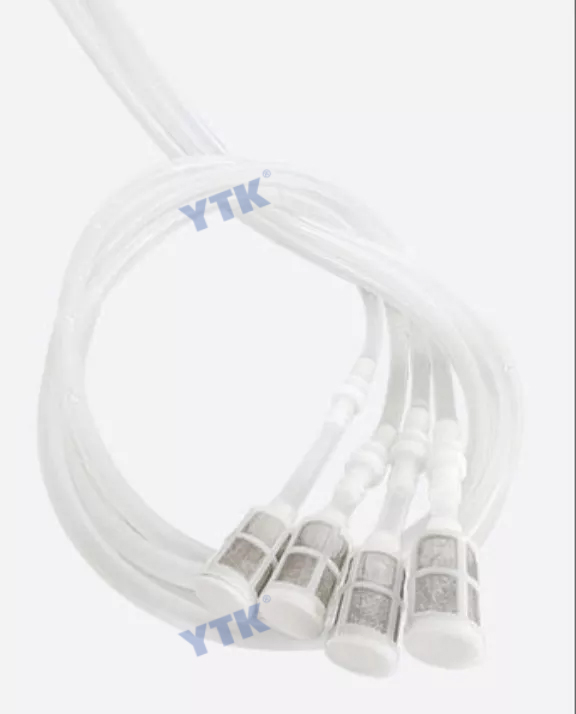

    Filter, make filling liquid no impurities, high purity.
    A barometer with air pressure helps you check air pressure in real time
    * Please note that you will need to purchase an air compressor separately
