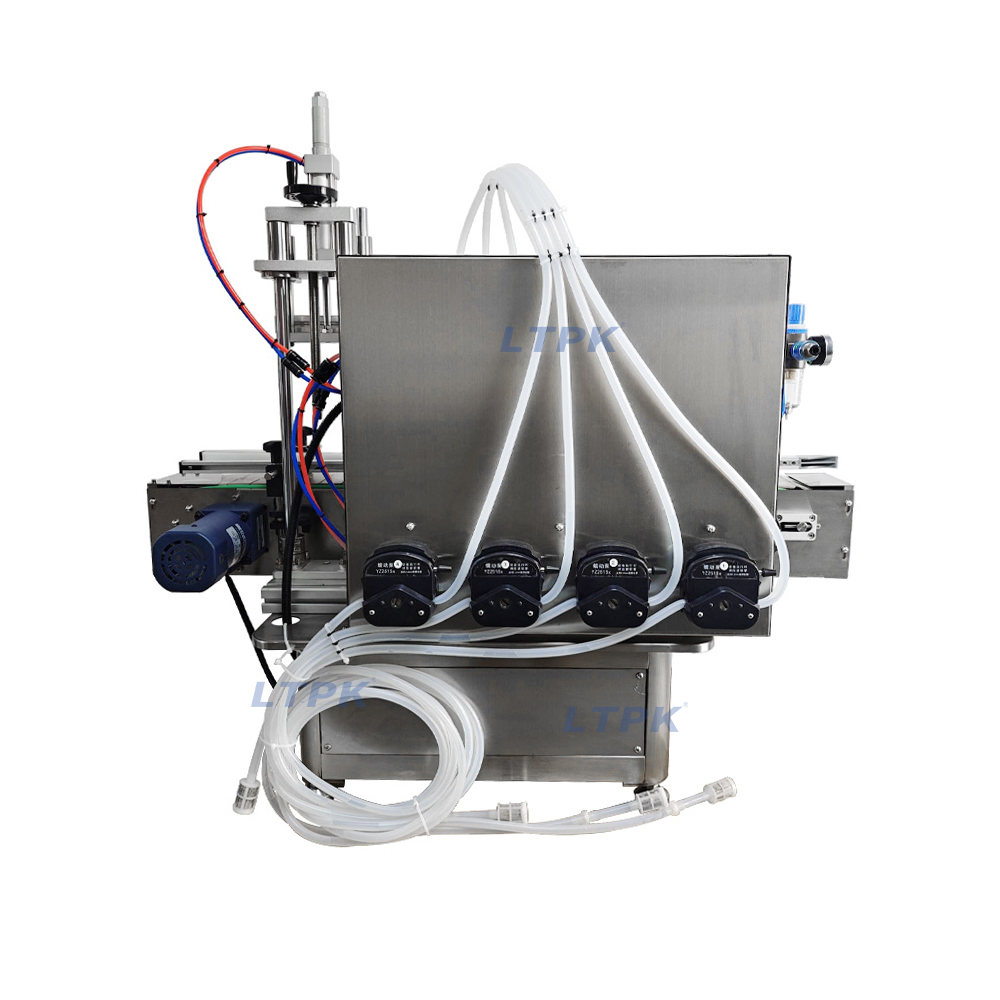

This machine adopts a peristaltic pump design, and the fluid only passes through and comes into contact with the peristaltic pump hose. It is clean and pollution-free, with high repeatability, strong stability, and convenient flow adjustment.It's convenient and simple to change the tube, suitable for filling small doses of liquids with different flavors.Chain plate type conveyor belt, stable transportation, strong load-bearing capacity, lift-type filling head, can be used for filling liquid with foam.
Technical Parameters
|
Model |
LT-DPPF04 |
|
Voltage Power |
220/110V 60W*4 |
|
Filling flow rate |
2.4L/min |
|
Suggested filling range |
5-200ml |
|
Filling speed |
30-50bottles/min |
|
Filling Precision |
±1% |
|
Max suction lift |
2m |
|
Leakage prevention |
YES |
|
PW CUT MEMORY |
YES |
|
Air pressure |
0.3-0.4MPa |
|
Size |
About 1220*680*1118mm |
|
Weight |
About 120kg |
Application
The peristaltic pump filling machine has a wide range of applications, such as all kinds of food (soy sauce, vinegar, sesame oil), chemicals (solvents, acetone), cosmetics (toner, makeup remover, spray) and other non granular liquids
Detail Images
