Home Products Filling Machine Paste Filling Machine Automatic Desktop Paste Filling Pressuri
Automatic Desktop Paste Filling Pressurized Hand Sanitizer Honey Pepper Sauce Cosmetics Gel Lotion Cream Paste Filling MachineAutomatic Desktop Paste Filling Pressurized Hand Sanitizer Honey Pepper Sauce Cosmetics Gel Lotion Cream Paste Filling MachineAutomatic Desktop Paste Filling Pressurized Hand Sanitizer Honey Pepper Sauce Cosmetics Gel Lotion Cream Paste Filling Machine

Automatic Desktop Paste Filling Pressurized Hand Sanitizer Honey Pepper Sauce Cosmetics Gel Lotion Cream Paste Filling Machine

  • Product Item:YTK-MPF4C
  • Dimension(L*W*H): 1300*1440*1200 mm
  • Weight: 237 KG
  • Hopper size: 90L
  • Heads: can be customized 2/4/6/8/10/12 nozzles
  • Lotion Cream Paste Filling Machine
    Inquiry Send Email

    Description

    Product Description
    Our this desktop four heads cream filling machine is designed for filling paste or thick liquid,this machine can work with desktop capping machine and labeling machine to save your working space and improve your production efficiency.Each nozzle of this machine can be controlled separately,we can customize multiple filling nozzles as your production need.This machine is widely used in food,daily chemical, cosmetics industries.It features compact size, precision wise and low working noise.
    Specification
    Machine model
    YTK_MPF4C
    Power
    110/220V 50-60HZ About 300W
    Filling range
    10-100ml/30-300ml/50-500ml/100-1000ml/500-2500ml/1000-5000ml
    Working speed
    20-30bottles/min(based on liquid&filling volume)
    Hopper size
    90L
    Conveyor size
    About 1300*100mm
    Filling nozzle size
    OD 10mm(can choose other size)
    Filling accuracy
    ≤±1%
    Machine size
    About 1300*1440*1200 mm
    Package size
    About 1550*1400*1330mm
    Package weight
    About 237kg
    Application
    Details Images

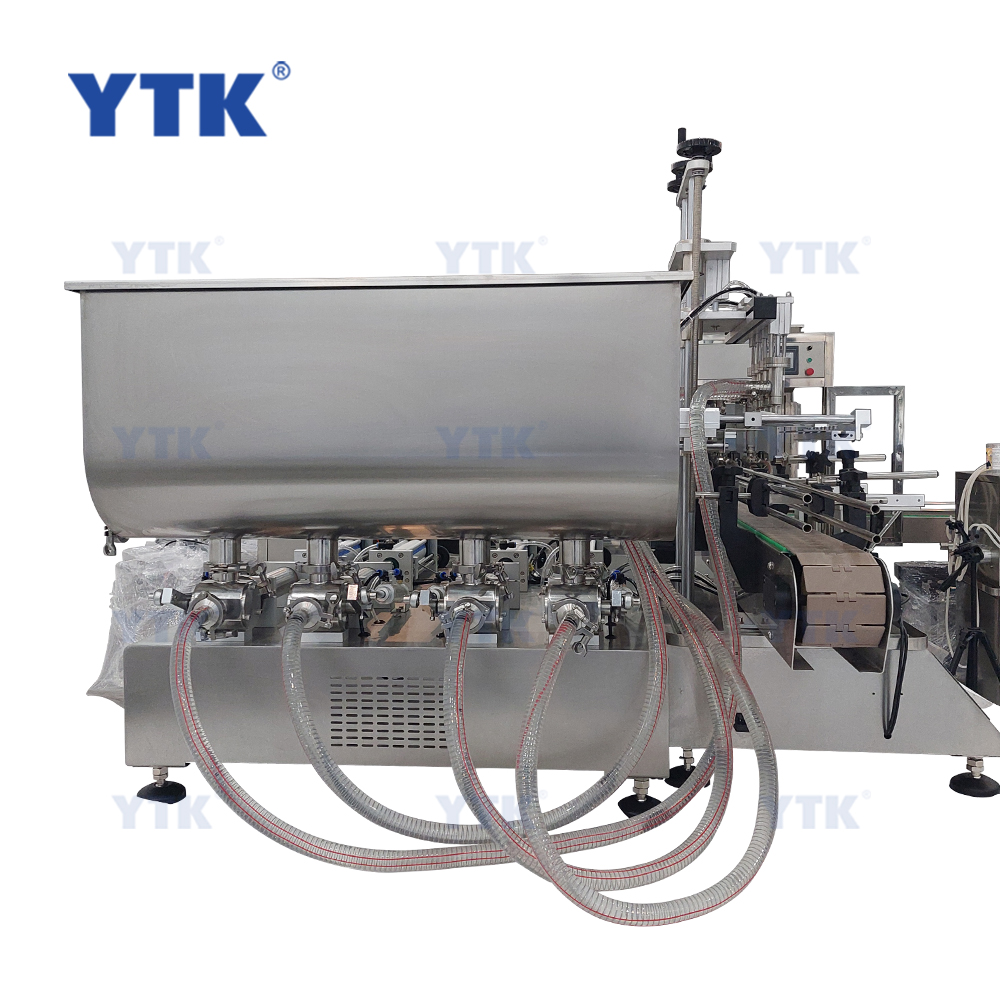

    Equipped with 90L large hopper,this better for making the liquid flow faster and can feed filling material in time,improves working speed.
    Designed with PLC touch screen control panel,the digital display makes the working data be visual and can watch the working status of the machine in real time,reduce production error.

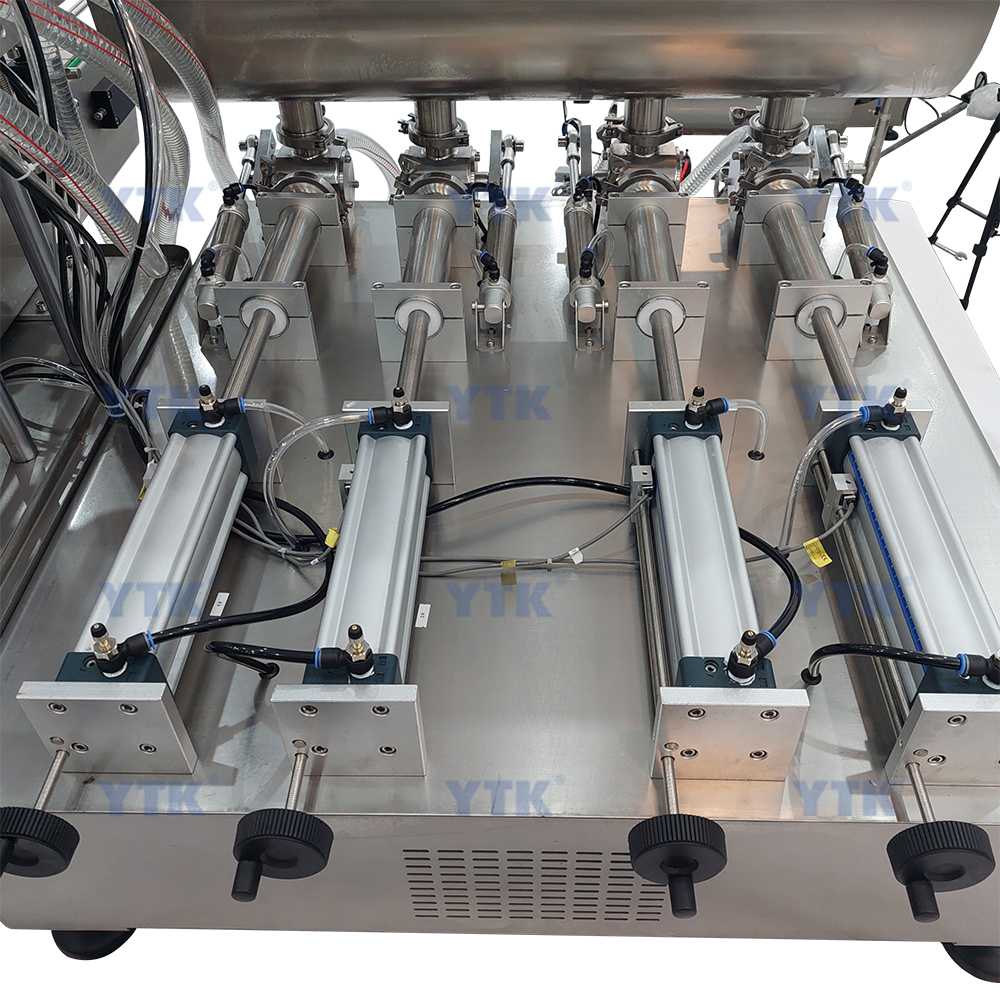

    Equipped with the pneumatic filling nozzle,which has larger power and can improve filling speed when fill thicker liquid.There is a anti-dripping slot,it can ensure the production cleanliness.The bottle clamping plate will fixed bottles ,this prevent that bottles fall down during filling.
    The filling volume can be adjusted by the black rotary knob.Through the small knob to adjust the air intake and air output, you can indirectly control the filling speed and waiting time of the machine.
