Home Products Homogenizer & Emulsifier & Mixer YTK-AE300L-H Korea Popular Cosmetic mixe
YTK-AE300L-H Korea Popular Cosmetic mixer Desktop Lab High Shear Emulsifier / Mixer Homogenizer Emulsifier AE300L-HYTK-AE300L-H Korea Popular Cosmetic mixer Desktop Lab High Shear Emulsifier / Mixer Homogenizer Emulsifier AE300L-HYTK-AE300L-H Korea Popular Cosmetic mixer Desktop Lab High Shear Emulsifier / Mixer Homogenizer Emulsifier AE300L-H

YTK-AE300L-H Korea Popular Cosmetic mixer Desktop Lab High Shear Emulsifier / Mixer Homogenizer Emulsifier AE300L-H

  • Product Item:YTK-AE300L-H
  • Dimension(L*W*H):215*310*720 mm
  • Maximum immersion liquid height:236mm
  • Power (kW):0.51
  • Weight:10kg
  • Laboratory High Shear Homogenizer Mixer
    Inquiry Send Email

    Description

    Product Description

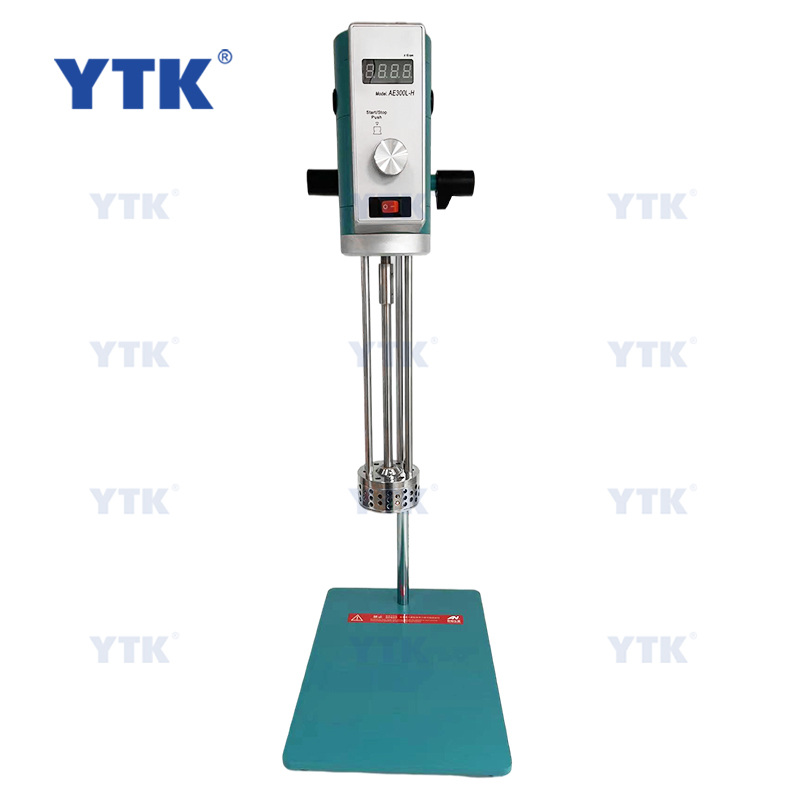

    YTK-AE300L-H laboratory shear emulsifying machine with compact structure series miniature high-speed motor driver, suitable for lab or pilot plant of low to medium and high viscosity liquid mixing, crushing particle material shearing emulsification in liquid medium.

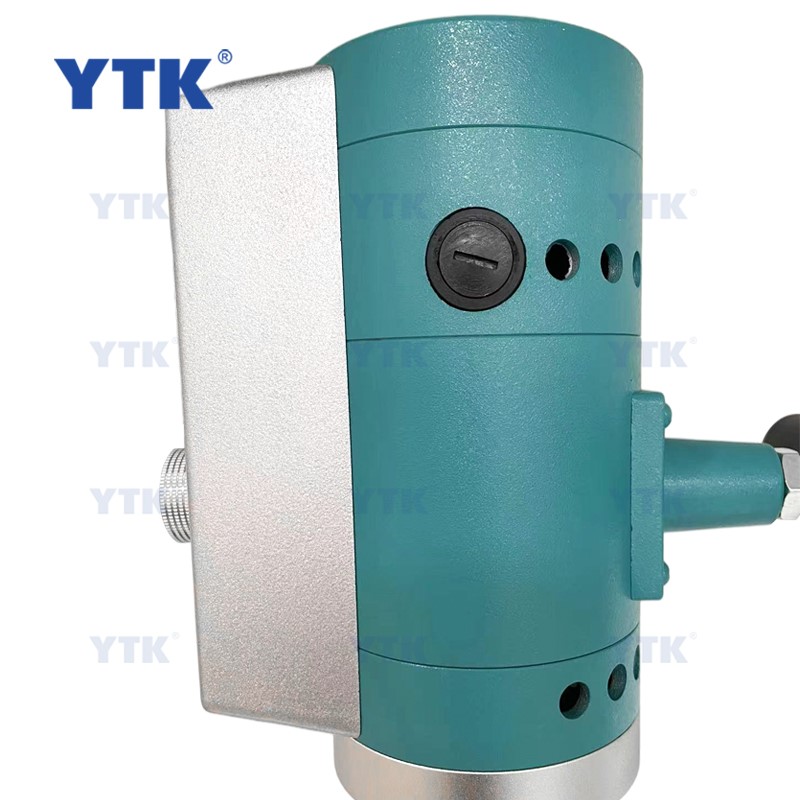

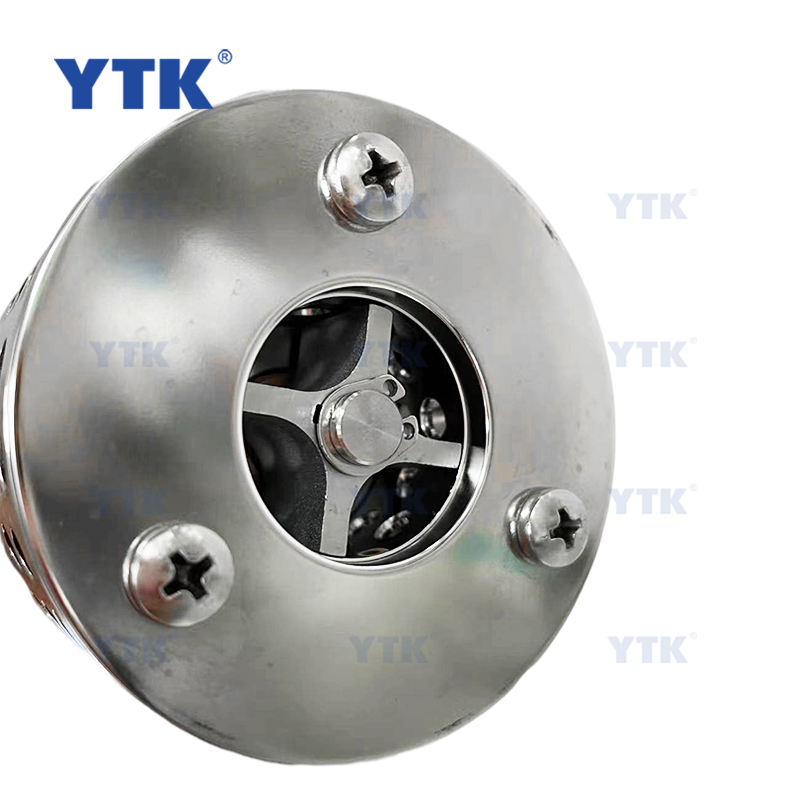

    The machine by high die casting aluminum alloy for the drive motor, the high quality stainless steel refined shear emulsifying work head and speed controller, etc.

    Speed controller adopts IC speed detection constant power speed regulation technology, instantly effective compensation because of load change and the power supply voltage fluctuation caused by the speed of change.

    Speed display intuitive digital operation, the operation speed according to the experiment set arbitrary, with soft start, automatic overload protection, compensation, all the constant speed mixing experiment effect is ideal, convenient data acquisition.
    Specification
    Model
    YTK-AE300L-H
    Rated voltage
    AC 220 V
    Rated Frequency
    50/60 Hz
    Input power
    510 W
    output power
    300 W
    Rated torque
    22.1 N.cm
    Working system
    S1 (continuous)
    Operation control mode
    Combined control knob
    Rotating speed adjustment range
    2000~13000 rpm
    Speed Control Type
    Stepless
    Speed Digital Display
    LED
    Timing control range
    1~1000 min
    Dynamic speed detection function
    YES
    Speed Memory Function
    YES
    Overload protection function
    YES
    Maximum Torque of Working Head
    22.0 N.cm
    Maximum Linear Speed of Rotor
    19 m/s
    Head Material
    AISI 304
    Diameter of working head
    70 mm
    Minimum immersion liquid height
    50 mm
    Maximum immersion liquid height
    236 mm
    Stator standard configuration
    5mm² 20 mm² 50 mm²
    Mixing capacity (H2O)
    500 ~ 40000 ml
    Maximum Processing Viscosity
    8000 mPa.s
    Permissible ambient temperature
    Not more than 40 ℃
    Permissible relative humidity
    Not more than 80 %
    Size of mixing (T x B x H)
    215×310×720 mm
    Weight
    10 kg
    Application
    Details Images
