Home Products Filling Machine Paste Filling Machine YTK-500U Horizontal Pneumatic Tomato Sau
YTK-500U Horizontal Pneumatic Tomato Sauce Paste Filling Machine With MixerYTK-500U Horizontal Pneumatic Tomato Sauce Paste Filling Machine With MixerYTK-500U Horizontal Pneumatic Tomato Sauce Paste Filling Machine With Mixer

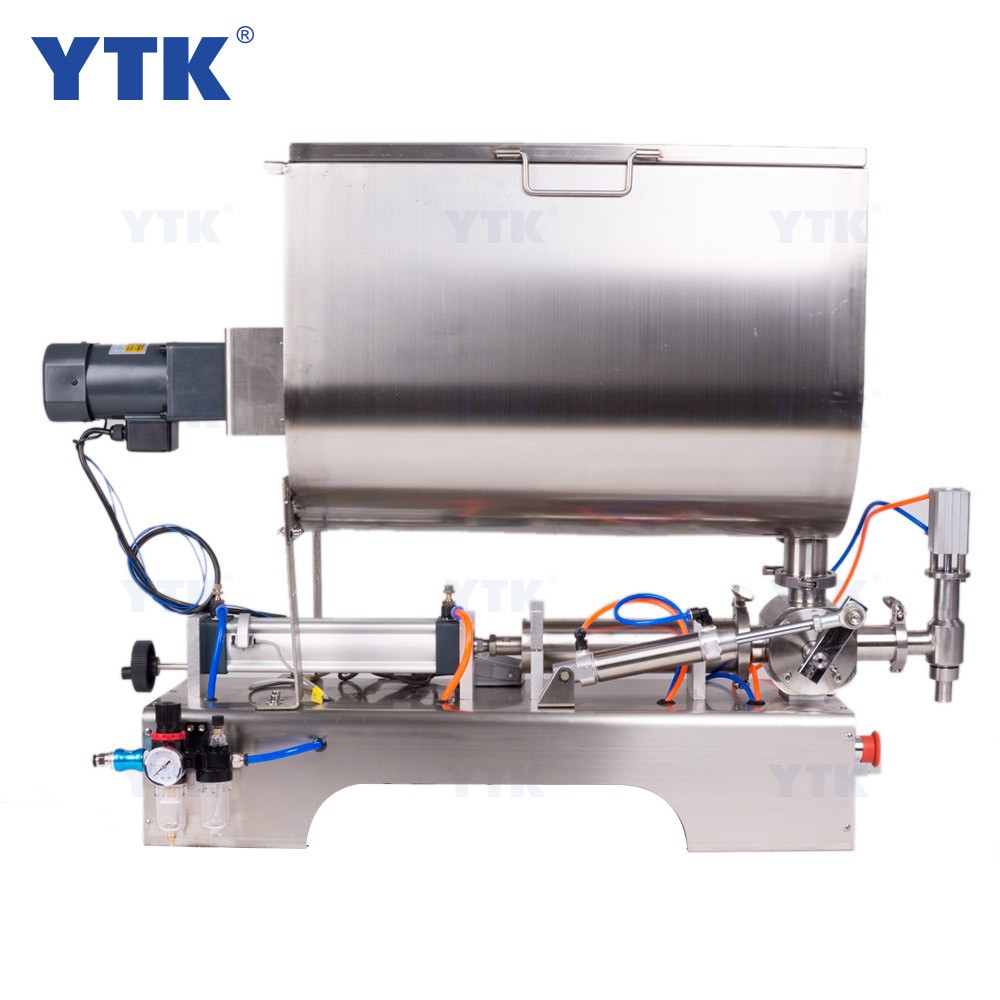

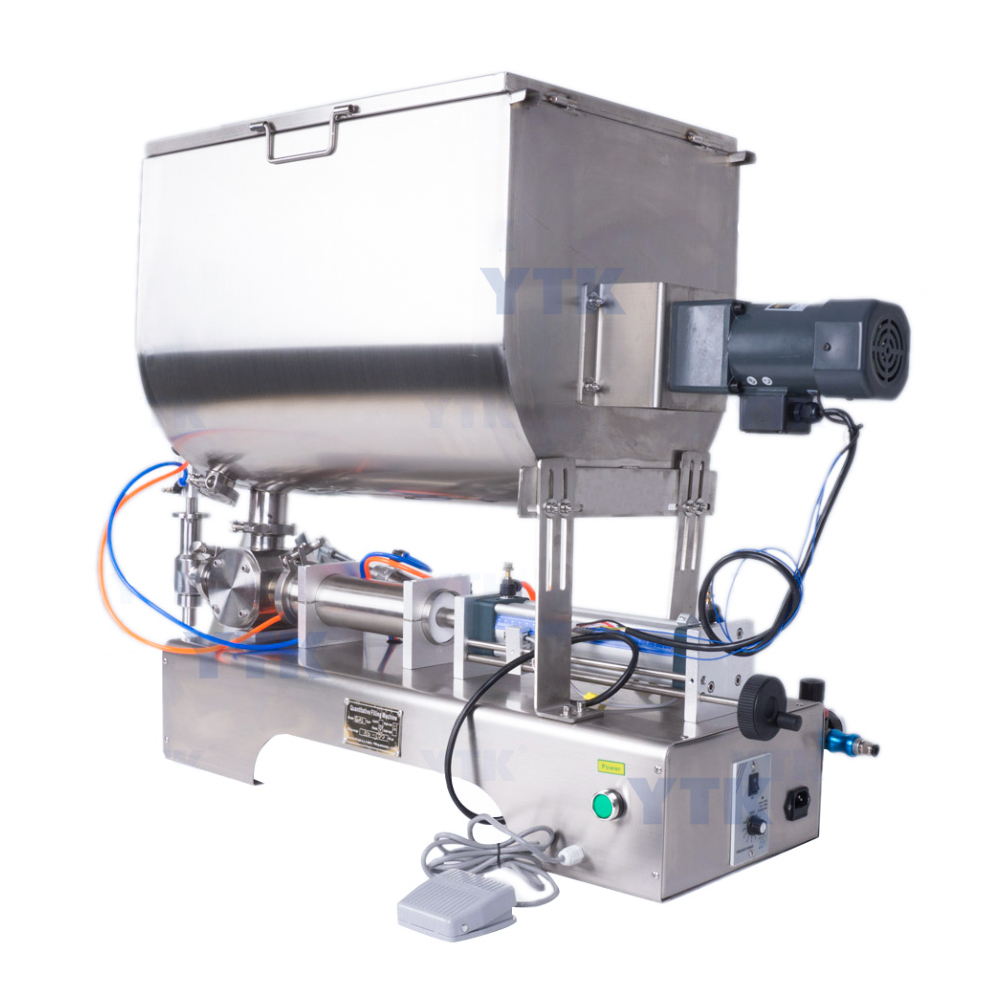

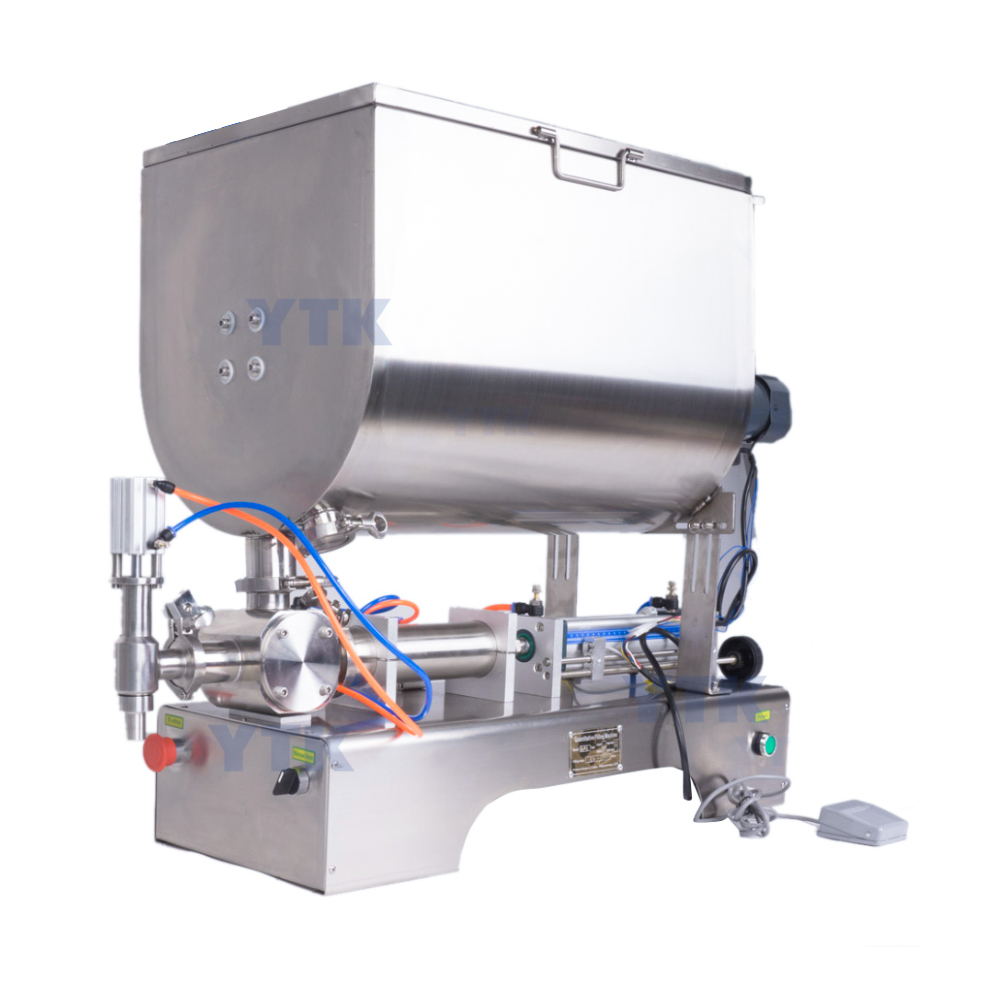

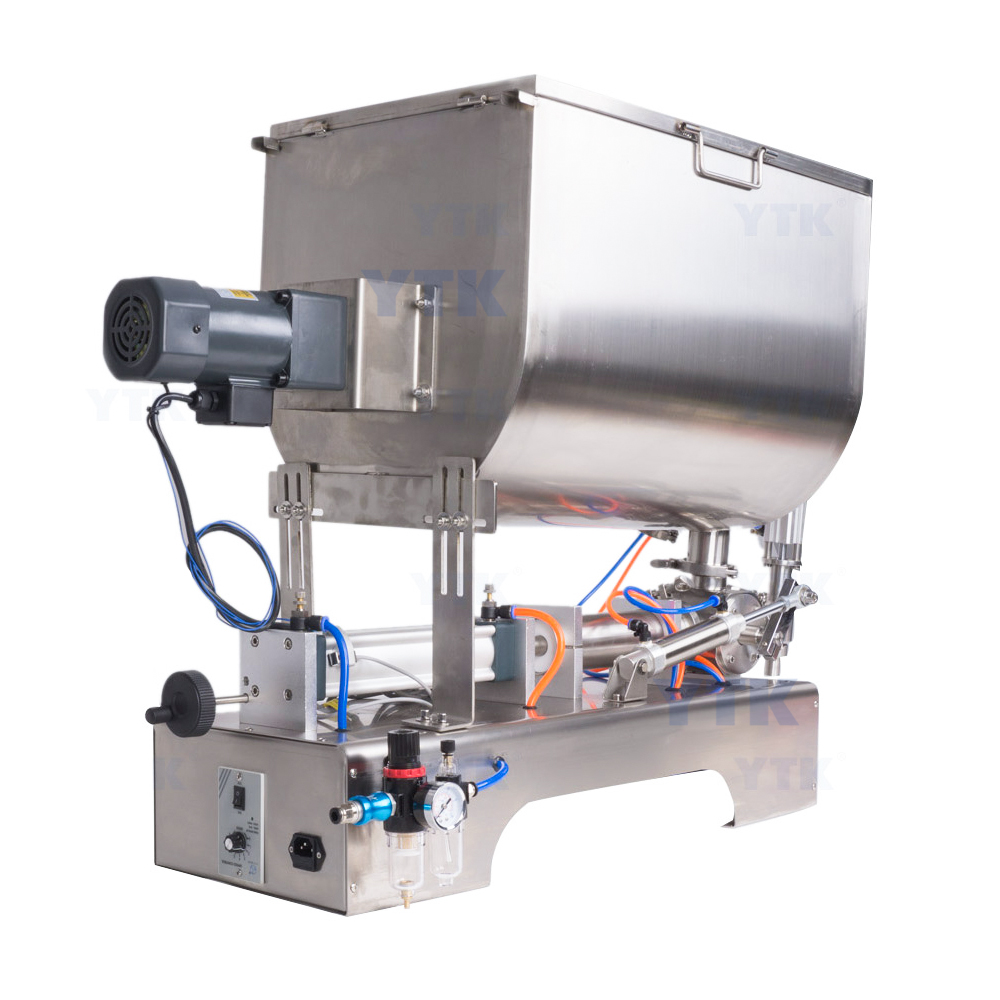

YTK-500U Horizontal Pneumatic Tomato Sauce Paste Filling Machine With Mixer

  • Product Item:YTK-GUF500
  • Dimension(L*W*H): About 1130*315*740mm
  • Power: 120W
  • Filling range: 100-500g(Could customized for you)
  • Speed: 8-30pcs/min
  • paste filling machine  , sauce filling machine  , chili sauce filling machine
    Inquiry Send Email

    Description

    Product Description
    1.This mixing and filling machine for sauce can finish the mixing and filling work automatically.
    2.The parts contacting with materials of the mixing and filling machine all adopt the stainless steel material,which meet the international health standard. The filling quantity can be arbitrarily adjusted within the prescribed scope.
    3.This sauce mixing and filling machine uses electric device as its power,which is easy to operate.
    4.The material valve control system adopts the unique patented technology.It could do the filling of solid material containing chunk, semi liquids and dope,and the sauce of oil, water, material in separation condition
    Specification
    Type
    semi automatic sauce filling machine
    Filling speed
    8-30 times/miunte
    Power
    220V 120w
    Filling precision
    around 1%
    Filling range
    100-1000ml
    Machine Size
    About 1130*315*740mm
    Packing Size
    About 1280*515*810mm
    Weight
    75kg/54.5kg

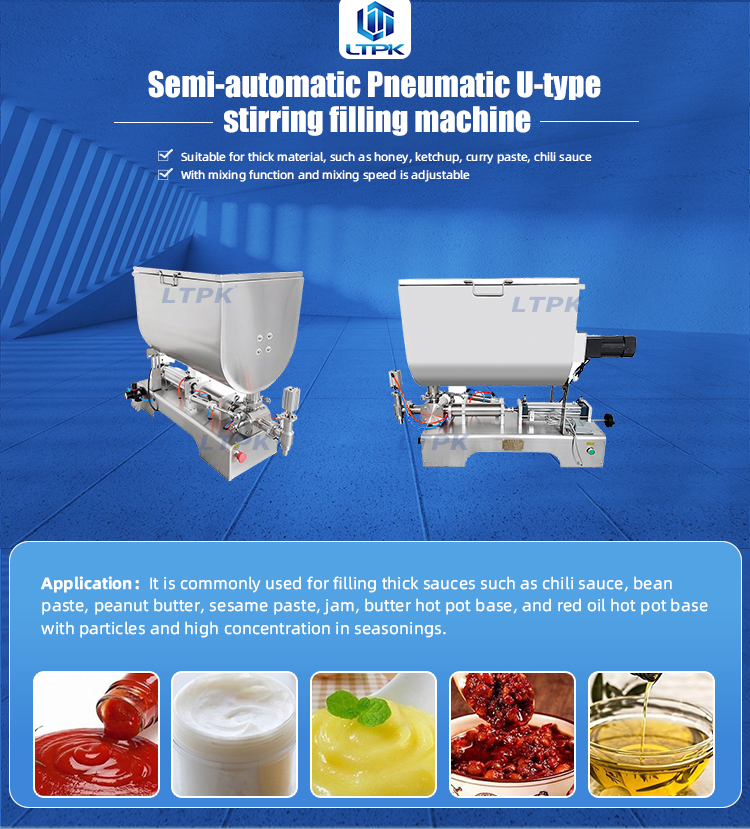

    Application
    This pneumatic filling machine is designed for high viscosity materials such as honey,sauces,chili sauce, bean paste,sesame sauce and so on.We can offer multiple nozzles of filling machine as customers’ need like 1/2/4 nozzles.This one is designed with mixing function and it can mix paste automatically.

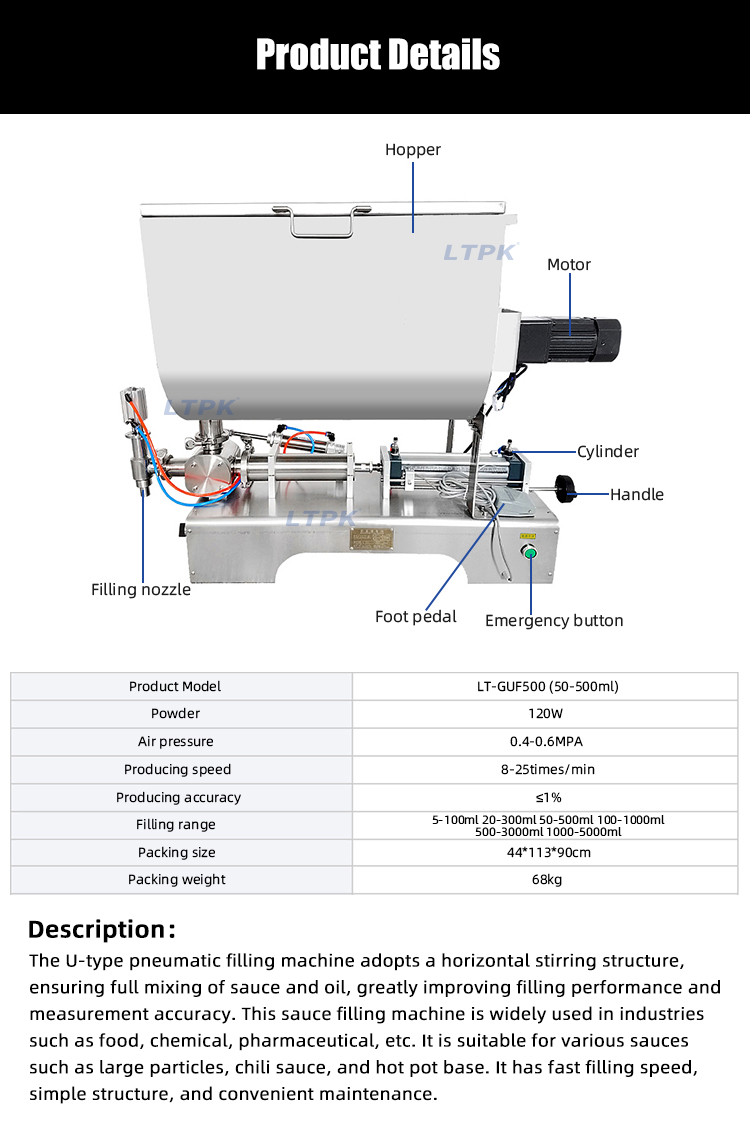

    Details Images

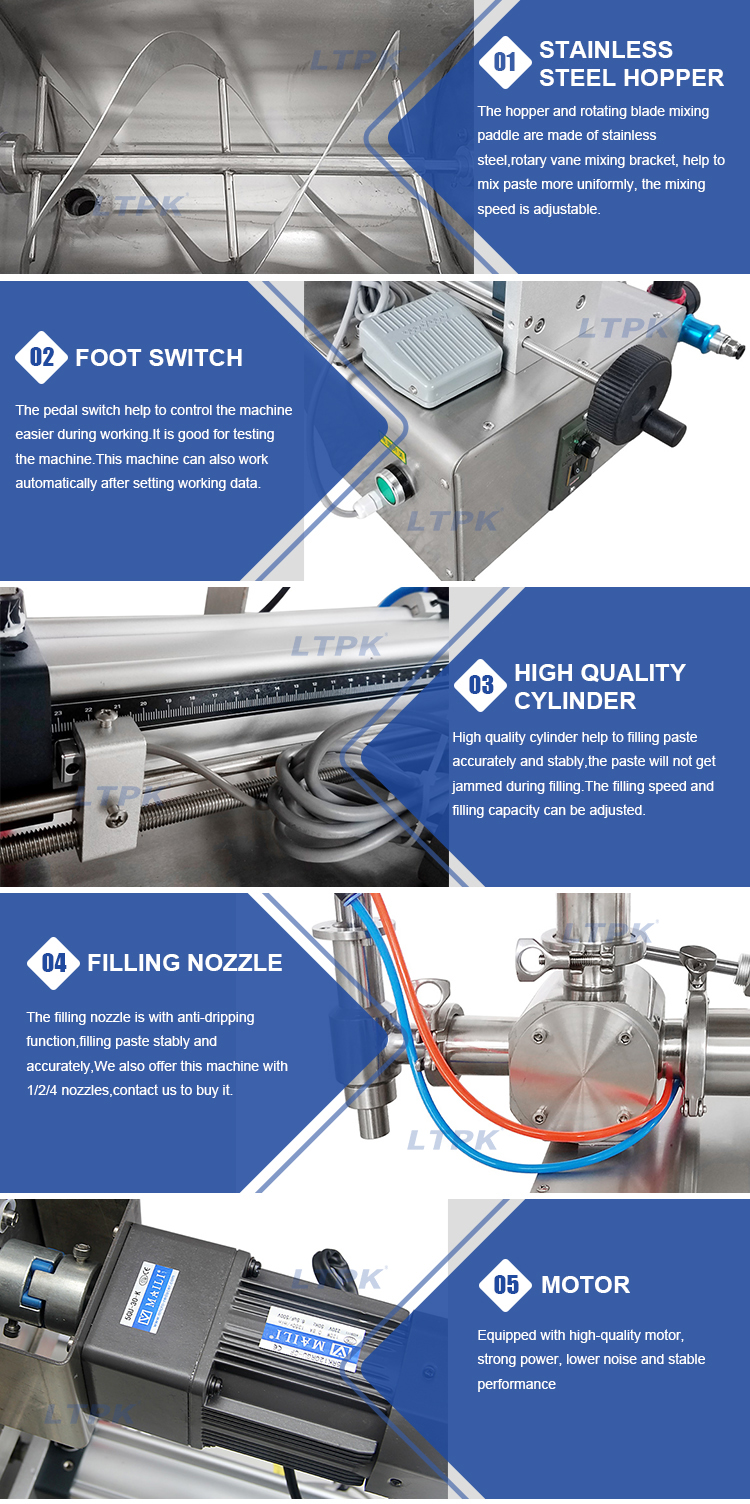

    SS 304 Hopper
    Mixing function. Uniform filling. No sediment.
    Foot switch
    Easy operate. Easy control
    Oil-water Separator
    With oil-water separator which can help you check the air pressure in all the real time and filter impurities.
    Stainless Steel Filling Nozzle
    Drip proof. Accurate filling. Corrosion resistant.
