Home Products Labeling Machine Round Bottle Labeling Machine YTK-190 Wine Double Side Round Bottle Ti
YTK-190 Wine Double Side Round Bottle Tin Can Sticker Round Water Semi-automatic Digital Bottle Labeling Printing MachineYTK-190 Wine Double Side Round Bottle Tin Can Sticker Round Water Semi-automatic Digital Bottle Labeling Printing MachineYTK-190 Wine Double Side Round Bottle Tin Can Sticker Round Water Semi-automatic Digital Bottle Labeling Printing MachineYTK-190 Wine Double Side Round Bottle Tin Can Sticker Round Water Semi-automatic Digital Bottle Labeling Printing Machine

YTK-190 Wine Double Side Round Bottle Tin Can Sticker Round Water Semi-automatic Digital Bottle Labeling Printing Machine

  • Product Item:YTK-190
  • Dimension: 74*52*35CM
  • Power: 250W
  • Applicable product diameter: φ10mm-φ150mm
  • Application press way: manual, electric, pneumatic
  • round bottle labeling machine  , double sides labeling machine
    Inquiry Send Email

    Description

    Product Description

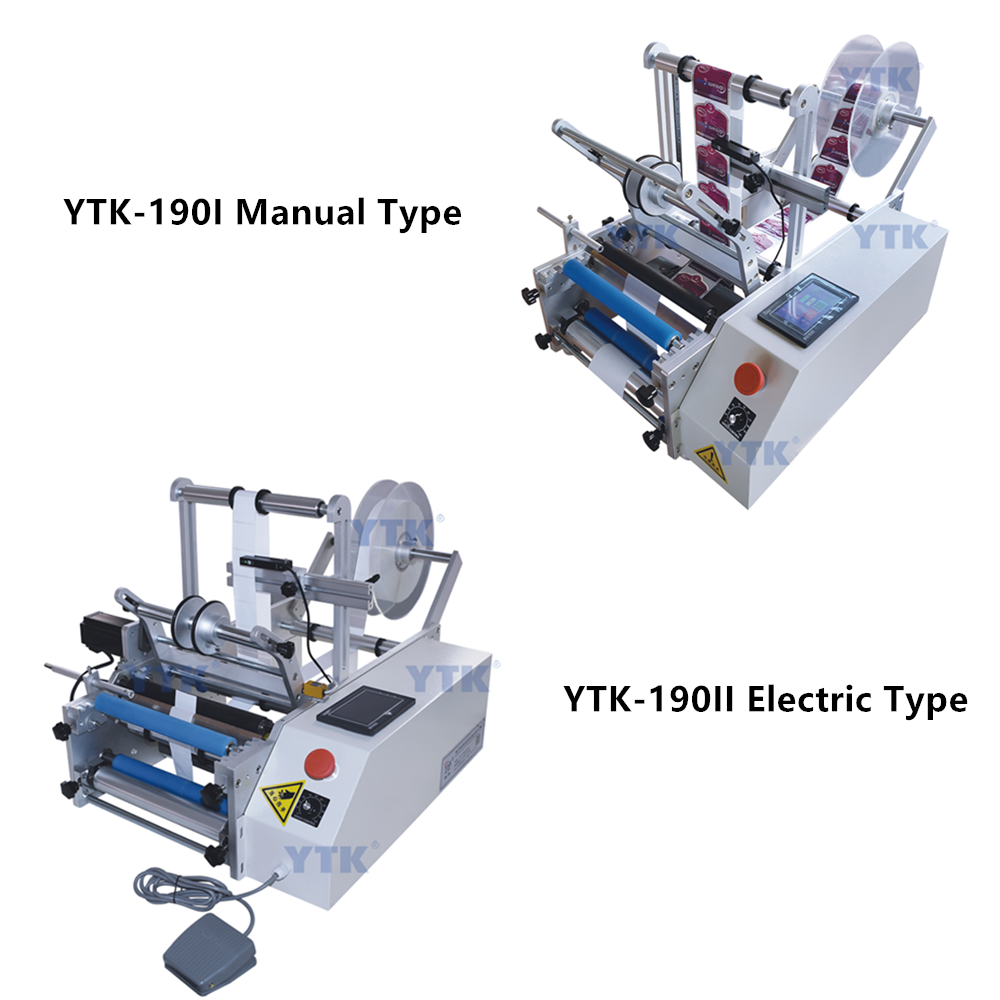

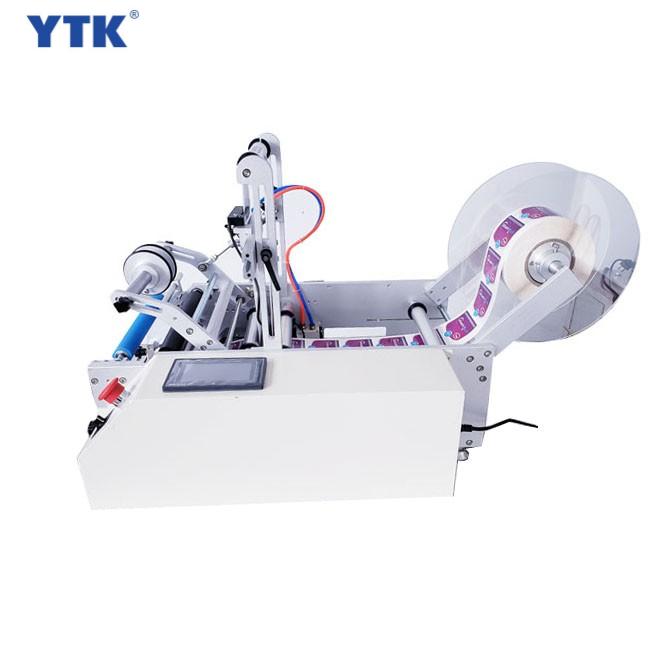

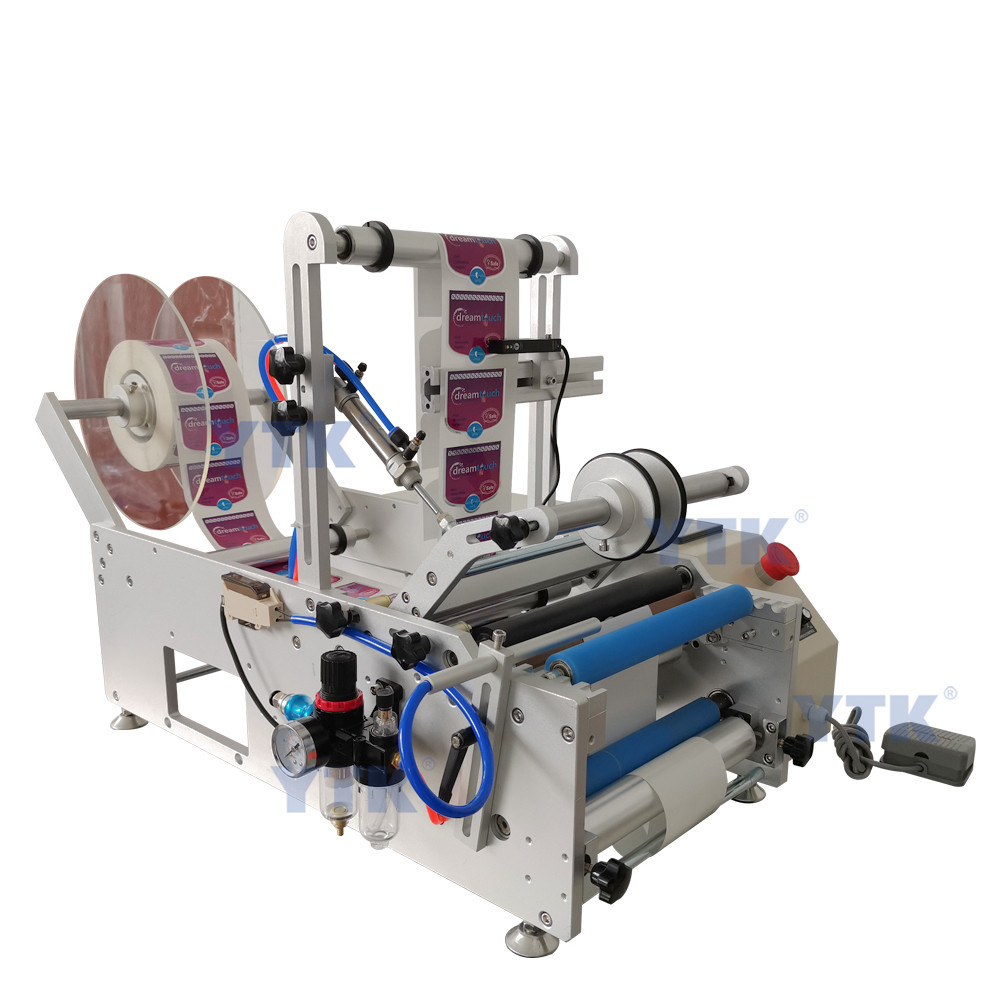

    This YTK-190III semi-automatic round bottle labeling machine is suitable for labeling of various specifications of cylindrical objects, which can realize full / half cycle labeling / front and back labeling of the circumference; the spacing between the front and back can be adjusted arbitrarily; the intelligent degree is higher, the operator only needs to put products and take items; the pneumatic switch is automatically completed; the operation process is reduced.
    Specification
    Model
    YTK-190III
    Labeling capacity(pcs/min)
    15- 30pcs/min
    Labeling accuracy(mm)
    ±1mm
    Label size(mm)
    (L)20-230mm (W)20-300mm
    Suitable Bottle Diameter
    Φ10-φ150mm
    Suitable Bottle Height
    ≤26cm
    Roll inside diameter(mm)
    φ75mm
    Roll outside diameter(mm)
    ≤φ250mm
    Power supply
    AC220V 50Hz/110V 60Hz 150W
    Machine size
    About 450*930*525mm
    Package Size
    About 755*535*380mm
    Net weight/Gross weight
    About 42.5KG/50KG
    Advantage
    1.Two working mode:Pedal switch control or automatic working mode 2.Labeling function:Single side labeling and double side labeling 3.Labeling speed is adjustable,improve the working efficiency greatly 4.Can be equipped with date printer,make labeling and printing at one machine.

    Working Principle

    The bottle sensor will send a signal to the control system once you put the bottle on bottle holder(if you choose pedal mode,it will send a signal when you press the pedal).Then the system controls the label to be sent out and attach labels to the suitable position.After that,it will return back and wait for the next signal.
    Application

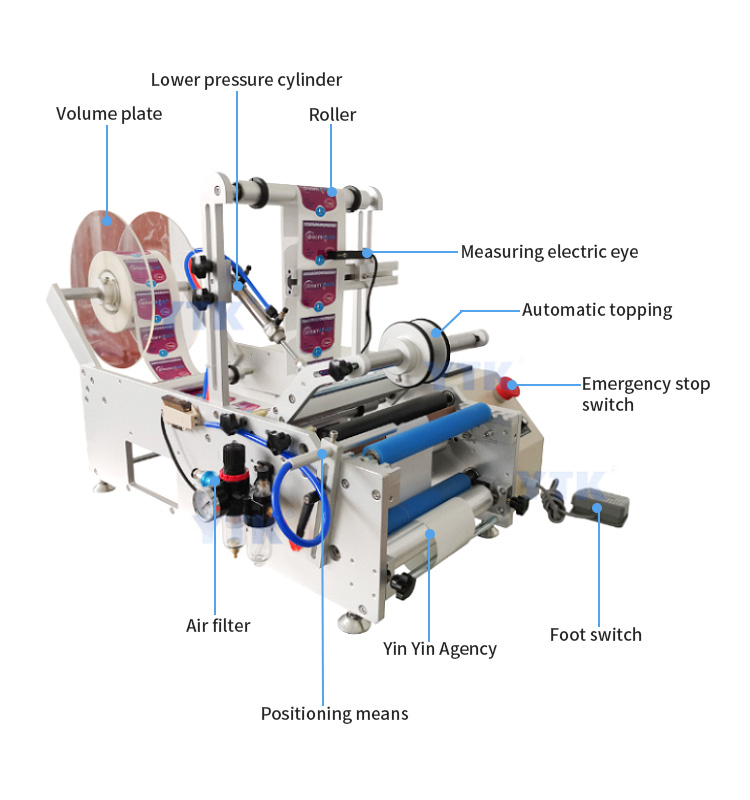

    Details Images

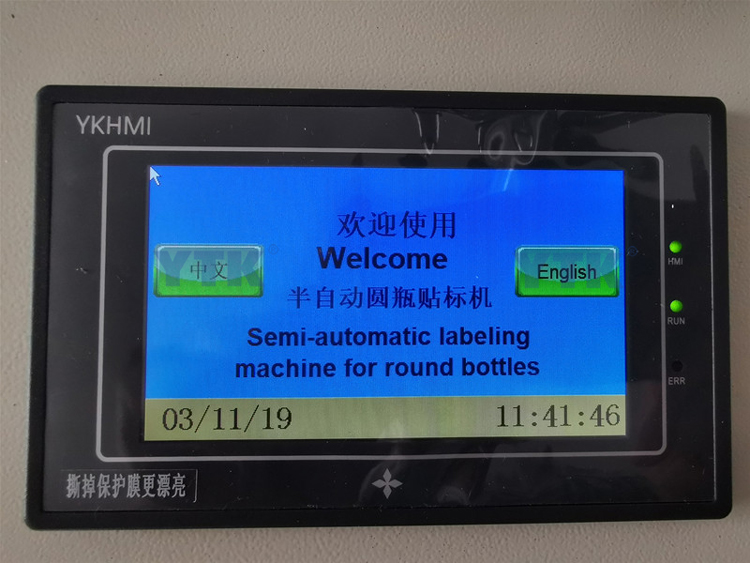

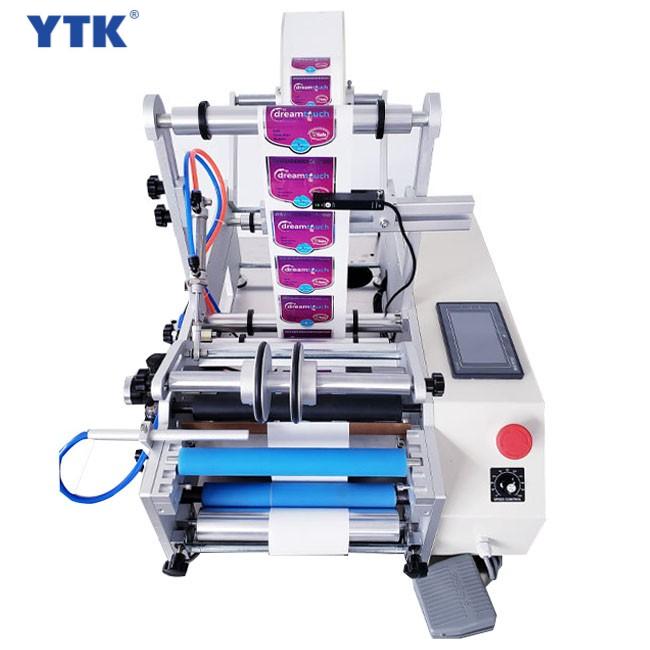

    Operation Panel
    This machine can be used for single side or double side labeling.English operation panel make it easy to test and use the machine.

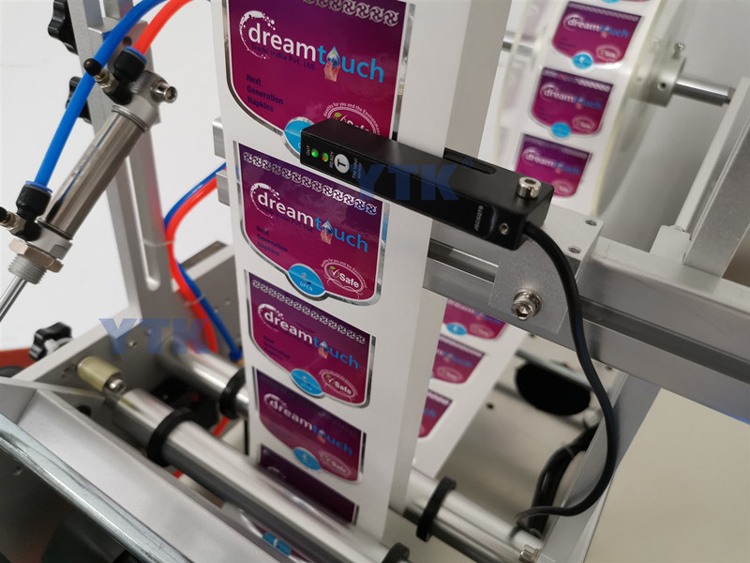

    Electric eye
    It can detect the label/bottle accurately, this prevent from leaking and wasting label/bottle.

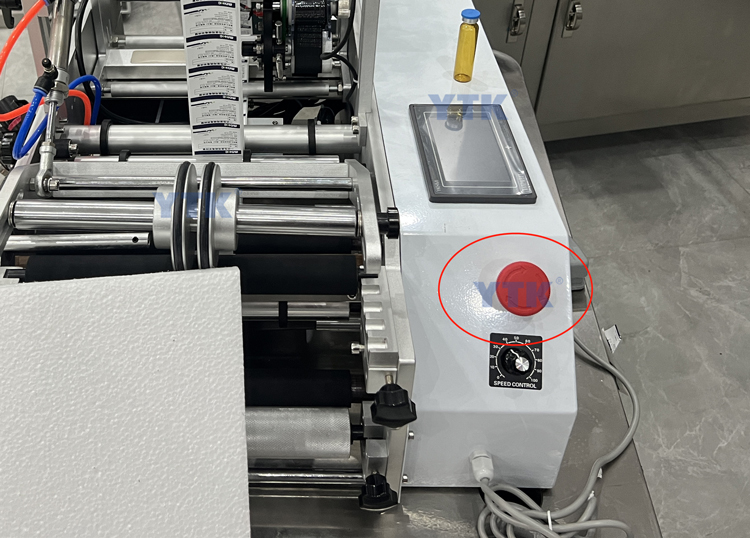

    Stop button
    With stop button,can protect the machine from damaged and keep the operator safe during working.The labeling speed is also adjustable for control the machine better.

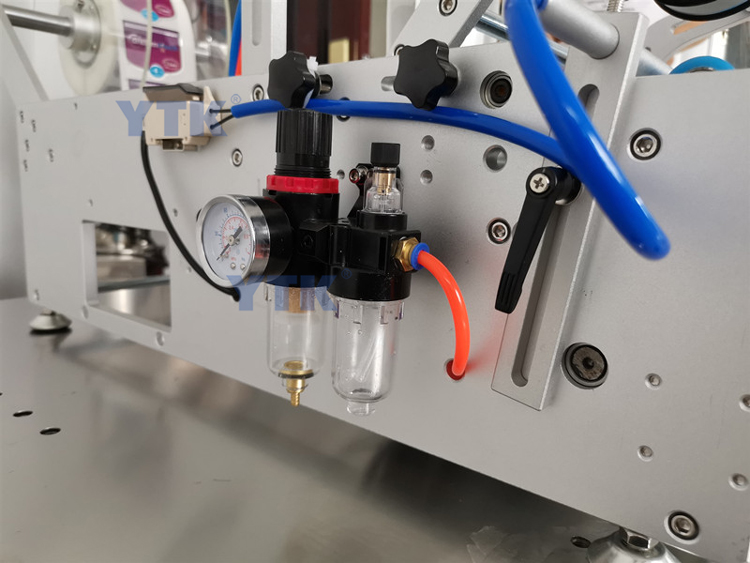

    Barometer
    With barometer which can help you check the air pressure in all the real time.Customer can adjust the air pressure as their need.Please notice that you need to buy the air compressor separately.

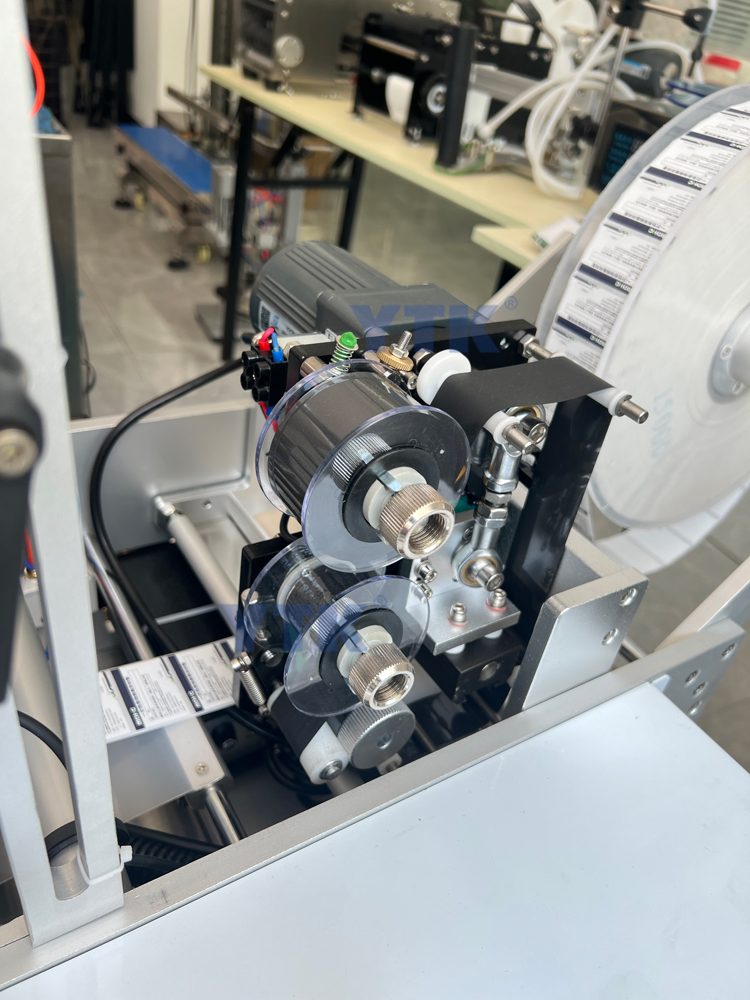

    Date coder
    This machine can add date coder to print date on the bottle.
