Home Products Filling Machine Paste Filling Machine YTK-GTH1V Semi Automatic Full Pneumatic

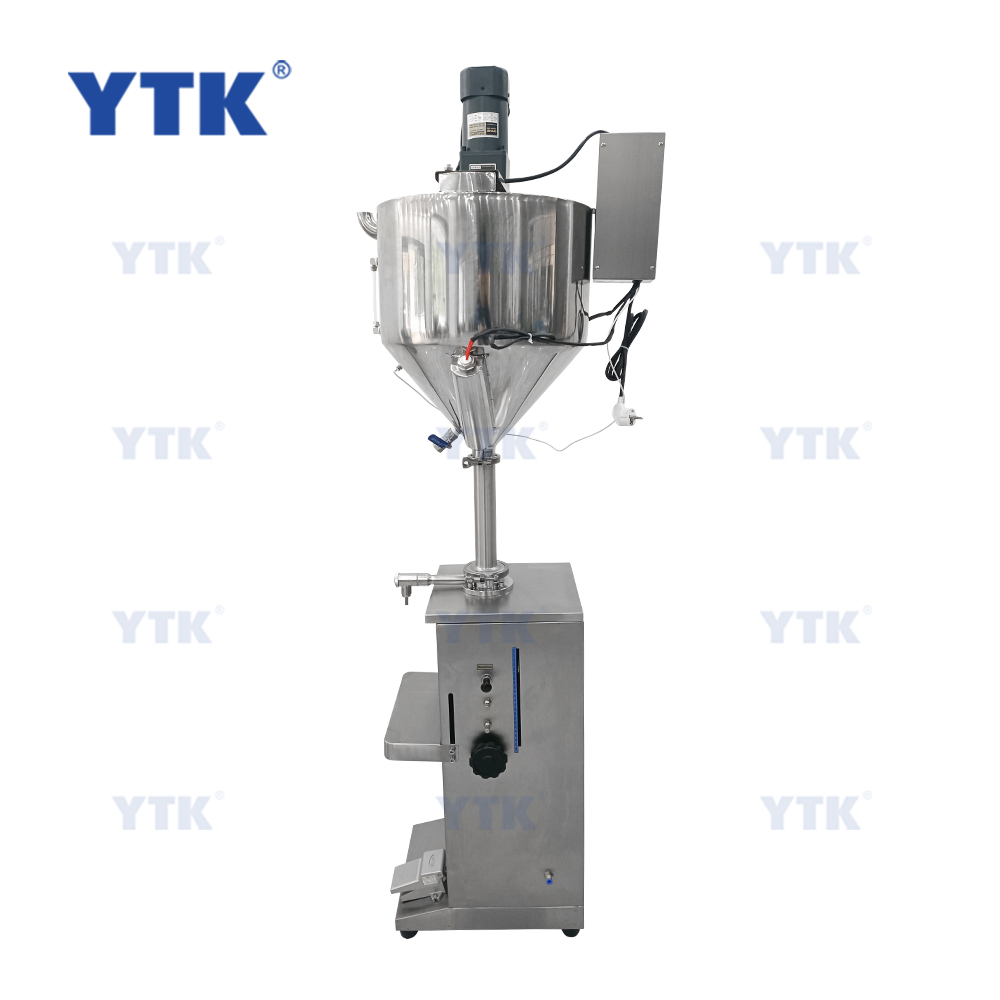

YTK-GTH1V Semi Automatic Full Pneumatic Maple Syrup Sauce Gel Peanut Paste Bottle Filling Machine Cream Lip Gloss With HeaterYTK-GTH1V Semi Automatic Full Pneumatic Maple Syrup Sauce Gel Peanut Paste Bottle Filling Machine Cream Lip Gloss With HeaterYTK-GTH1V Semi Automatic Full Pneumatic Maple Syrup Sauce Gel Peanut Paste Bottle Filling Machine Cream Lip Gloss With Heater

YTK-GTH1V Semi Automatic Full Pneumatic Maple Syrup Sauce Gel Peanut Paste Bottle Filling Machine Cream Lip Gloss With Heater

  • Dimension(L*W*H): About 300mm*320mm*1555mm
  • Weight: 32 KG
  • Hopper Capacity:30L
  • Size of Air Compressor Connector: OD 8mm
  • Inquiry Send Email

    Description


    Full Pneumatic Paste filling machine

    1.Fully pneumatic,this machine is suitable for flammable liquid/paste

    2.Different filling range can be chosen according to production need


    Specification
    Machine Model
    YTK-GTH1V
    Filling Range
    5-100ml/10-300ml/50-500ml/100-1000ml
    Filling Speed
    About 1-25bottles/min
    Filling Nozzle Diameter
    OD 8mm
    Hopper Capacity
    30L
    Filling Accuracy
    ±1%
    Air Pressure
    0.4-0.6MPa
    Size of Air Compressor Connector
    OD 8mm
    Machine Weight
    About 32kg
    Machine Size
    About 300mm*320mm*1555mm
    Package Weight
    About 46KG
    Package Size
    About 1595mm*450mm*460mm
    Application
    This piston pump filling machine is used for filling liquid or paste into bottles,the filling speed can be adjusted according to operation need.This machine is widely used in food,beverage,daily chemical and cosmetics industries.
    Details Images

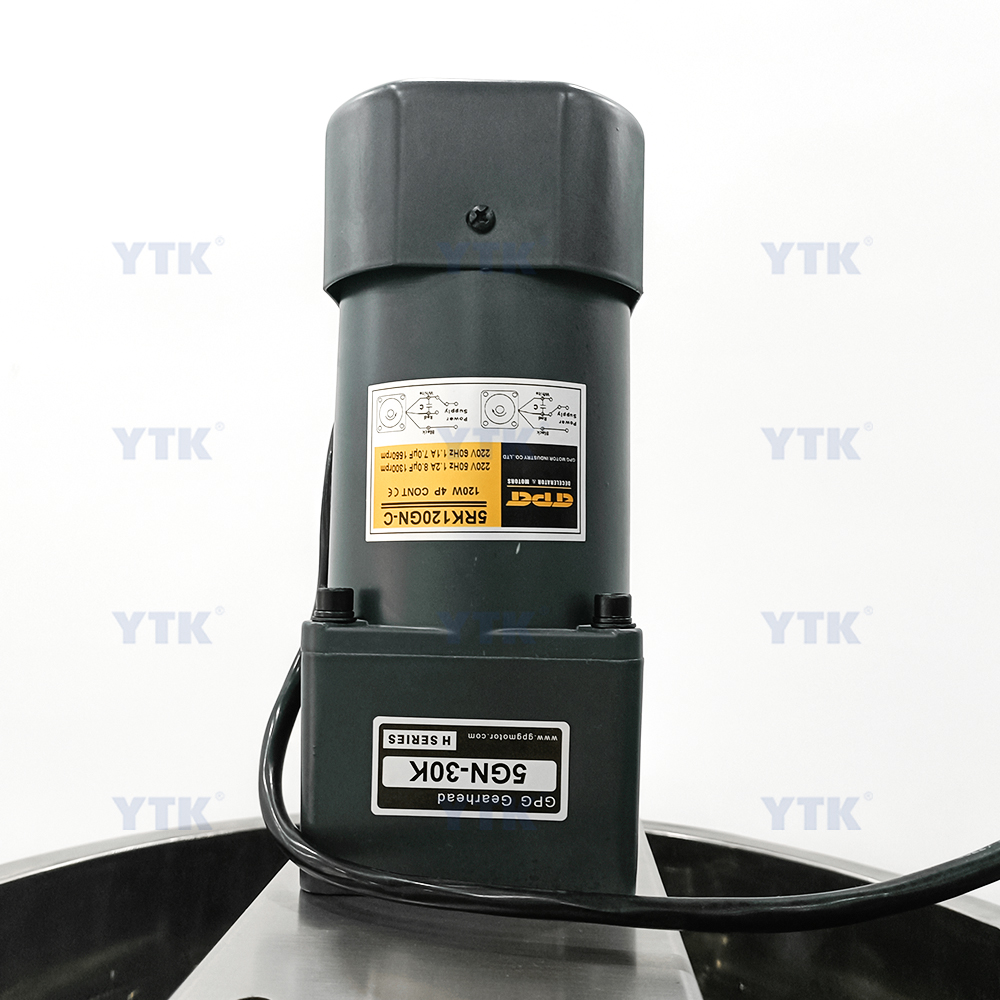

    Heating Motor
    Designed with heating function hopper,this is good for pouring liquid/paste,this can get the paste or liquid flow more smoothly and improves filling accuracy.

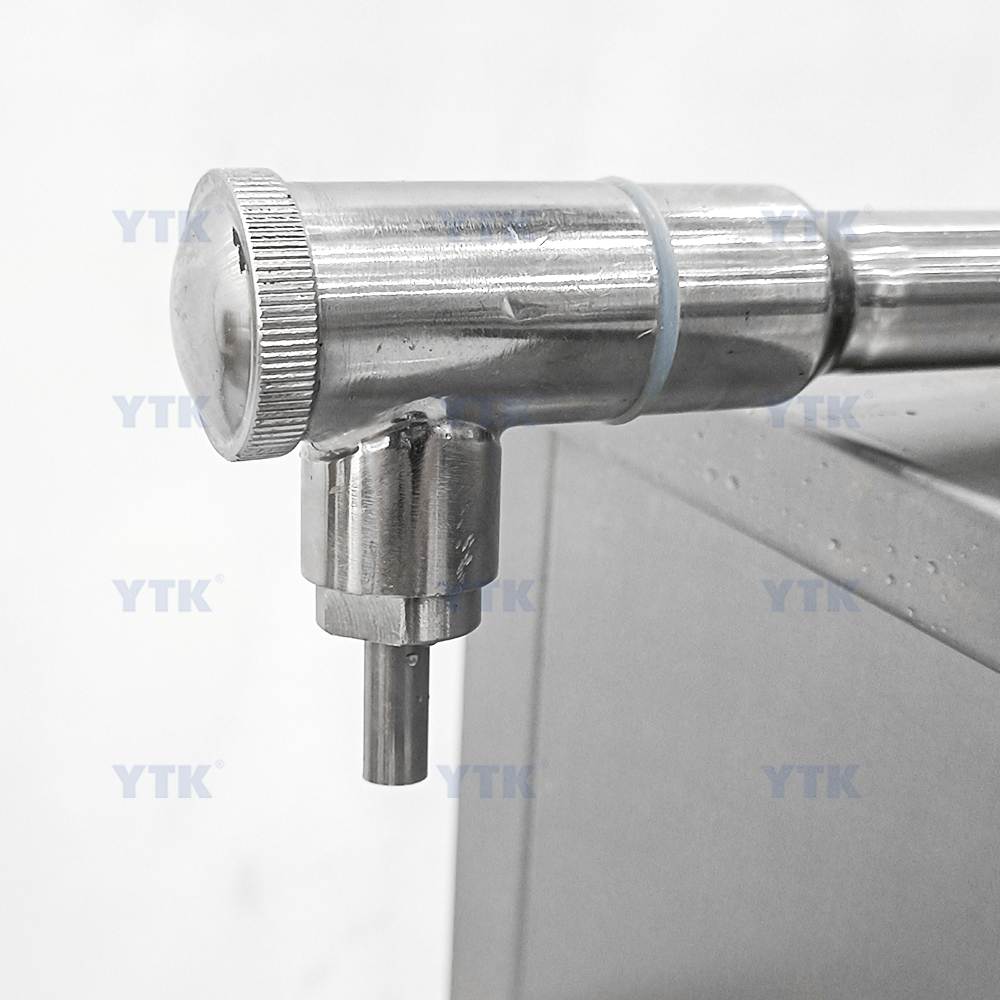

    Stainless steel discharge nozzle
    The filling nozzle is made of high quality materials,we also offer different size of filling nozzle which can be replaced according to operation need,improves production quality.

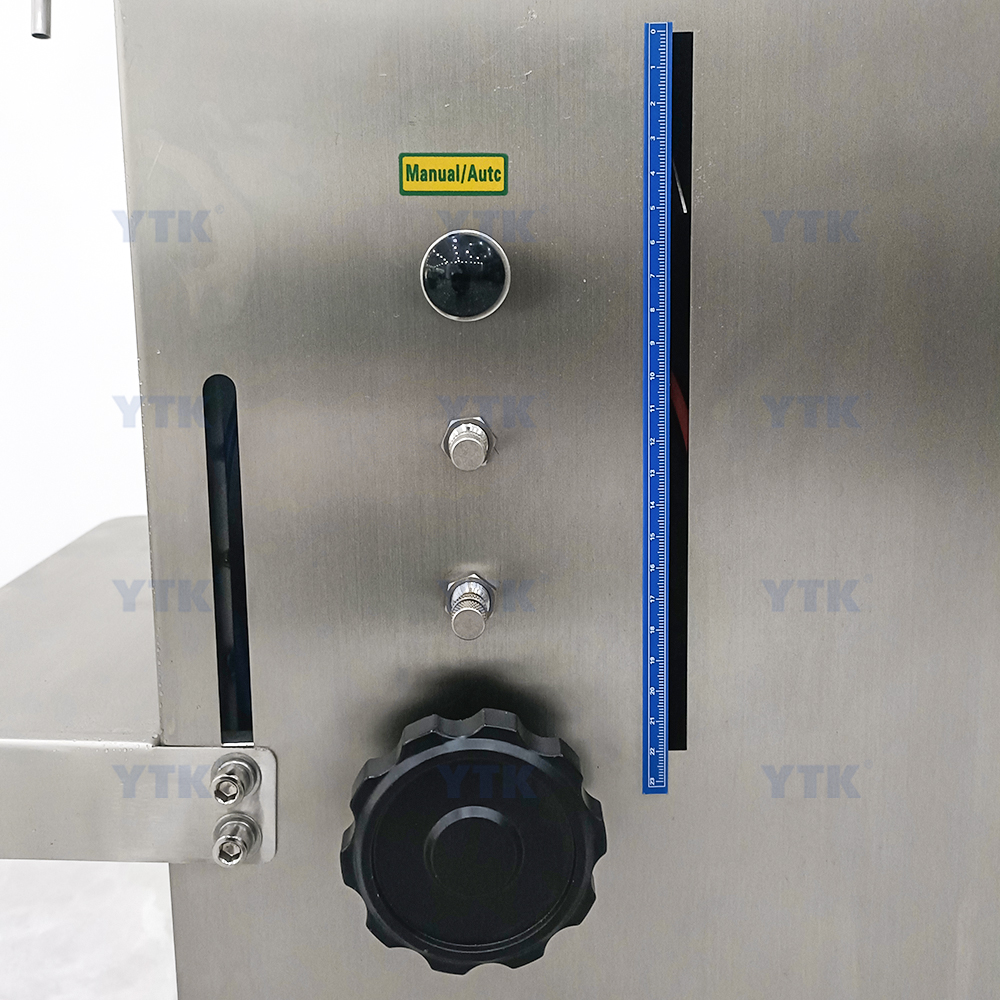

    The working height of the tray can be adjusted by the rotary knob.Working mode can be changed by pressing one button.Operator can
    use the middle two screws to control the interval time and filling speed indirectly.
    Foot Pedal
    Equipped with foot pedal switch,this is more convenient to adjust the machine and help operator reduce production error.
