Home Products Filling Machine Liquid Filling Machine YTK-360S small liquid filling machine 30
YTK-360S small liquid filling machine 304 stainless steel pump cup filler machine bottle filler filling bottleYTK-360S small liquid filling machine 304 stainless steel pump cup filler machine bottle filler filling bottleYTK-360S small liquid filling machine 304 stainless steel pump cup filler machine bottle filler filling bottle

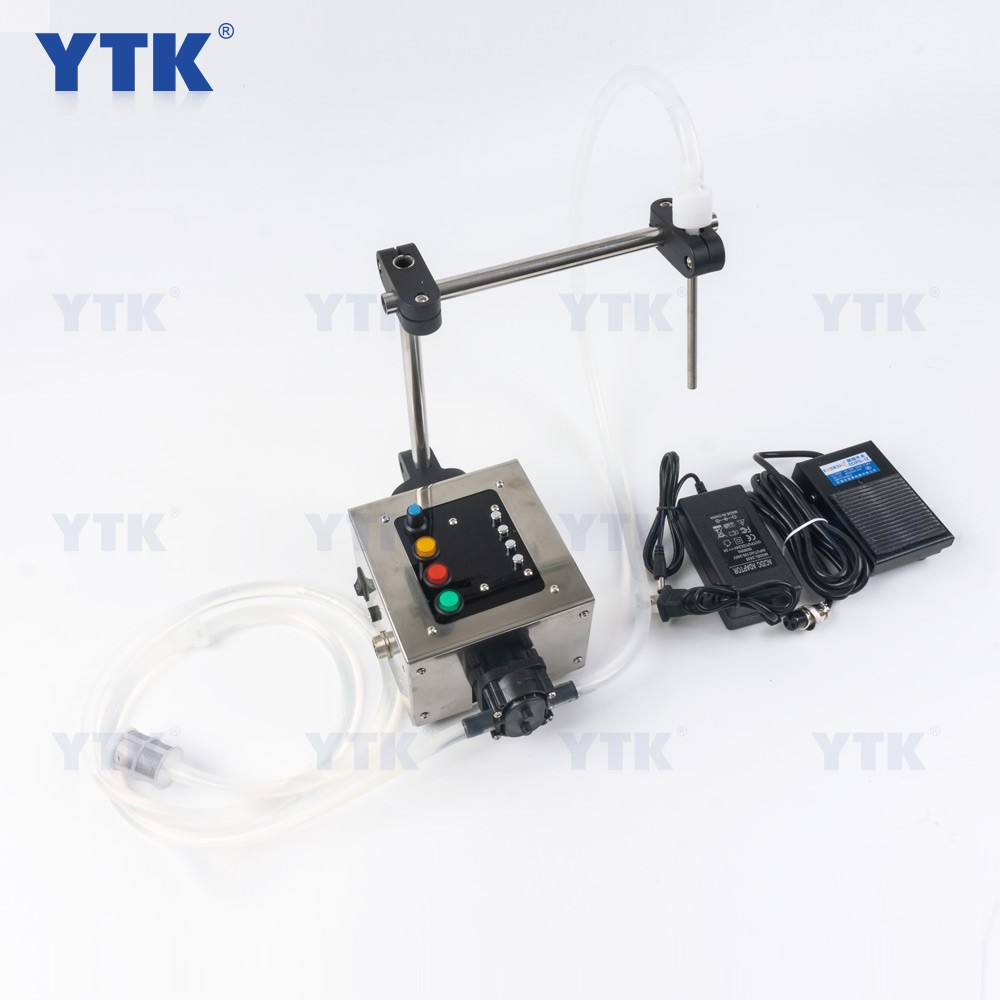

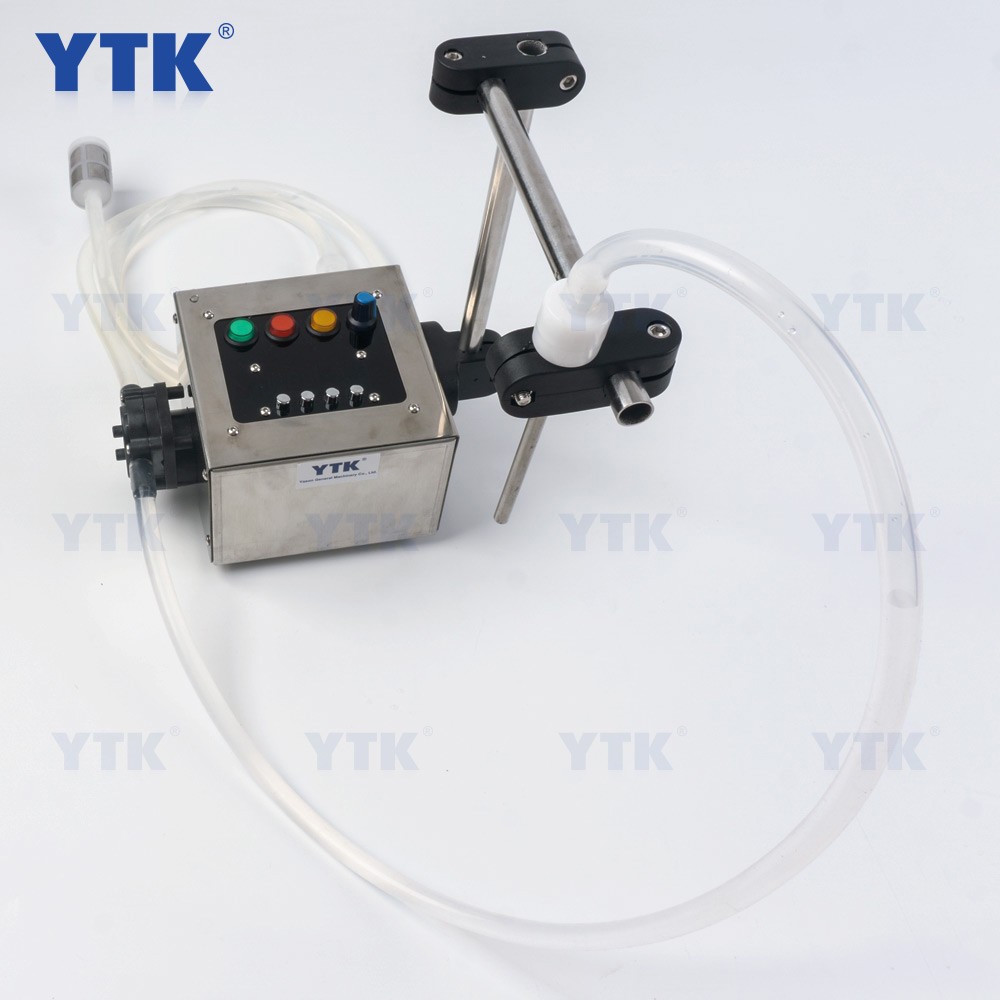

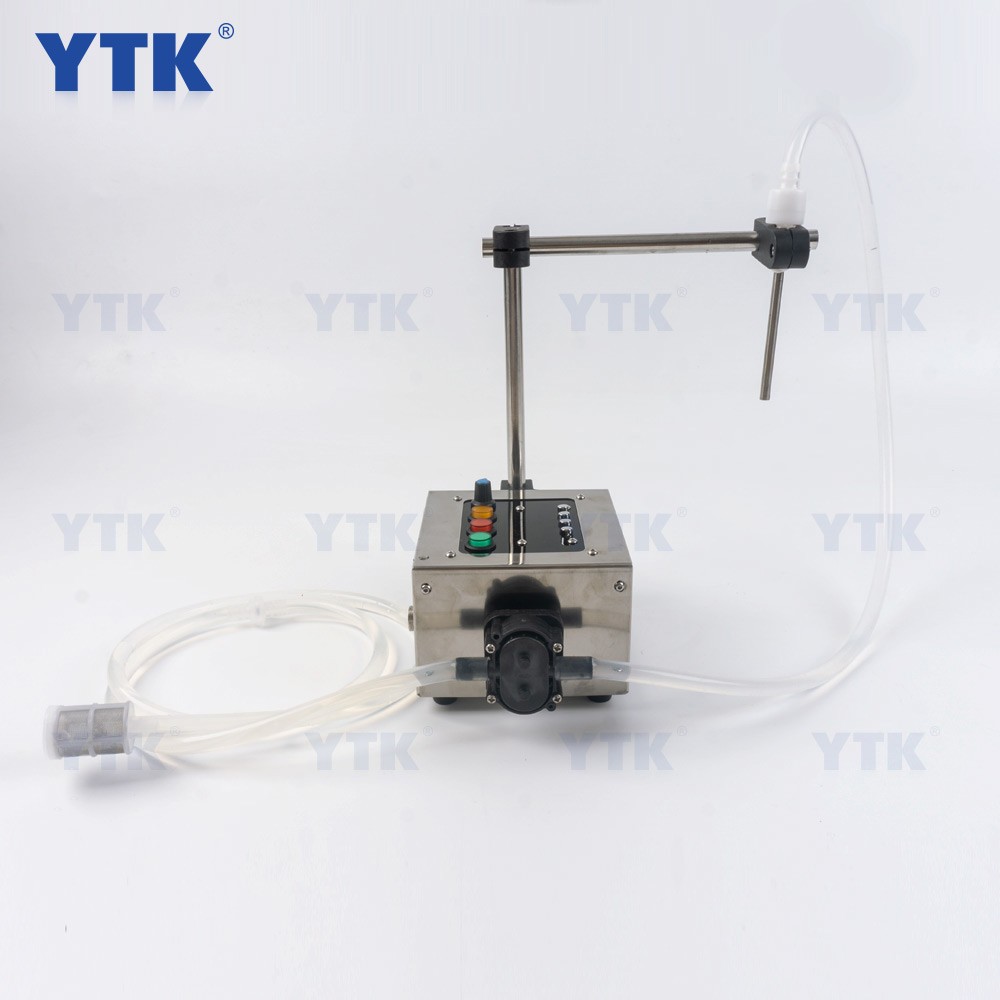

YTK-360S small liquid filling machine 304 stainless steel pump cup filler machine bottle filler filling bottle

  • Product Item:YTK-360S
  • Dimension(L*W*H): 290*170*190mm
  • Weight: 1.8kg
  • Power Adapter: 24V/2A 48w
  • Pump Shaft Material: 304 Stainless Steel
  • liquid filling machine
    Inquiry Send Email

    Description

    Product Description

    Description of machine


    This small machine has a crucial different from other similar products in the market which is the pump. Other similar products uses weak diaphragm pump, ours are gear pump which is 3 times more expensive.

    Notes Do not use the pump while it’s dry, without the lubrication of liquid, the gears will wear out more quickly than you think and shorten the lifespan of the pump.


    Parameters of machine

    Package Size (mm)
    290*170*190
    Machine Size (mm)
    220*135*100
    Package Weight
    1990g
    Max. Liquid Temperature
    70℃ (158℉)
    Max. Liquid Flow
    4000ml/min
    Power Adapter
    24V/2A 48w
    Pump Power
    35w
    Pump Shell Material
    PPS
    Pump Gear Material
    Nylon
    Pump Shaft Material
    304 Stainless Steel
    Machine Shell Material
    304 Stainless Steel
    Machine Nozzle Material
    304 Stainless Steel

    User Manual

    Green Button Press to fill one time Red Button Press to stop filling immediately Yellow Button Press down and the button will lock, machine will filling with nonstop unless you press it again to unlock. Blue Knob Speed adjustment for filling pump motor speed. Lower button from Left to Right 1. Stop Button 2. Set Button 3. Increase Button 4. Decrease Button
