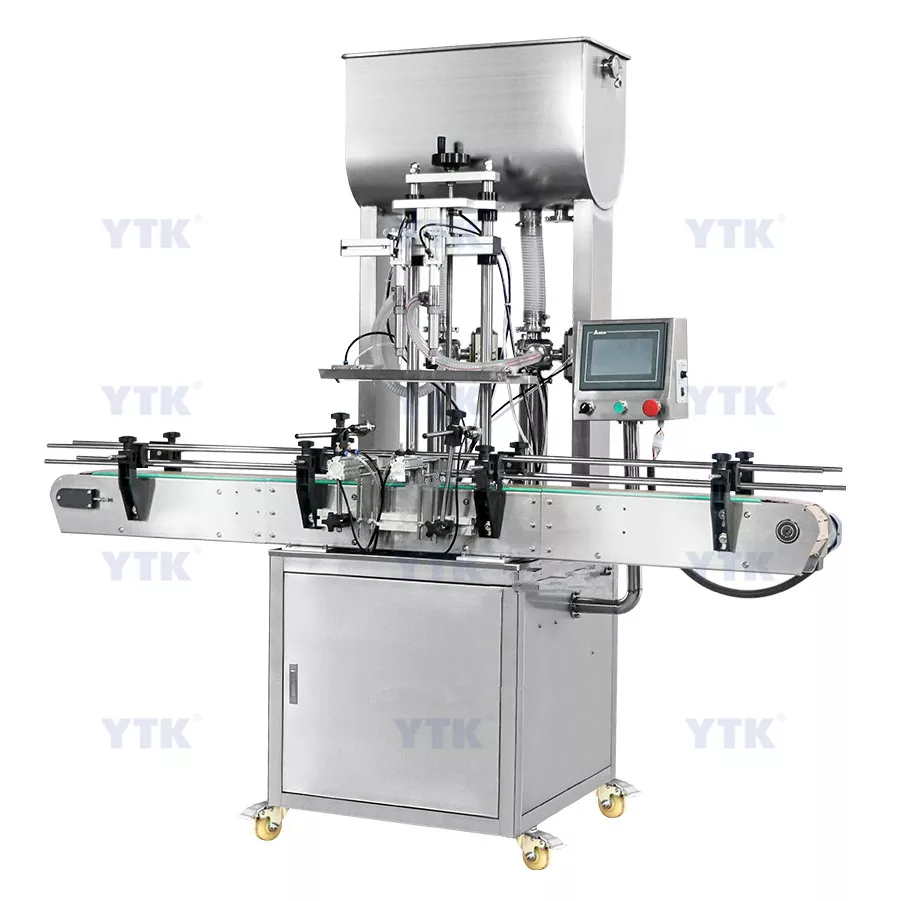

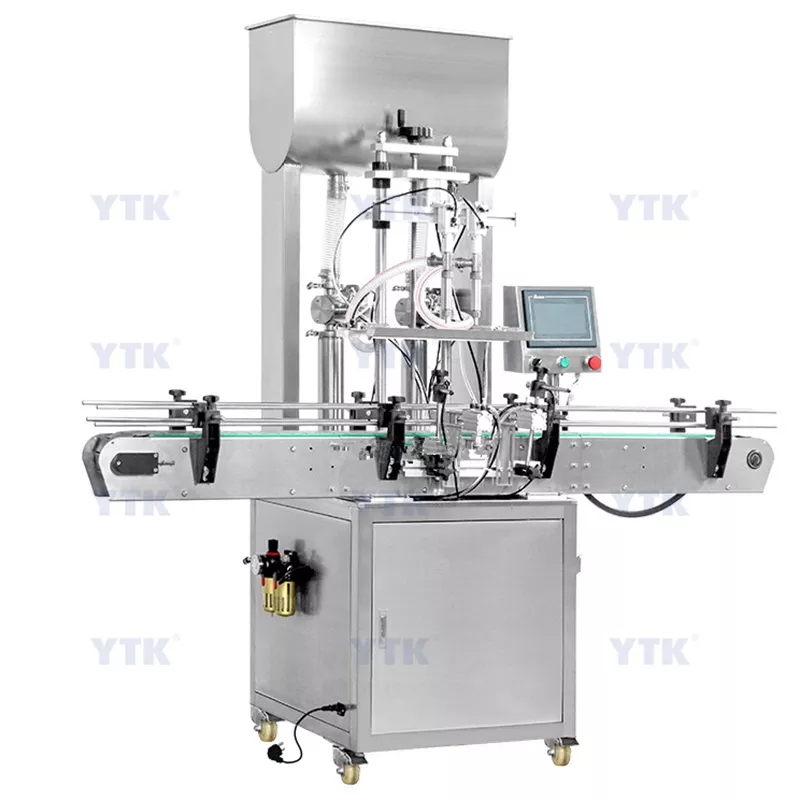

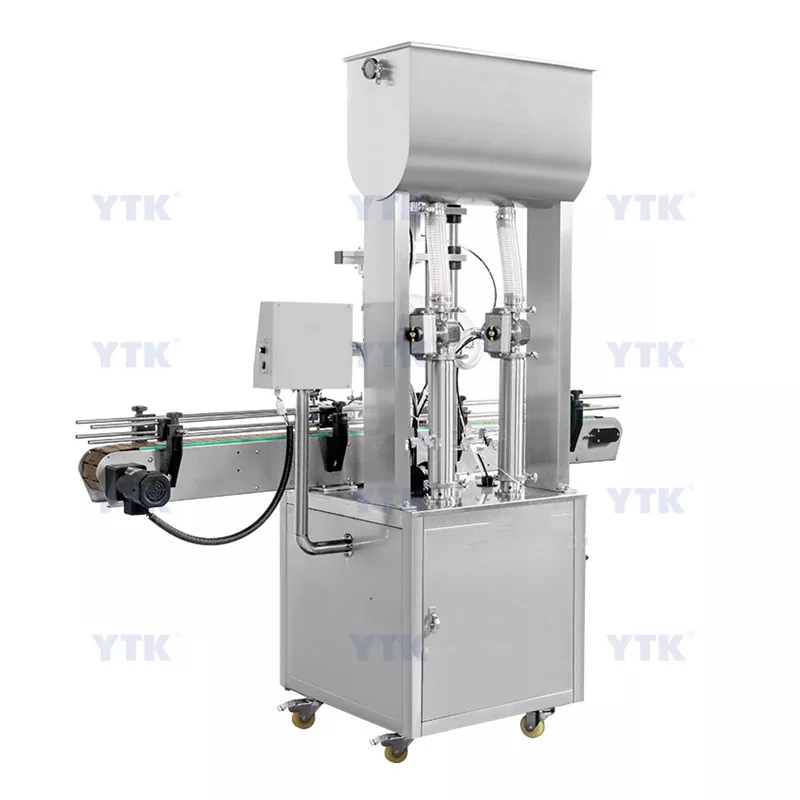

Automatic Sauce Paste Drip-proof Two Heads Filling Machine

  • Product Item：YTK-QZDG2 100-1000ML
  • Dimension(L*W*H): About 2000*1200*2300mm
  • Filling range: 10-100ml, 30-300ml, 50-500ml, 100-1000ml, 500-3000ml, 1000-5000ml
  • Power: 800W
  • Speed: 50-60bottles/min
    • automatic hot sauce filling machine
    Inquiry Send Email

    Description

    Product Description
    Specification
    Model
    YTK-QZDG2 100-1000ML
    Voltage
    110/220V 50-60HZ
    Flling range
    5-100ml/10-300ml/50-500ml/100-1000ml/500-3000ml/1000-5000ml
    Working speed(base on water)
    10-40bottles/min
    Filling accuracy
    ≤+1%
    Conveyor size
    About 1990*100mm(L*W)
    Size of filling nozzle
    φ10mm
    Size of air compressor connector
    φ10mm
    Power of whole machine
    800W
    Net weight/Gross weight
    About 220kg/370kg
    Machine size
    About 2000*1200*2300mm
    Package size
    About 1150*1000*2130mm
    This filling machine is in larger filling flow rate,can be used to fill liquid and paste.We can offer multiple nozzles of filling machine as customers’ need like 2/4/6/8 nozzles.The custom-designed liquid filling machine can give your facility the solution it needs to help boost productivity and minimize breakdowns.
    Application

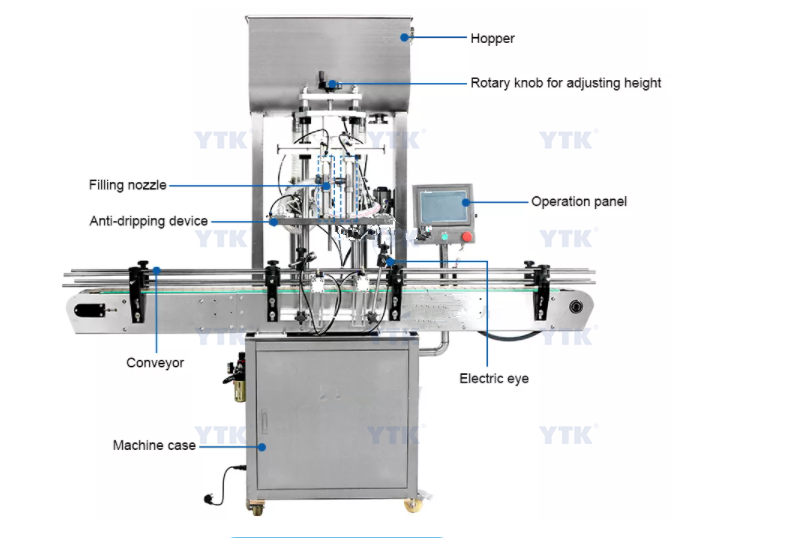

    Details Images

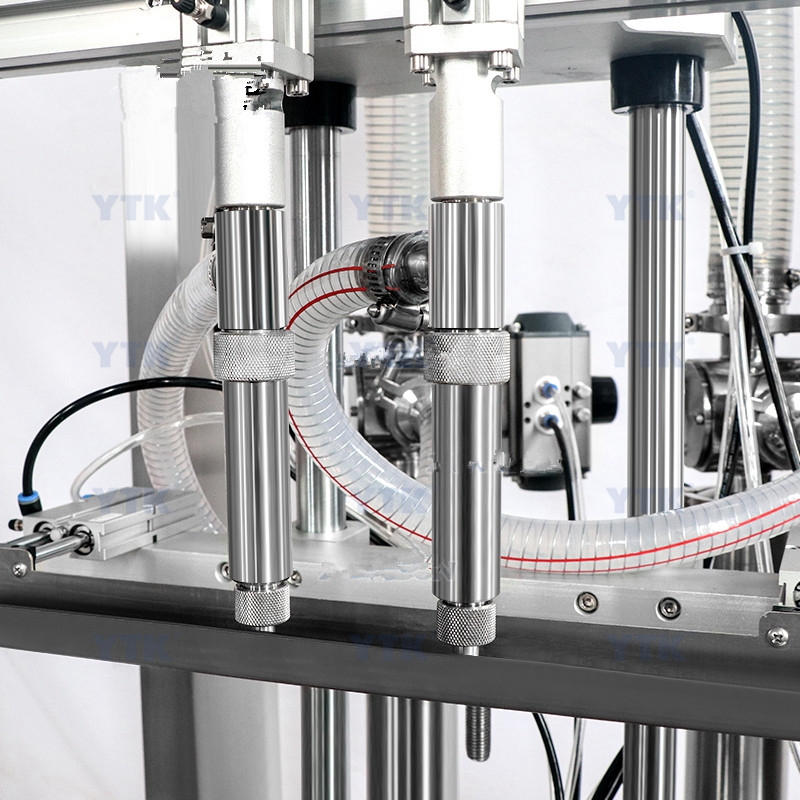

    Filling nozzles with anti-dripping design, we can customize multiple filling nozzle as production needs.Each nozzle of this machine can be controlled separately.

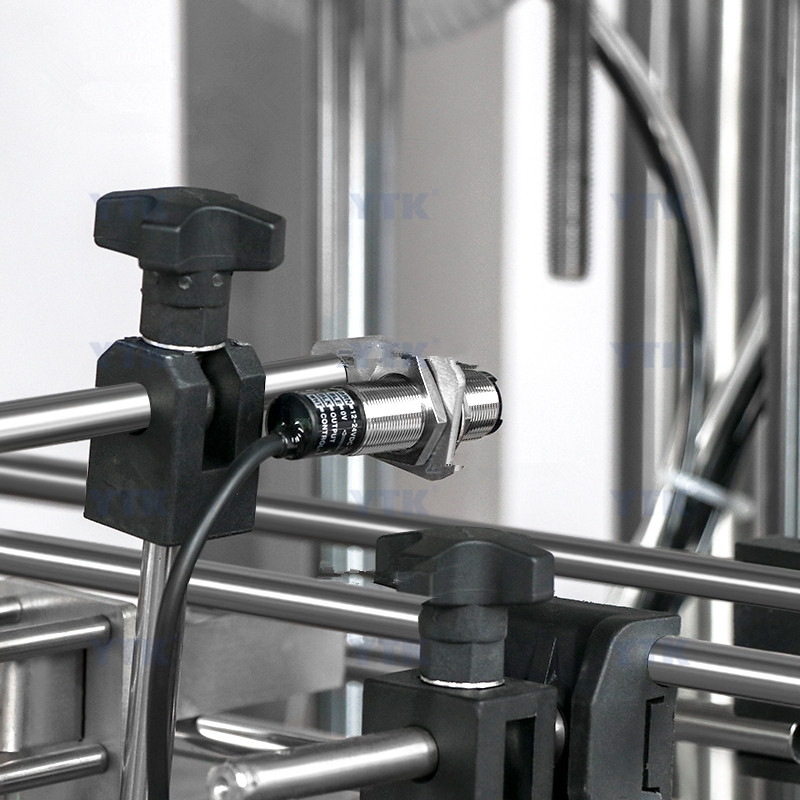

    The bottle sensor can be used to detect bottles and prevent from missing or wasting bottles,this ensures the filling accuracy.

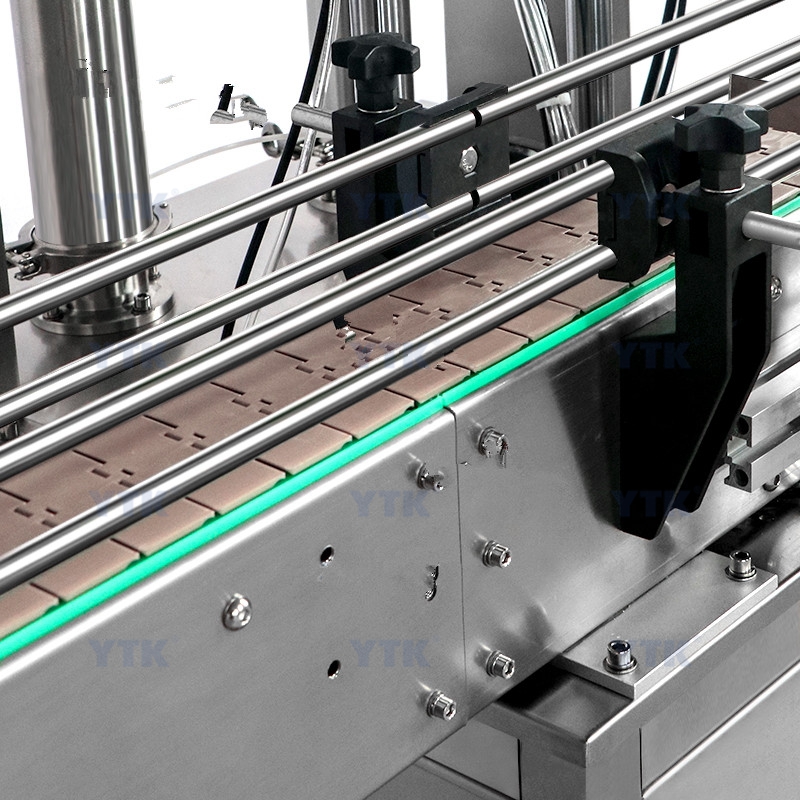

    High quality conveyor belt makes it smoother when transferring bottles,the size of it is 1990mm*100mm(L*W),we can customize the size according to your production needs.
