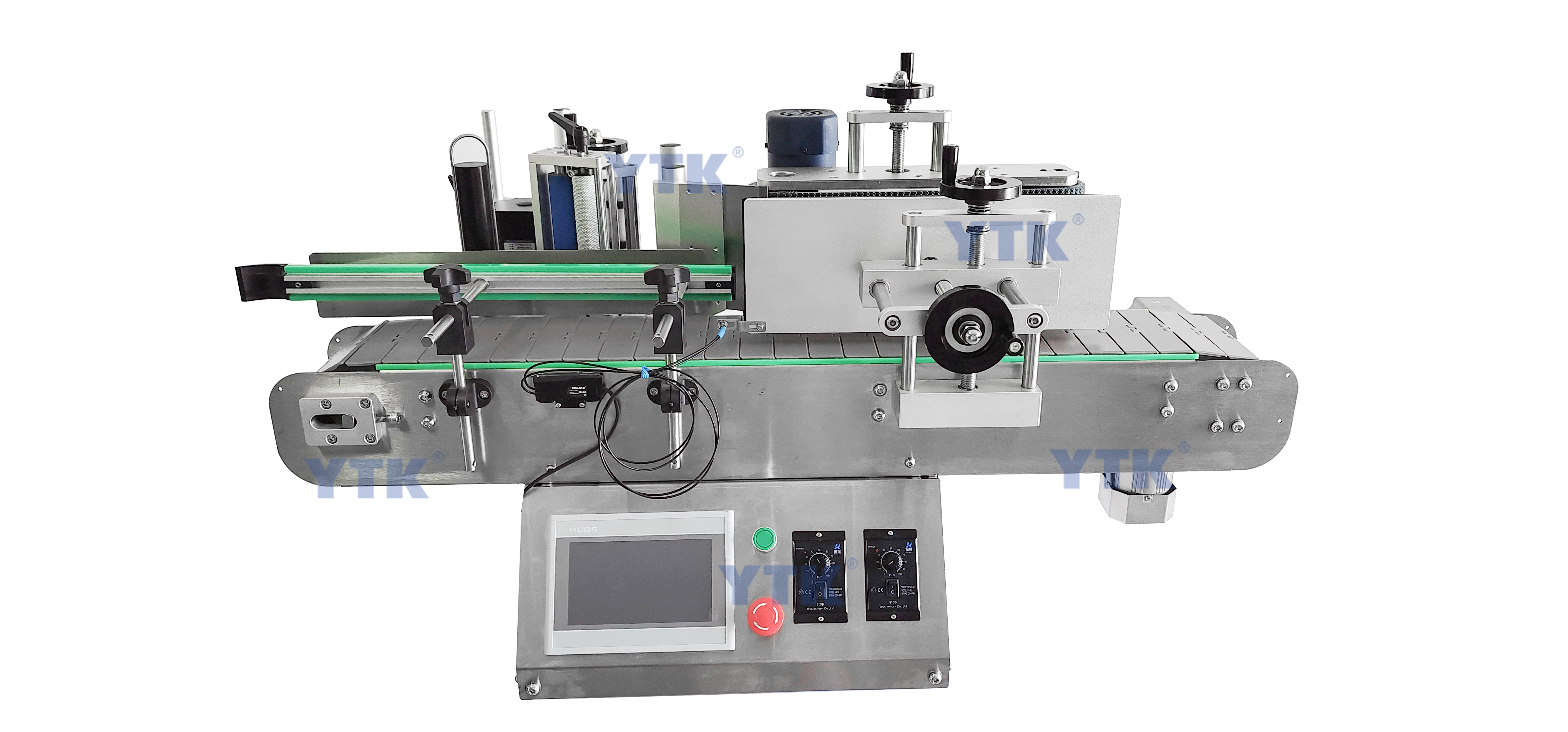

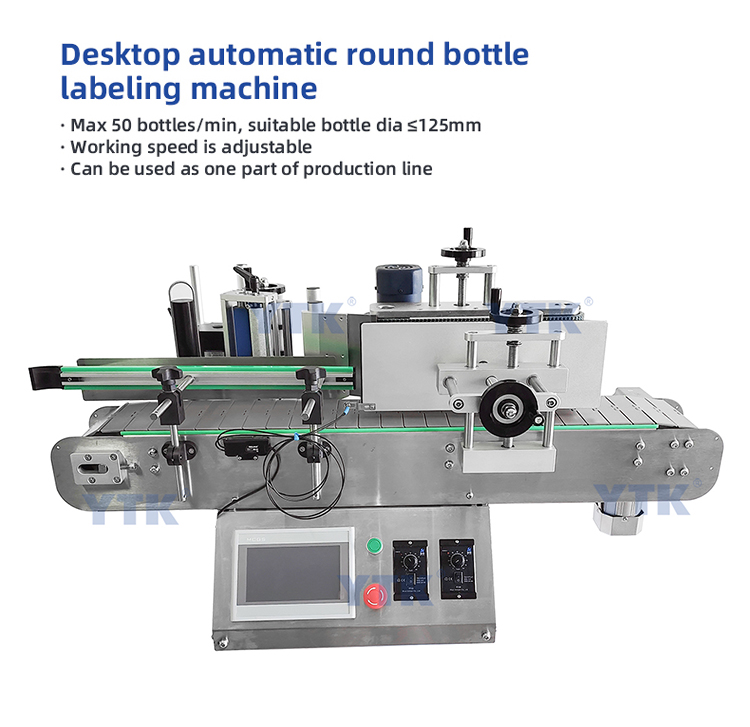

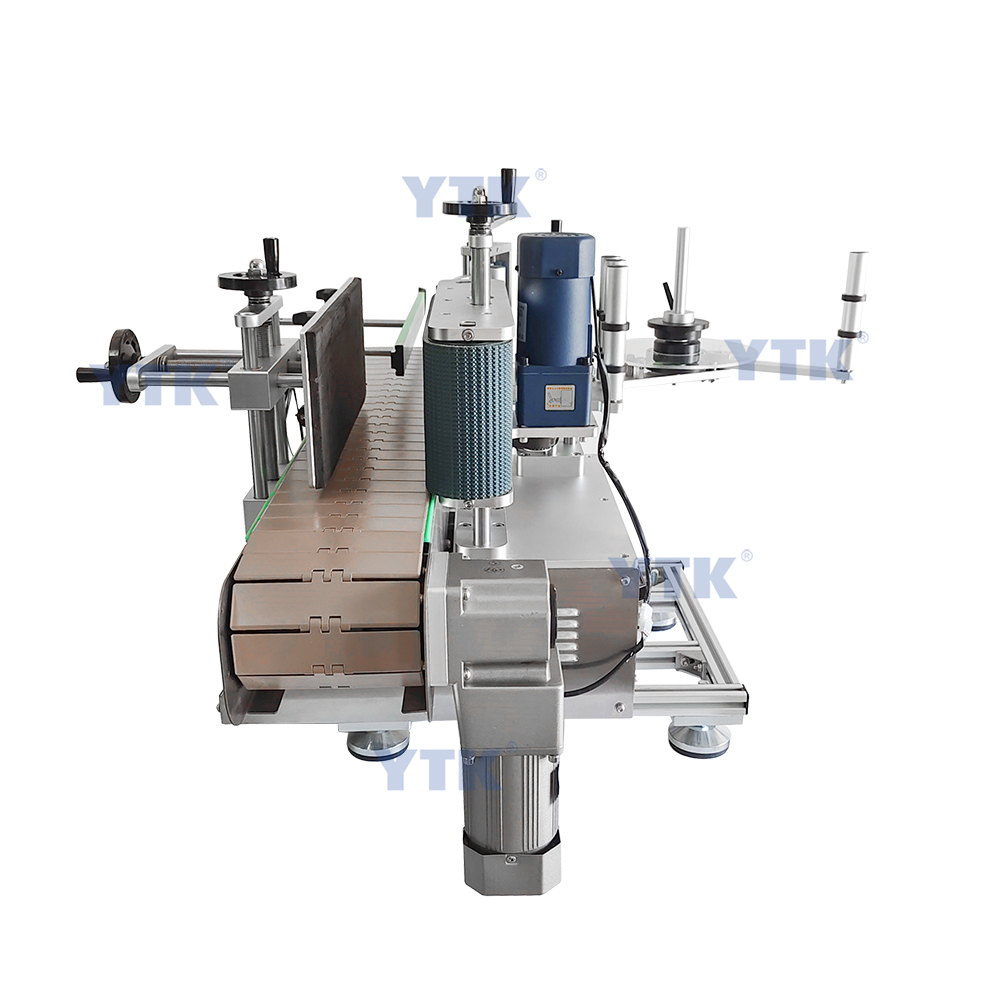

This automatic bottle labeling machine is with a conveyor and it has similar functions like the full automatic labeling machine.It is with a reasonable design and the dimension is not that large as the full automatic labeling machine.It is the ideal choice for most of suppliers.
220V / 50Hz 400w
±1mm (excluding product and label errors)
About 25~50 pieces / minute
Applicable product size
Φ20 ~ 125mm / height 25 ~ 350mm
Applicable label size
length 25~200mm / width 15 ~ 150mm
Min.label roll inner diameter
Max. label roll out diameter
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
Top branded electric components and accessories give this machine steady running bases. With PLC control and touch screen operating, we strive to offer the best user experience we could.

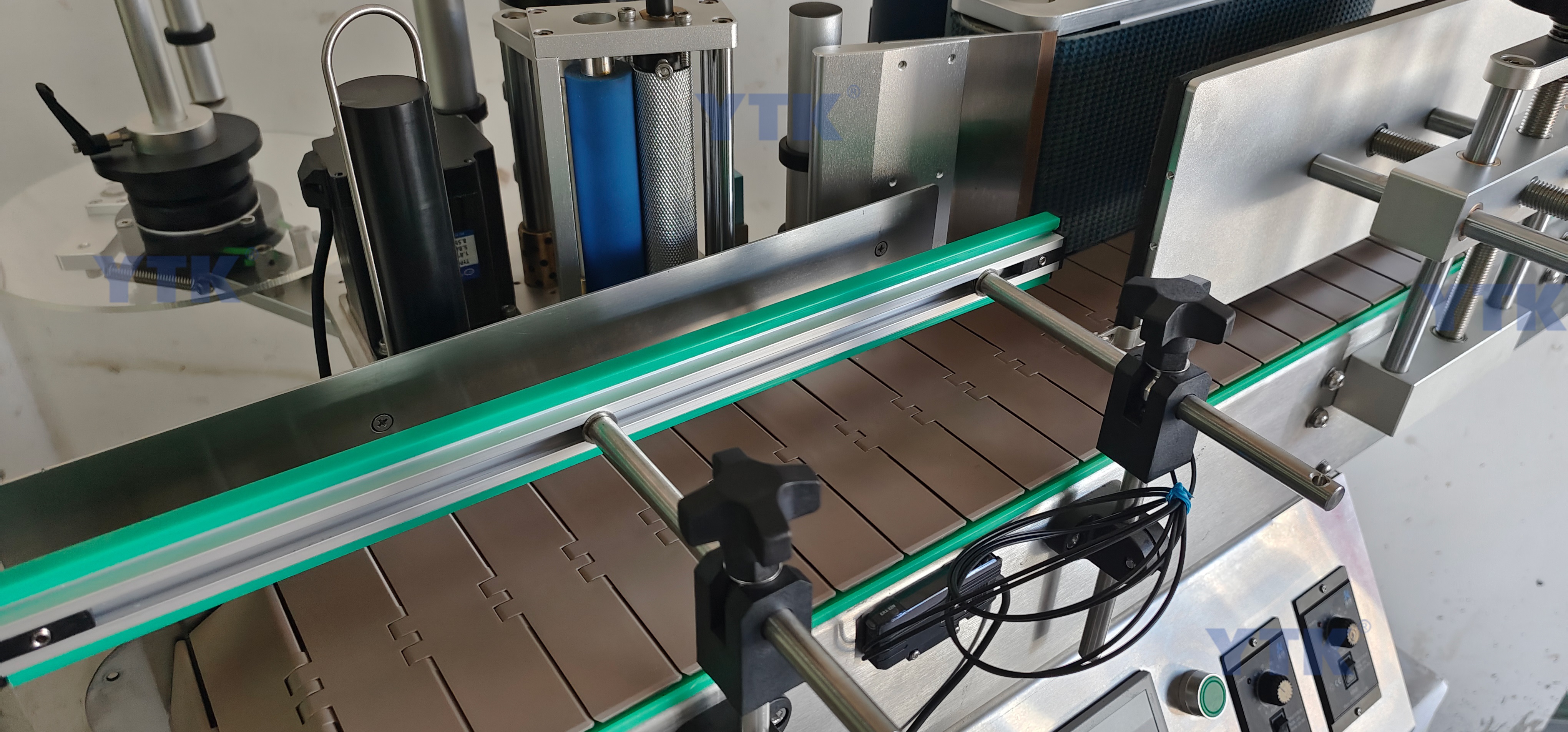

The conveyor belt can be adjusted according to the diameter of the bottle mouth, it's better if the diameter is less than 125mm
Imported fiber sensor
Automatic fiber amplifier, sensing and labeling automatically, simple and smart

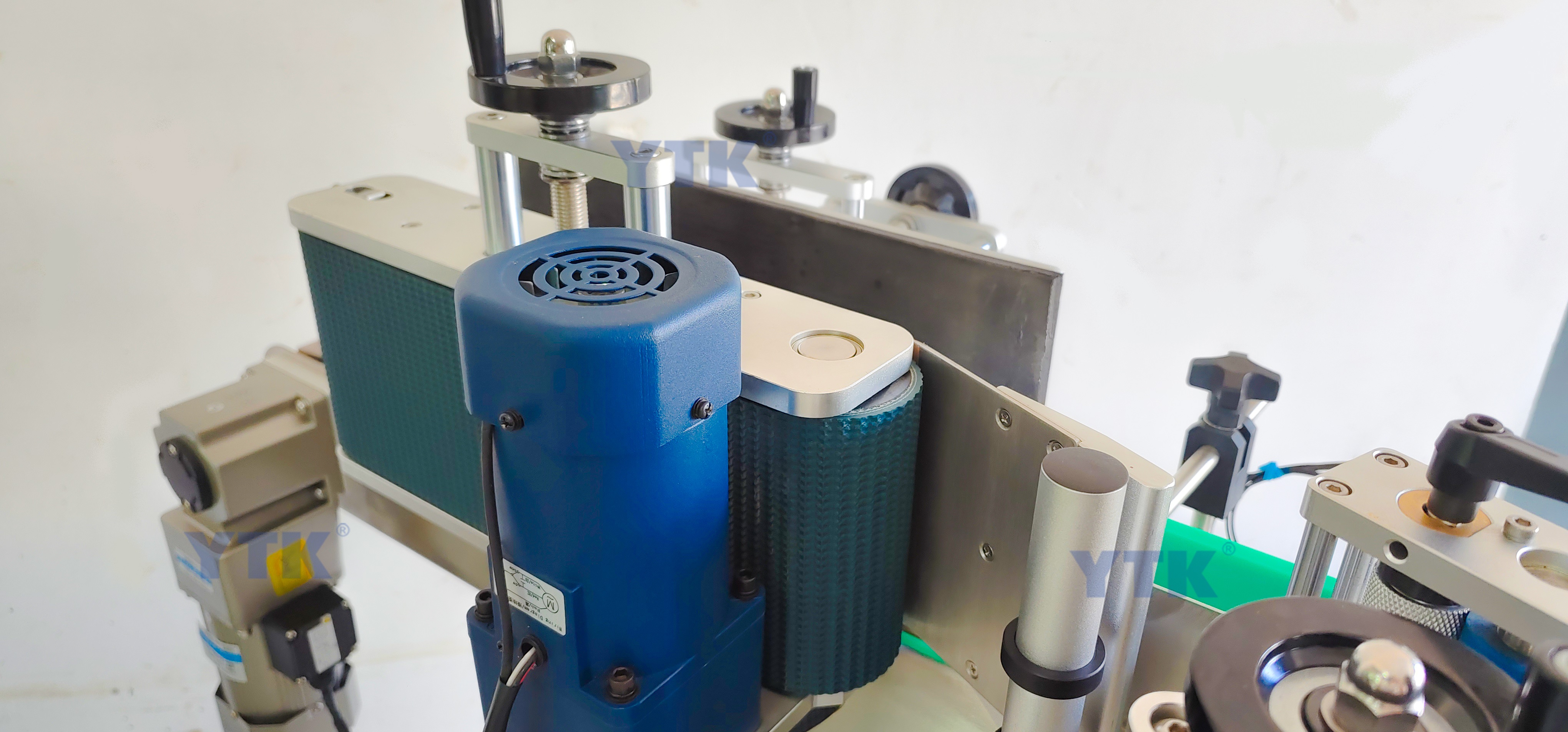

Stable speed-regulating motor, stable operation, reliable, easy maintenance

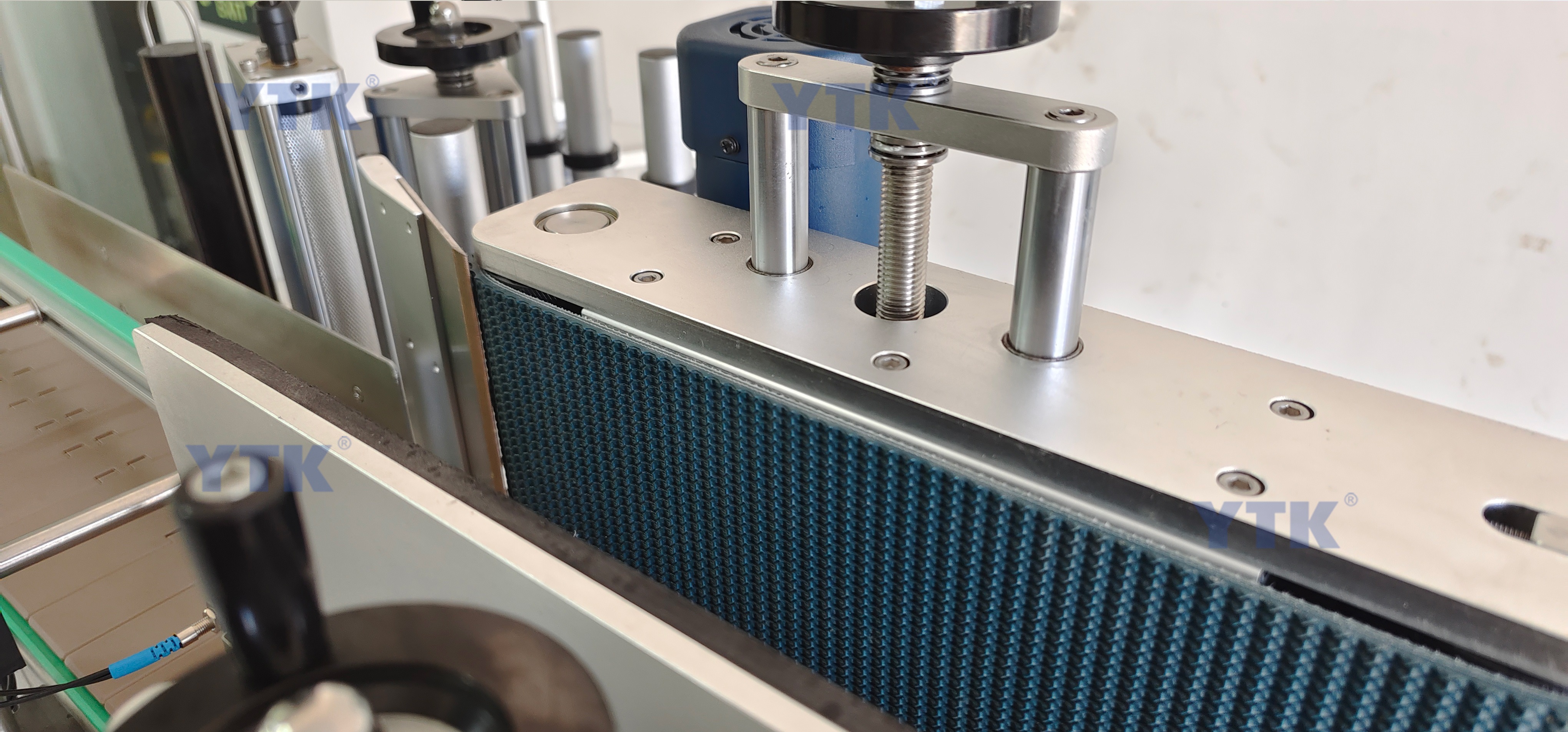

Elastic labeling tape with long service lift, to make the smooth labeling, no bubbles,
and improve packaging quality.
Stainless steel body
We largely adopted aluminum 304 stainless steel to build this machine, including every bolt and screw. It extensively prolongs machine life and helping against corrosion.
This machine can be equipped with a date coder,which can help you shorten the production process.t makes labeling and printing at one machine.
