Home Products Sealing Machine Tube Sealing Machine Five in One Tube Monodose Strip Ultrason
Five in One Tube Monodose Strip Ultrasonic Tube Sealing MachineFive in One Tube Monodose Strip Ultrasonic Tube Sealing MachineFive in One Tube Monodose Strip Ultrasonic Tube Sealing Machine

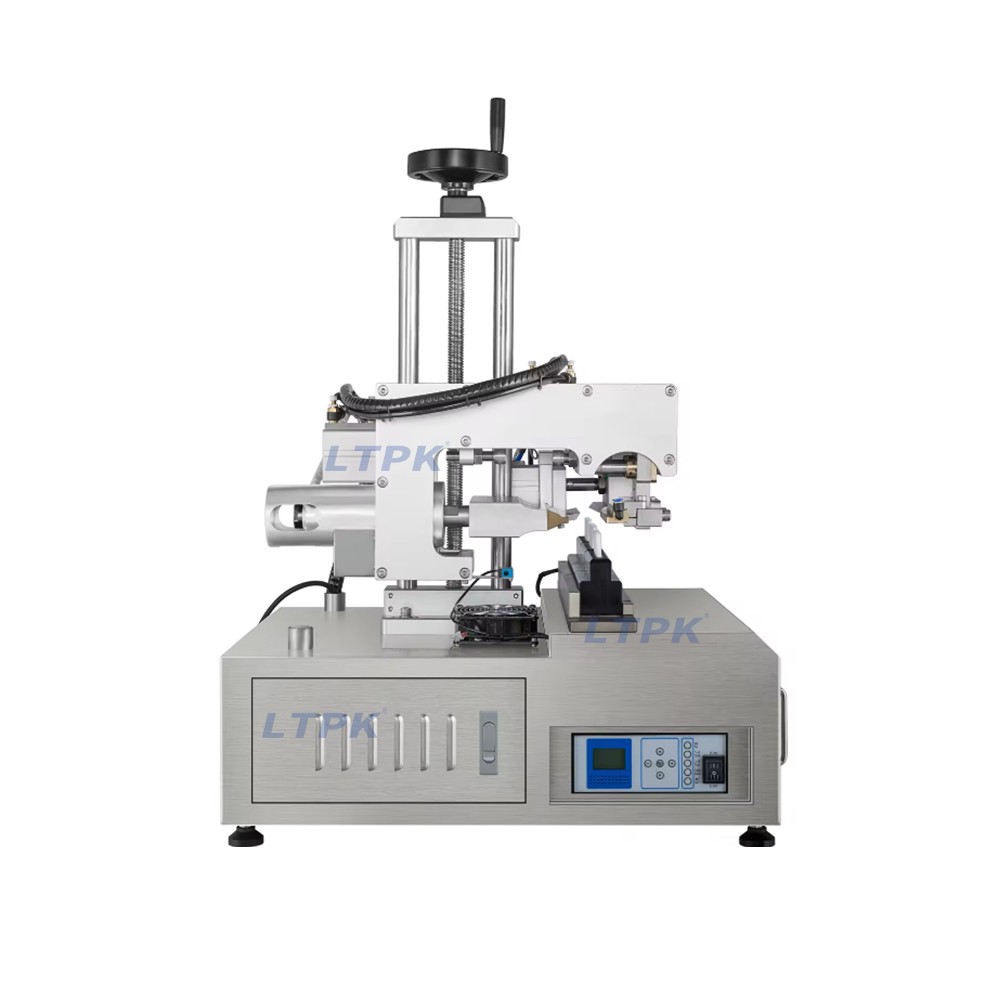

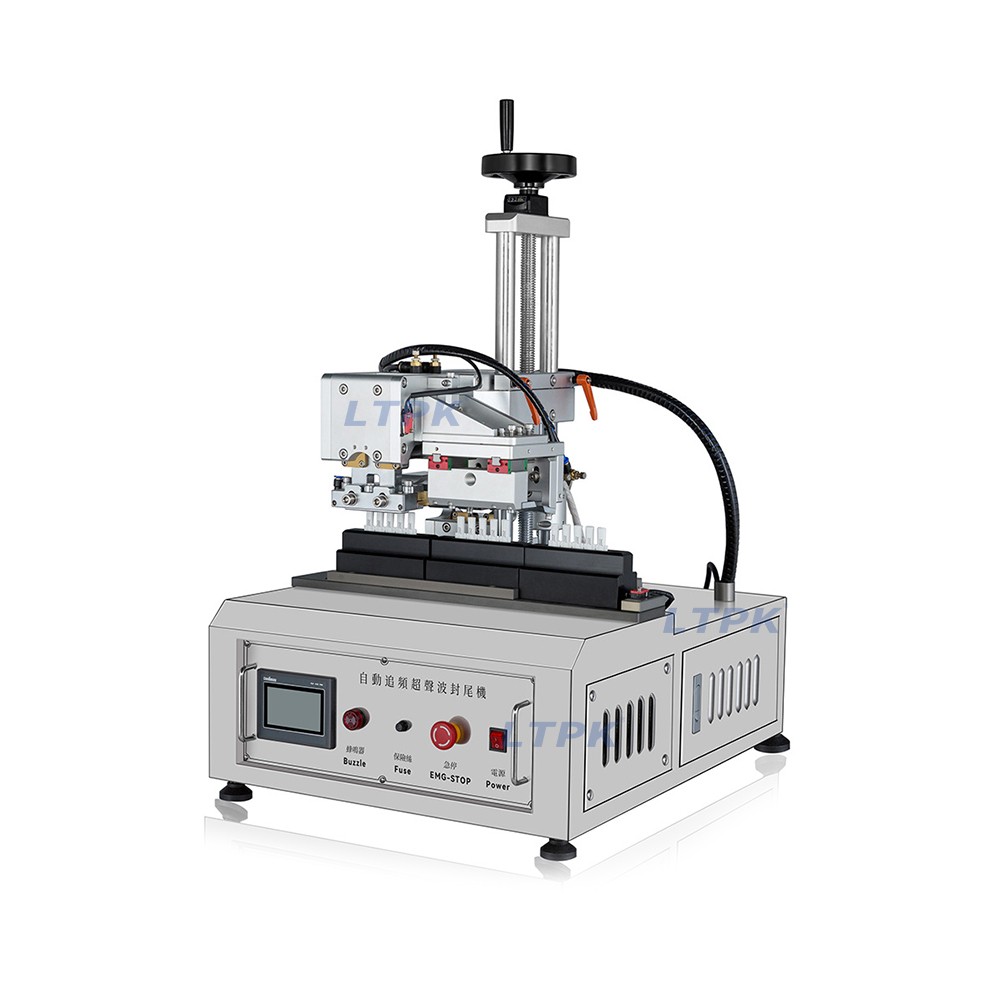

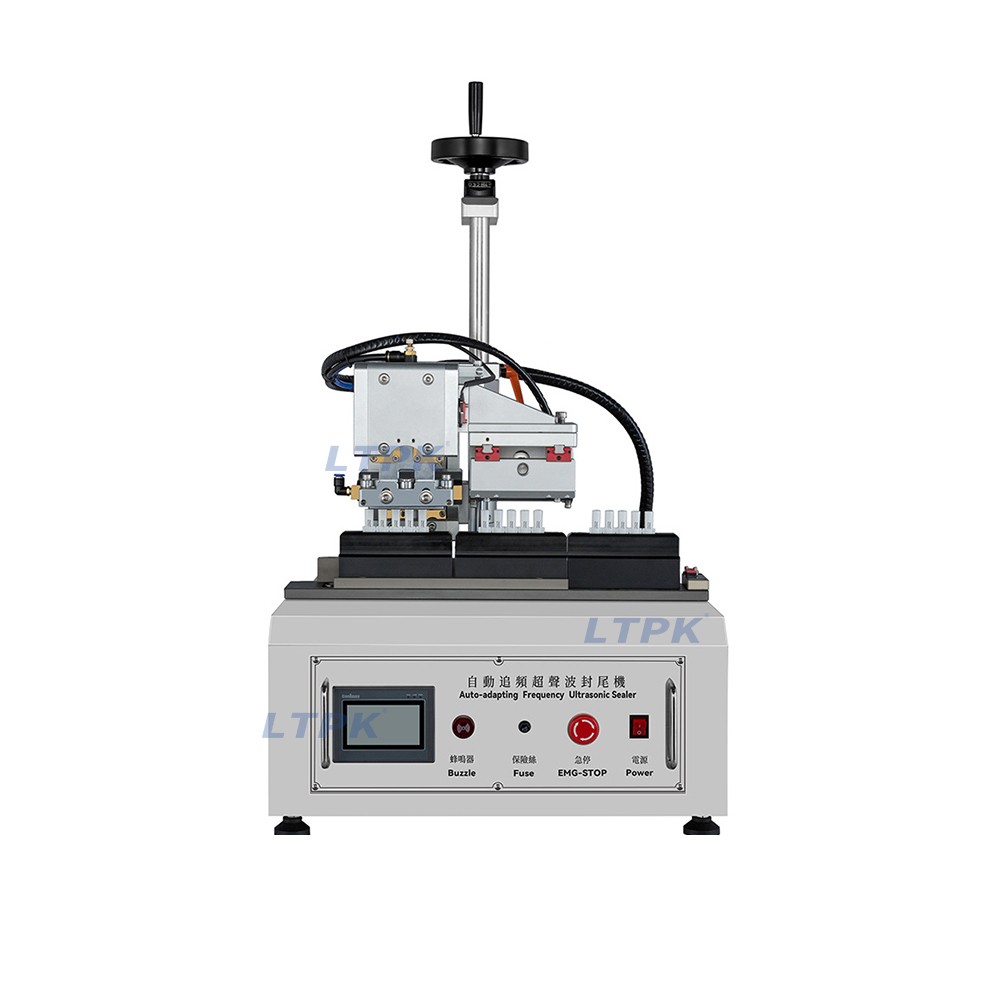

Five in One Tube Monodose Strip Ultrasonic Tube Sealing Machine

  • Product Item:YTK-003
  • Filling range: 10-70ml,20-200ml,30-300ml
  • Sealing speed: 8-18pcs/min
  • Dimension(L*W*H): L560*W537*H880mm
  • Weight: 90 KG
  • Tooth Paste Tube Sealing Machine
    Inquiry Send Email

    Description

    Product Description
    YTK-003 FIVE IN ONE ULTRASONICS TUBE sealing machine
    Specification
    product name
    YTK-003
    Power
    2.2kw
    8-15Capacity
    10~20pcs/min
    Suitable tube size
    Diameter≤φ10 Height≤250(customized)
    Sealing Diameter
    5-50mm
    Power supply
    220V 20KHz
    Air Supply Pressure
    0.5-0.6Mpa
    Environmental temperature
    0°C +35°C
    Dimension(L*W*H)
    L560*W537*H880mm
    weight
    90KG
    Features
    1.Adopts ultrasonic sealing technology,no need warm up time,more stable and neat sealing,no distortion and low reject rate less than 1%. 2.Manually feed the tube,machine could automatically start sealing and end trimming. 3.Independent R&D for digital ultrasonic automatic tracking electrical control box,no need manual adjust the frequency,with power auto compensation function,avoiding the reduction of powder after long time use.Could freely adjust the power based on tube material and size,stable and minimum the fault rate,extend the life span than the normal electrical box. 4.PLC with touch screen control system,providing friendly operation experience. 5.Made of 304 stainless steel ,acid and alkali resistance,corrosion resistance. 6.Suitable for strip tube,normal rube,curved tube or customer-made shape tube sealing and trimming. 7.No tube,no sealing and trimming function,reducing the machine and mold loss.
    Application
    Widely used for food,pharmaceutical,cosmetics,chemical and other plastic,PE,aluminum laminated tube filling and sealing.
    Detail Images

    Inquiry Us





    Related Products

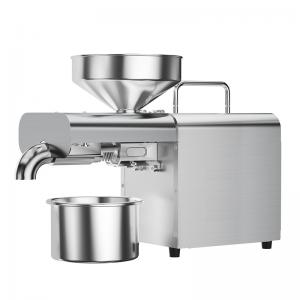

    Most Cheaper Oil Maker Household Sesame Coconut Oil Press Machine Hot and Cold Mini Oil Extracting Machine
