Home Products Filling Machine Liquid Filling Machine YTK-G2WY High Quality Horizontal Double
YTK-G2WY High Quality Horizontal Double Heads Pneumatic Liquid Filling Machine YTK-G2WY High Quality Horizontal Double Heads Pneumatic Liquid Filling Machine YTK-G2WY High Quality Horizontal Double Heads Pneumatic Liquid Filling Machine

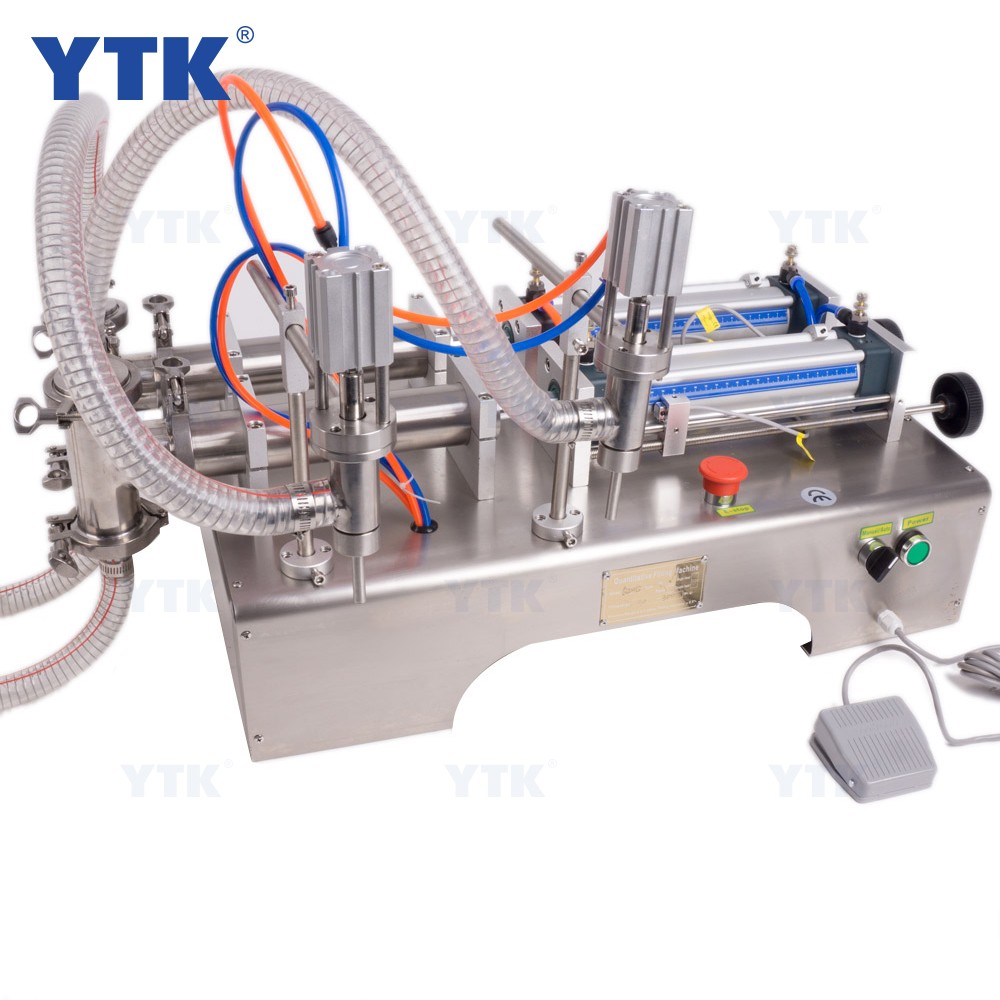

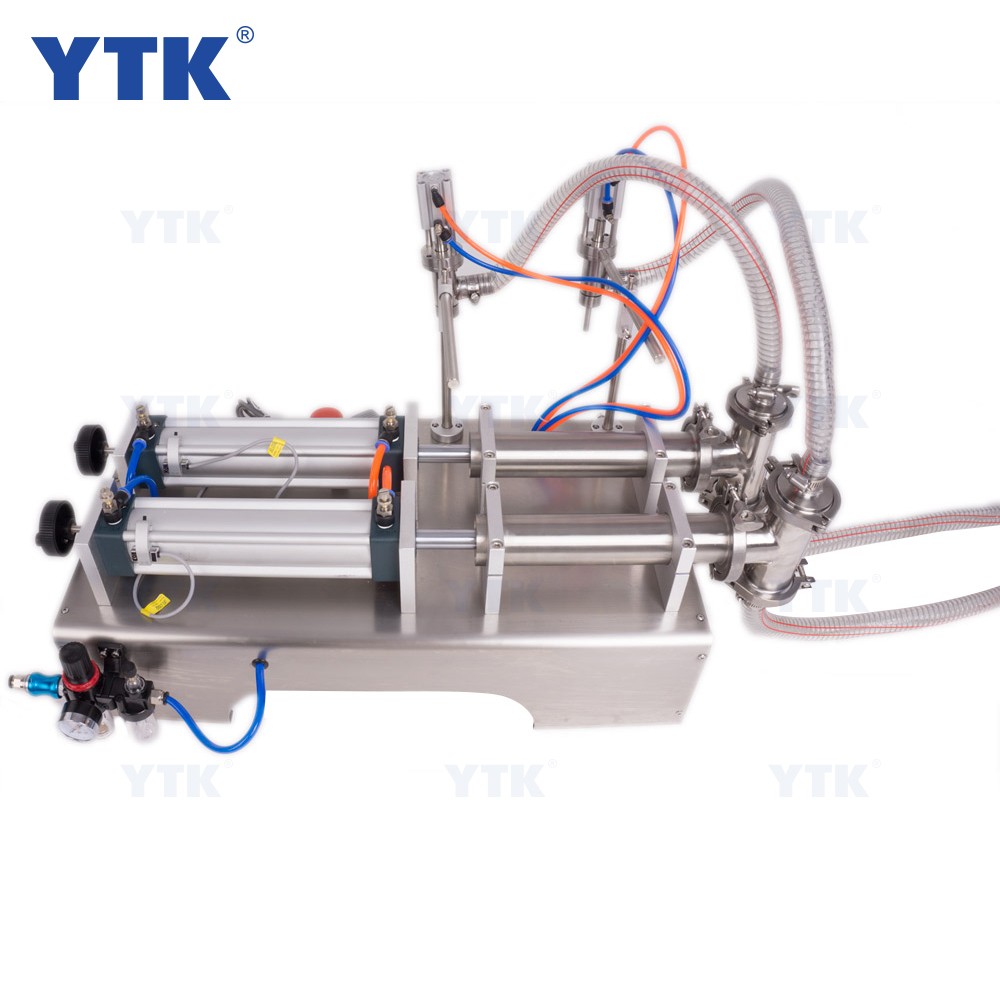

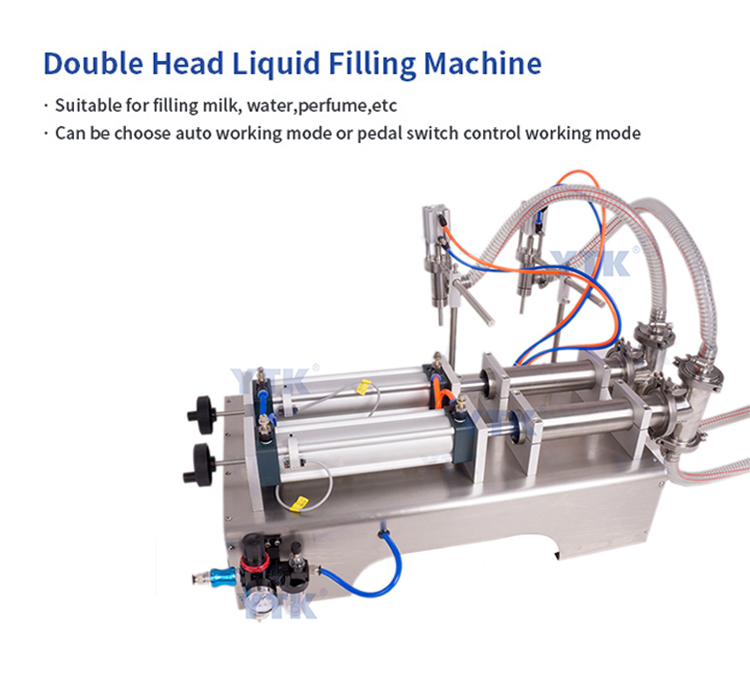

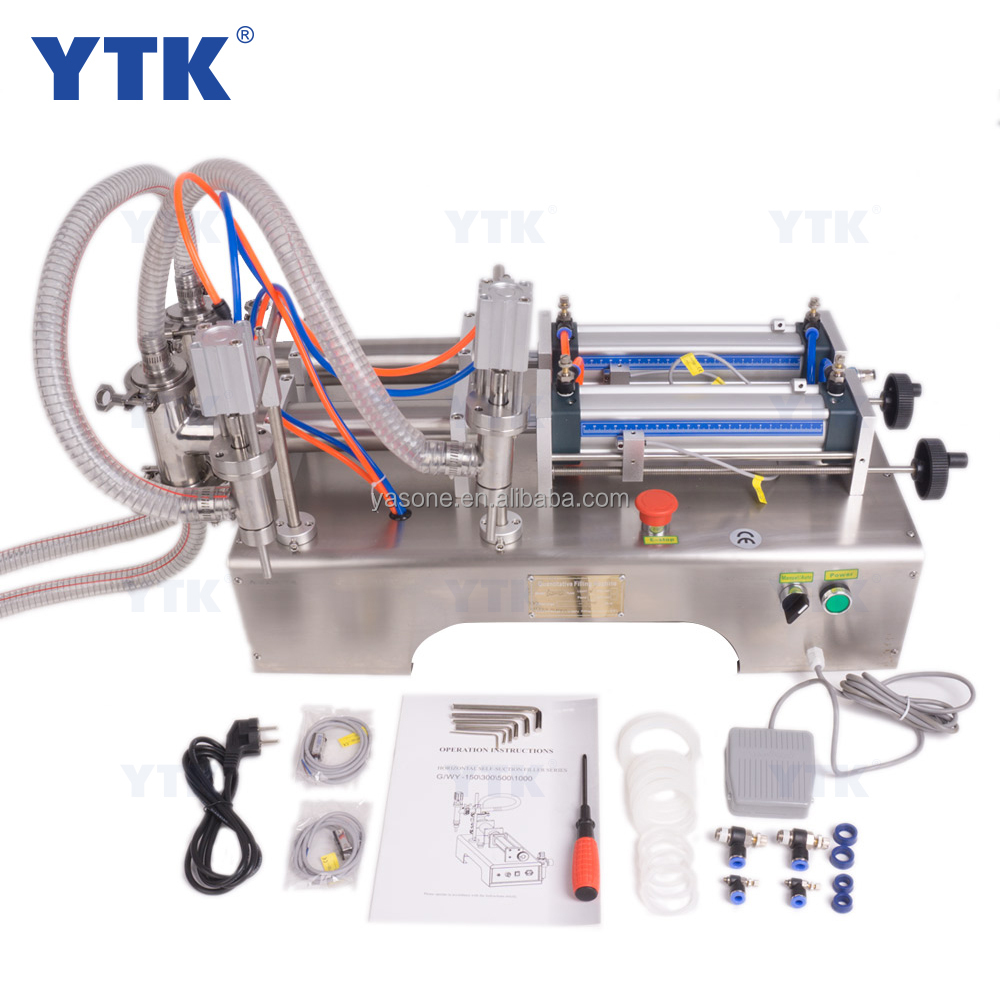

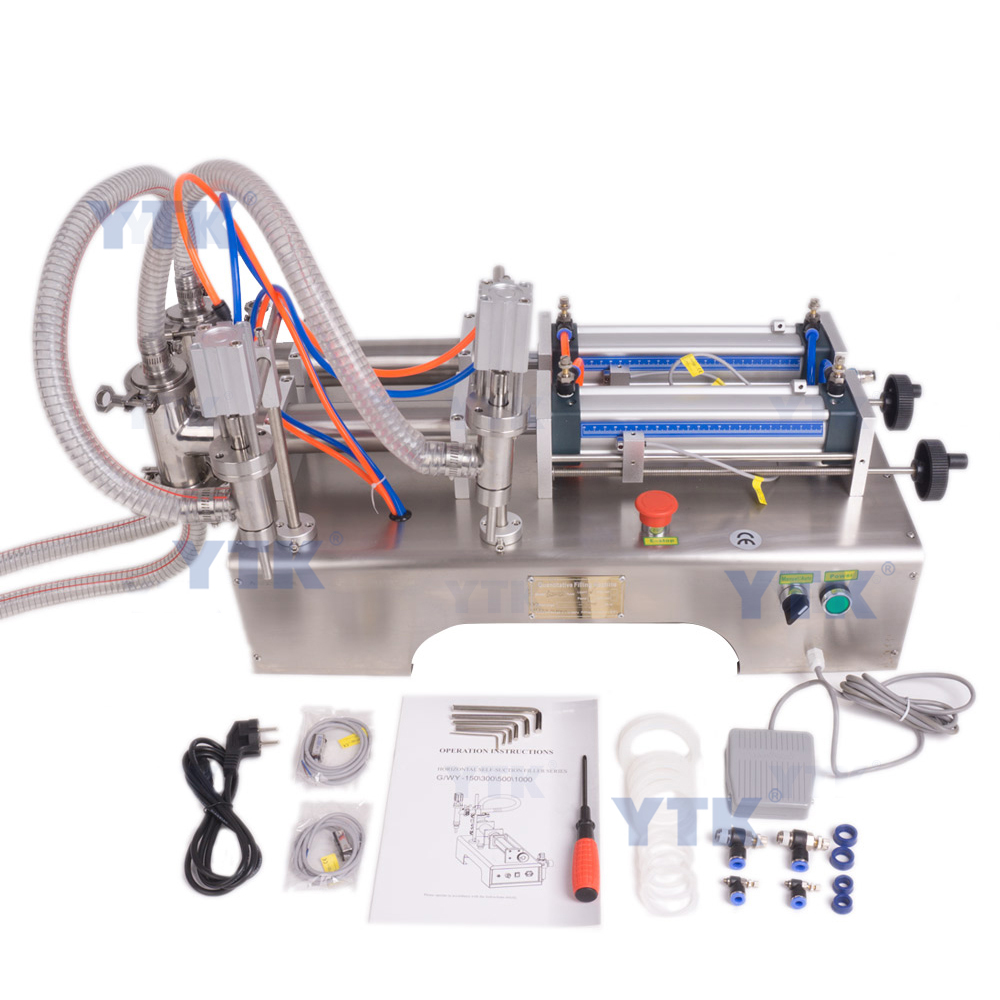

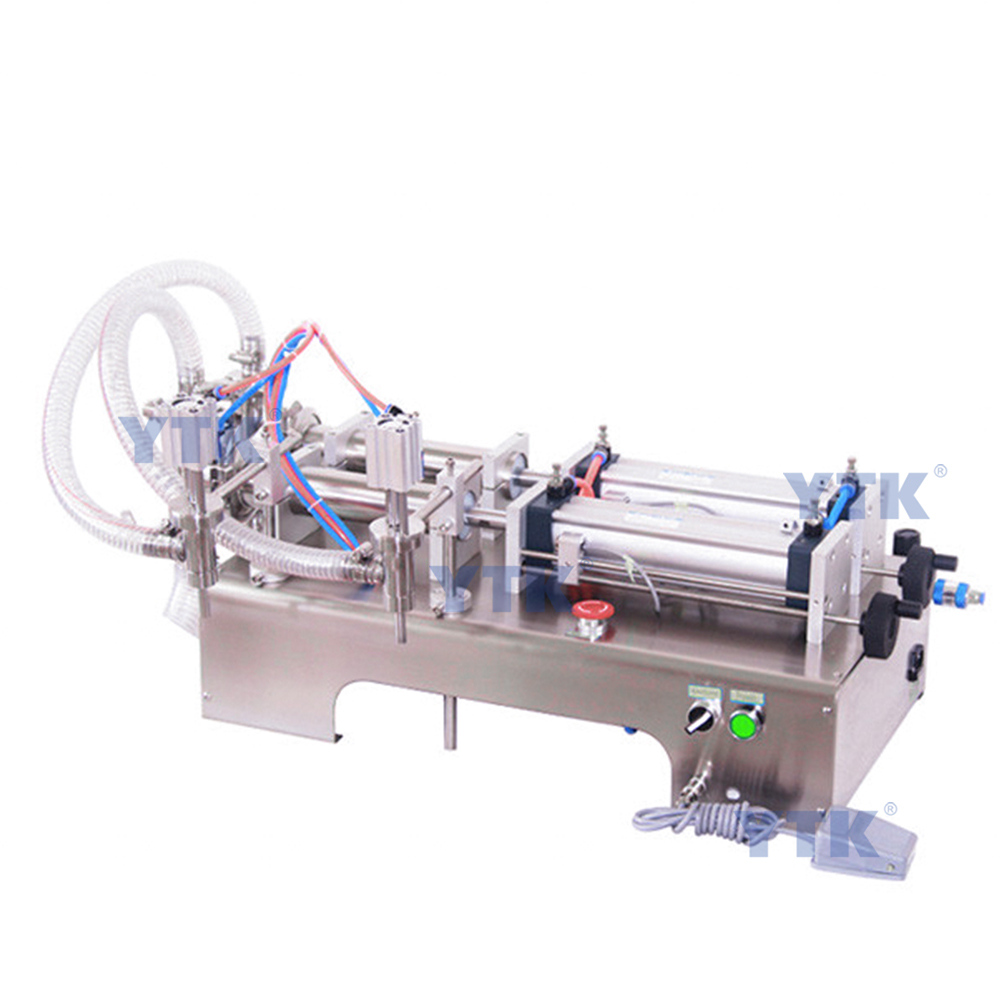

YTK-G2WY High Quality Horizontal Double Heads Pneumatic Liquid Filling Machine

  • Product Item:YTK-G2WY
  • Dimension: 900(L)x500(W)x200(H)MM
  • Power: 100W
  • Filling Speed: 10-50pcs/min
  • Filling range: 10-100ml, 30-300ml, 50-500ml, 100-1000ml, 500-3000ml, 1000-5000ml
  • filling machine  , liquid filling machine  , pneumatic filling machine
    Inquiry Send Email

    Description

    Piston pump filling machine works with air compressor,it has larger power which makes it suitable for filling shampoo,engine oil,laundry detergent.The filling speed and filling range can be controlled.We can customize the machine and make it with mixing or heating function.
    It is widely used in beverage,cosmetics and daily chemical industries.

    Specification
    Model
    YTK-G2WY
    Voltage
    220V/50Hz or 110V/60Hz (Optional)
    Power
    100W
    Filling Speed
    About 10-20 bottle/min
    Filling Range
    3-30ml,10-100ml,30-300ml,50-500ml,100-1000ml,500-3000ml,1000-5000ml
    Accuracy
    ≤±1%
    Air Pressure
    0.4-0.6Mpa
    Air Consumption
    ≥1m³/min
    Application
    Details Images

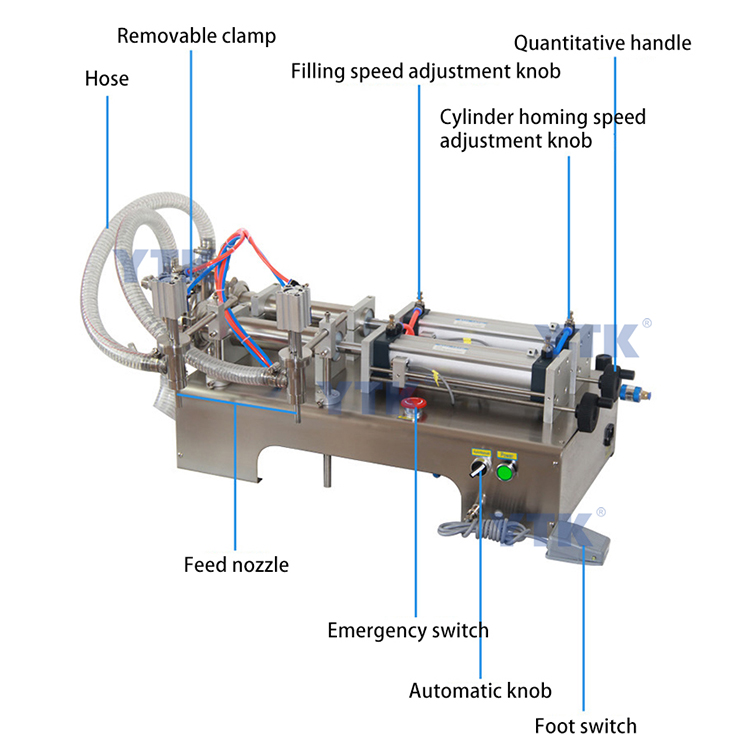

    Equipped with pneumatic filling nozzle,these are with large power when filling paste or liquid,multiple filling nozzle can be customized according to operation need.

    The filling speed and waiting time can be adjusted ,rotate knobs clockwise to slow down working speed. If you use the automatic working mode,please lengthen the waiting time to make the machine works better.The larger rotary knob on the right side is designed for controlling  the filling volume,makes it easier to operate and adjust the machine.

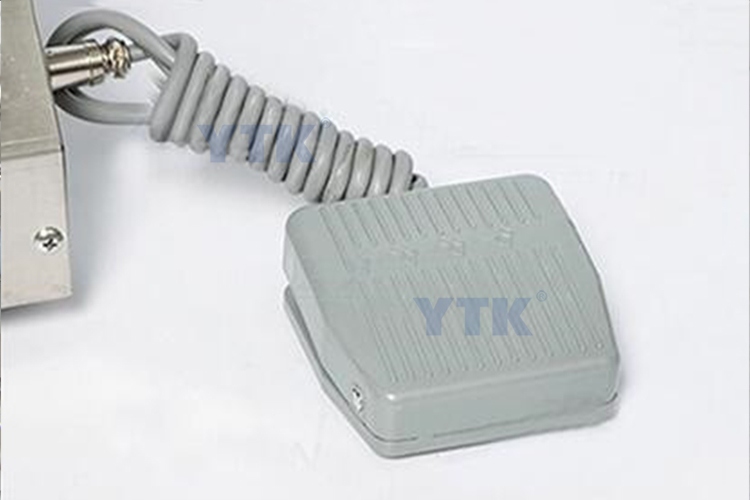

    There two working mode,you can test and adjust setting parameter by using the pedal switch control mode.After setting parameter,you can use the automatic working mode to improves working efficiency.

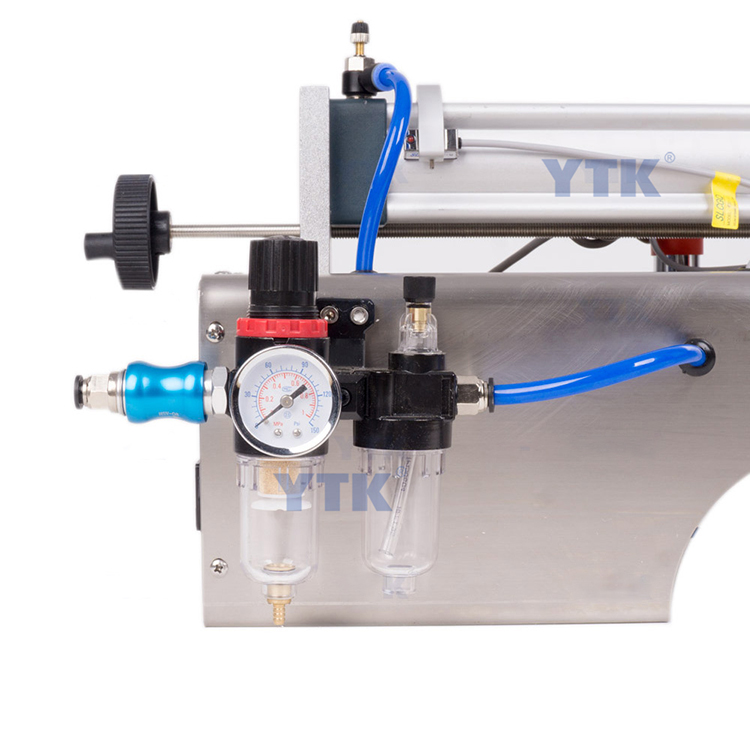

    The oil-water separator is designed to watch the air pressure in real time and filter impurities,this machine need to work with air compressor(connector size is 10mm),you need to buy it separately.If you need this please contact us.

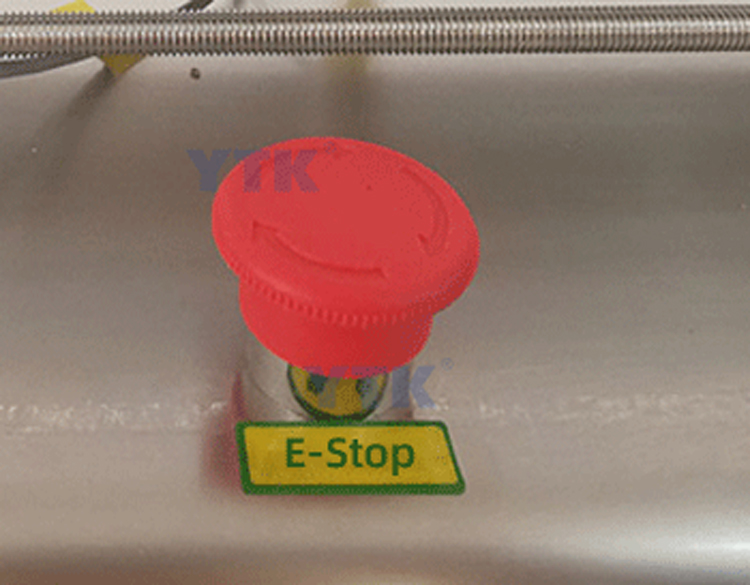

    Emergency button,stops the machine immediately to save you from any potential harm.

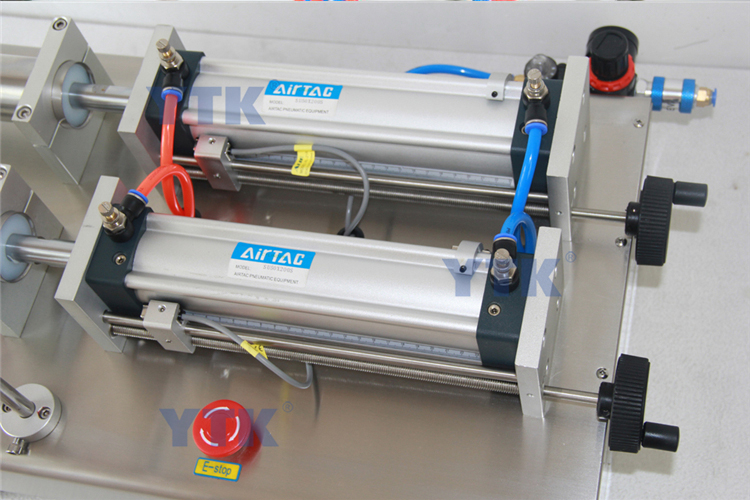

    Filling adjustment handle,you can adjust the filling range by rotating the handle,simple and convenient operation
