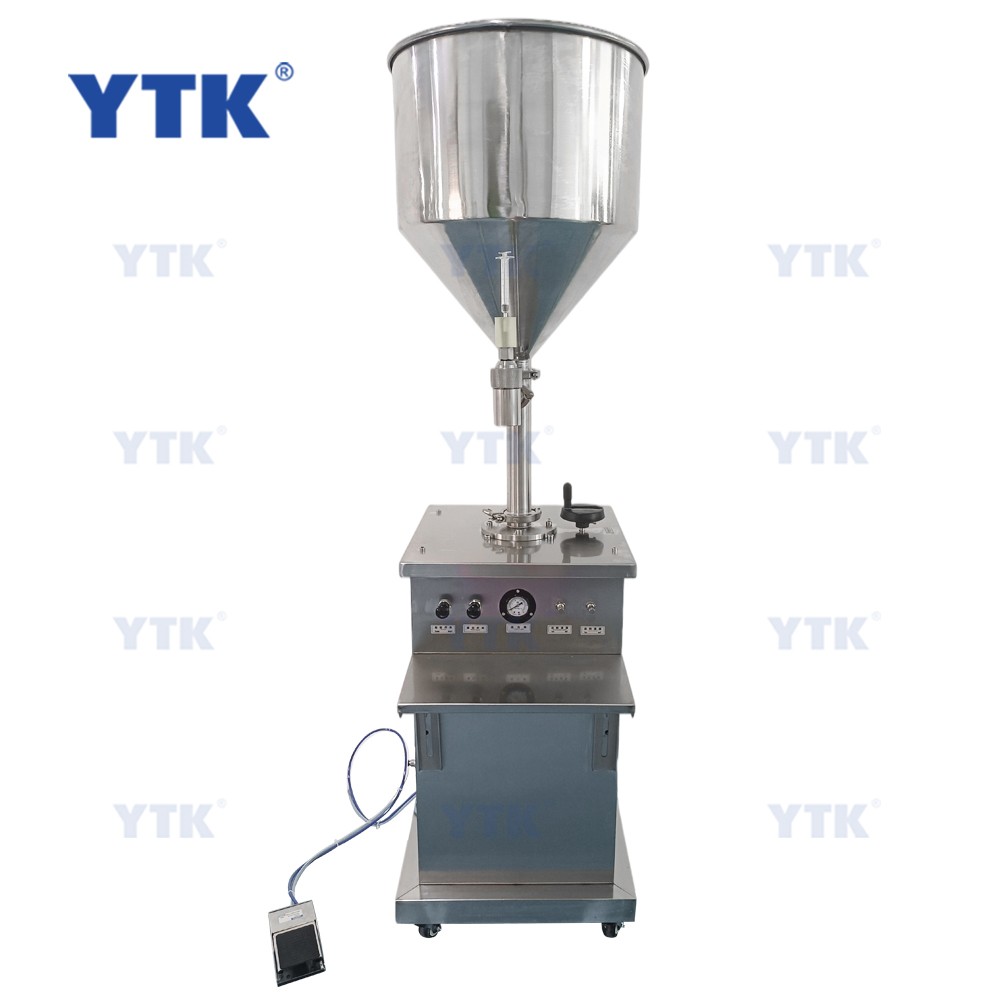

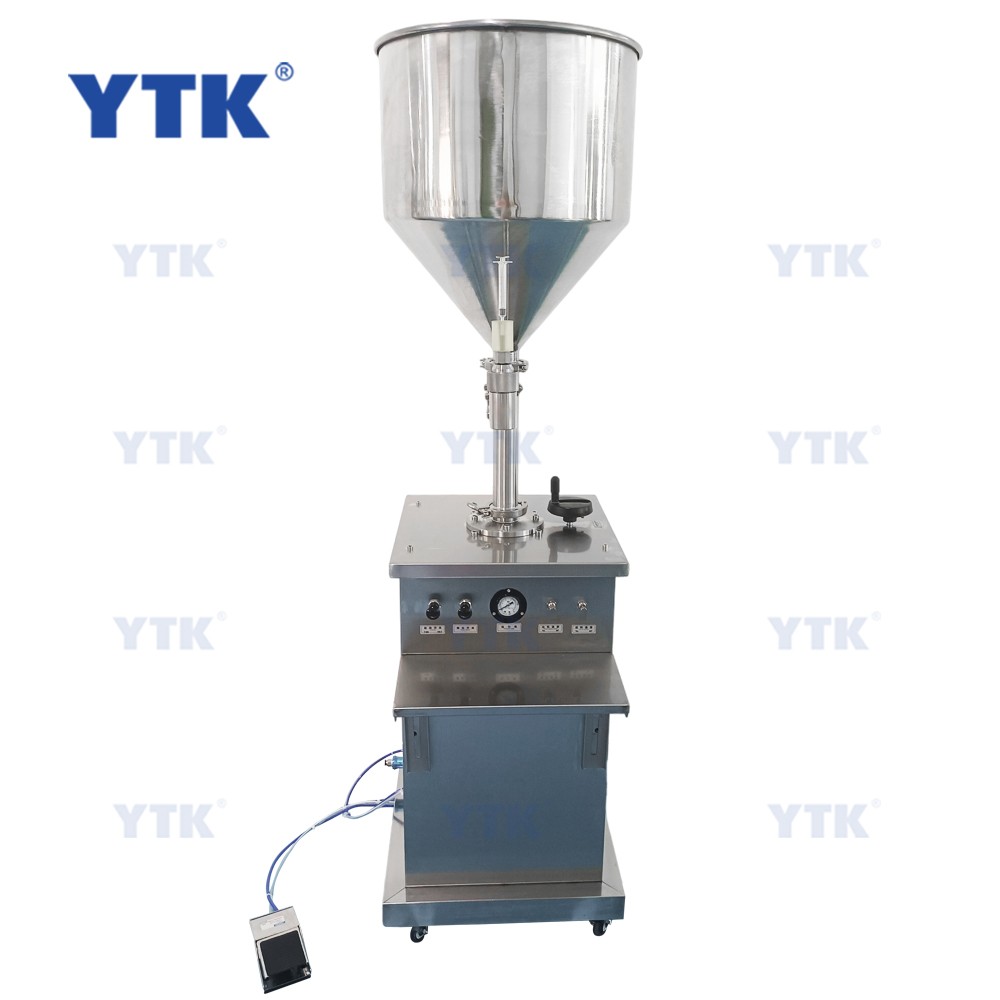

High Precision Piston Type Water Light Needle Filling Machines for 1-20ml Ampoule Vials Injector Tube Liquid Needle Type Filling

  • Product Item：YTK-SG
  • Dimension(L*W*H): 1480*450*450mm
  • Weight: 40 KG
  • Nozzle diameter： 3mm、4mm、5mm could choose
  • Filling range： 1ML≤ML≤20ML
    • Inquiry Send Email

    Description

    Product Description
    Specification
    Model
    YTK-SG
    Voltage
    AC220V / 50HZ
    Power
    1.25KW
    Machine  Size
    400*700*1450mm
    Working Bench
    H75mm
    Hopper
    25L Hopper size:Φ300×H500mm
    Filling range
    1ML≤ML≤20ML
    Hopper material
    304SS
    Nozzle diameter
    3mm、4mm、5mm could choose
    Air compressor
    3-6 KG/CM2
    Net weight
    about40KG
    output capacity
    about 2000pieces/h
    Working mode
    manual/automatic/padel
    Application

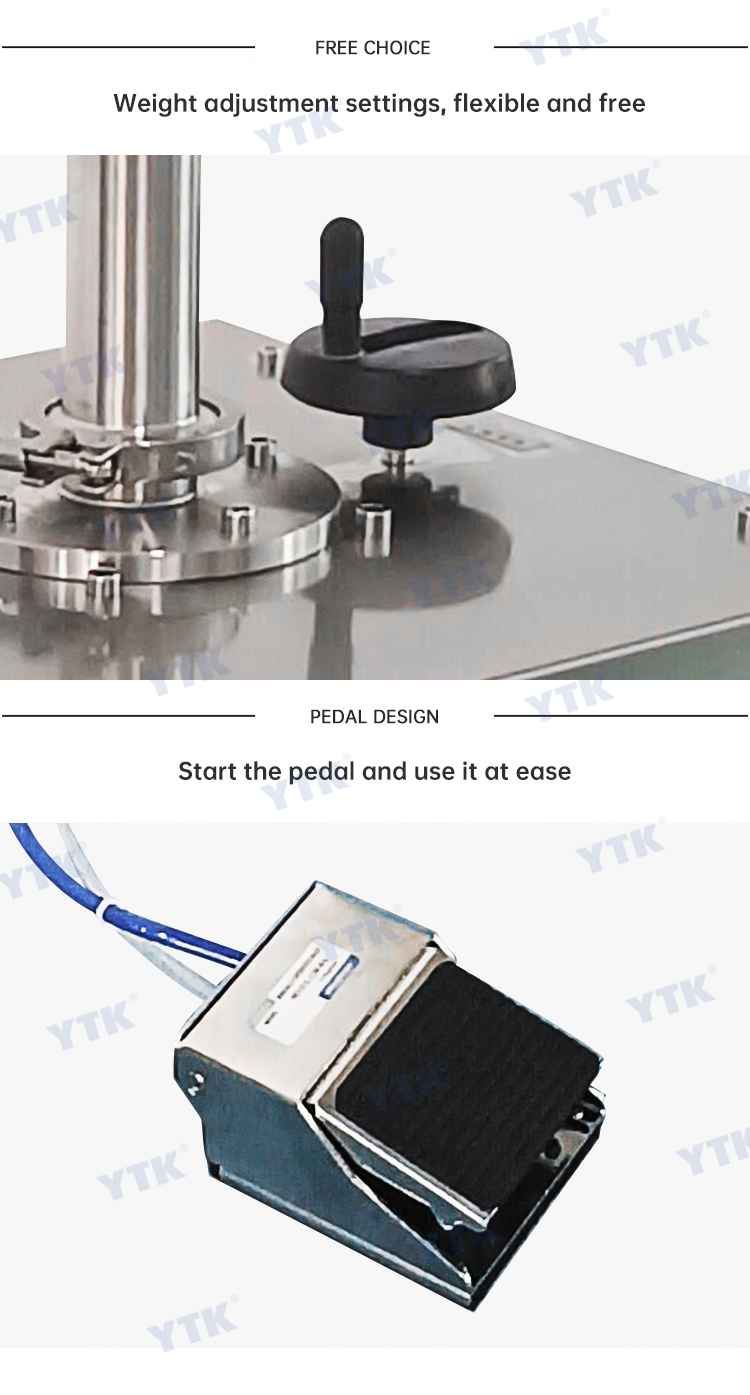

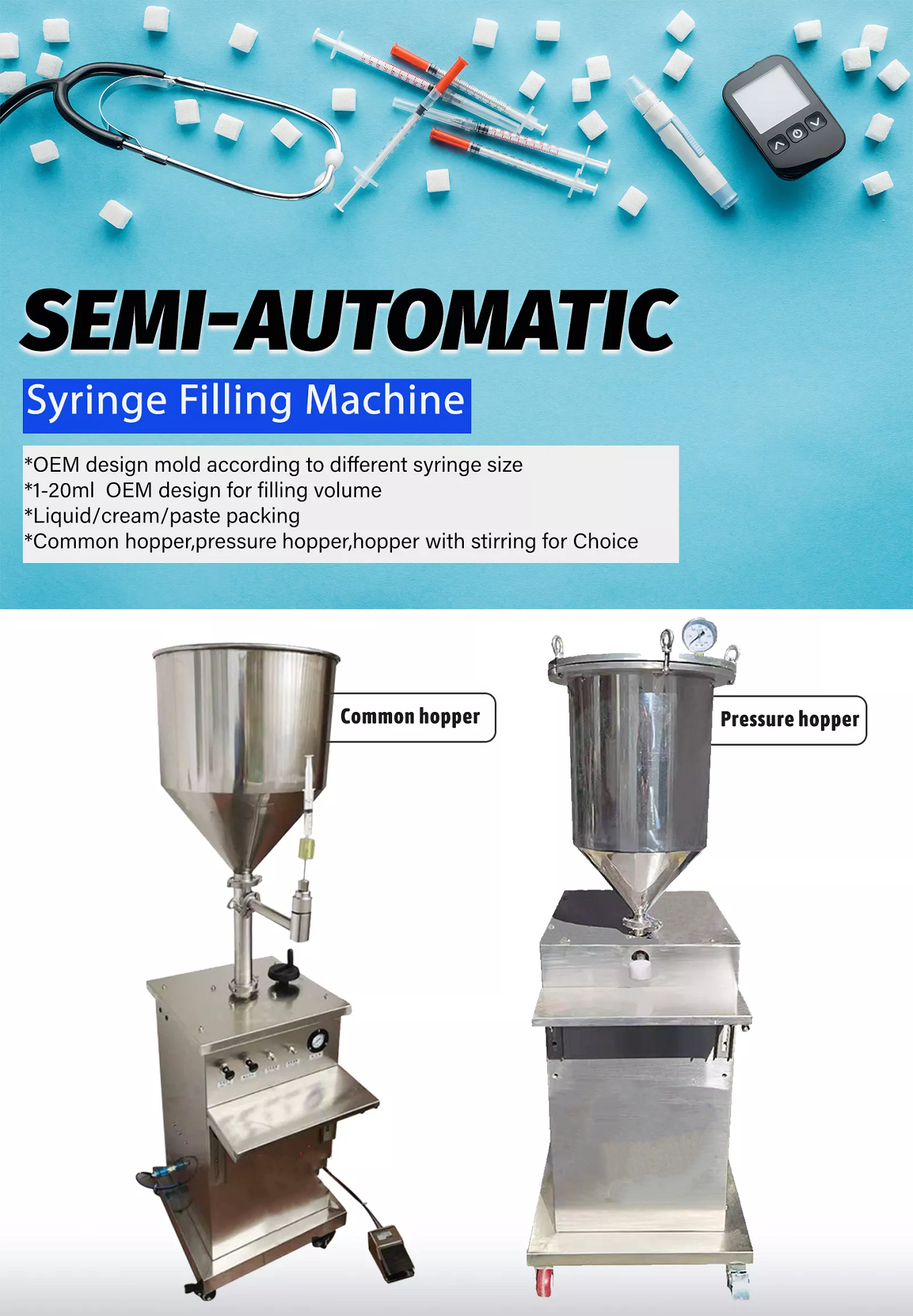

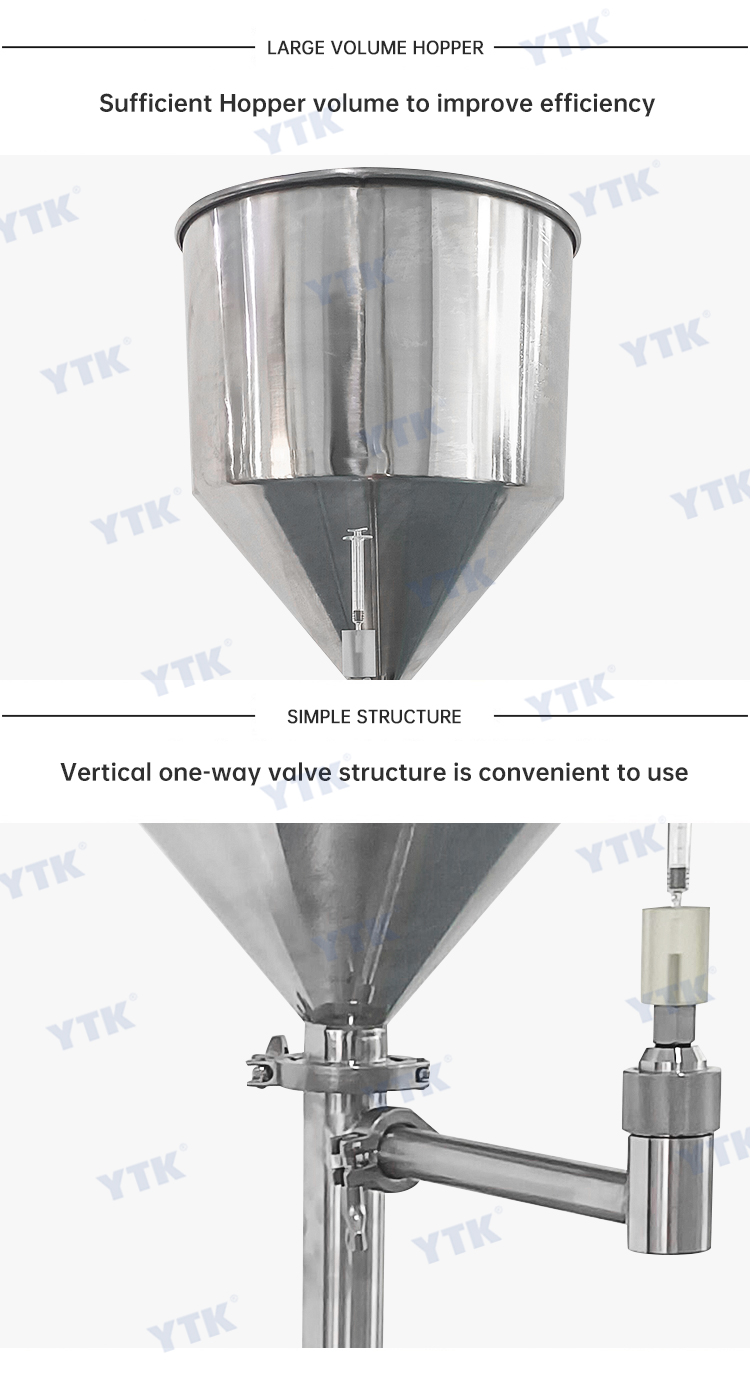

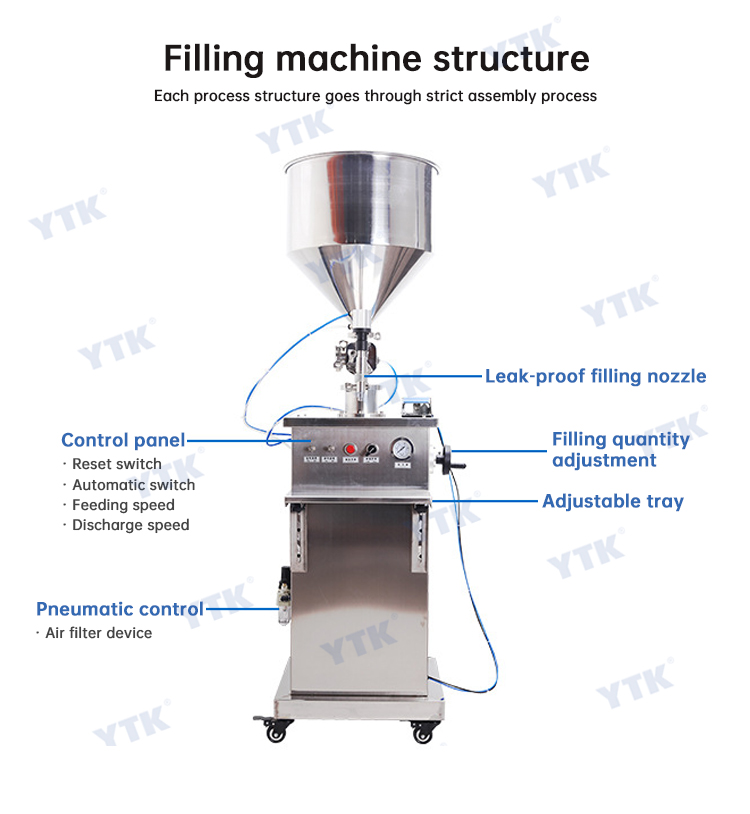

    Details Images
