Description
Description

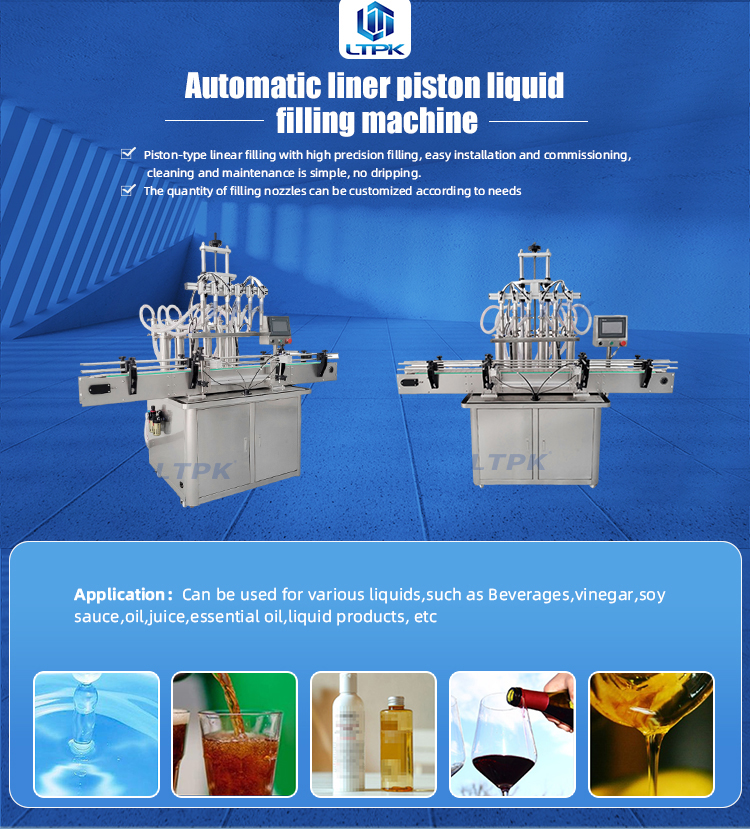

LT-QZDY2/4/6/8 automatic liquid filling machine is a machine produced by our company. It has compact design, beautiful appearance, wide application field, and it worked with imported parts, so that the the machine has a good performance. Piston-type linear filling with high precision filling, easy installation and commissioning, cleaning and maintenance is simple, no dripping and so on.Each nozzles can be controlled separately. It is widely used in food, beverage industries.
Technical Parameters
|
Model |
LT-QZDY2 |
LT-QZDY4 |
LT-QZDY6 |
LT-QZDY8 |
|
Voltage |
220V/110V 50-60HZ 800W |
|||
|
Filling Range |
10-100ml/30-300ml/50-500ml/100-1000ml/500-3000ml/1000-5000ml |
|||
|
Working Speed (base on water) |
10-40bottles/min |
20-50bottles/min |
30-70bottles/min |
40-80bottles/min |
|
Filling Accuracy |
≤+1% |
|||
|
Conveyor Size |
About 1990*100mm(L*W) |
|||
|
Size of filling nozzle |
φ10mm |
|||
|
Size of air compressor connector |
φ10mm |
|||
|
Machine size |
About 1990*950*1970mm（4 Heads） |
|||
|
Package weight |
220kg |
260kg |
300kg |
500kg |
|
Package size(mm) |
2000*1200*2300 |
2000*1200*2300 |
2500*1300*2300 |
2800*1300*2500 |
Application
Can be used for various liquids,such as Beverages,vinegar,soy sauce,oil,juice,essential oil,liquid products, etc
Detail Images
