Home Products Filling Machine Liquid Filling Machine YTK-G1WY Semi-automatic Single Head Liqu
YTK-G1WY Semi-automatic Single Head Liquid Water Oil Filling MachineYTK-G1WY Semi-automatic Single Head Liquid Water Oil Filling MachineYTK-G1WY Semi-automatic Single Head Liquid Water Oil Filling Machine

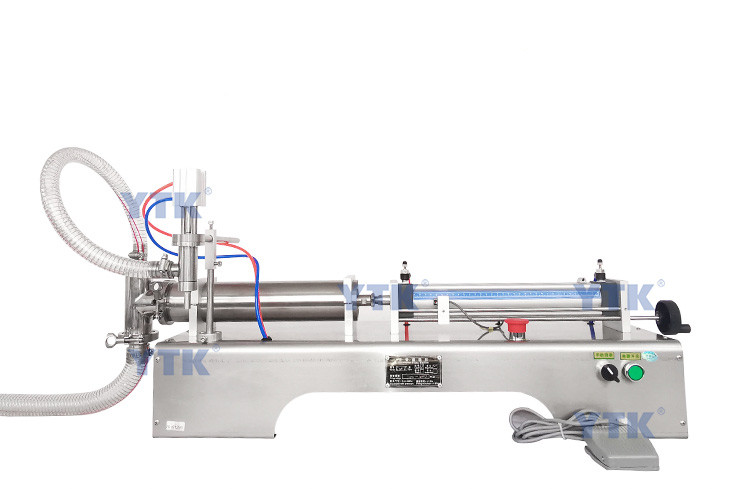

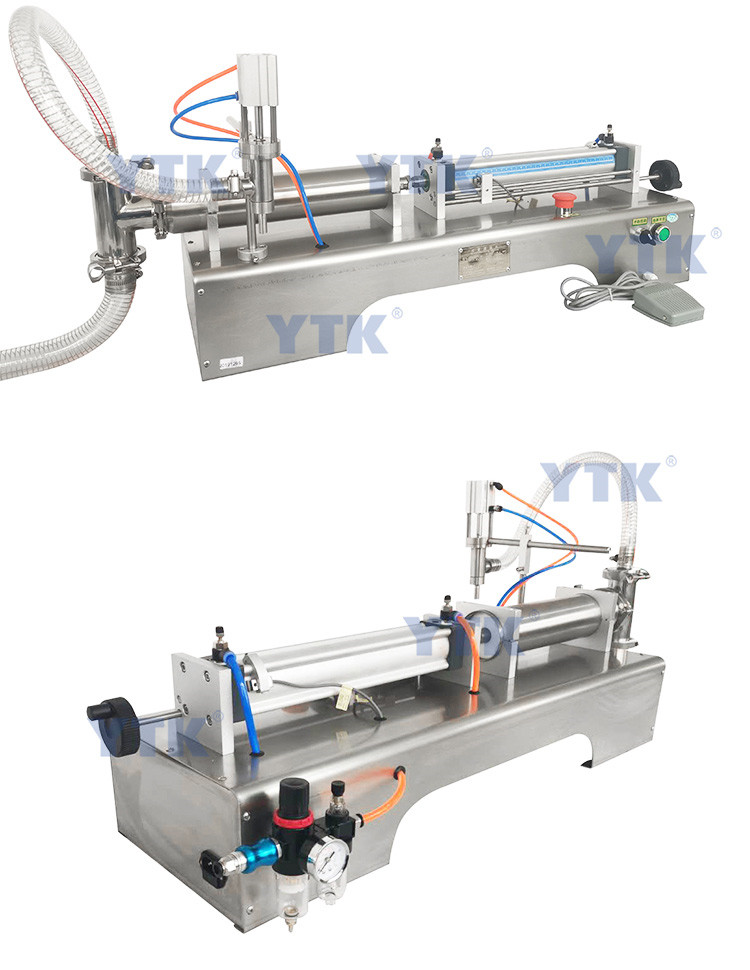

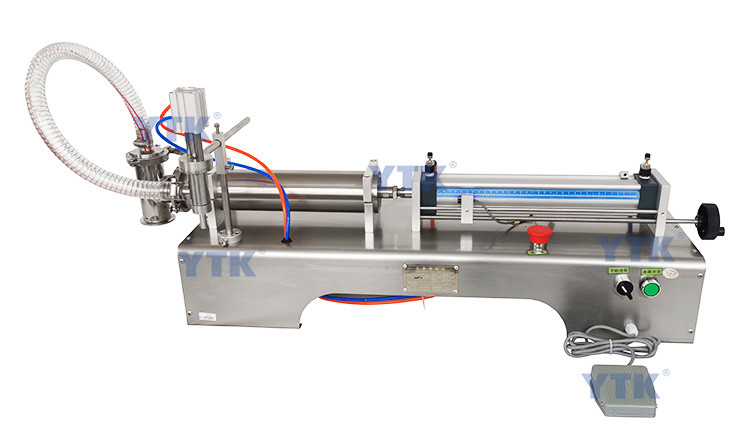

YTK-G1WY Semi-automatic Single Head Liquid Water Oil Filling Machine

  • Product Item:YTK-G1WY
  • Dimension: 80*30*20cm
  • Power: 10W
  • Filling Speed: 10-25pcs/min
  • Filling range: 10-100ml, 30-300ml, 50-500ml, 100-1000ml, 500-3000ml, 1000-5000ml
  • filling machine  , liquid filling machine  , water filling machine
    Inquiry Send Email

    Description

    Product Description
    Piston pump filling machine is work with air compressor,it has larger power which makes it suitable for filling shampoo,engine oil,laundry detergent.The filling speed and filling range can be controlled.It is widely used in beverage,cosmetics and daily chemical industries.
    Specification
    Model
    YTK-G1WY10-100ml
    Voltage
    220V/50Hz or 110V/60Hz (Optional)
    Power
    10W
    Filling Speed
    About 1-25 bottle/min
    Filling Range
    10-100ml/10-200ml/30-300ml/50-500ml/100-1000ml/500-2500ml/1000-5000ml
    Accuracy
    ≤±1%
    Air Pressure
    0.4-0.9Mpa
    Air Consumption
    ≥1m³/min
    Application
    Details Images

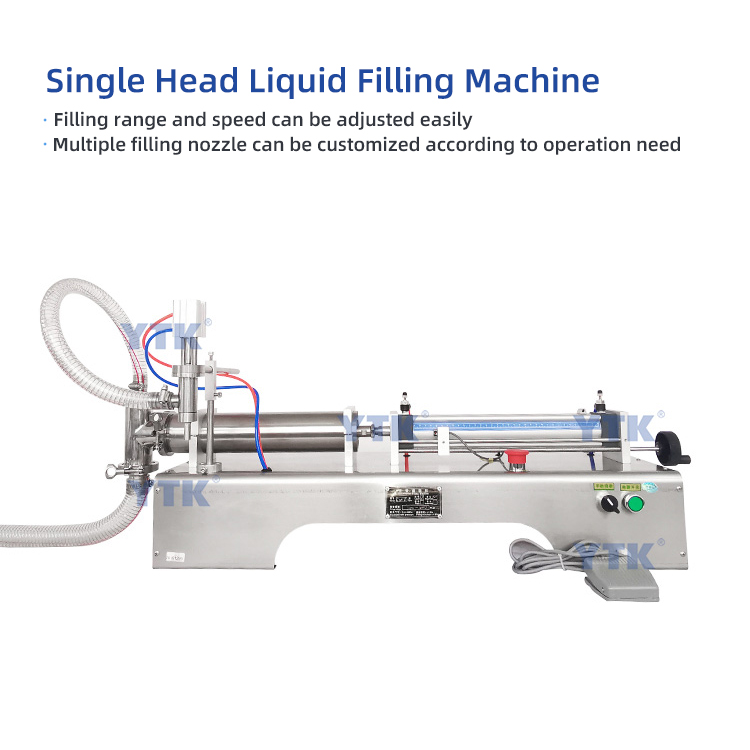

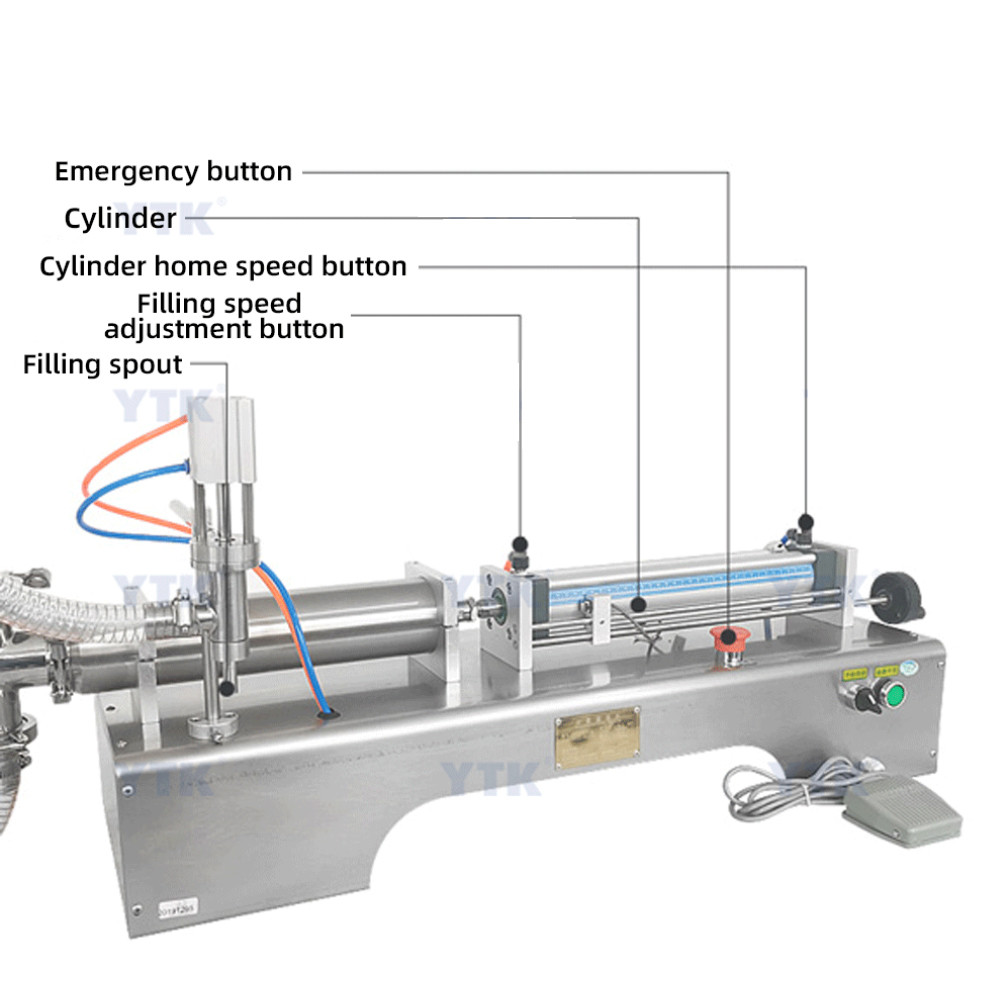

    Equipped with pneumatic filling nozzle,these are with large power when filling paste or liquid, multiple filling nozzle can be customized according to operation need

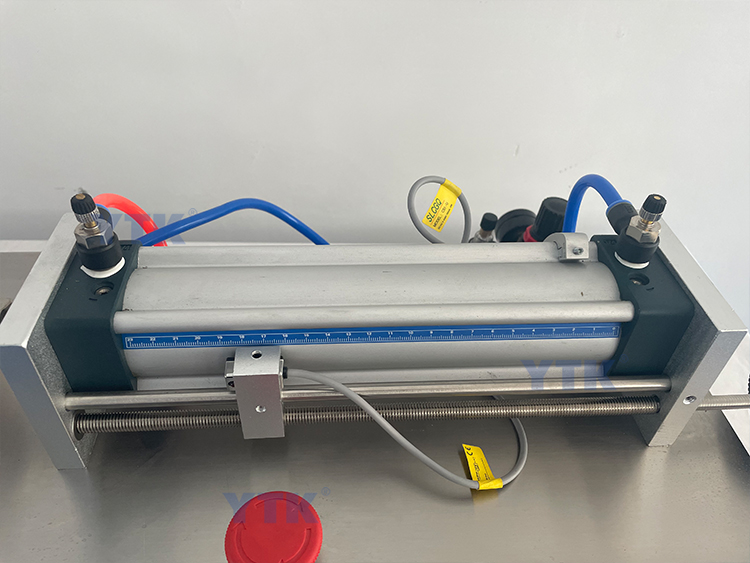

    The filling speed and waiting time can be adjusted , rotate knobs clockwise to slow down working speed. If you use the automatic working mode, please lengthen the waiting time to make the machine works better. The larger rotary knob on the right side is designed for controlling the filling volume, makes it easier to operate and adjust the machine

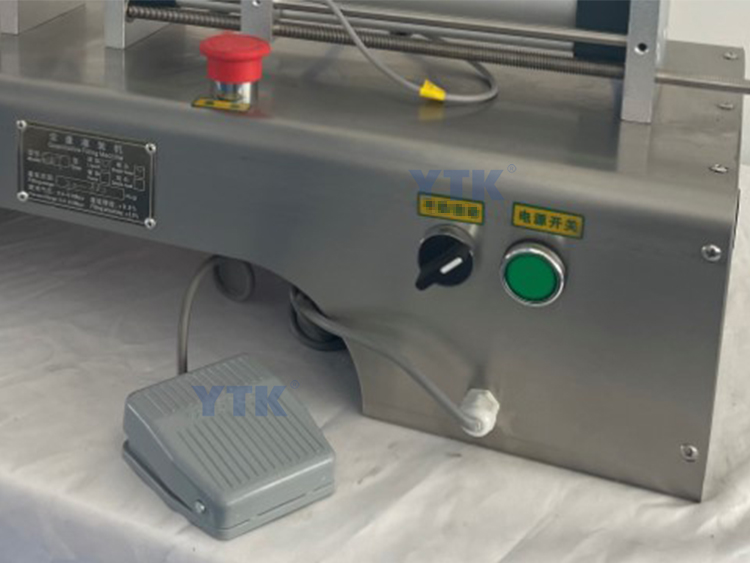

    There two working mode, you can test and adjust setting parameter by using the pedal switch control mode.After setting parameter you can use the automatic working mode to improves working efficiency

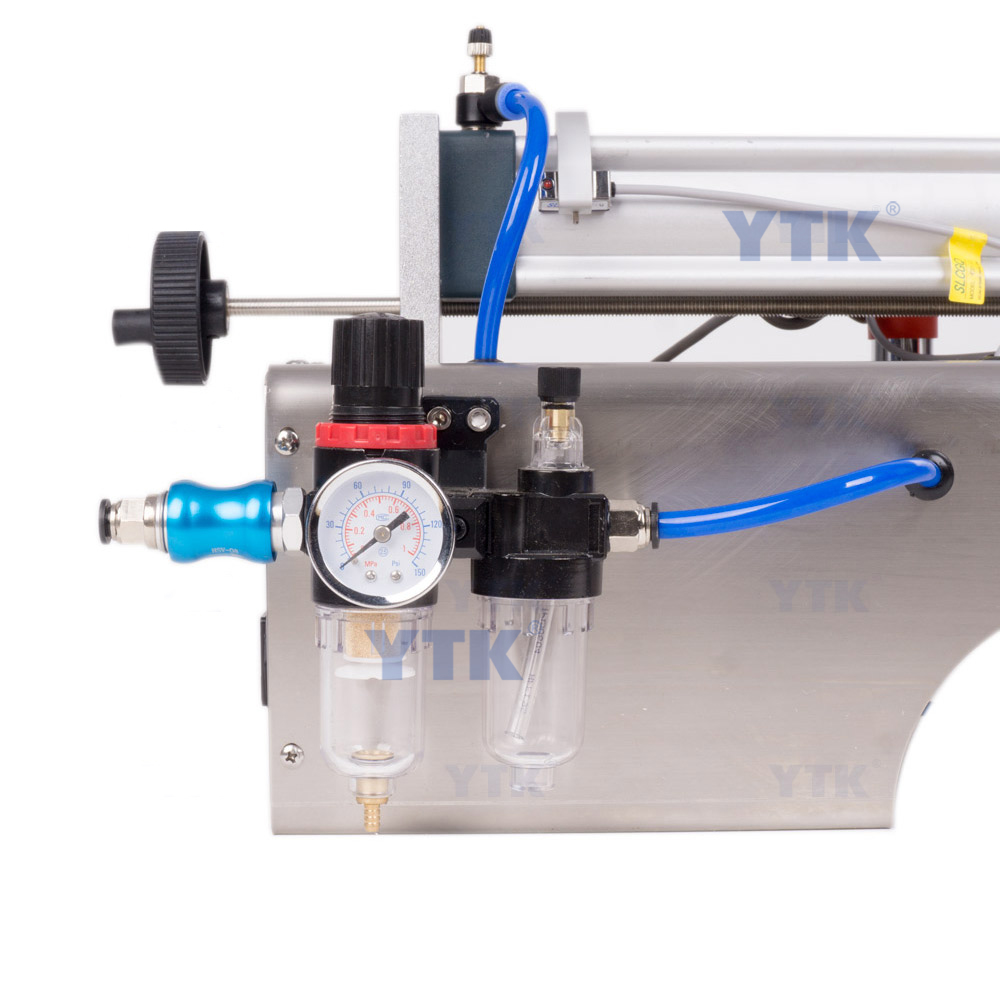

    The oil-water separator is designed to watch the air pressure in real time and filter impurities , this machine need to work with air compressor (connector size is 10mm),you need to buy it separately . If you need this,please contact us

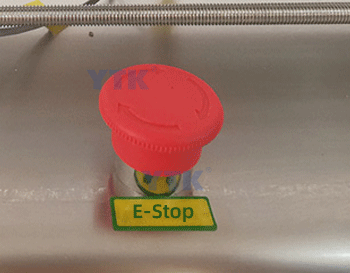

    Emergency button,stops the machine immediately to save you from any potential harm
