Home Products Labeling Machine Round Bottle Labeling Machine YTK-150C Bench Top Labeller Pet Jar Wate
YTK-150C Bench Top Labeller Pet Jar Water Bottle Double Side Automatic Labeling Stickering MachineYTK-150C Bench Top Labeller Pet Jar Water Bottle Double Side Automatic Labeling Stickering MachineYTK-150C Bench Top Labeller Pet Jar Water Bottle Double Side Automatic Labeling Stickering Machine

YTK-150C Bench Top Labeller Pet Jar Water Bottle Double Side Automatic Labeling Stickering Machine

  • Product Item:YTK-150C
  • Voltage:AC220V/110V 50-60HZ
  • Dimension(L*W*H): 1300*800*800mm
  • Weight: 170 KG
  • Power :1500W
  • Inquiry Send Email

    Description

    YTK-150C Round Bottle Clamp labeling machine

    Product Description

      This round bottle labeling is mostly suitable for labeling round object with long  label that covers full bottle circumference, due to the mechanical structure of this machine, it requires a air compressor to provide compressed air in order to make the pneumatic cylinder on this machine to work.


    The places where the machine is updated and upgraded are:

    1. The conveyor belt is upgraded to chain plate type.

    2. The stepper motor out of the standard is upgraded to a closed loop, which can be faster and more accurate.

    3. The stepper motor power supply is changed from AC power supply to DC power supply, which is more stable.

    4. The label pulling mechanism of the bidding platform has been upgraded with a small ease of use, which makes it relatively more convenient to wear labels.

    5. Technical Parameters

    6. Product Name
      YTK-150C High Speed Desktop Round Bottle Clamp Positioning Double Side Adhesive Sticker labeling machine
      Model Type
      YTK-150C
      Speed
      20-200pcs/min
      Diameter
      30-120mm
      Height
      15-200mm
      Length
      25-300mm
      Accuracy
      ±1mm
      Power
      1500W
      Voltage
      220V/110V 50/60Hz
      Weight
      170kg

    Application


    Details

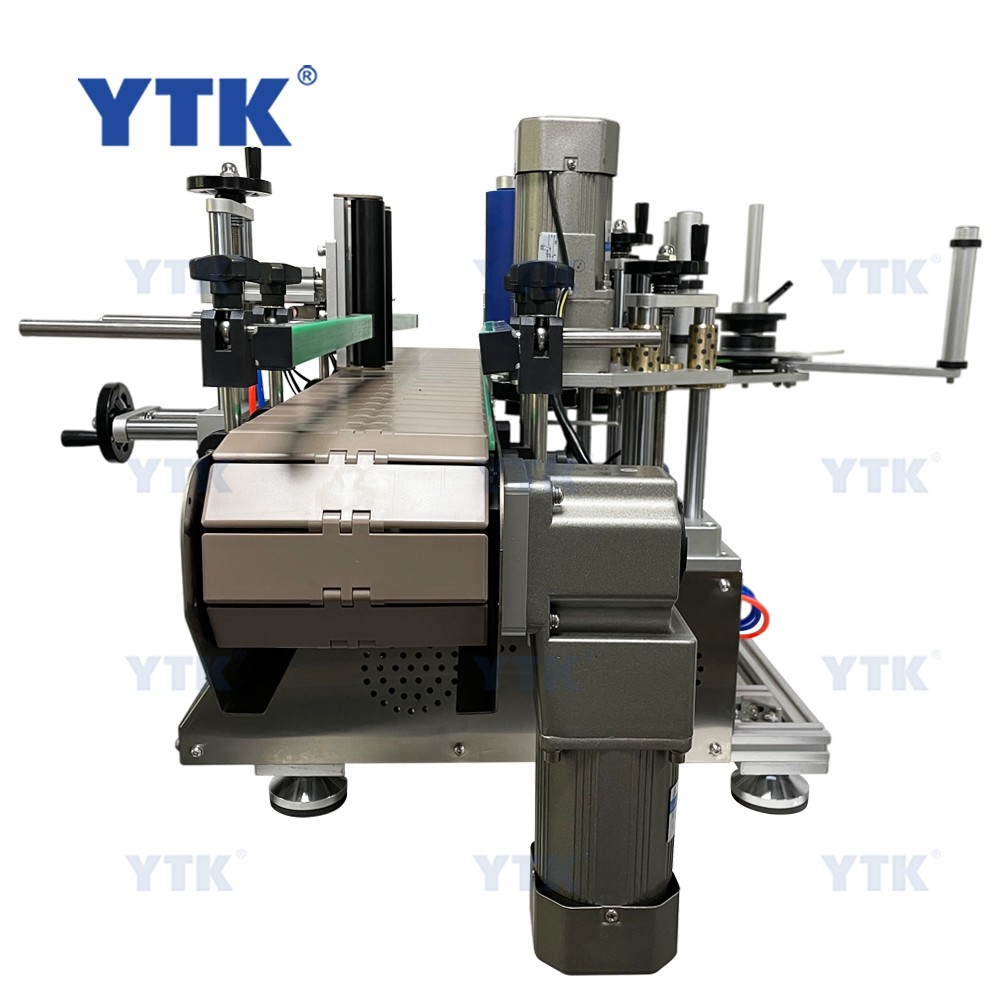

    YTK-150C top view.jpg

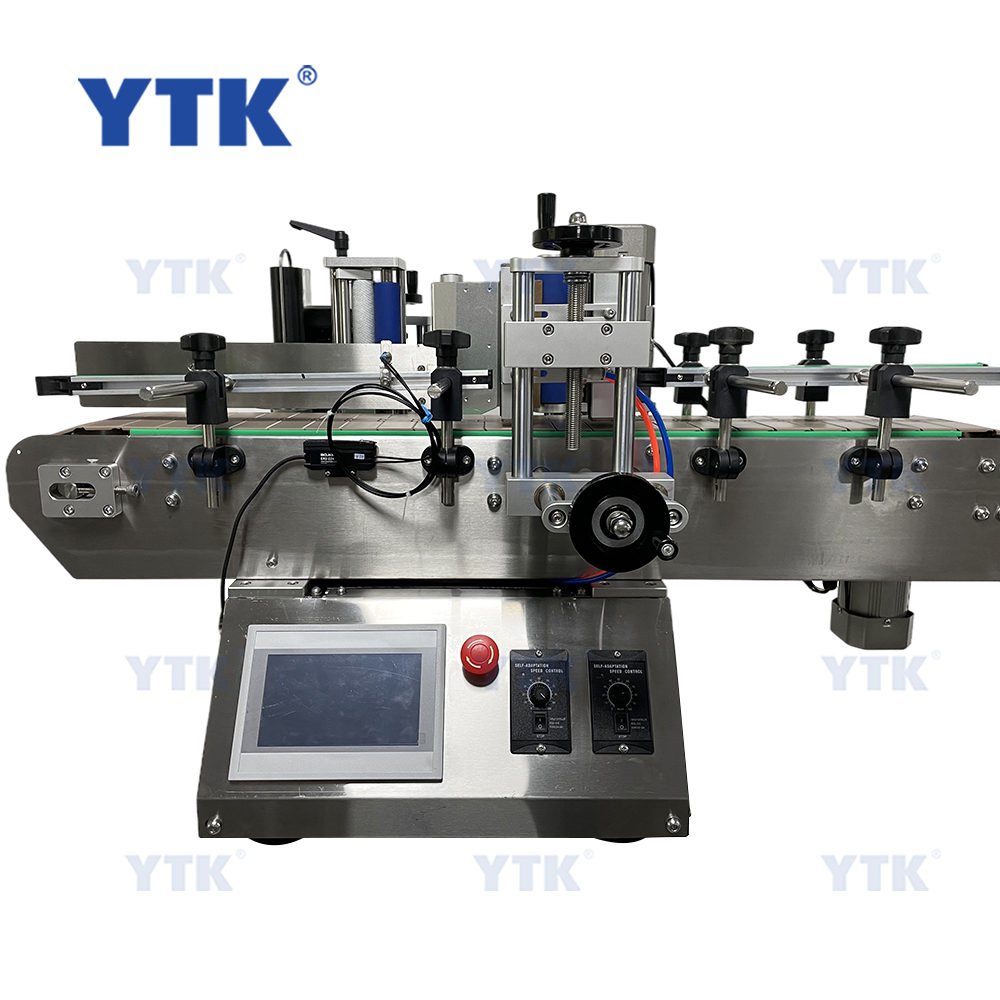

    YTK-150C front view.jpg
