Home Products Filling Machine Paste Filling Machine Alcohol Hand Clean Gel Sanitizer Automat
Alcohol Hand Clean Gel Sanitizer Automatic Pneumatic 4 Heads Honey Juice Bottle Paste Filling MachineAlcohol Hand Clean Gel Sanitizer Automatic Pneumatic 4 Heads Honey Juice Bottle Paste Filling MachineAlcohol Hand Clean Gel Sanitizer Automatic Pneumatic 4 Heads Honey Juice Bottle Paste Filling Machine

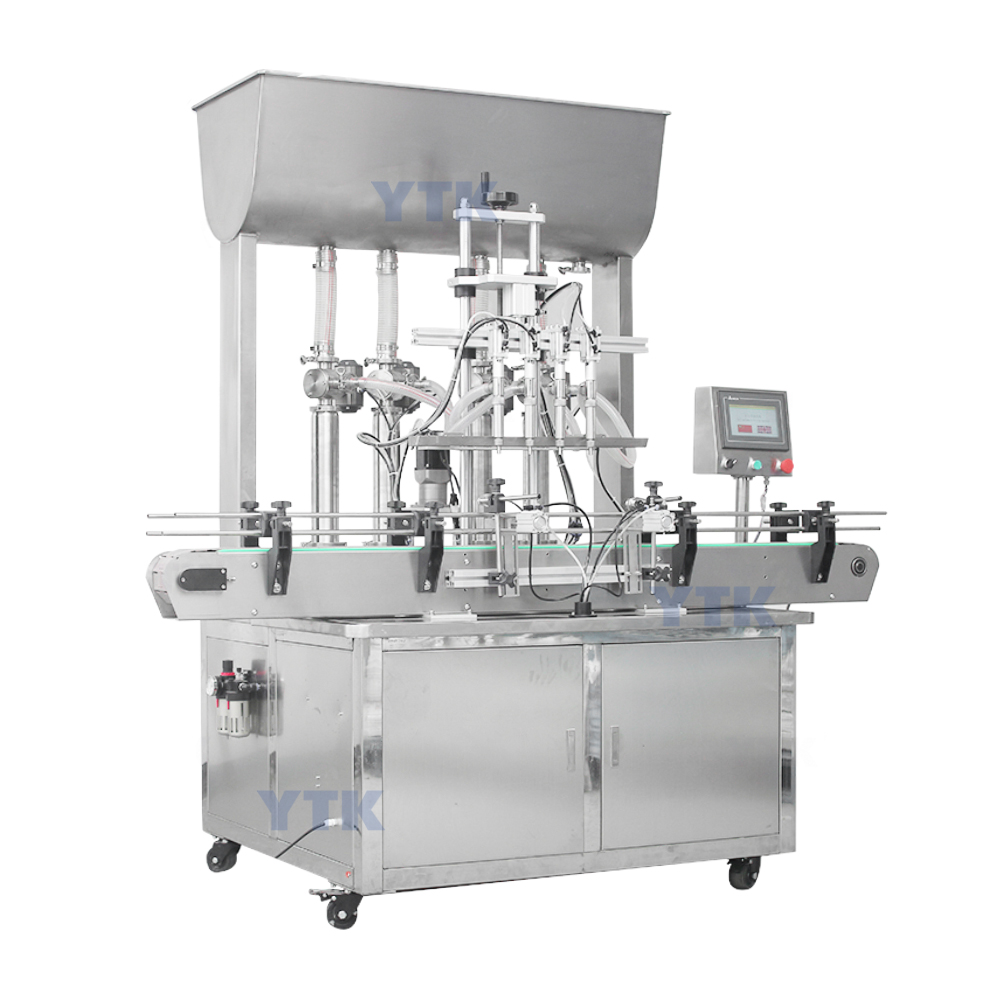

Alcohol Hand Clean Gel Sanitizer Automatic Pneumatic 4 Heads Honey Juice Bottle Paste Filling Machine

  • Product Item:YTK-QZDG4
  • Filling speed: 20-50bottles/min
  • Packing size: 289*136*187cm
  • Conveyor Size: About 1990*100mm(L*W)
  • Weight: 260 KG
  • New Design 4 Head Liquid Automatic Capsule small spice water Bottle Filling Machine
    Inquiry Send Email

    Description

    Product Description

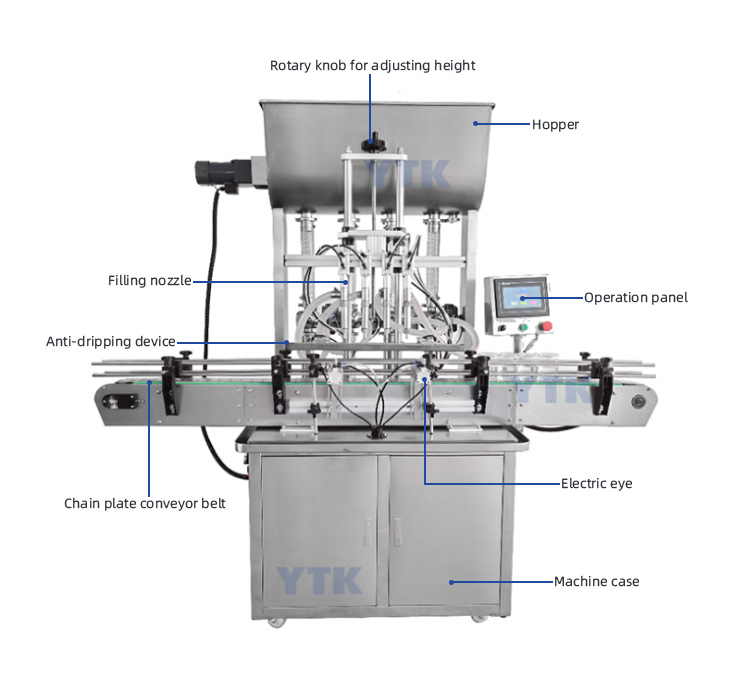

    YTK-QZDG4 automatic paste filling machine is a machine produced by our company. It has compact design, beautiful appearance, wide application field, and it worked with imported parts, so that the the machine has a good performance. Machine also can be designed with mixing and heating function ,and it can be feed filling material automatically .Machine with heating is good for filling pepper sauce ,chocolate etc .Each nozzles can be controlled separately.It is widely used in food ,beverage ,daily chemical industries.
    Product parameters
    Model
    YTK-QZDG2
    YTK-QZDG4
    YTK-QZDG6
    YTK-QZDG8
    Voltage
    110/220V 50-60HZ 800W
    Filling Range
    5-100ml/10-300ml/50-500ml/100-1000ml/500-3000ml/1000-5000ml
    Working Speed
    (base on water)
    10-40bottles/min
    20-50bottles/min
    30-70bottles/min
    40-80bottles/min
    Filling Accuracy
    ≤+1%
    Conveyor Size
    About 1990*100mm(L*W)
    Size of filling nozzle
    φ10mm
    Size of air compressor connector

    φ10mm
    Machine size
    About 1990*950*1970mm(4 Heads)
    Package weight
    220kg
    260kg
    300kg
    600kg
    Package size
    2000*1200*2300mm
    2000*1200*2300mm
    2500*1300*2300mm
    2800*1300*2500mm
    Application
    It is widely used in the filling of various semi-fluids, pastes, viscous bodies, sauces and various granule-containing materials, such as pulp-containing beverages, honey, jams, ketchup, chili sauce, bean paste, shrimp paste, apple Sauce, salad dressing, etc.
    Detail Images

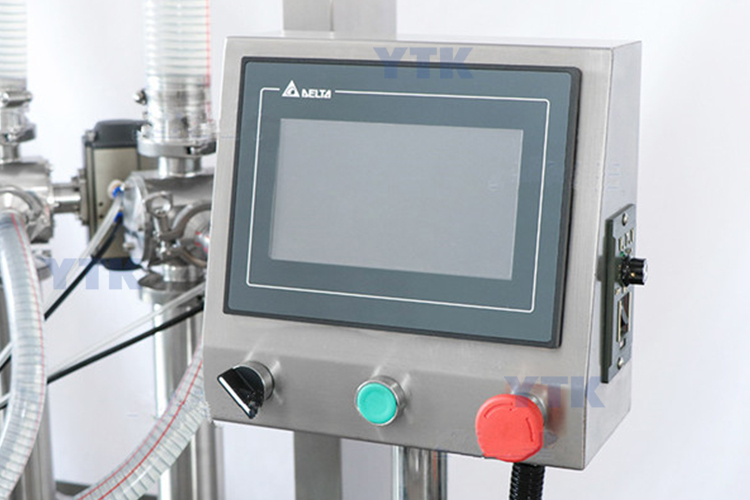

    Operation Panel
    Touch screen control panel with English version,this will be faster and easier when adjusting parameter Each parameter can be controlled accurately according to operation ensure the filling accuracy.
    Filling Heads
    Filling nozzles with anti-dripping design,we can customize multiple filling nozzle as production needs.Each nozzle of this machine can be controlled separately.

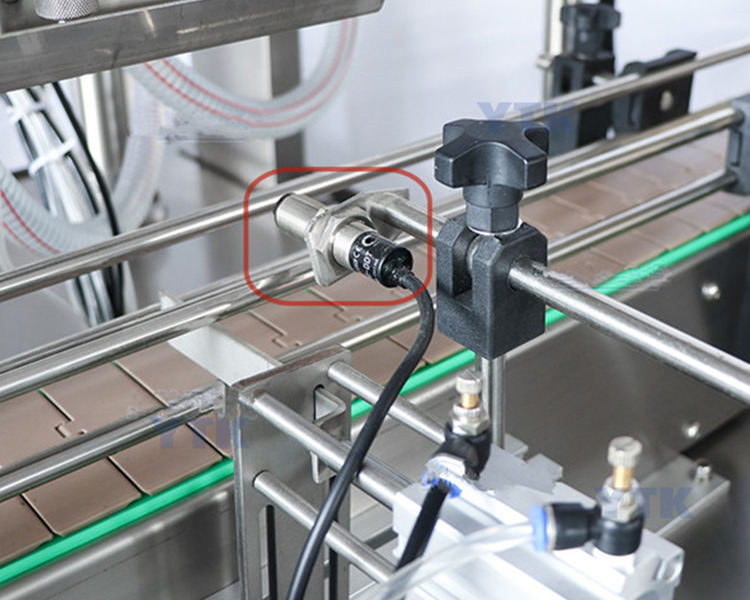

    Bottle Sensor
    The bottle sensor can be used to detect bottles and prevent from missing or wasting bottles,this ensures the filling accuracy.

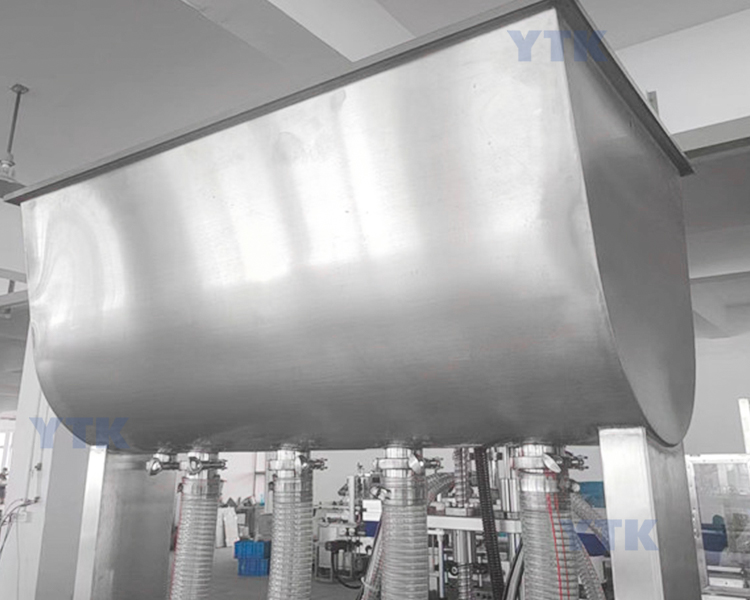

    Filling Hopper
    With larger hopper ,it makes it easier to pour filling material during working,the enough filling material can ensure the filling speed and improve your working efficiency.

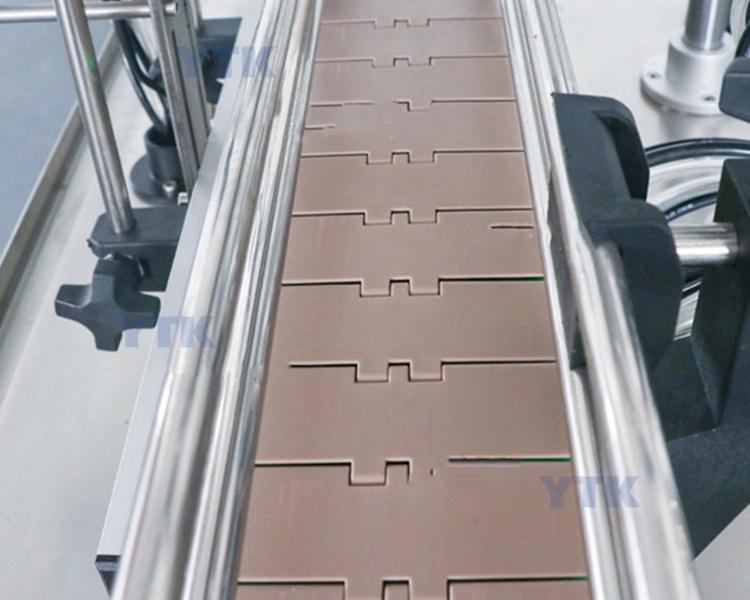

    Conveyor Chain Belt
    High quality conveyor belt makes it smoother when transferring bottles,the size of it is 1990mm*100mm(L*W),we can customize the size according to your production needs.

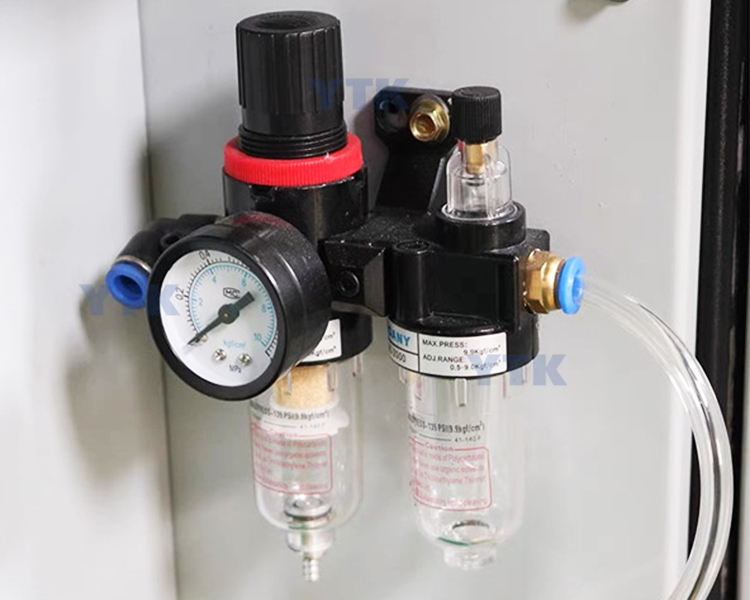

    Air Compressor
    This machine need to work with air compressor,customers need to buy it separately,if you need this,please contact us for more information.
