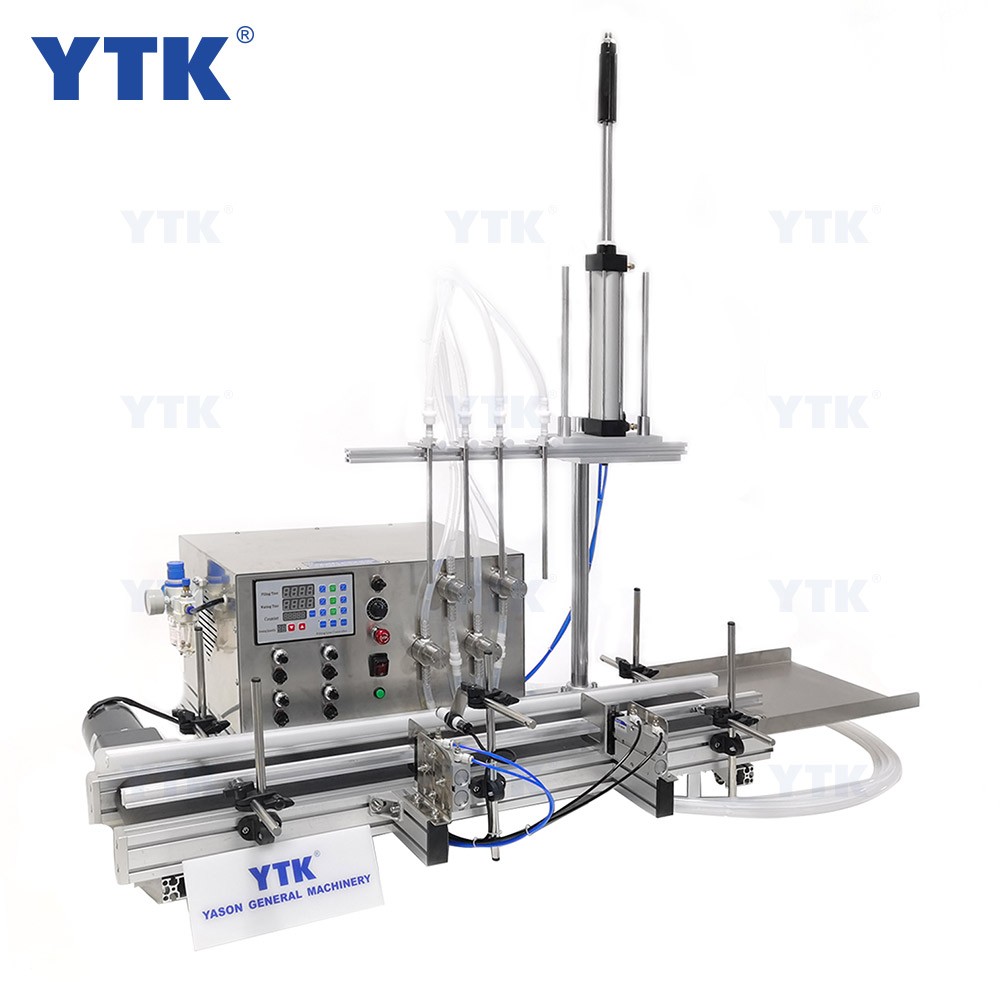

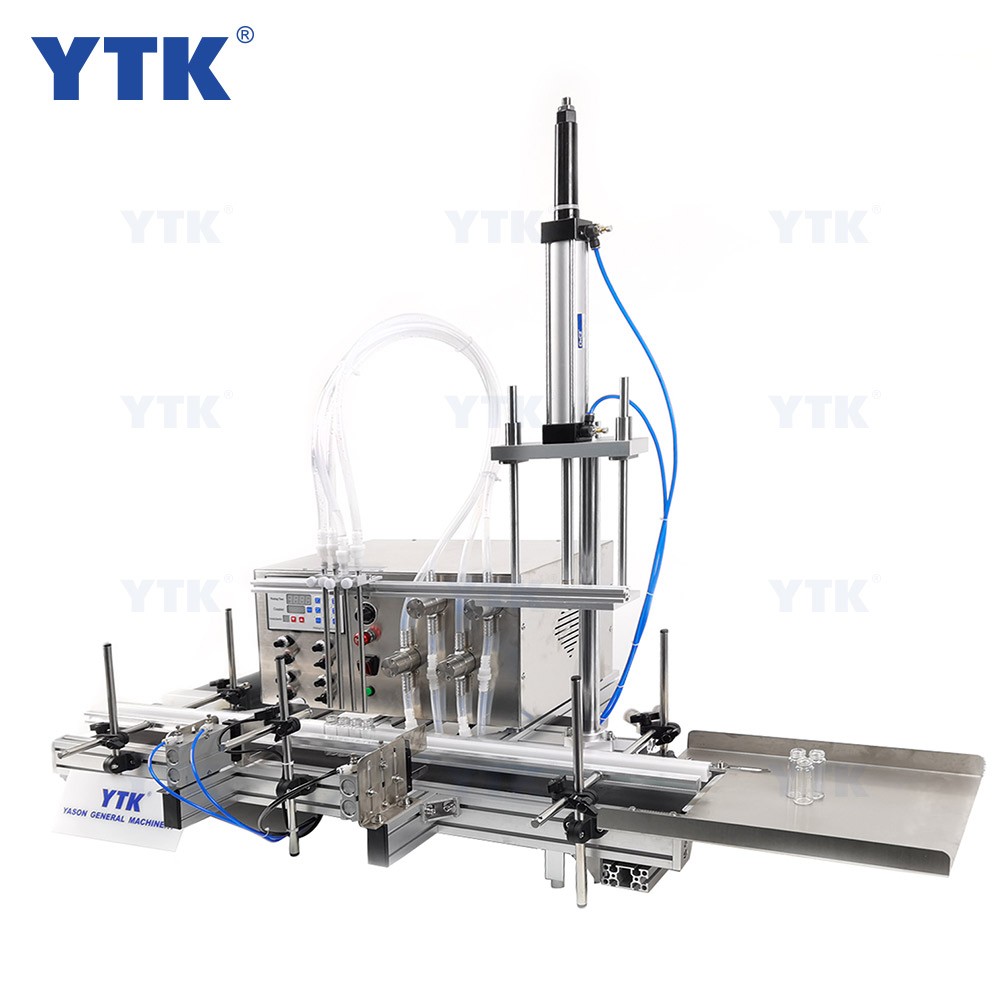

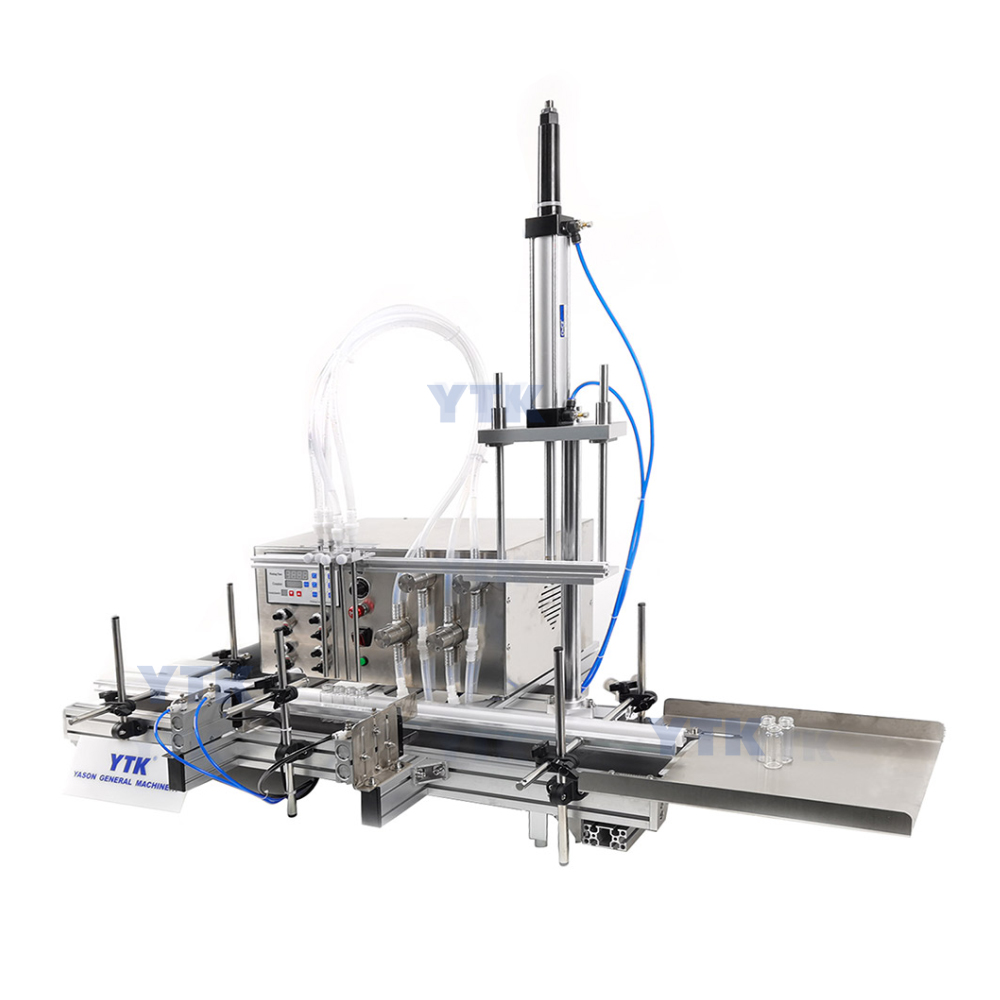

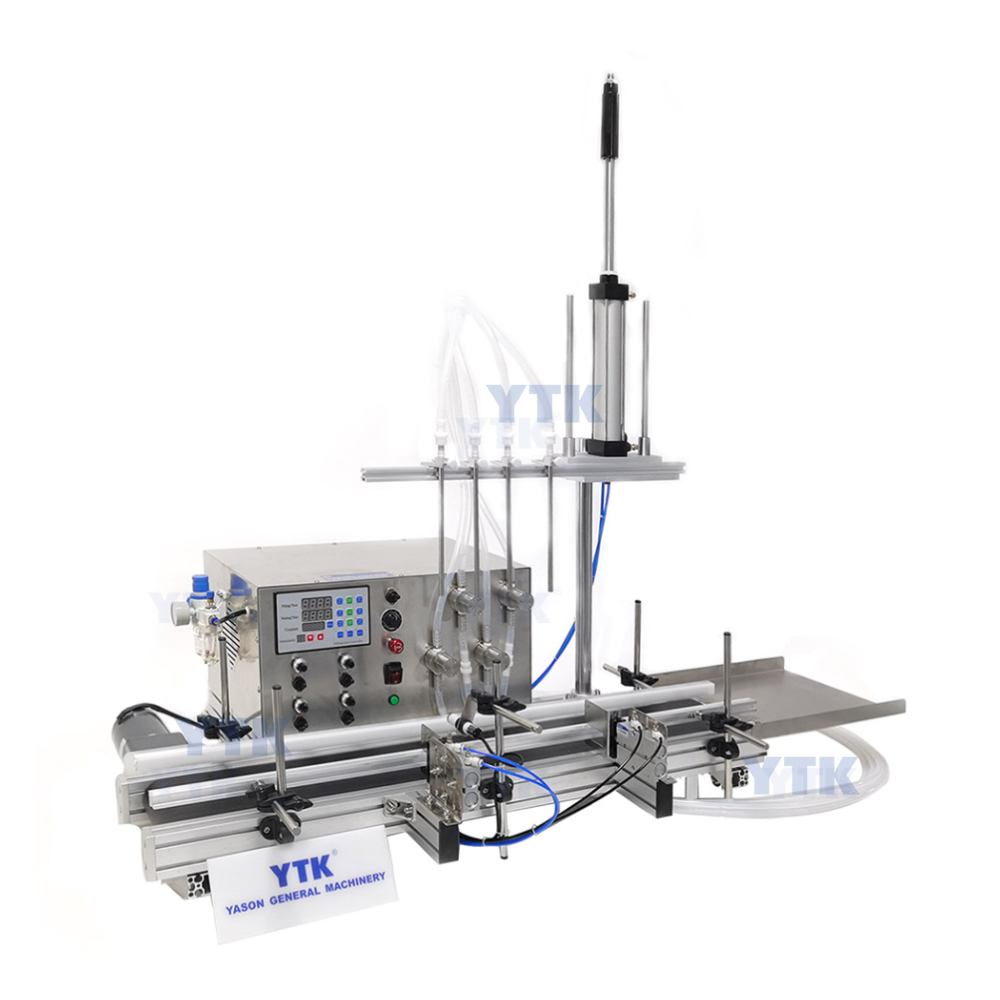

Automatic Desktop CNC Peristaltic Pump Liquid Filling Machine With Conveyor For Perfume Filling Machine Water FillerAutomatic Desktop CNC Peristaltic Pump Liquid Filling Machine With Conveyor For Perfume Filling Machine Water Filler

Automatic Desktop CNC Peristaltic Pump Liquid Filling Machine With Conveyor For Perfume Filling Machine Water Filler

  • Product Item:YTK-DMP4P
  • Dimension(L*W*H): About 1110*650*420mm
  • Voltage: 110/220V 50-60HZ
  • Filling speed: 20-30 bottles/min
  • Weight: 70 KG
  • Automatic Magnetic Pump Liquid Bottles Water Filler Essential Oil Perfume Filling machine
    Inquiry Send Email

    Description

    Product Description
    This automatic filling machine is with small machine body,and it is with diving nozzles,designed for filling foamy liquid like shampoo,hand sanitizer,care solution,detergent etc.The pump is magnetic pumps,it can fill liquid accurately.It is also suitable for small laboratories.
    Specification
    Model Name
    YTK-DMP4P
    Power supply
    110/220V 50-60HZ
    Maximum flow velocity
    5500ml/min(Each nozzle and base on water)
    Working speed
    1500-3000 bottles/hour(depends on bottle size and liquid)
    Air pressure
    0.3-0.4MPa
    Filling accuracy
    ≤±1% (For water)
    Diameter of filling nozzle
    6/8mm
    Delay Range
    0.01-999.9s
    Count Range
    1-99999 Times
    Package Size
    About 1110*650*420mm
    Package weight
    About 70kg
    Filling Volume
    3-1000ml(220V)3-500ml(110V)
    Size of air compressor connector
    OD 8mm
    Botle height
    <220mm(Can be customized,max height 300mm)
    Application
    This machine is suitable for filling corrosive and egranular liquid like eyewash,solvent,cooking oil,toner or a little foamy liquid like care solution,detergent.
    Detail Images

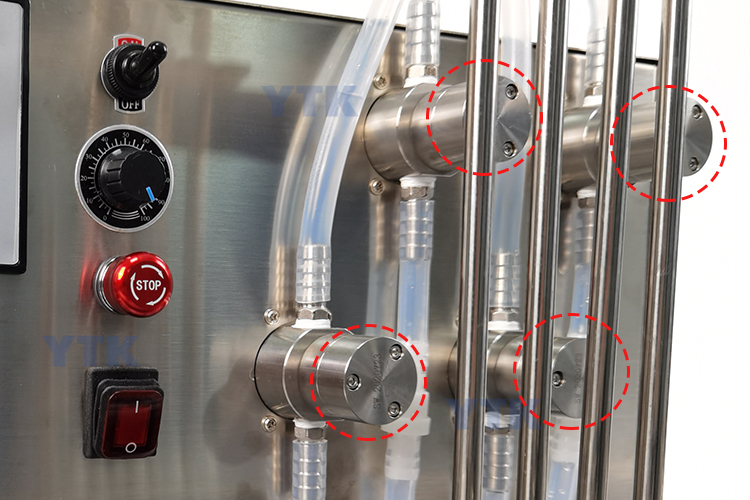

    This machine is made with magnetic pump,ensure filling liquid accurately,easy to operate.
    Simple control panel,easy to adjust the working speed and filling time.Help to improve working efficiency.

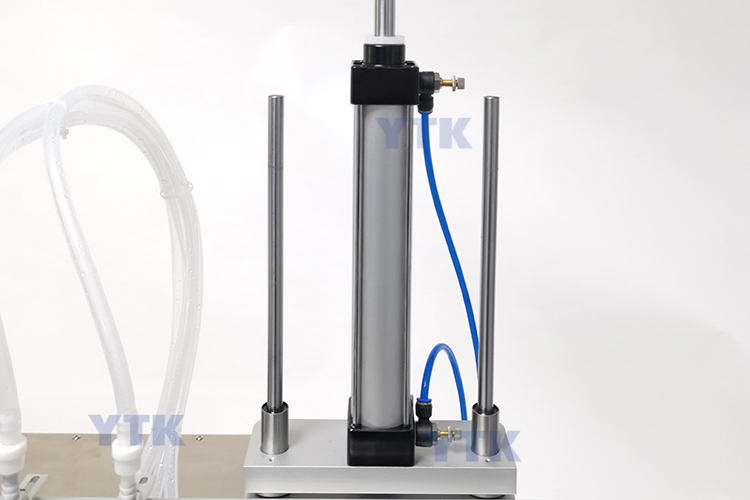

    Use large air cylinder to control diving nozzles,can control filling nozzle to lift up and down,suitable for foamy liquid.We can customize the machine with different numbers of filling nozzles.

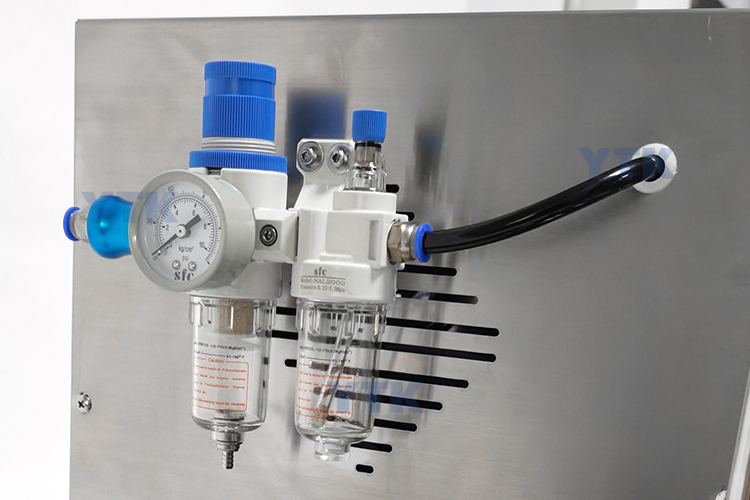

    The barometer is used to watch air pressure in real time.Ensure the safety operation.The air compressor should be bought separately.
    With electric eyes,prevent from missing bottles,reduce working error.
