Description
Description

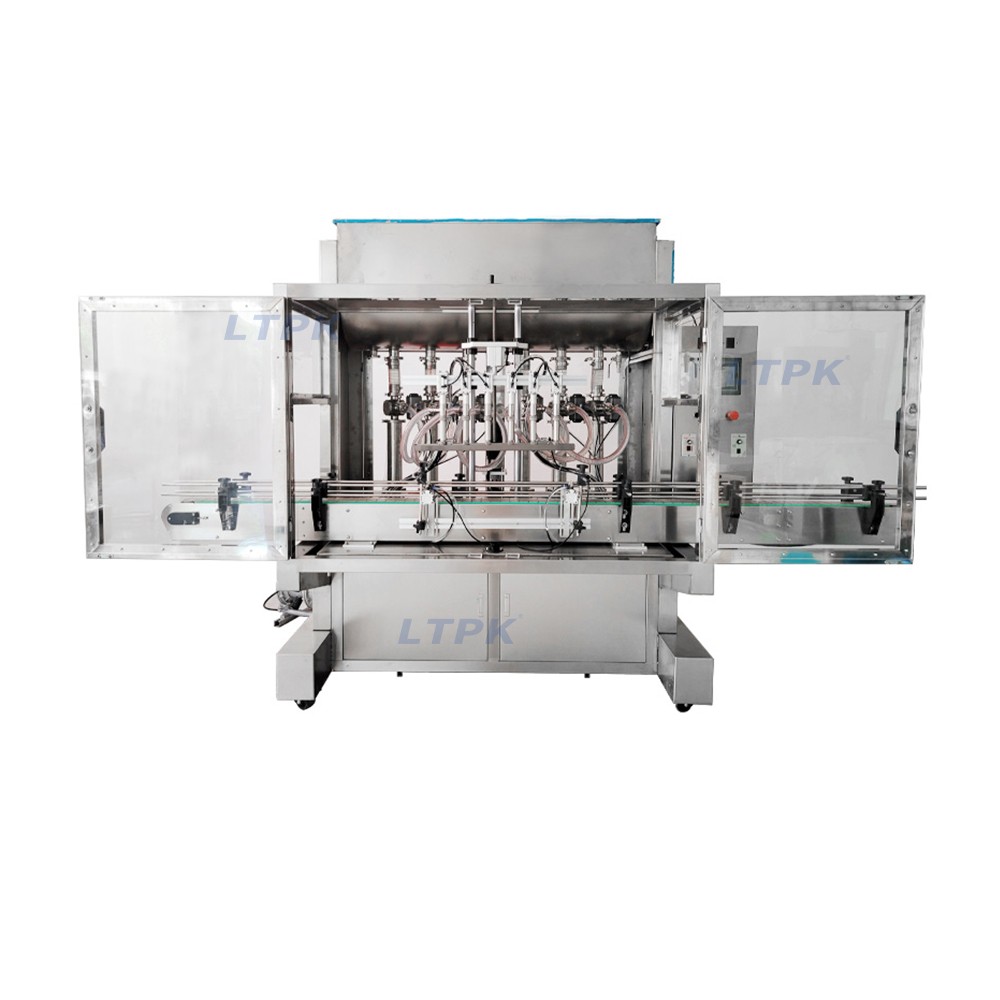

This filling machine adopts piston type linear filling, which has the advantages of high filling accuracy, convenient installation and debugging, easy cleaning and maintenance, and no dripping. The parts in contact with the materials are all made of 304 stainless steel (can custom 316 stainless steel), with a fully stainless steel frame that is clean, beautiful, and generous in appearance. Adopting Taiwan PLC control, touch screen human-machine interface, Taiwan AirTac and other imported components, the filling machine has excellent performance of stable performance and flexible operation.
Technical Parameters
Model：LT-QZDSF100-1000ml
Voltage：220/110V
Power：2500W
Filling range：5-100ml/10-300ml/50-500ml/100-1000ml/500-3000ml/1000-5000ml
Bottle diameter ：30-100mm (customizable)
Bottle height：70-350mm (customizable)
Filling speed ：30-60bottles/min
Filling accuracy：± 1%
Working pressure：0.4-0.8Mpa
Gas consumption：1.5m³/min
Weight ：About 500kg
Size：260*145*240cm
Application
This series of filling machines is suitable for industries such as daily chemicals, food, fats, pesticides, it can fill different types of liquid products. such as edible oil, lubricating oil, hand sanitizer, honey, etc.
