Description
Description
The machine uses the uneven weight cap to lift the caps which match the conditions, and the unsuitable cap is lowered until it match the lifting condition and raised again. The device directly lifts the eligible caps into the conveyor track through the cap conveyor belt, then enters the screw cap machine and load the cap into the bottle mouth, and then screw cap. The entire cap sorting process does not require manual intervention.

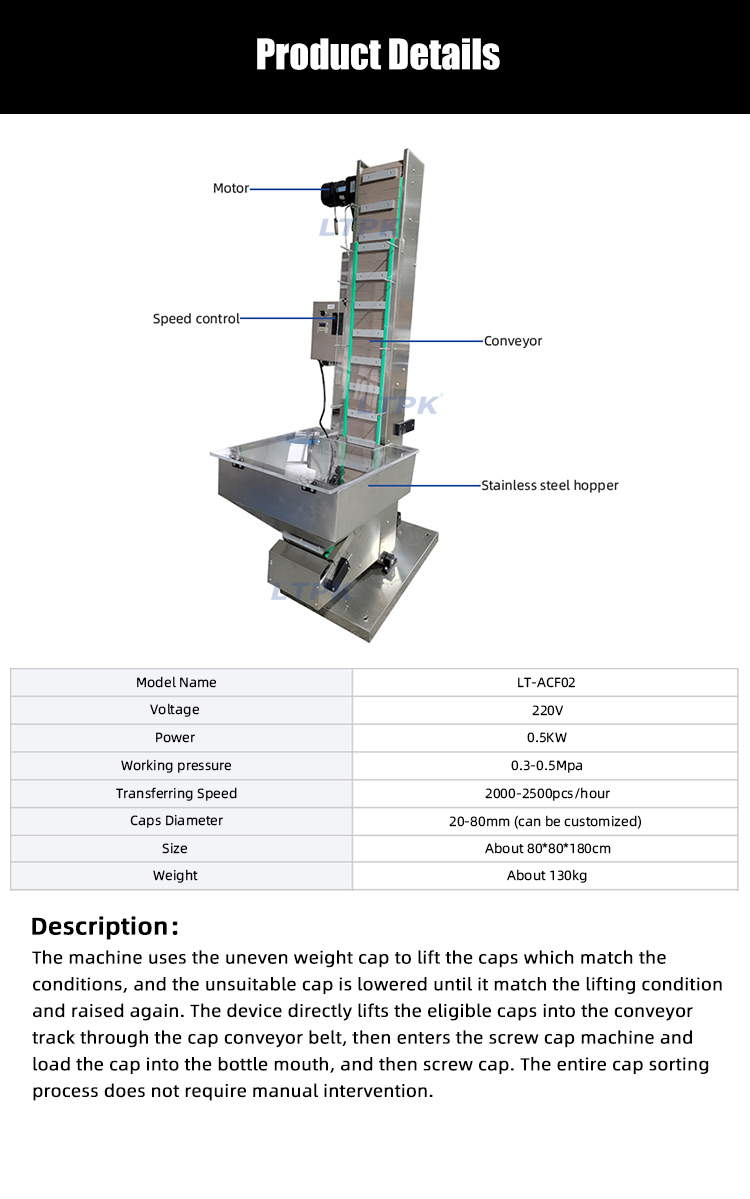

Technical Parameters
Model ：LT-ACF02
Voltage：220V
Power：0.5KW
Working pressure：0.3-0.5Mpa
Transferring Speed：2000-2500pcs/hour
Caps Diameter：20-80 (can be customized)
Size：About 80*80*180cm
Weight ：About 130kg
Application

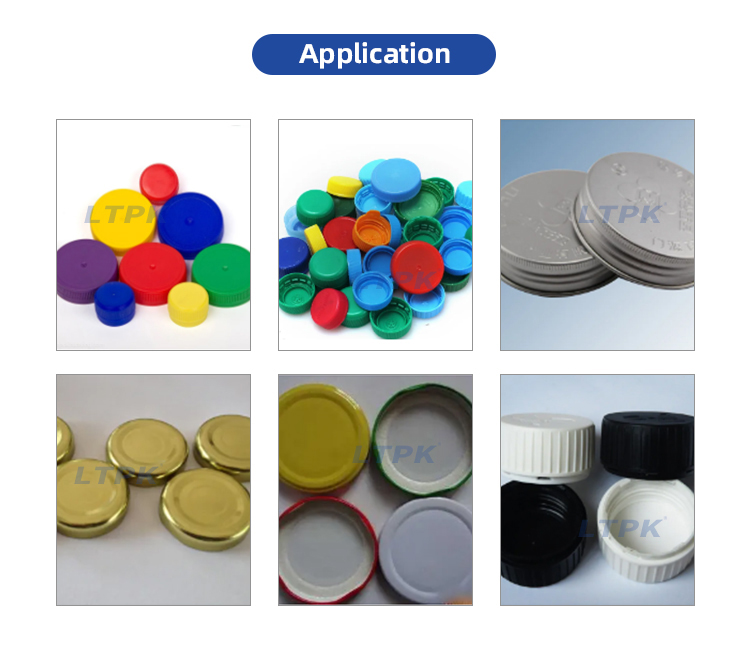

This machine can be used with automatic capping machine,suitable for various sizes of round caps.Widely used in industries such as medicine, food, fats, daily chemicals, pesticides, etc.

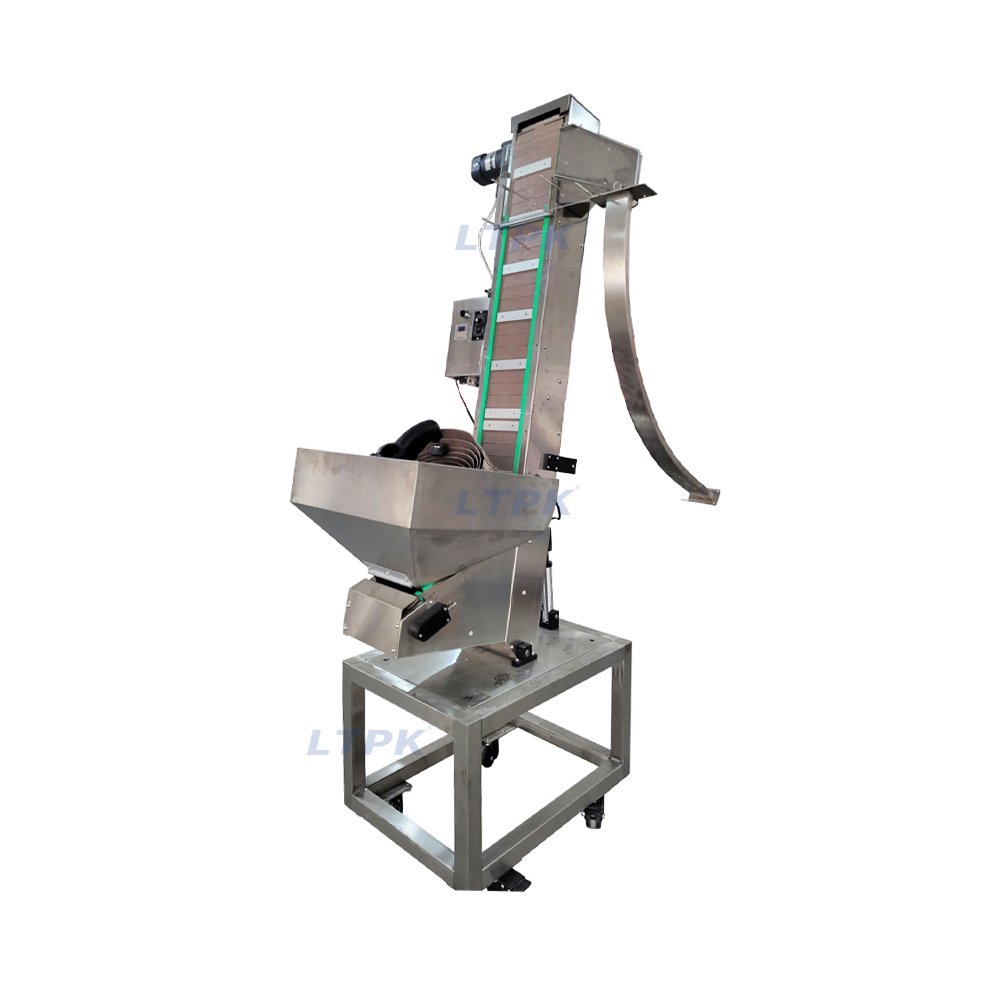

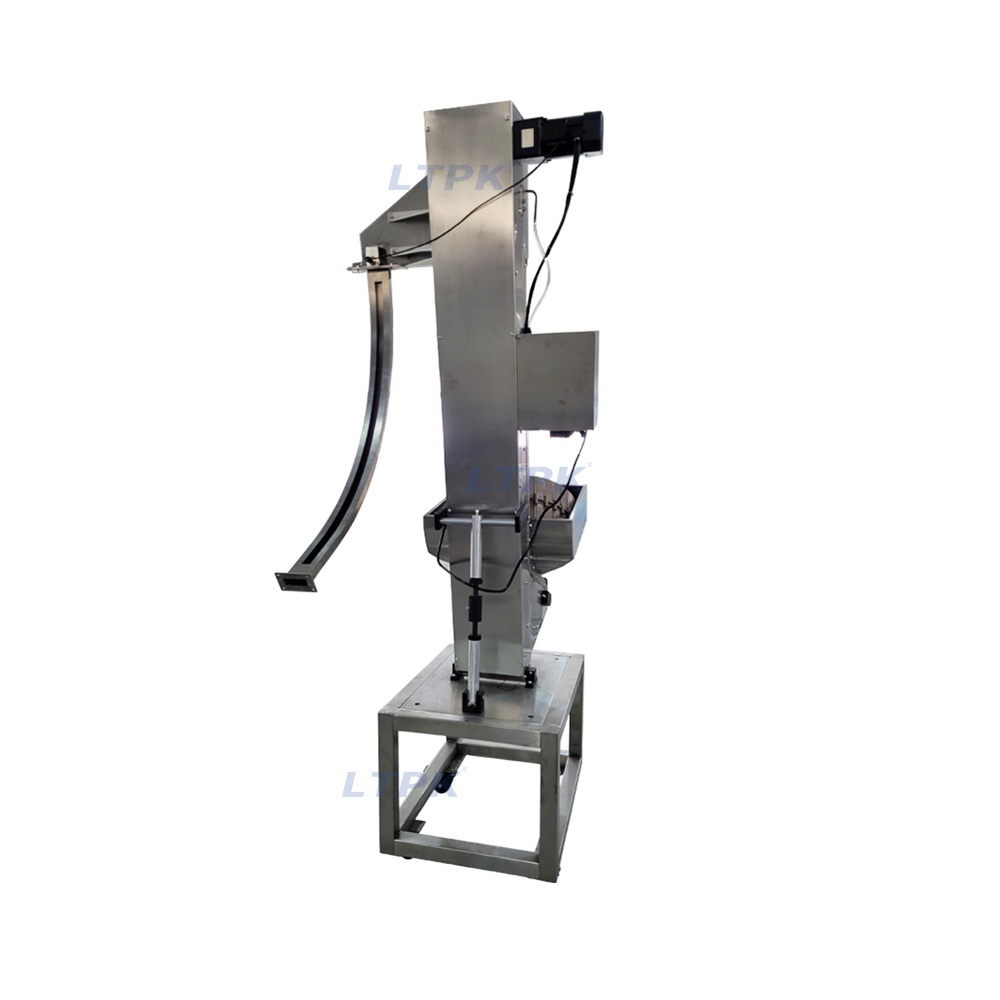

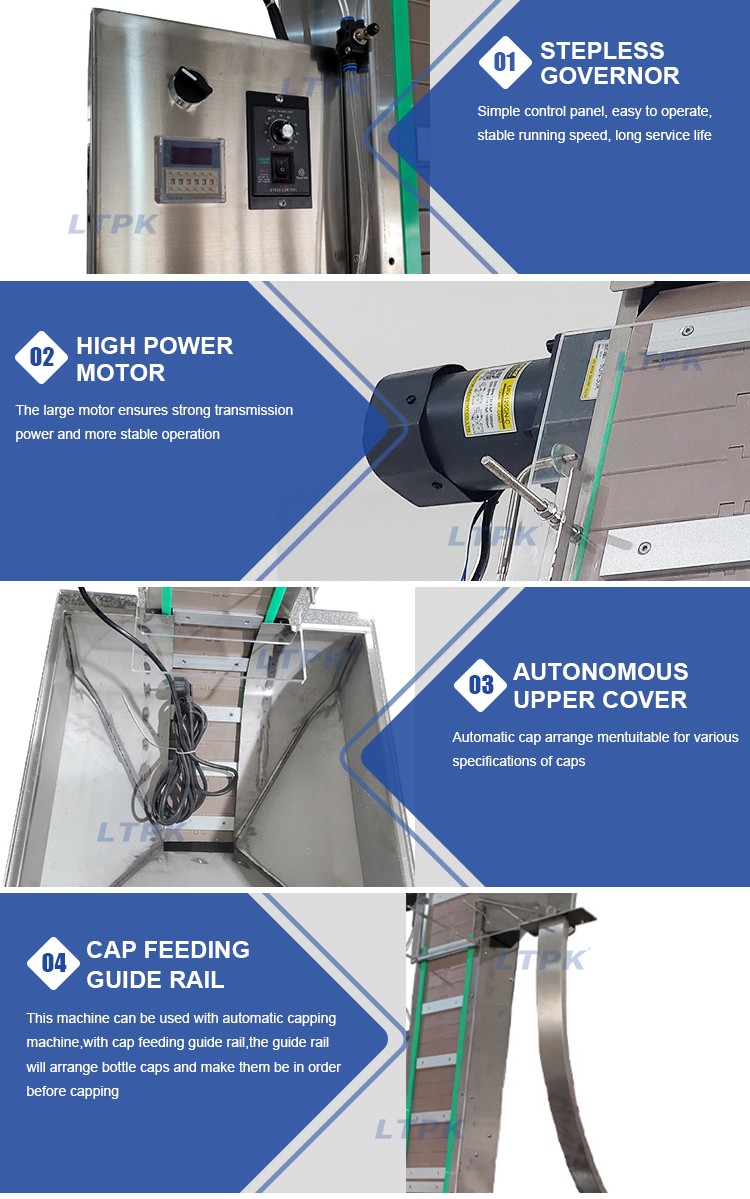

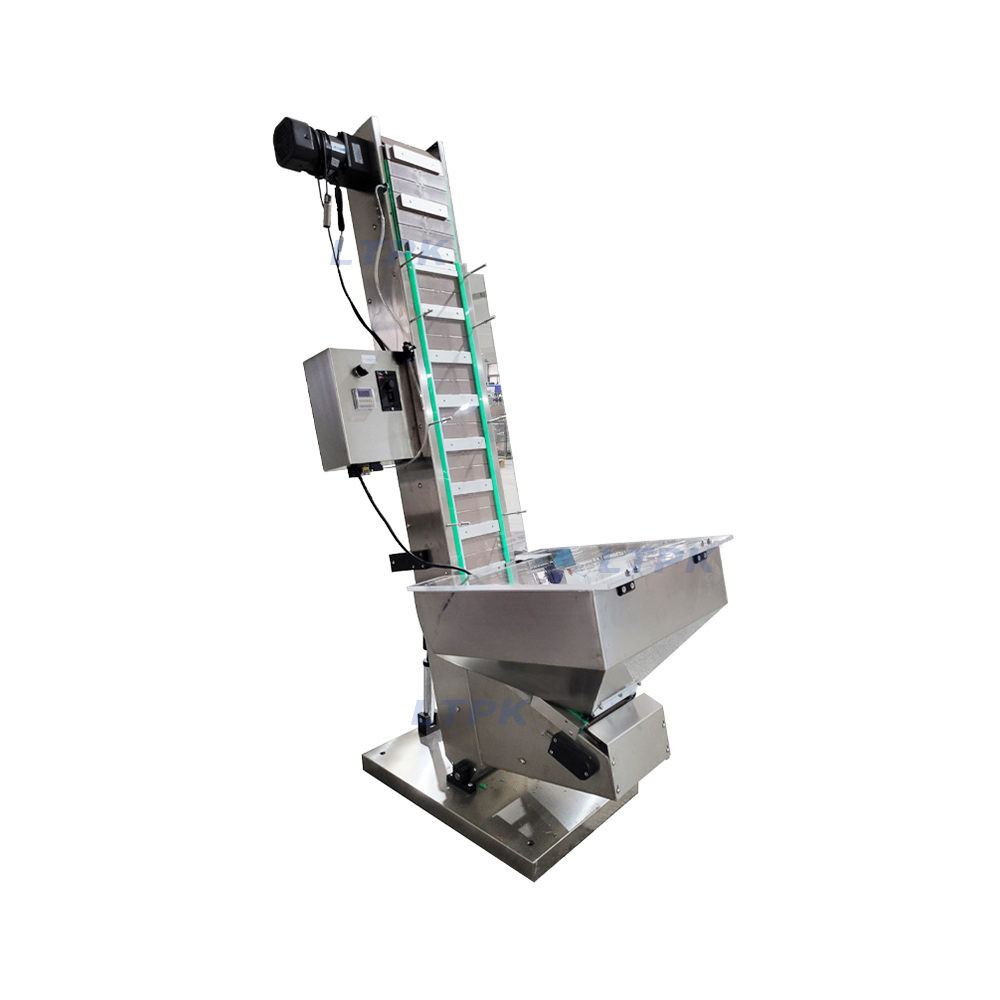

Detail Images
