Home Products Four Head Magnetic Pump Glass Bottle Wat

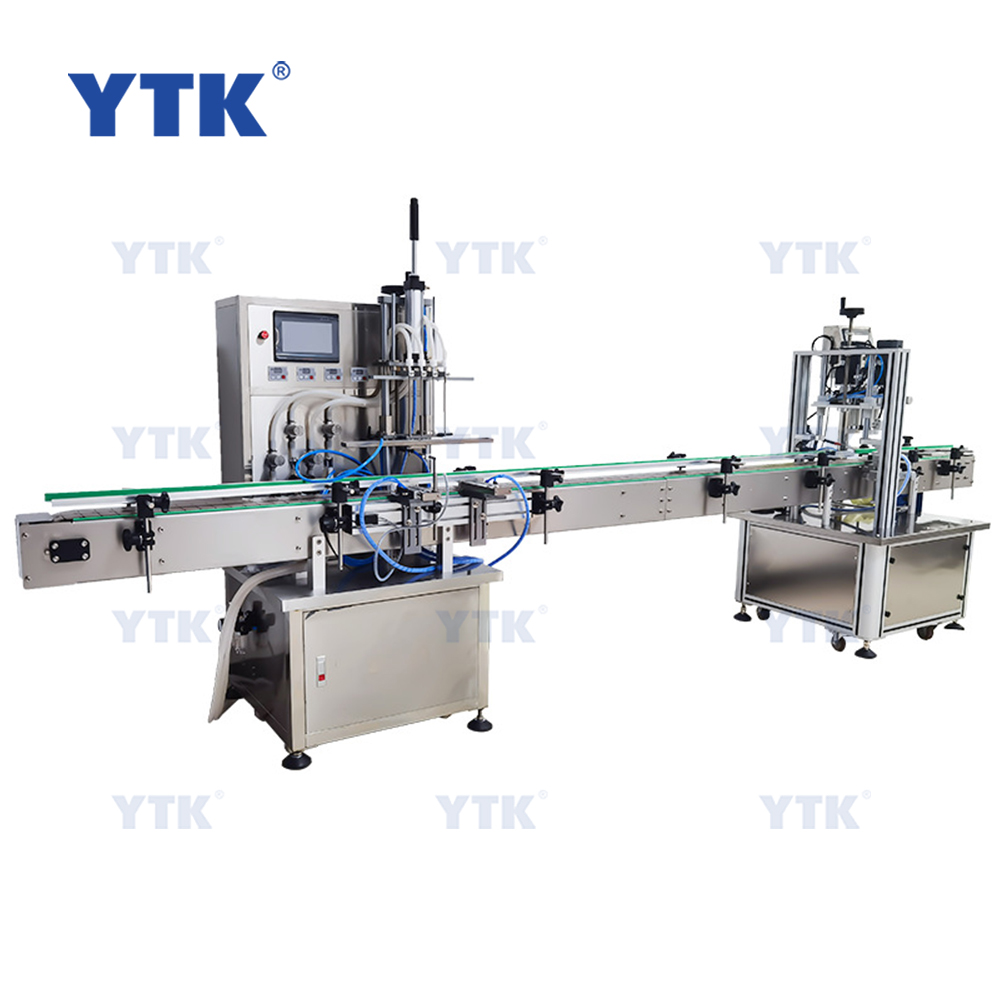

Four Head Magnetic Pump Glass Bottle Water Automatic Fluid Perfume Essential Oil Liquid Soap Filling Machines With ConveyorFour Head Magnetic Pump Glass Bottle Water Automatic Fluid Perfume Essential Oil Liquid Soap Filling Machines With Conveyor

Four Head Magnetic Pump Glass Bottle Water Automatic Fluid Perfume Essential Oil Liquid Soap Filling Machines With Conveyor

  • Product Item:YTK-VTMP80C
  • Weight: 280 KG
  • Dimension(L*W*H): 20*76*148cm
  • Capacity: 30-75 bottles/min
  • Power:2.2KW
  • filling capping and labeling machine lotion
    Inquiry Send Email

    Description

    Product Description
    This automatic filling machine is equipped with magnetic pump,which can ensure the filling accuracy.The filling speed of each nozzle can be controlled separately. It has compact design, beautiful appearance,wide application field, and it worked with imported parts, so that the the machine has a good performance.This machine is suitable for filling essential oil,eye drops,ink etc.
    Specification
    Automatic filling machine
    Container size
    φ20-160mm H30-300mm
    Max flow rate
    6000ml/min
    7500ml/min
    12000ml/min
    Material of pump
    316stainless steel
    316stainless steel
    316stainless steel
    Filling accuracy
    ≤100ml deviation≤±1ml
    > 100ml deviation≤±1% ( based on water)
    Filling speed
    20-50pcs/min
    25-60pcs/min
    40-65pcs/min
    (depending on bottles and flling liquid)
    Power supply
    220V-50HZ/110V-60HZ
    The whole machine power
    2000W
    Size of air compressor connector
    OD8mm
    Packing weight
    About 150kg
    Packing size
    About 2000*820*1580mm
    Automatic capping machine
    Bottle height
    30-300mm
    Bottle diameter
    18-70mm
    Working speed
    20-60 bottles / minute (depending on bottle and cap size and shape)
    Working voltage
    AC220V/110V 50-60HZ
    Working pressure
    0.4-0.6 MPa
    Dimension
    About 1930*740*1600mm
    Package size
    About 2000*820*1760mm
    Net weight/Gross weight
    About 113kg/192.5kg
    Size of air compressor connector
    OD 8mm
    Fetures
    The machine is mainly applied to 50ml eye drops,nail polish,eye shadow,essential oils and other products of automatic filling,plug and screw cap.
    Application
    Details Images

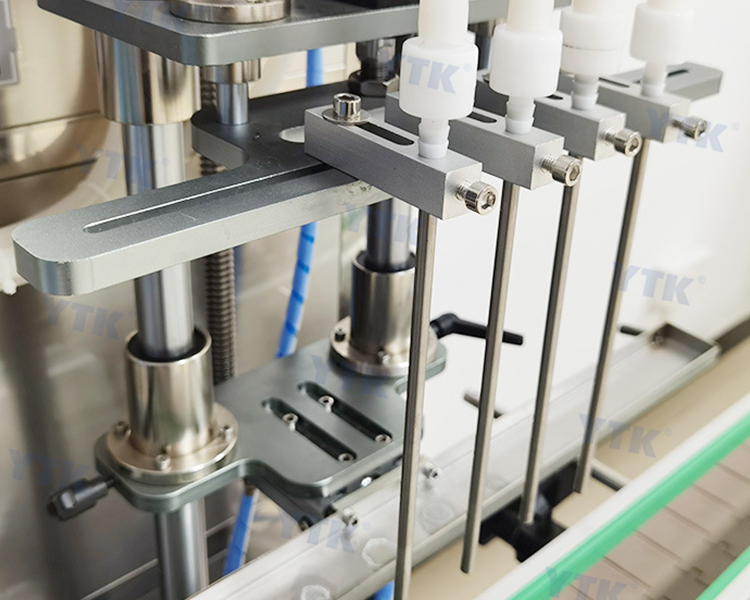

    Can customized filling head
    With anti-dripping function,can control each nozzle separately.We also have the 2/6/8 nozzles filling machine,please inform us the output capacity,we will give some suggestion.

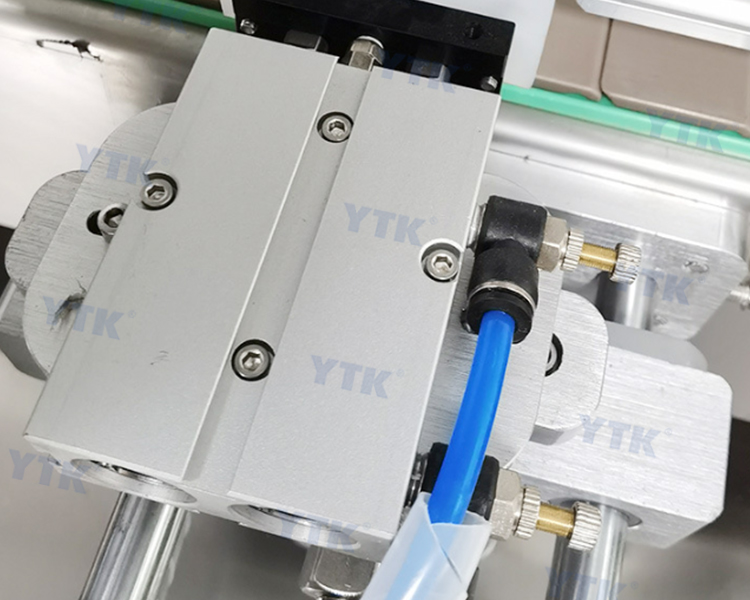

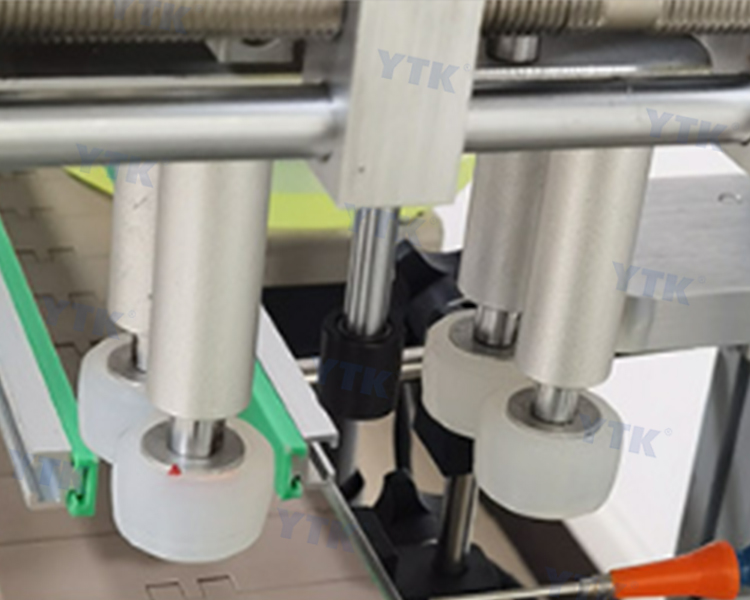

    Capping Chuck
    Suitable for different kinds of bottle caps.The capping time,pressing time can be adjusted by operation panel.
    Operation Panel
    Intelligent operation panel and is with English version,can control filling time and other working data.
    Bottle Electric Eye
    Can detect the bottle once you the bottle pass through,save a lot of time and help you improve working effciency.The sensitivity
    of the electric eye can be adjusted.
