Home Products Filling Machine Liquid Filling Machine YTK-LYP1000 Semi-auto Floor Single Head
YTK-LYP1000 Semi-auto Floor Single Head Liquid Filling Machine For Small BusinessYTK-LYP1000 Semi-auto Floor Single Head Liquid Filling Machine For Small BusinessYTK-LYP1000 Semi-auto Floor Single Head Liquid Filling Machine For Small Business

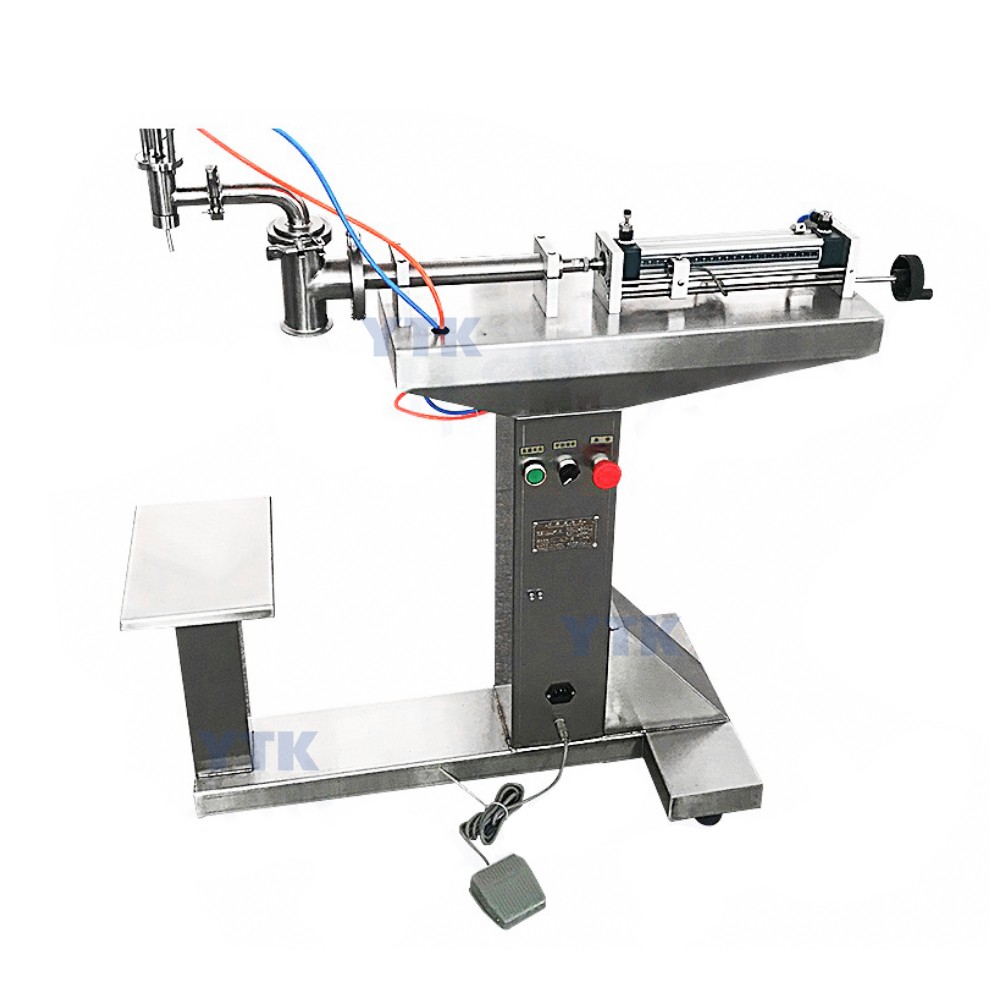

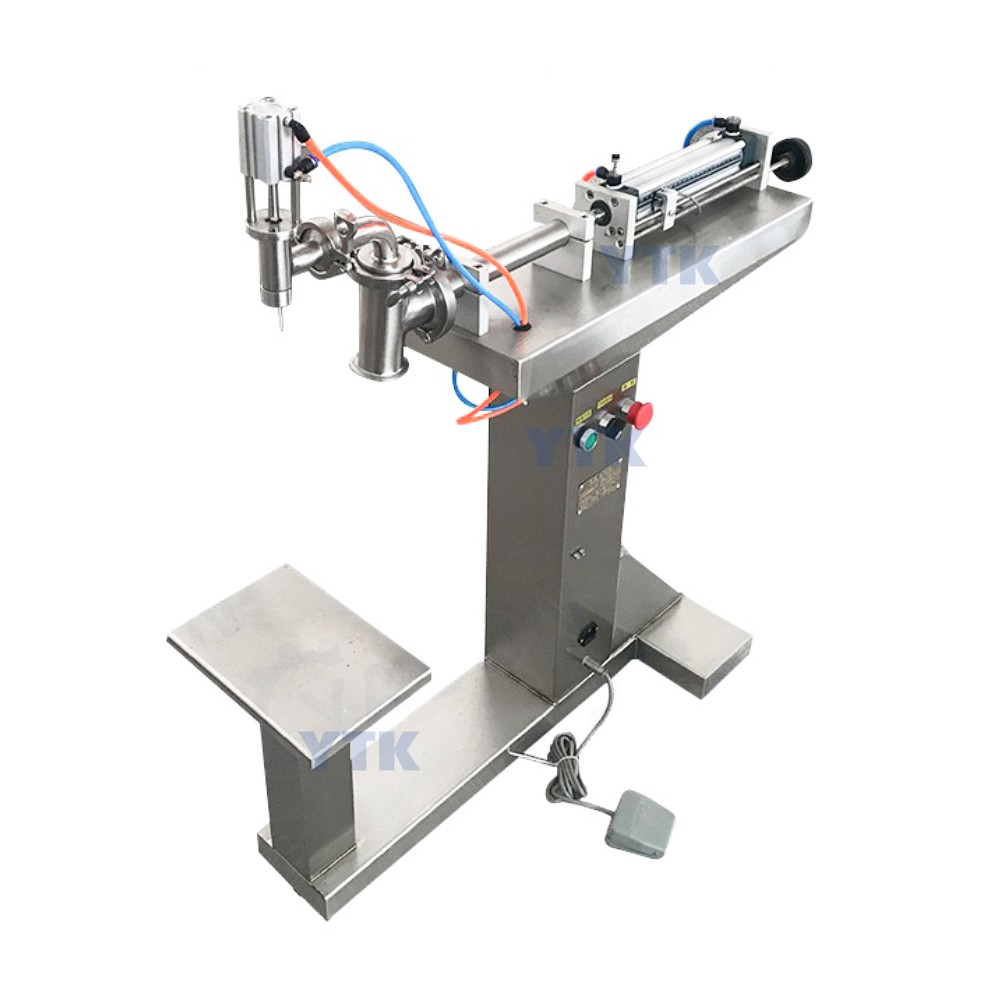

YTK-LYP1000 Semi-auto Floor Single Head Liquid Filling Machine For Small Business

  • Product Item:YTK-LYP100-5000
  • Voltage: 220V/50Hz or 110V/60Hz (Optional)
  • Dimension(L*W*H): 1310*575*930mm(1000ml)
  • Weight: 72.5 KG
  • Filling speed: About 10-30 bottles/min
  • Single head Pneumatic Semi-automatic Edible Essential Oil Liquid Jar Liquid Filler Shampoo Milk Juice Vinegar Coffee Oil machine
    Inquiry Send Email

    Description

    Floor type liquid filling machine is suitable for filling multiple flow liquid. It is widely used in widely areas,such as cosmetic,food,pesticide and special industries.The filling machine uses the piston measuring mode and compressed air as the power to work.The filling range can be adjusted, safe, reliable and easily used.






    Technical Parameter

    Voltage:220V/50Hz 110V/60Hz

    Power:100W

    Energy Source:Electric and pneumatic
    Filling Nozzle:1 or 2 Nozzles


    Filling Range:5-100mL /20-300mL / 50-500mL /100-1000mL /500-3000mL / 1000-5000mL
    Filling Speed:About 10-30 bottles/min
    Filling Accuracy:±1%
    Air Pressure:0.4-0.6MPa
    Height of Bottle Holder:Adjustable
    Package Weight:72.5kg
    Package Size:1310*575*930mm

    Application

    Widely used in the filling of various liquids, beverages, oil, low viscous liquid, etc.


    Detail Images
