Home Products Filling Machine Liquid Filling Machine YTK-LT-130 Factory Single Head Drink Win
YTK-LT-130 Factory Single Head Drink Wine Honey Filling MachineYTK-LT-130 Factory Single Head Drink Wine Honey Filling MachineYTK-LT-130 Factory Single Head Drink Wine Honey Filling MachineYTK-LT-130 Factory Single Head Drink Wine Honey Filling Machine

YTK-LT-130 Factory Single Head Drink Wine Honey Filling Machine

  • Product Item:YTK-130
  • Dimension: 280*250*160mm
  • Power: 30w
  • Max flow: 3.2L/min
  • Filling range: 5-3500ml
  • drink filling machine  , wine filling machine  , honey filling machine
    Inquiry Send Email

    Description

    Product Description
    This digital control liquid filling machine is used to control the filling time and motor speed and other factors of water pump by computer, to achieve uniform, repetitive, error minimum liquid filling method, widely used in pharmaceutical, chemical, food, beverage, oil, cosmetics and other industries, suitable for low viscosity, no particles liquid filling, small batch production.

    The pump body of this machine is adopted variety of imported corrosion resistant materials for synthesis, pump body and motor are separation, inside pump body is no mechanical and wear. It has many features like oil resistance, heat resistance, acid resistance, alkali resistance, corrosion resistance, chemical resistance and other properties. The pump has the advantages of self suction pump and chemical pump, self suction function, thermal protection, stable operation, long time continuous idling, long time continuous load operation and other advantages.
    Specification
    Model
    YTK-130
    Voltage
    220v or 110v(if you need 110v,please inform us)
    Power Consumption
    30W
    Maximum Flow
    3.2L/min
    The Maximum Suction Lift
    2m
    Filling Range
    3-3000ml
    Discharge Drip Function
    Yes
    Power and Memory Function
    Yes
    Repeat error
    <0.5%
    Weight
    5KG

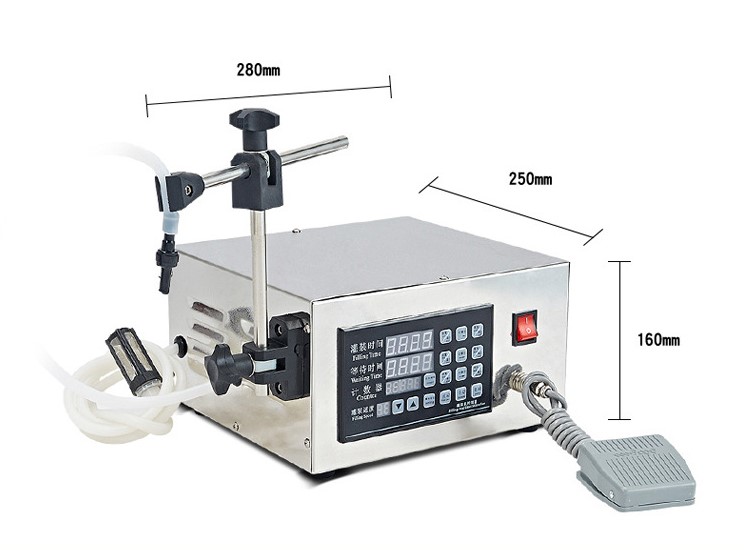

    Size
    280*250*160mm
    Feature

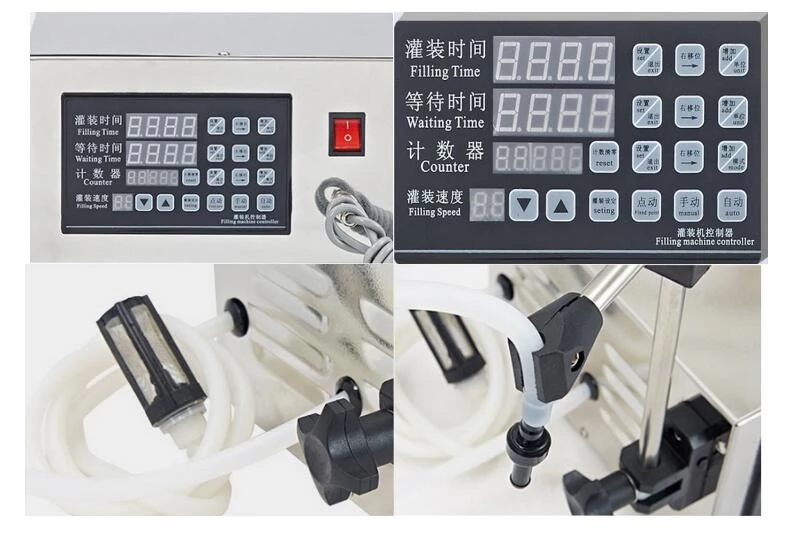

    1, function description

    a, filling time : for adjusting the filling time
    b, waiting time : waiting time between each filling when the machine is filling automatically .
    c, counter : filling counter
    d, filling speed : adjusting the speed
    e, fiilling machine controller : for adjusting the filling

    2,Operation steps

    a, turn on the machine ,and put the bottle under the filling head
    b, push the button "setting". When the filling reaches the range you want , push the button "setting" once again . Then the machine will keep the filling range in memory .
    c, push the button "auto ", and it will work automatically . Push the button "manual", and it will work manually .

    3, the warranty of the machine is 1 year .

    The pump is diaphragm pump and is consumable . When you find the filling turns slow, please change the pump .
    Application
    Suitable for small bottles of various oral liquids, syrups, sprays, perfumes, essential oils, solution reagents, product trials, etc. within 50ml.
    Detailed Images
