Home Products Bag Packing Machine Automatic vertical pouch Sachet Water Fi
Automatic vertical pouch Sachet Water Filling and Packing MachineAutomatic vertical pouch Sachet Water Filling and Packing MachineAutomatic vertical pouch Sachet Water Filling and Packing Machine

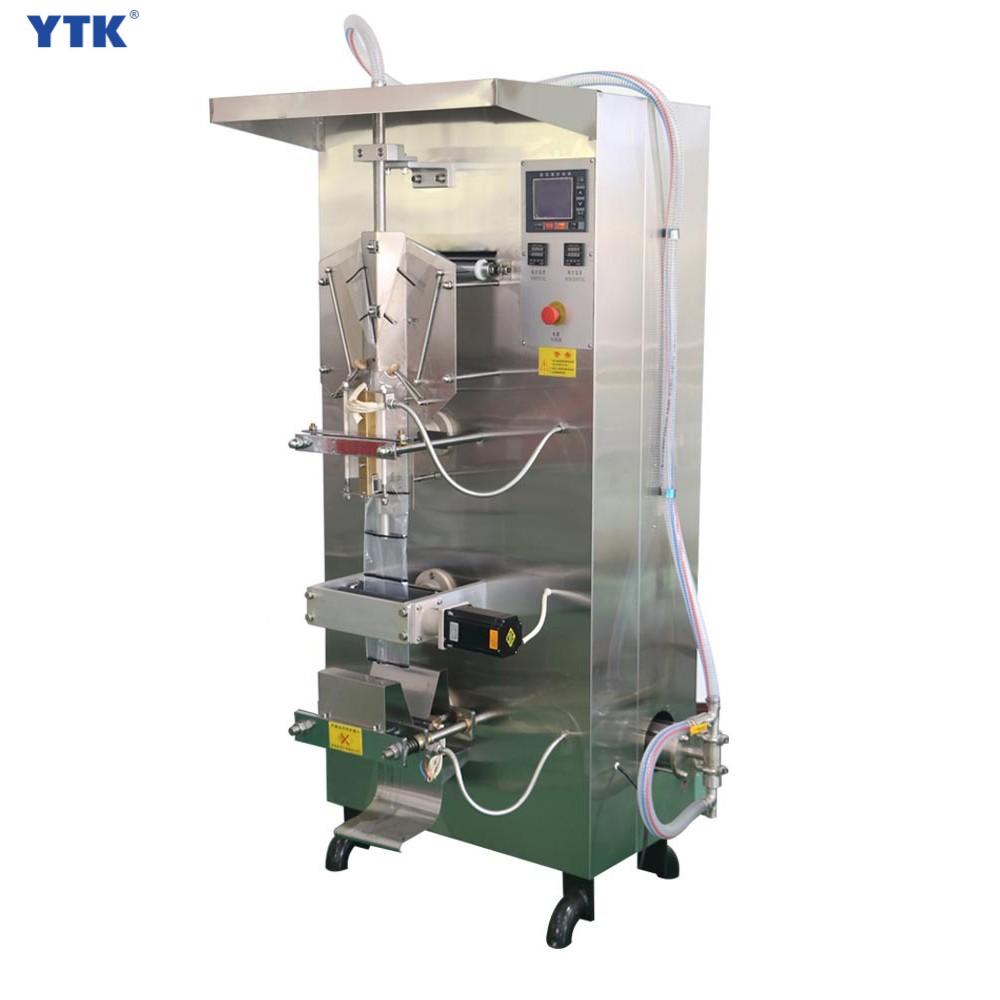

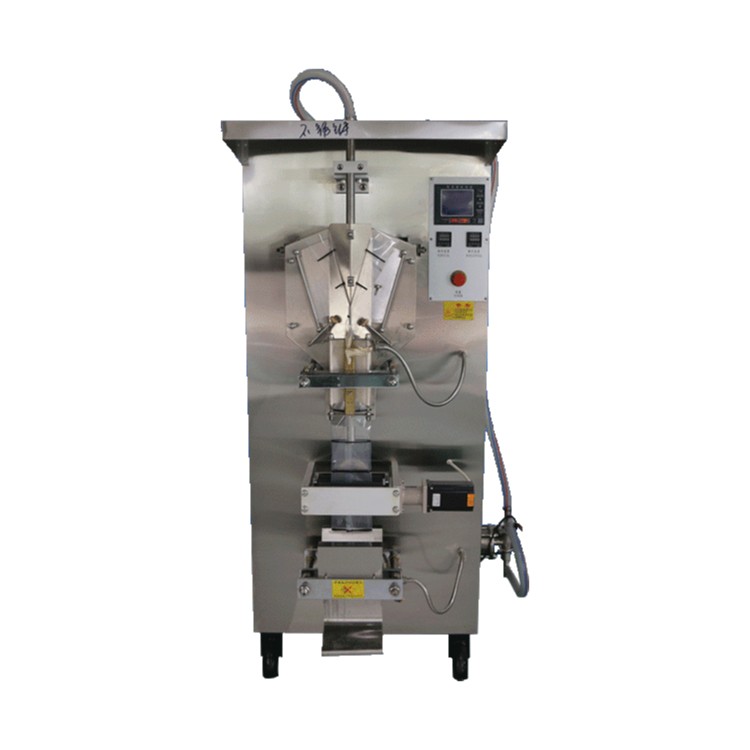

Automatic vertical pouch Sachet Water Filling and Packing Machine

  • Product Item:SJ-1000
  • Dimension(L*W*H): 880*760*1800mm
  • Weight: 275KG
  • Packaging speed: 2000-2200bags/hour
  • Voltage: 220v
  • Multi-Function Packaging Machine
    Inquiry Send Email

    Description

    Product Description

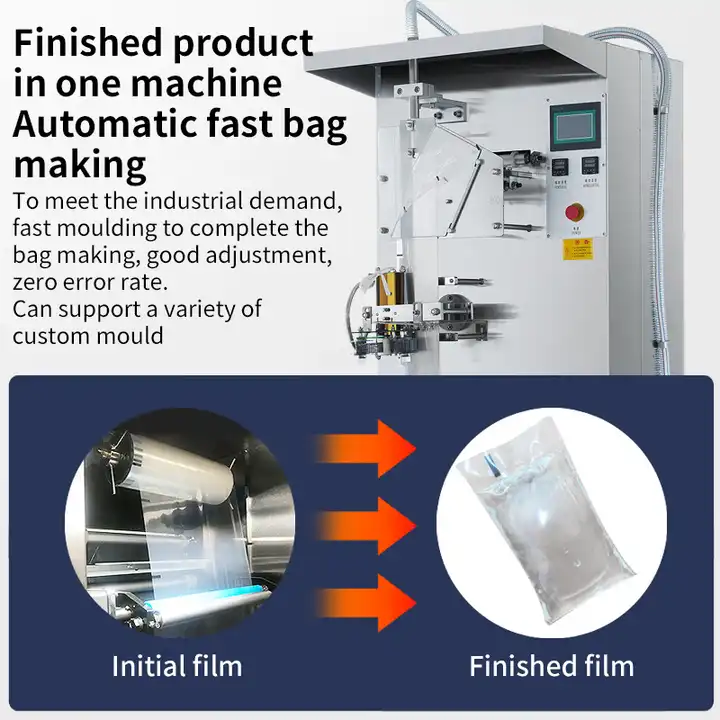

    This SJ Serial liquid packing machine is precisely controlled by PLC, it can automatically complete all the production process like bag making, counting, filling, sealing and coding batch number, adding easy to open notch, cutting separated or connected bags. It uses 304SS nozzles and valves and reduces filling error, more suitable for filling different kinds of liquid, such as milk, sauce, soy-milk, vinegar, etc. All parts that get contacted with liquid is made of the 304SS, additionally, this machine can add color ribbon coding, dust cover and sterilizing lamp.

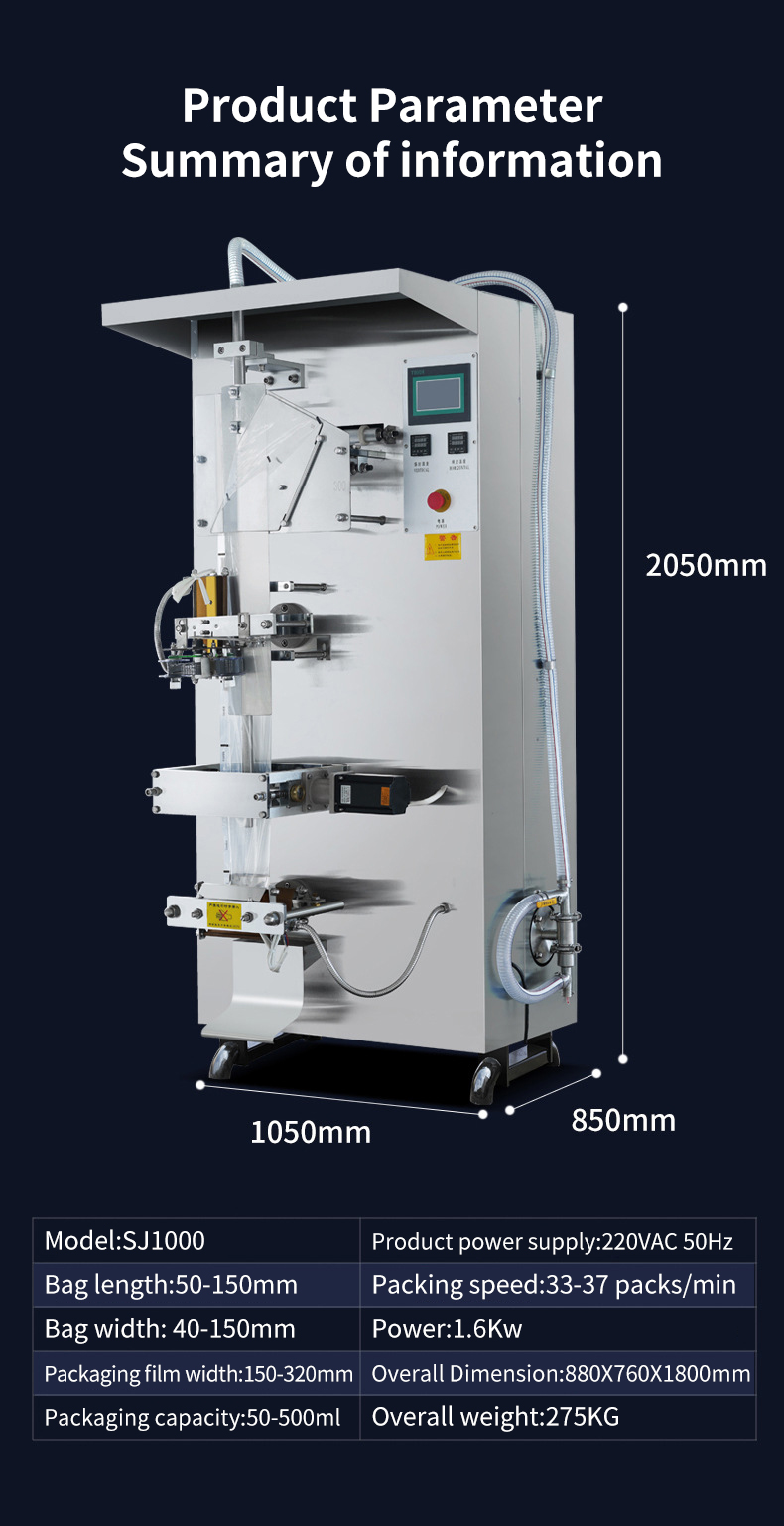

    Specification
    Model
    SJ-1000
    SJ-2000
    Bag-making length
    50-150mm
    50-250mm
    Bag-making width
    40-150mm
    40-175mm
    Packing film width
    100-320mm
    100-380mm
    Packing capacity
    100-500ml
    200-1000ml
    Packing speed
    2000-2200bags/hour
    1100-1300bags/hour
    Power
    1.6KW
    2.5KW
    Dimension
    880*760*1800mm
    1050*850*2050mm
    Weight
    275kg
    380kg
    Feature

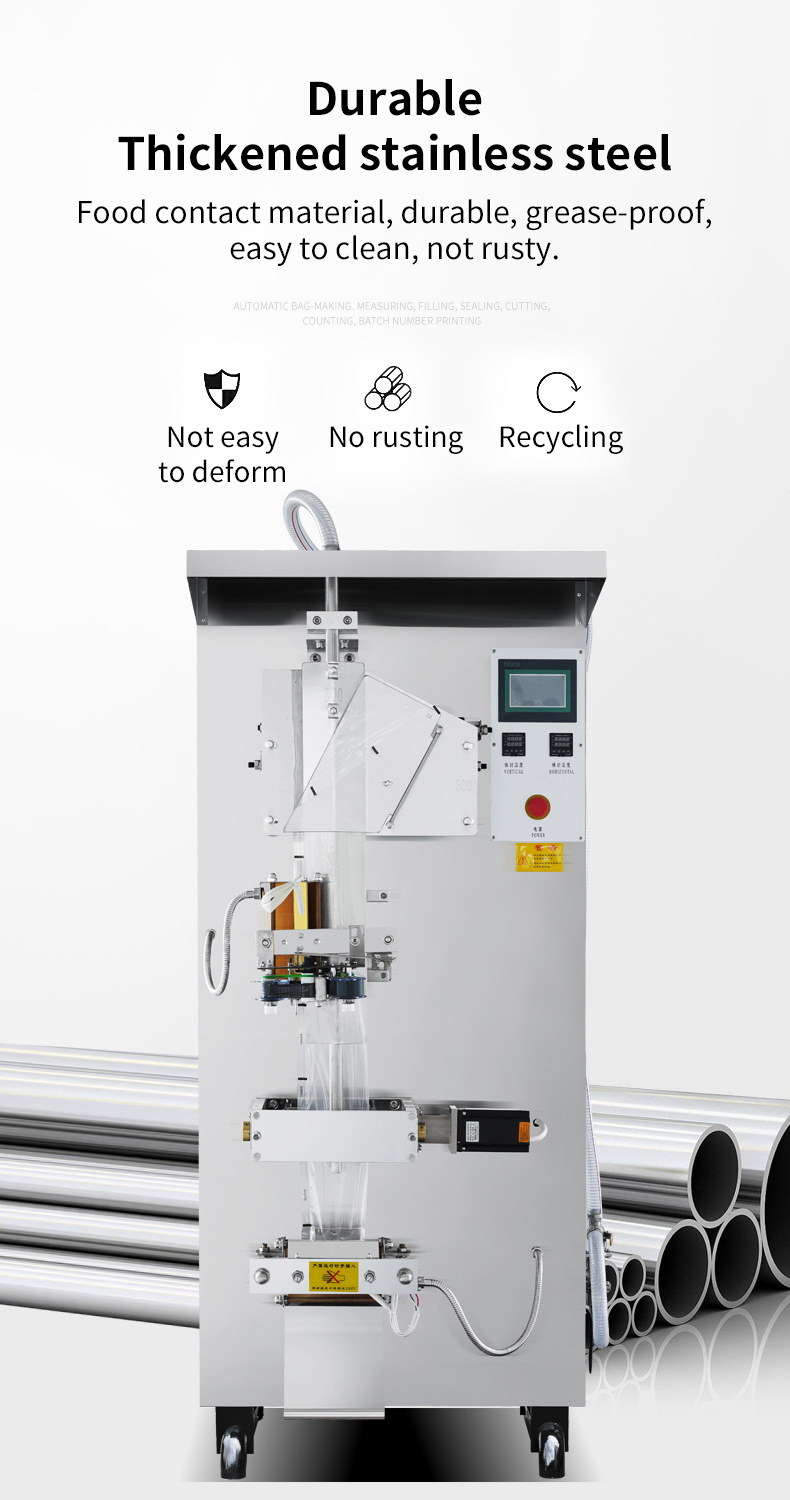

    1. Back sealing,valve piston pump filling meter. 2. Film disinfection, liquid disinfection. 3. The finished packed products are elegant and reliable, hygiene and security. 4. It can automatically finish making-bag, metering, filling, sealing, cutting, counting and printing batch number. 5. The body and the parts touching the material are made of stainless steel.
    Application
    It is applicable for packing the liquid like hairdressing water, hair conditioner, lotion, soy sauce, cough syrup, agricultural chemicals, wine and sauce. Adopts Computer Controll System completly, it can finish the production's process automatically such as making bags, counting, filling, sealing, cutting, printing batch number, making the rip , and so on. It also adopts the adjustable quantificational plunger pump, and it special uses for something which easy to drawbench or dript as shampoo.

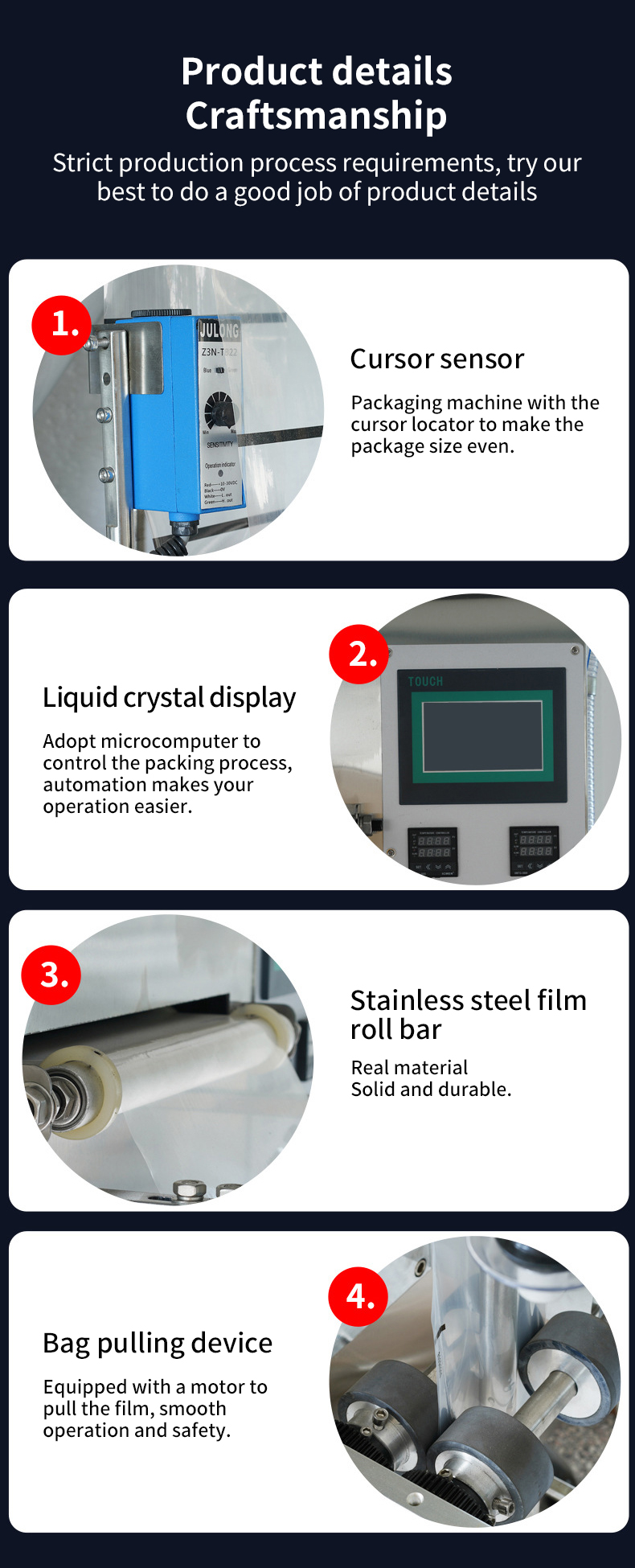

    Detailed Images
    Microcomputer control
    Automatic cutting, sealing, coding, counting, feeding, temperature control, bag length, cutting, metering photoelectric control.
    Film pulling device

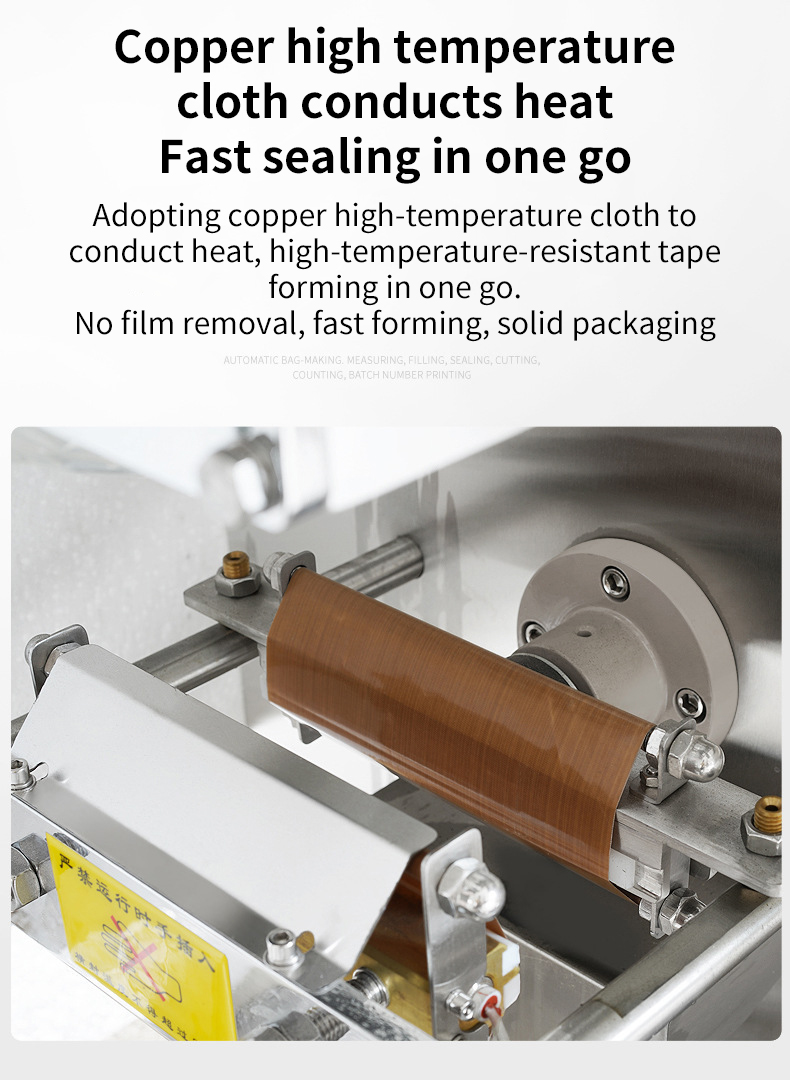

    Cross seal
    The seal is made of pure copper seal, which has stable thermal conductivity and a firmer seal.
    Code device
    The production date is printed in a straight line and the font is clearly visible. Note: You can use the color code to code, one to three rows of heated code
    Photoelectric control
    Assemble the photoelectric control device to ensure the complete packaging pattern

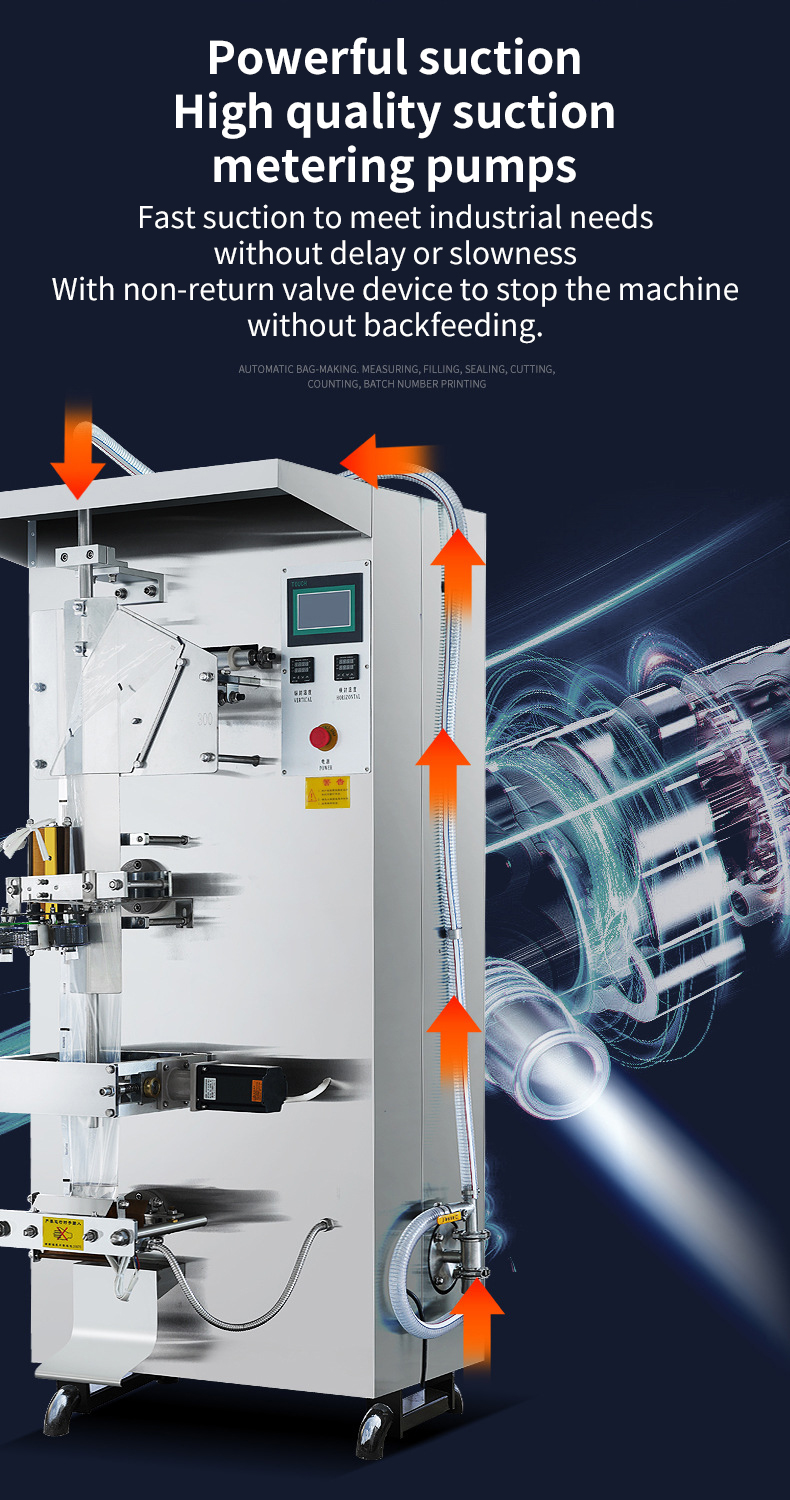

    Regulating valve
    Adjustable filling volume between 50-550 grams
