Home Products Filling Machine Liquid Filling Machine Automatic Pneumatic Four Heads Perfume B
Automatic Pneumatic Four Heads Perfume Bottle Filler Filling Machine Automatic Pneumatic Four Heads Perfume Bottle Filler Filling Machine Automatic Pneumatic Four Heads Perfume Bottle Filler Filling Machine

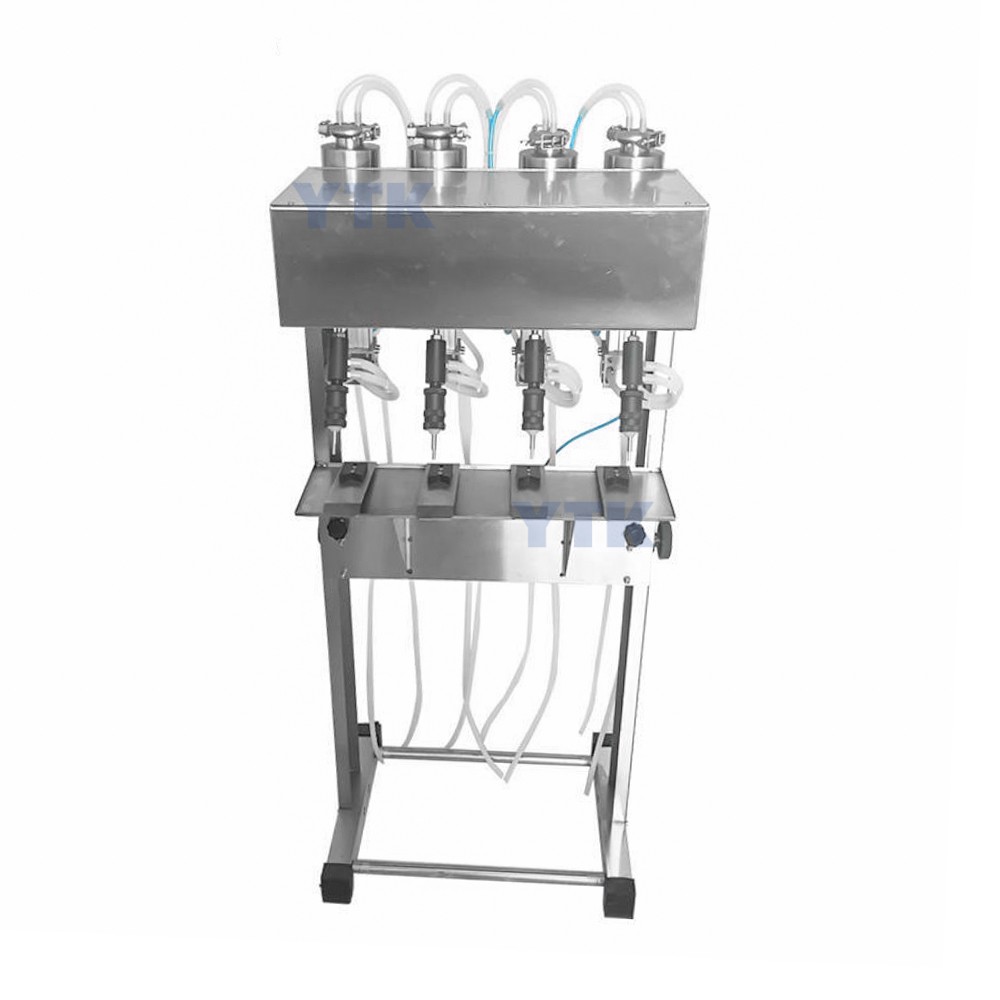

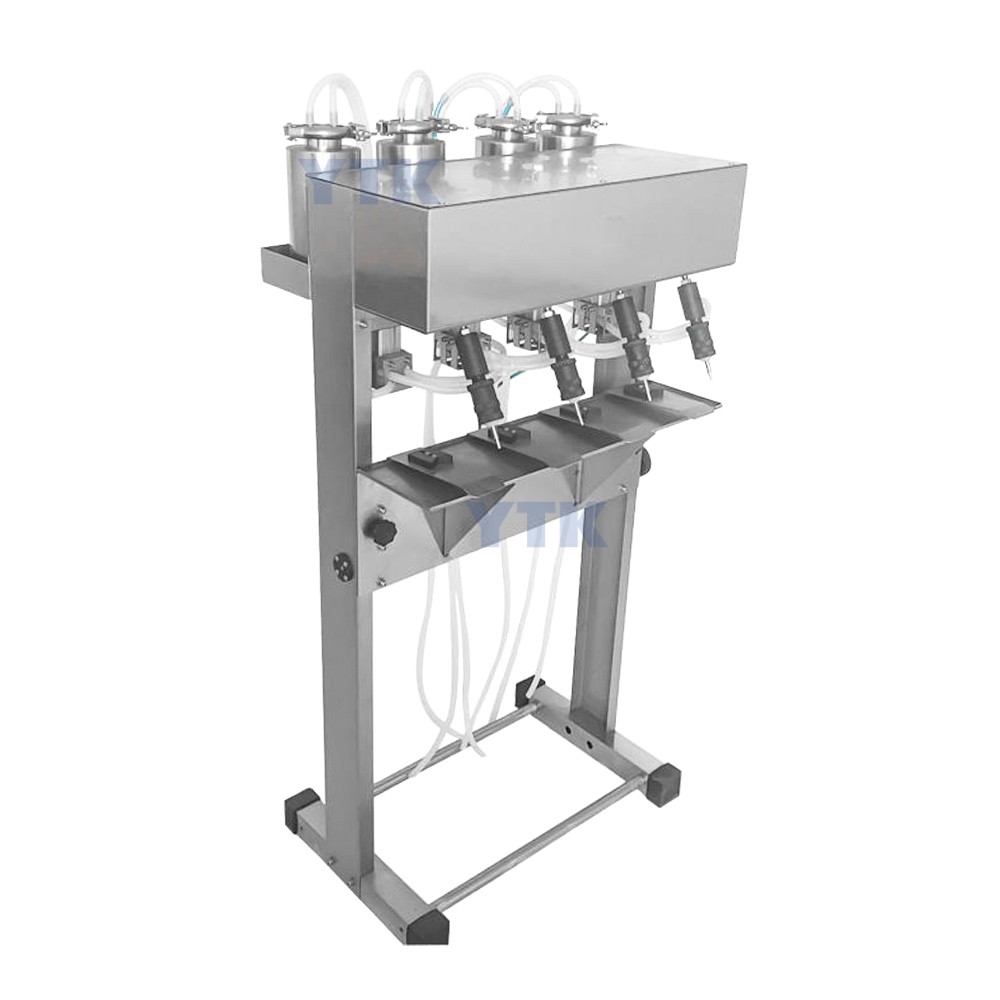

Automatic Pneumatic Four Heads Perfume Bottle Filler Filling Machine

  • Product Item:YTK-TK4
  • Dimension(L*W*H): 660*470*1330mm
  • Power: 0.75KW
  • Weight: 40 KG
  • Speed: 10-50pcs/min
  • pneumatic perfume filler  , perfume filling machine  , perfume bottle filling machine
    Inquiry Send Email

    Description

    Product Description

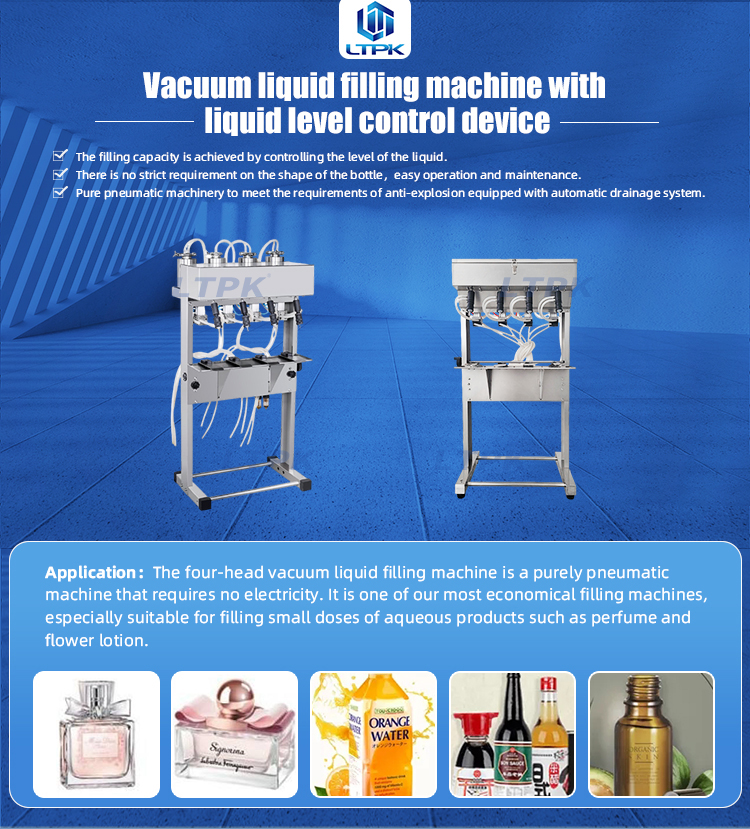

    1. The level control liquid filling machine is negative pressure type semi-automatic filling machine, mainly used in cologne, perfume, lubricating oil, detergent, such as liquid filling material. 2. There are two kinds of models, double head and four heads type. 3.  It has a definite way of liquid level measurement performance, liquid level height can be adjusted. 4. The machine structure is compact and reasonable, simple operation, easy maintenance, and material contact parts made of 304 stainless steel. 5. It is suitable for filling glass bottles and plastic bottles which are not easy to deform after vacuum.

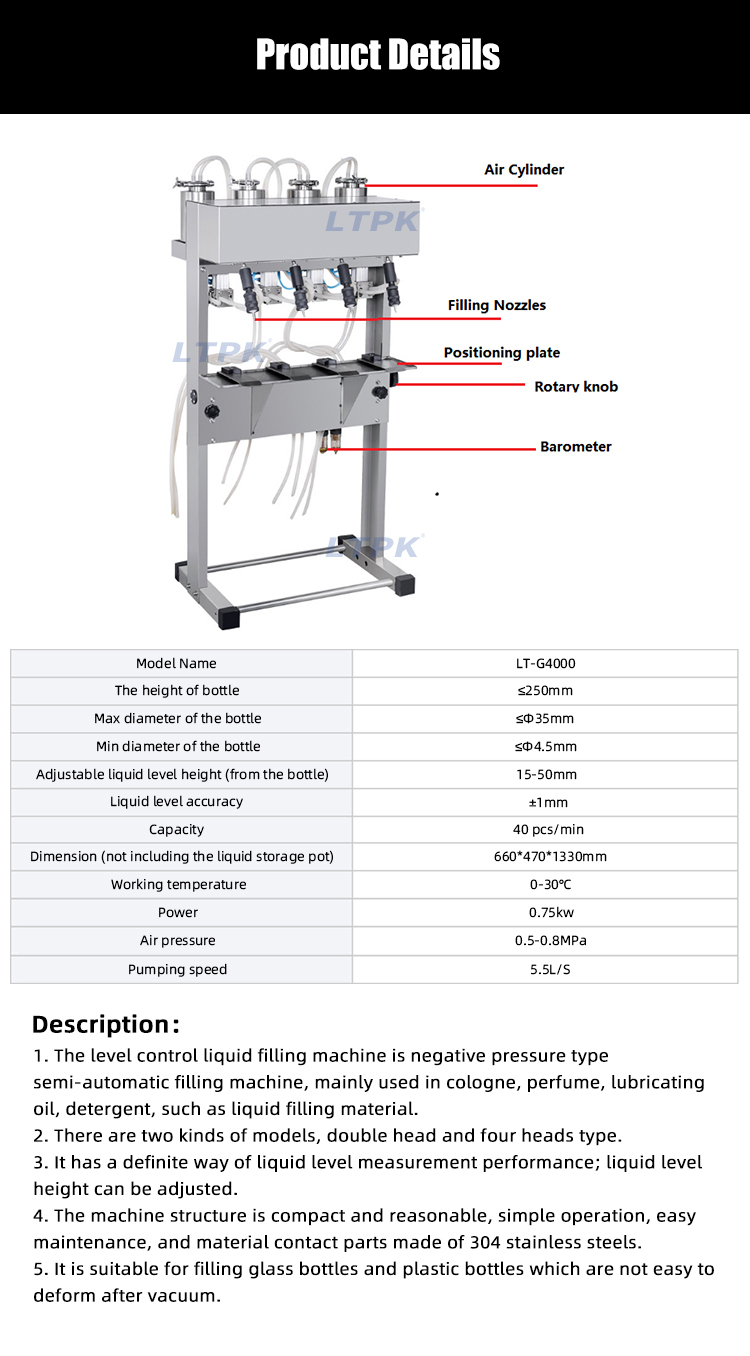

    Specification
    Model
    YTK-TK4
    The height of bottle
    ≤250mm
    Max diameter of the bottle
    ≤Φ35mm
    Min diameter of the bottle
    ≤Φ4.5mm
    Adjustable liquid level height(from the bottle)
    15-50mm
    Liquid level accuracy
    ±1mm
    Capacity
    40 pcs/min
    Dimension(not including the liquid storage pot)(L*W*H)
    660*470*1330mm
    Working temperature
    0-30℃
    Power
    0.75kw
    Air pressure
    0.5-0.8MPa
    Pumping speed
    5.5L/S
    Application
    Details Images

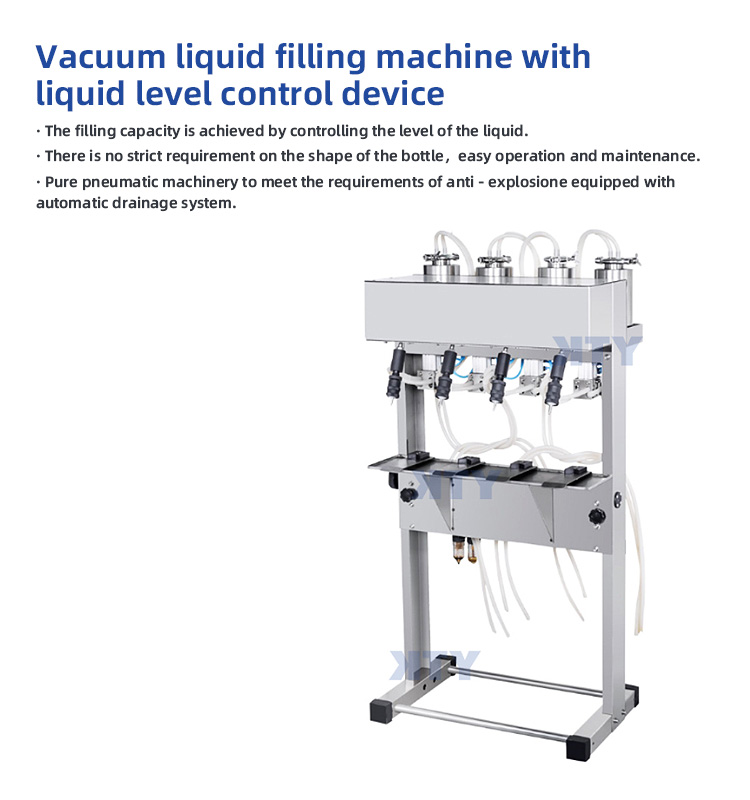

    Liquid level control device
    Use the vacuum constant liquid-level working principle,fill liquid accurately.If the liquid level is over the position that marked by red line,the machine will suck the extra liquid and make it back flow to the material container.The filling nozzle can be controlled separately and the adjustable liquid-level is about 15-30mm (from the bottle opening).
    Air Cylinder
    Larger air cylinder ensure the power for filling liquid,help to improve filling speed,can fill 20-60 bottles/min.
    Positioning Plate
    Positioning plate is designed to position the container,ensure it is vacuum when you filling liquid.Help to improve filling accuracy.
    Rotary Knob
    The right side rotary knob can be used to adjust the height of bottle holder,it is easy to operate.
