Home Products Sealing Machine Tube Sealing Machine YTK-125 Ultrasonic soft plastic Tube fil
YTK-125 Ultrasonic soft plastic Tube filler and Sealer YTK-125 Ultrasonic soft plastic Tube filler and Sealer YTK-125 Ultrasonic soft plastic Tube filler and Sealer

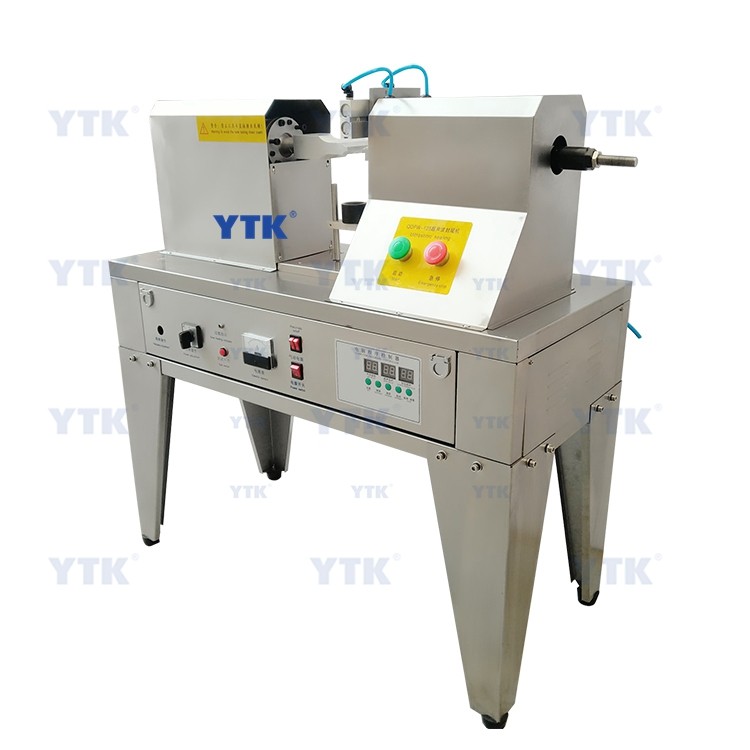

YTK-125 Ultrasonic soft plastic Tube filler and Sealer

  • Product Item:YTK-125
  • Dimension(L*W*H): 1100*460*450MM
  • Weight: 104KG
  • Voltage: 220V/50HZ
  • power:1250W
  • Ultrasonic soft plastic Tube filler and Sealer
    Inquiry Send Email

    Description

    Product Description
    Ultrasonic plastic tube sealing machine is suitable for toothpaste, cosmetics, medicines, food industrial supply etc. With horizontal aluminum alloy structure, stainless steel package, environment friendly and sanitation.With independent platform, vertical /horizontal adjustable worktable, worktable, easy operation stable performance ,high efficiency.   Utilizing the energy produced by c high-speed vibration imposed on the tube and act on plastic tube in order heat the plastic tube rapidly and welding , under pneumatic mechanical pressure, forming the sealing the sealing patterns of  to head mould foot mould while removal of excess material to reach good effect at last .
    Specification
    Brand
    YTK-T125 ultra sealing machine
    Maximum output power
    1250W
    Air pressure
    0.2----0.6 MPa
    Tube height
    50~180mm ( Can be Customized )
    Tube diameter
    F5~F50 mm ( Can be Customized )
    Votlage
    220V/50HZ
    Place of Origin
    Guangdong of China
    Environmental temperature
    0°C +35°C
    Dimension(L*W*H)
    1100*460*450MM
    weight
    104KG
    Working table
    vertical/horizontal adjustable worktable
    Features
    1.Two dimensional adjustment of work piece platform, it is easy to operate. 2.It adopts Taiwan cassette mechanism and circuit Lines, using famous brand of Ultrasonic parts. 3.Overload protection, phase separation protection, power-fail protection. 4.Large Ultrasonic Out put power to ensure the sealing quality of various specifications of tube. 5.It can sealing soft tube also can printing date and cutting.
    Application
    It's applicable to toothpaste, cosmetic, pharmaceutical, food, industry product and other soft tube sealing. Extensional organization of the machine is made of aluminium alloy and stainless steel.
    Detail Images

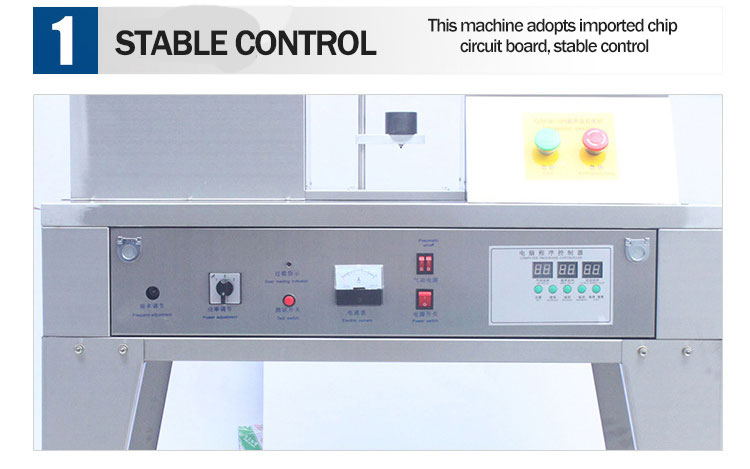

    Simple control panel, simple and convenient
    Stable fixing bracket, safe and firm

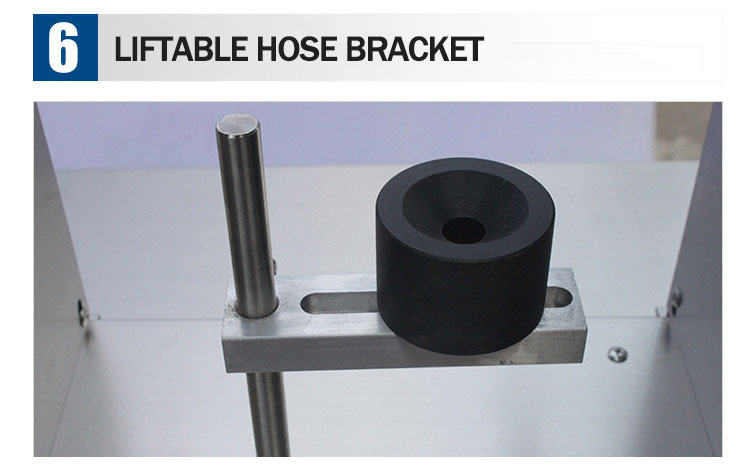

    Liftable bracket,different sizes of hoses can be used

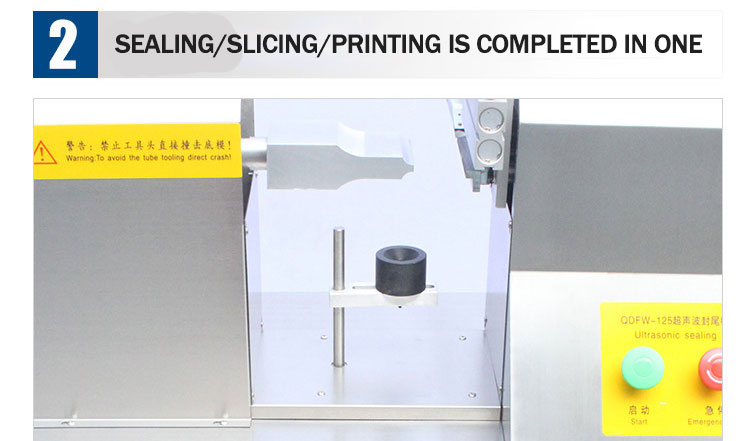

    Ultrasonic tool head, durable, enlarged size
