Description
Description

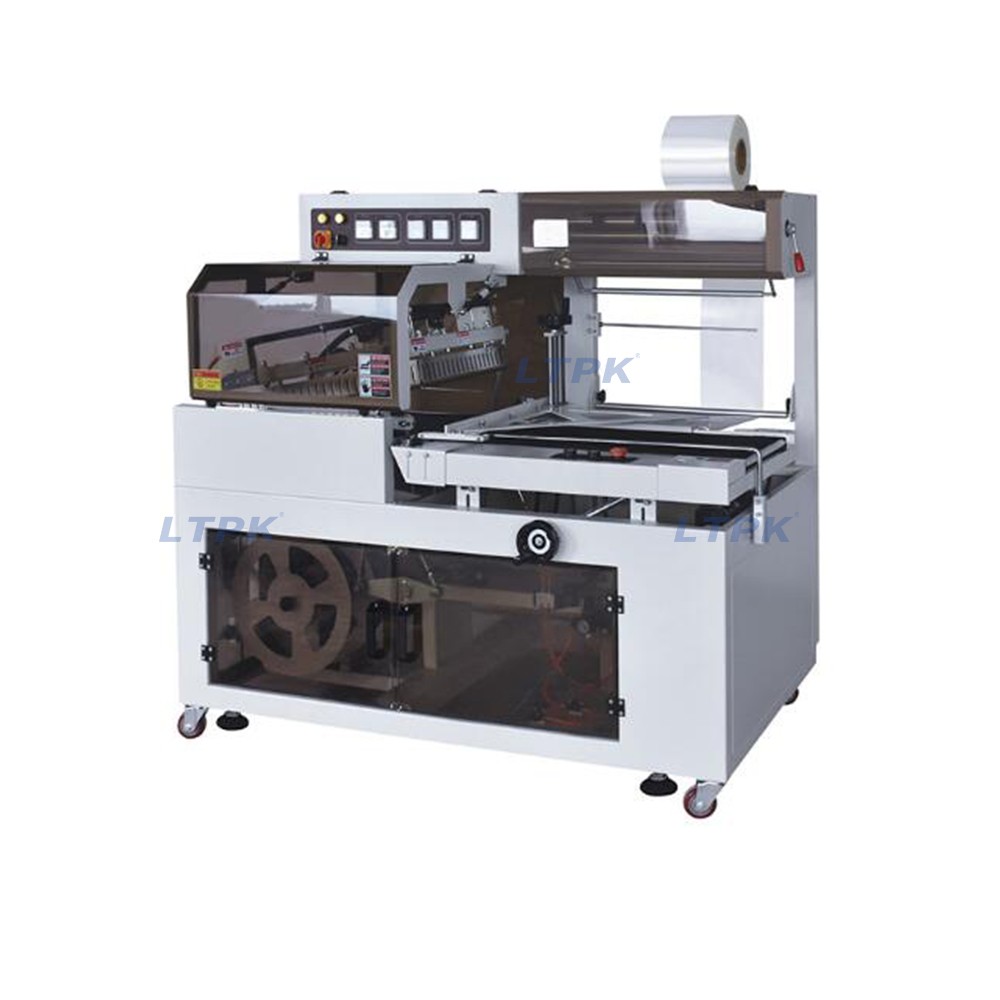

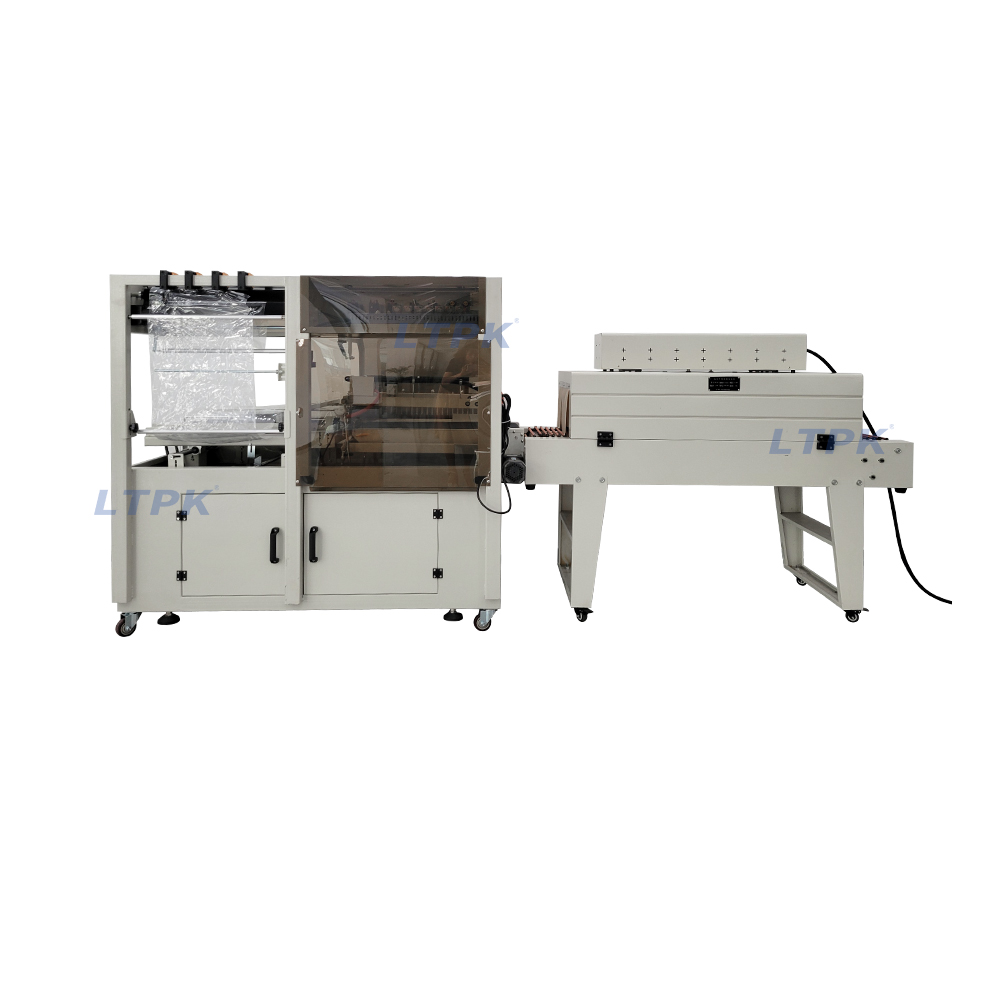

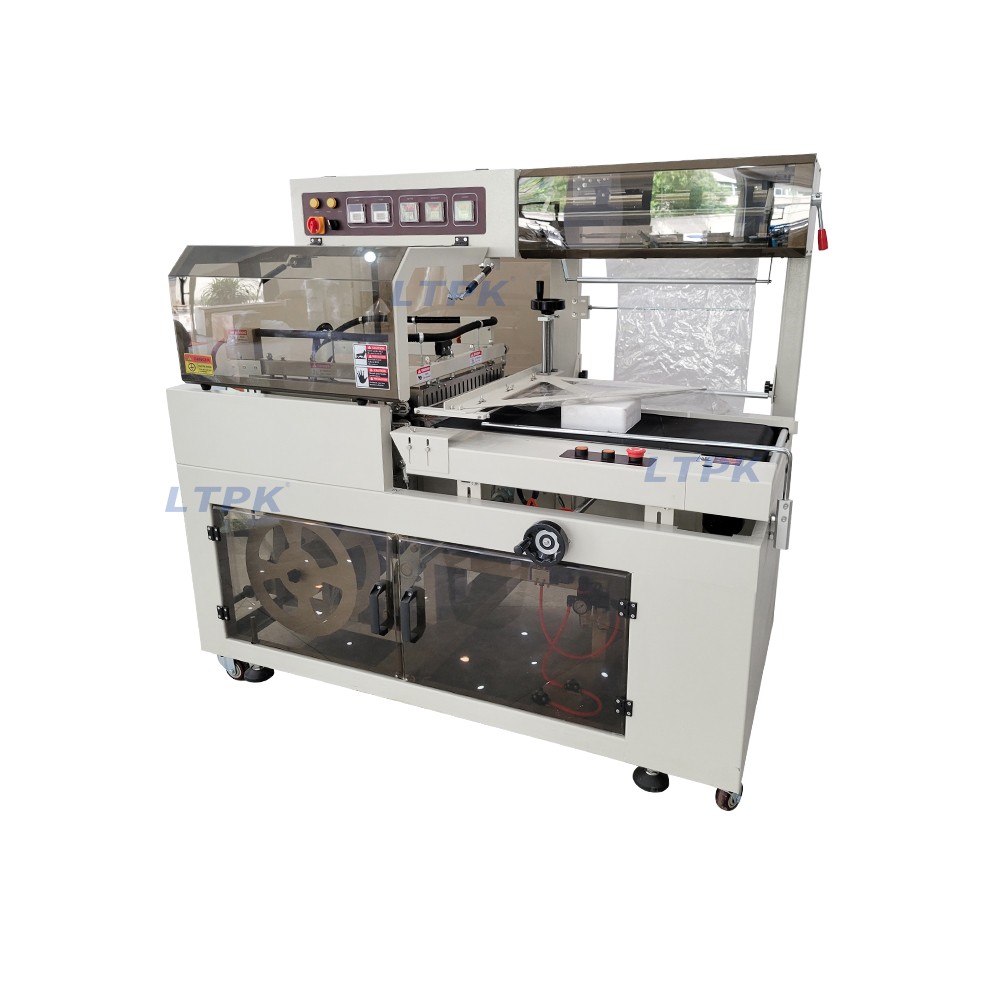

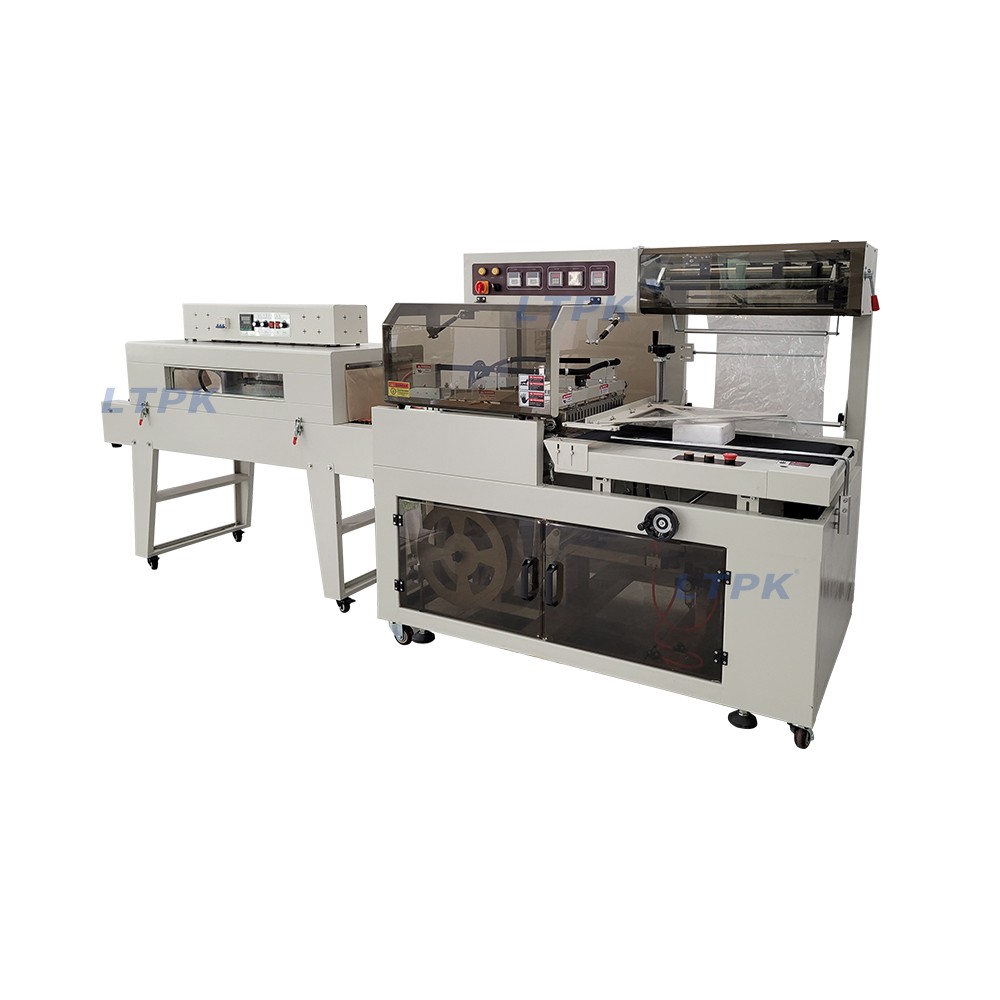

This series of sealing and cutting machines is a fully automatic L-shaped sealing and cutting machine.High work efficiency, automatic film feeding and punching device, manually adjustable film guiding system, and manually adjustable feed conveying platform, suitable for products of different sizes.
Technical parameters
|
Model |
FQL450A |
FQL550A |
FQL750A |
|
Power supply |
220V 50/60Hz |
||
|
Power |
1.35KW |
||
|
Max packaging size |
L440*W340*H140mm |
L540*W440*H140mm |
L640*W540*H140mm |
|
Cutter size |
560*440mm |
660*540mm |
760*640mm |
|
Packing speed |
15-30bags/min |
||
|
Film material |
POF |
||
|
Air pressure |
0.5Mpa |
||
|
Size |
1650*920*1450mm |
1860*1020*1550mm |
2260*1320*1550mm |
|
Weight |
300kg |
350kg |
400kg |
Application
Suitable for shrink packaging in industries such as software, food, cosmetics, printing and flooring, ceramics, beverages, hardware, etc

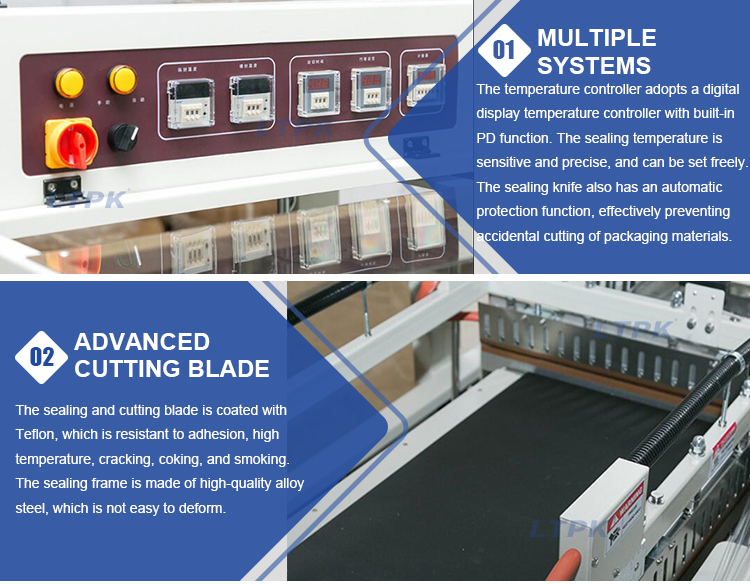

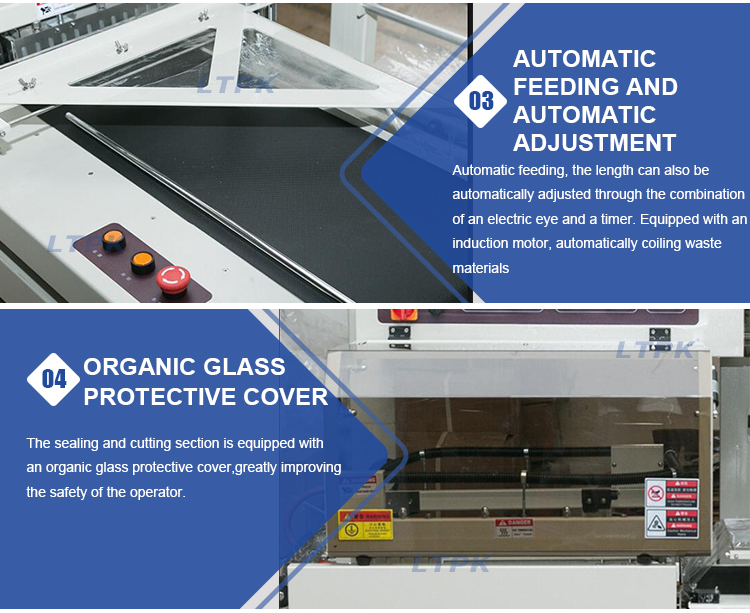

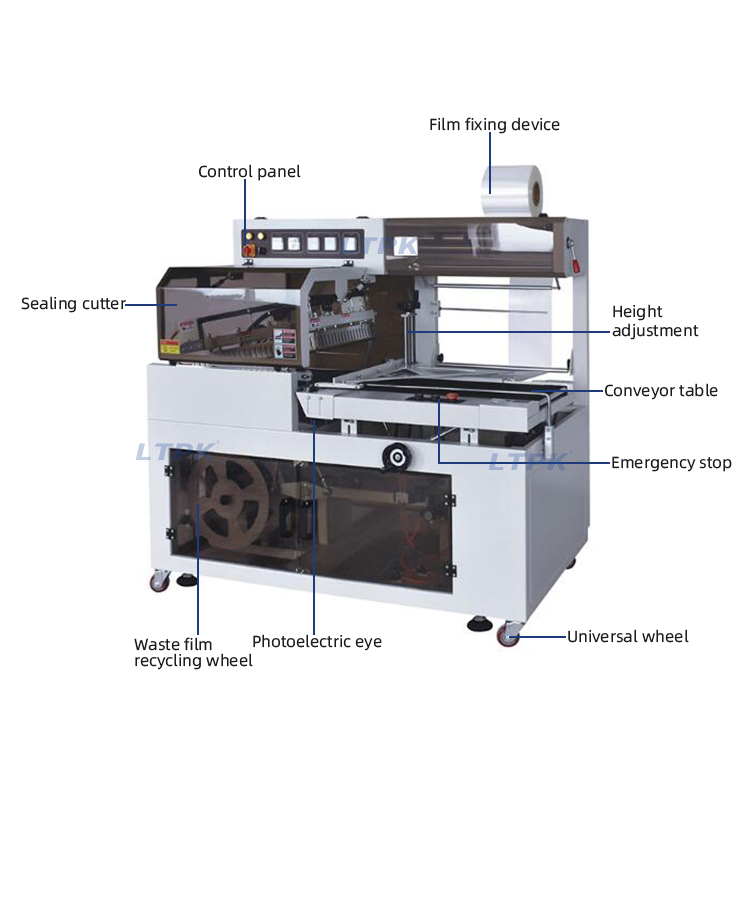

Detail Images
