Home Products Bag Packing Machine Automatic Vertical Drip Coffee Powder Ba
Automatic Vertical Drip Coffee Powder Bagger Inner and Outer Tea Filter Bags Packing Machine with Tag LineAutomatic Vertical Drip Coffee Powder Bagger Inner and Outer Tea Filter Bags Packing Machine with Tag LineAutomatic Vertical Drip Coffee Powder Bagger Inner and Outer Tea Filter Bags Packing Machine with Tag Line

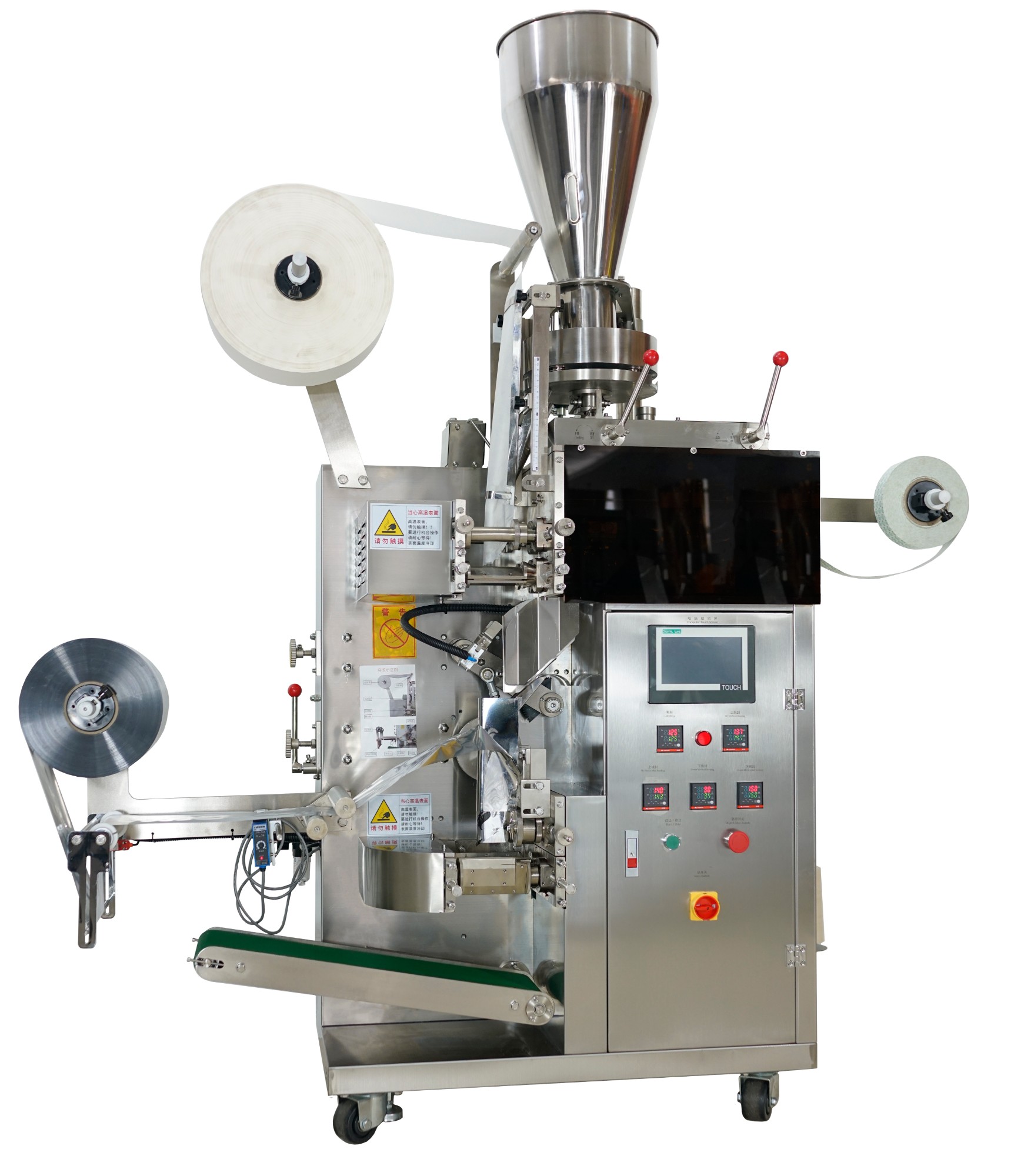

Automatic Vertical Drip Coffee Powder Bagger Inner and Outer Tea Filter Bags Packing Machine with Tag Line

  • Product Item:YS-169
  • Dimension(L*W*H): 1750*740*1950mm
  • Weight:550kg
  • Inner Bag sizes W: 50-75(mm) L: 50-75(mm)
  • Outer bag size: W:70-95(mm) L: 80-120(mm)
  • Tea Packing Machine with Inner and Outer Bag sealed
    Inquiry Send Email

    Description

    Product Description

    Tea packaging machine is suitable for automatic packaging of seeds, medicine, tea and other materials. This machine can realize packaging of inner and outer bags at the same time. It can automatically complete bag making, measuring, filling, sealing, cutting, counting and other processes. It has the functions of moisture-proof, odor-proof, and fresh-keeping. It has a wide range of packaging, replacing manual packaging, realizing packaging automation for large enterprises, small and medium-sized enterprises, improving production efficiency in all walks of life, and significantly reducing costs.

    Specification
    Model
    YS-169
    Filling Range
    1-15(g)
    Packing speed
    30-45 bags/min
    Sealing Type
    Three side sealing
    Inner Bag sizes
    W: 50-75(mm) L: 50-75(mm)
    Outer bag size
    W: 70-95(mm) L: 80-120(mm)
    Tag size
    W: 25mm L: 25mm
    Thread length
    155mm
    Air Consumption
    0.2m3/min,0.8Mpa
    Power Parameter
    220V 50/60Hz 3.7KW
    Machine weight
    550kg
    Machine Dimension
    1750*740*1950mm
    Application
    This machine is suitble for packing tea, medical tea, health tea, and other small granule teas, packed in inner filter bag and outer envelope automatically in one time.

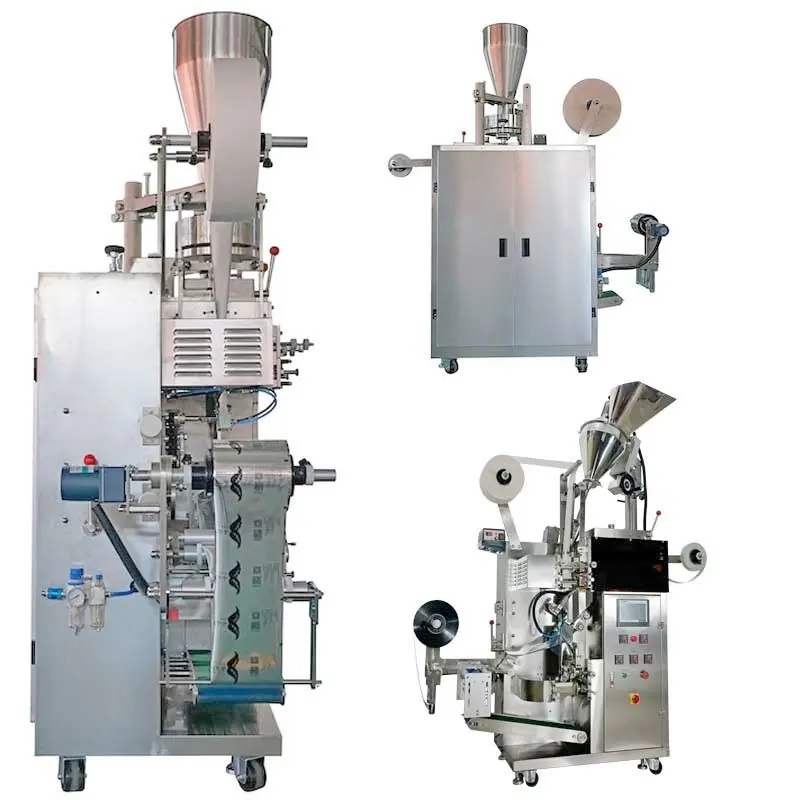

    Detail Images
