Home Products Capping Machine Automatic Shampoo Bottle Linear Capping
Automatic Shampoo Bottle Linear Capping Machine With Conveyor For Spray Bottle Pump Head Capping Machine Automatic Shampoo Bottle Linear Capping Machine With Conveyor For Spray Bottle Pump Head Capping Machine Automatic Shampoo Bottle Linear Capping Machine With Conveyor For Spray Bottle Pump Head Capping Machine

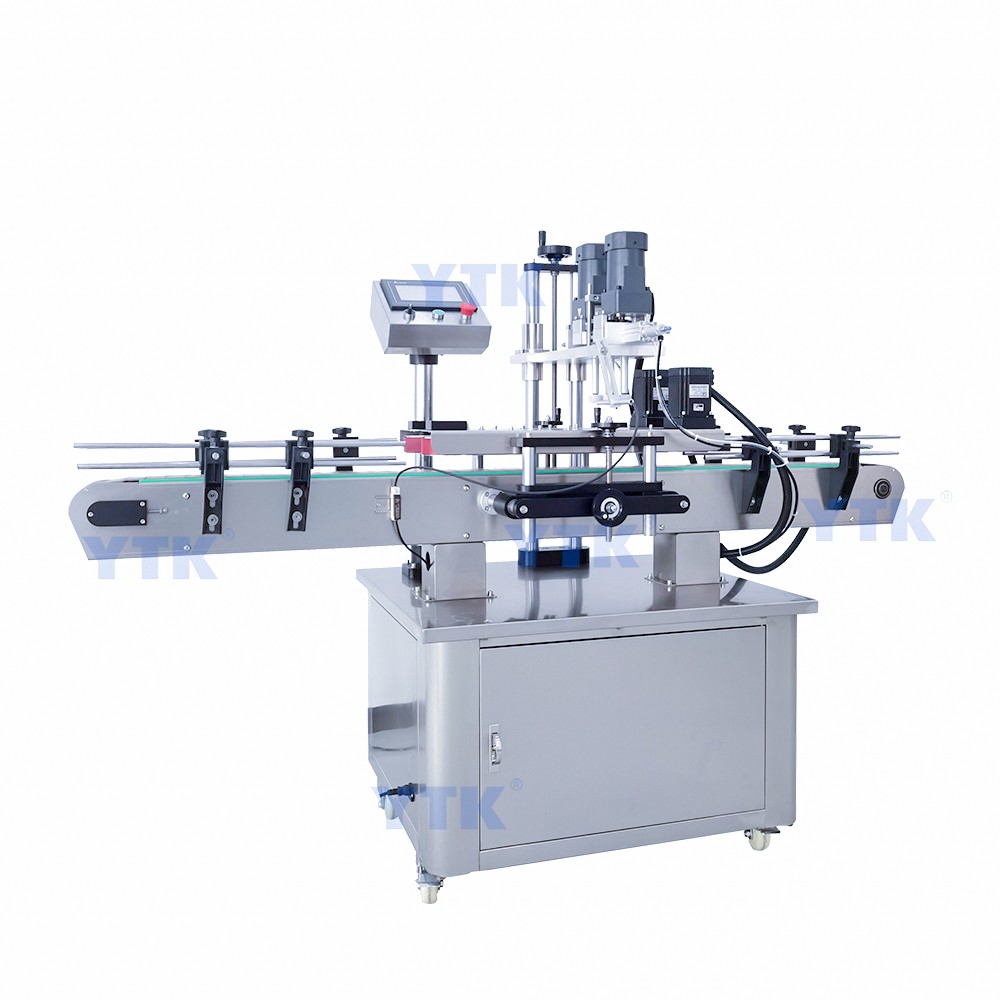

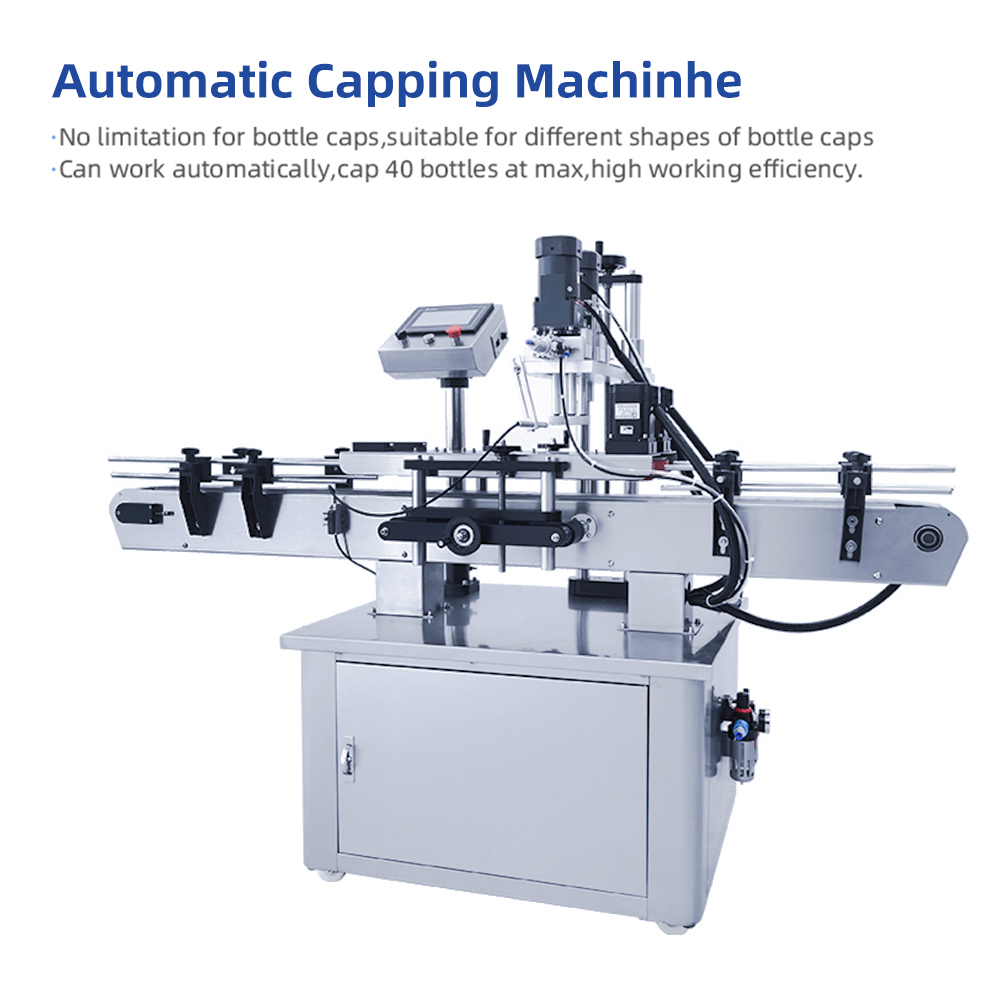

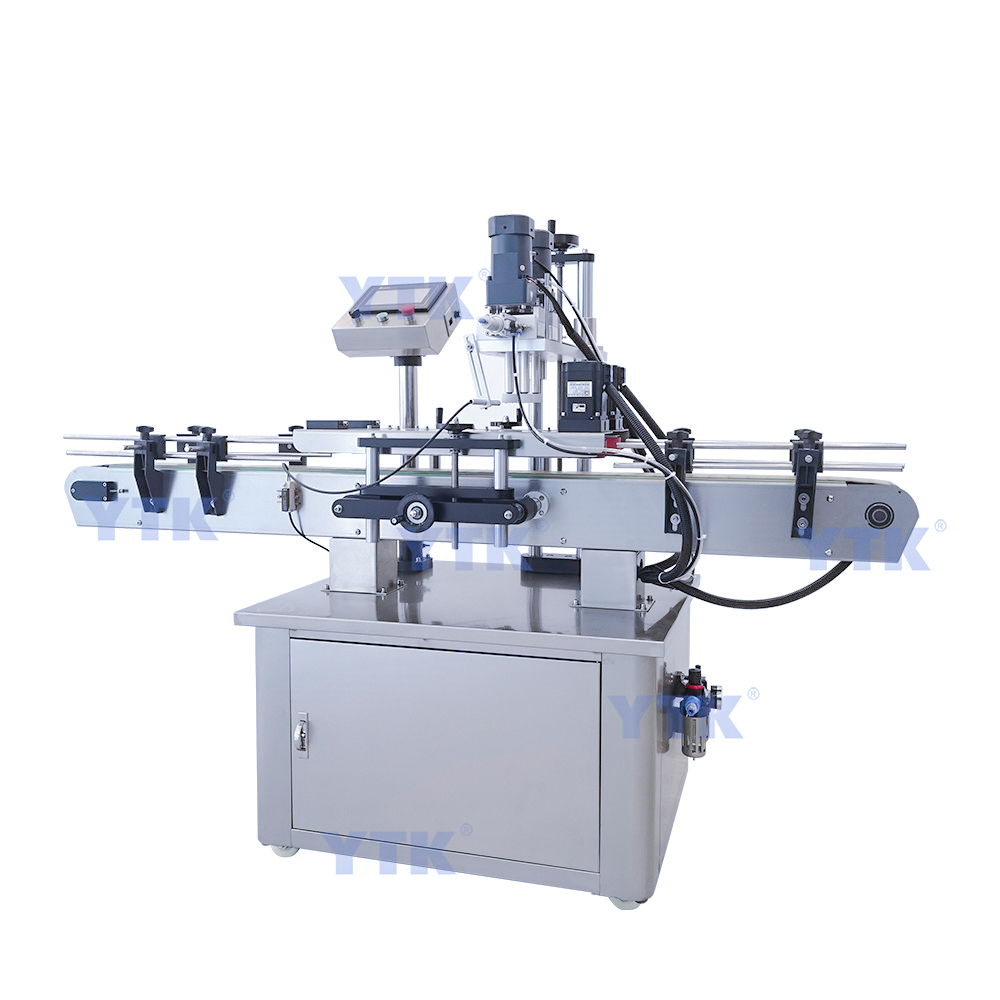

Automatic Shampoo Bottle Linear Capping Machine With Conveyor For Spray Bottle Pump Head Capping Machine

  • Product Item:YTK-SC440
  • Dimension(L*W*H): About 2000*750*1530mm
  • Weight: 211kg
  • Voltage: AC220V/110V 50-60HZ 300W
  • Speed:30-60pcs/min
  • water bottle capping machine
    Inquiry Send Email

    Description

    This machine is used for automatic capping of plastic bottles and glass bottles in cosmetics,food and beverage,pesticide and fertilizer,chemical industry,can be applied to a variety of bottle types,high production efficiency.

    Specification
    Model
    YTK-SC440
    Bottle height
    50-350mm
    Bottle Caps Diameter
    20-50mm
    Working speed
    0-40 bottles/minute (depending on bottle and caps)
    Working voltage
    AC220V/110V 50-60 HZ 300W
    Working pressure
    0.4-0.6MPa
    Capping Torsion
    4-9kgf/cm
    Machine size
    About 2000*750*1530mm
    Packing size
    About 2110*910*1660mm
    Net weight/Gross weight
    About 211kg/272kg
    Application
    Automatic tea bag packing machine is suitable for tea. Such as Green tea, black tea, chrysanthemum tea, rose tea, health tea,etc. And the processes of bag making measuring, filling, sealing, cutting, counting and hot pressing code can be done automatically.

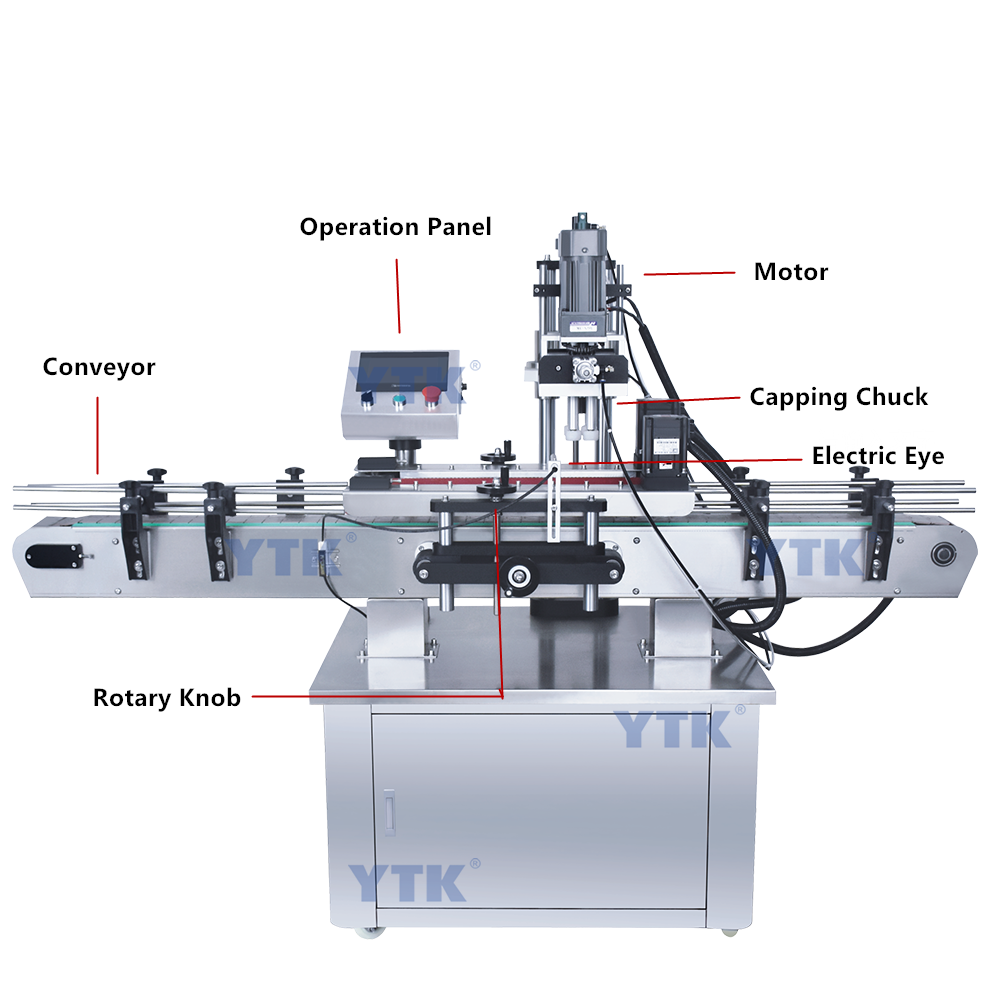

    Details Images

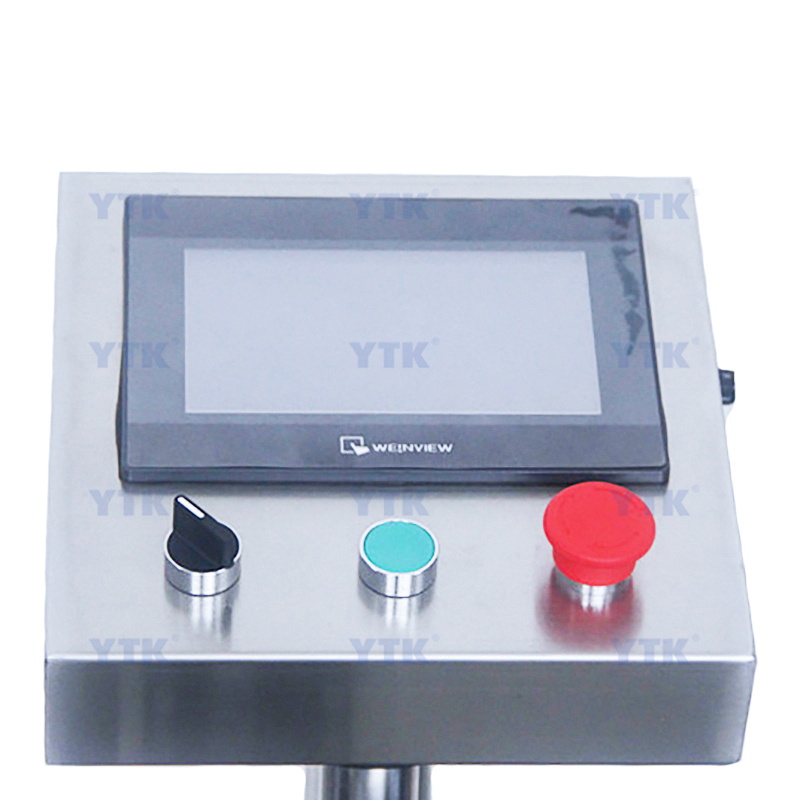

    Operation Panel
    Intelligent operation panel make the working data visual,this help to control the machine better.and it is with stop button,can protect the machine from damage and keep the operator safe during working.

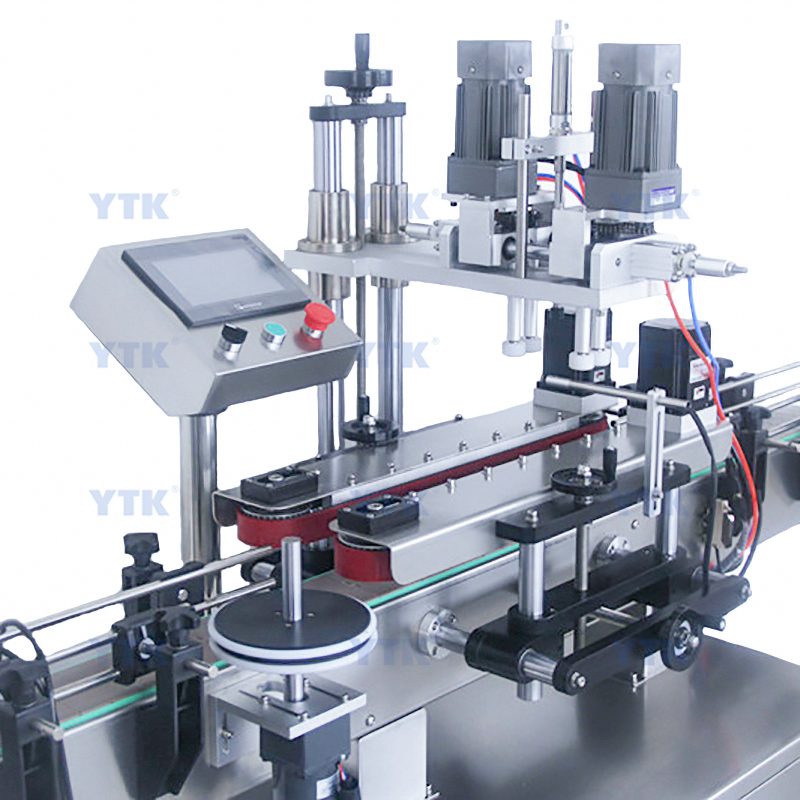

    Capping Chuck
    There is no limitation of cap shapes,it is suitable for different kinds of bottle caps like spray bottle caps,dropper bottle caps.Caps diameter should be within φ20-50mm.

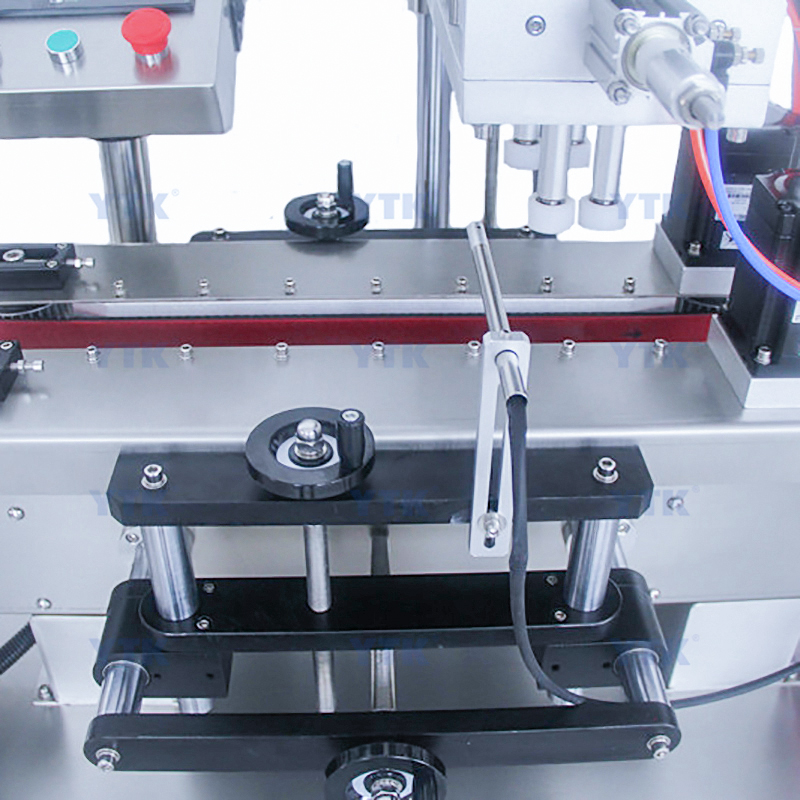

    Conveyor
    The conveyor is with bottle guiding device which is designed for arranging bottles in order.The high quality conveyor helps to improve working speed and save a lot of labor.
    Bottle Electric Eye
    It can detect the bottle once the bottle pass by,prevent from missing bottles and ensure the production quality.

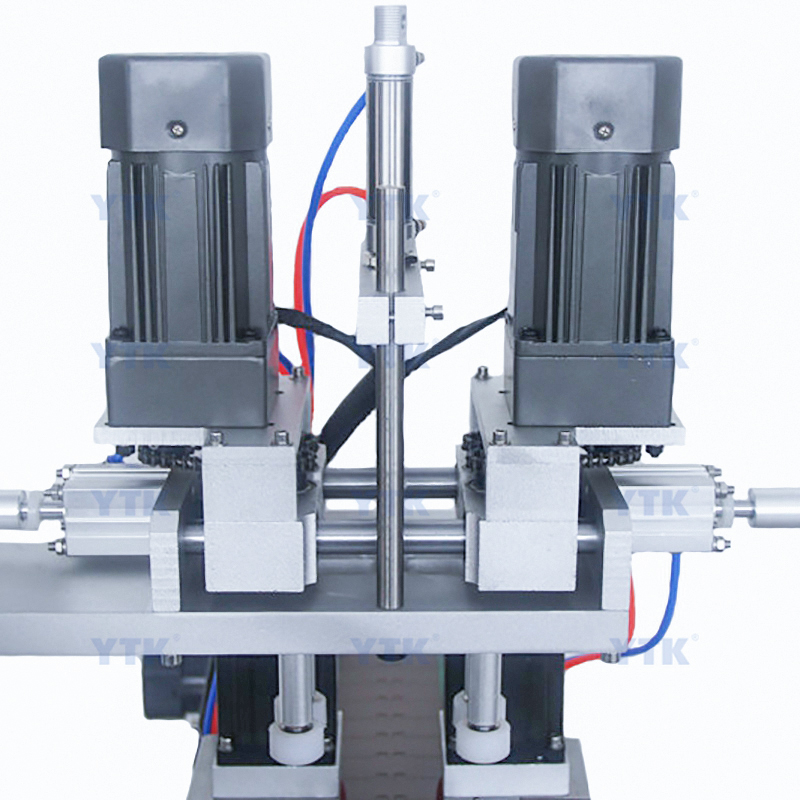

    Motor
    Dual-drive motor offer great power for the whole machine,ensures the machine can work stably improves working efficiency.

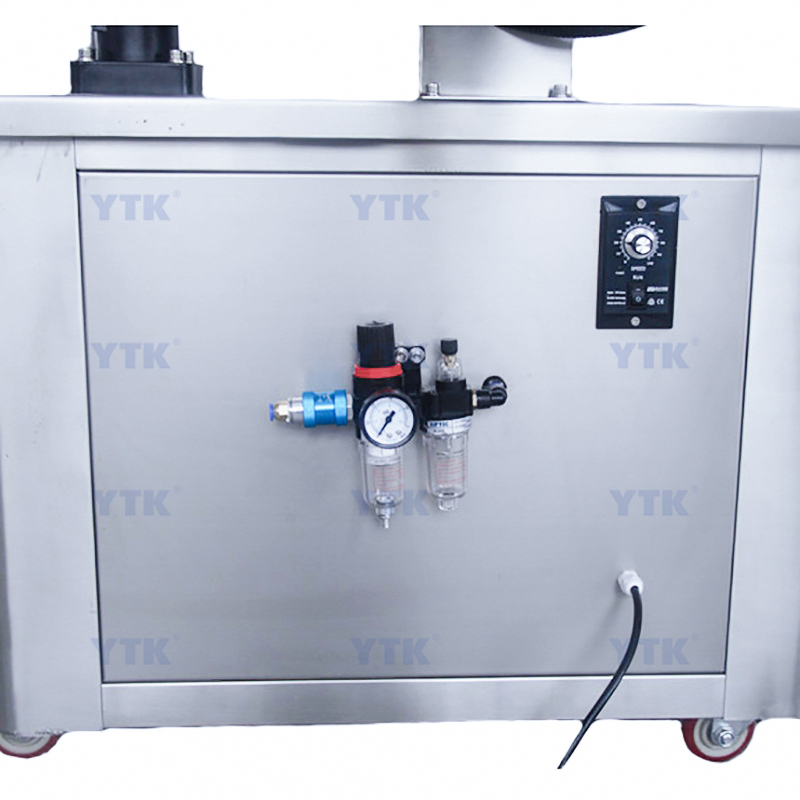

    Oil-water Separator
    With oil-water separator which can help you check the air pressure in all the real time and filter impurities.This machine should work with air compressor and customers need to buy this separately,if you need this please contact with us.
