Home Products Filling Machine Liquid Filling Machine L15 Weighing Filling Machine Honey Thick
L15 Weighing Filling Machine Honey Thick Paste Edible Oil Glue Viscous Liquid for Small BusinessL15 Weighing Filling Machine Honey Thick Paste Edible Oil Glue Viscous Liquid for Small BusinessL15 Weighing Filling Machine Honey Thick Paste Edible Oil Glue Viscous Liquid for Small Business

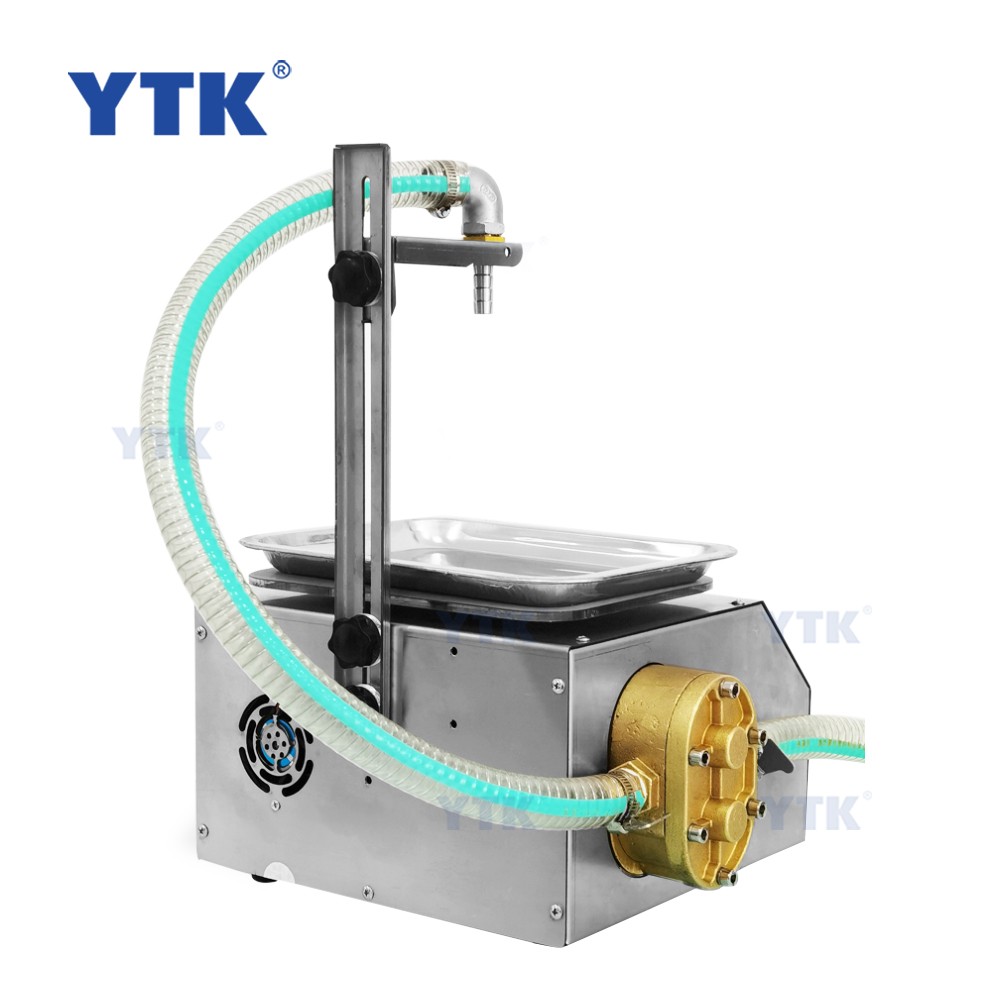

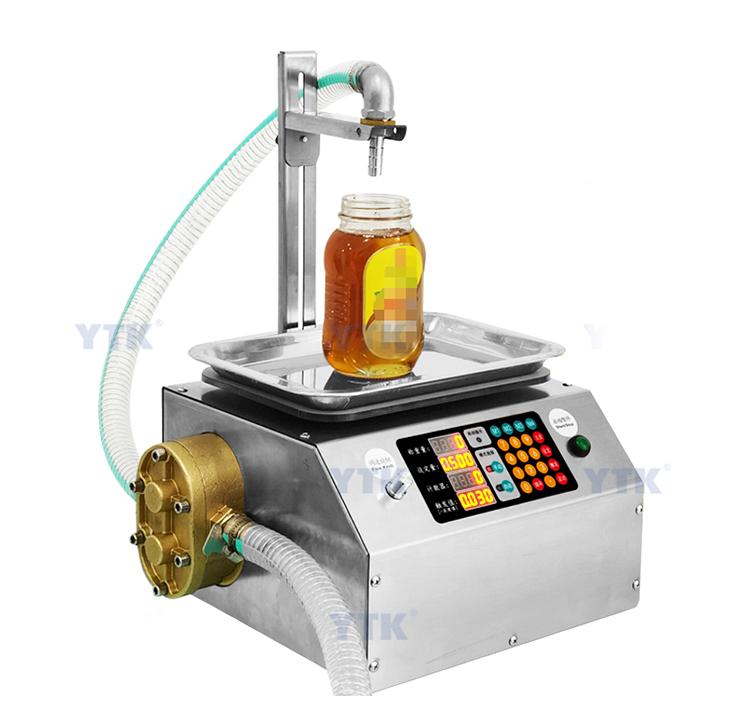

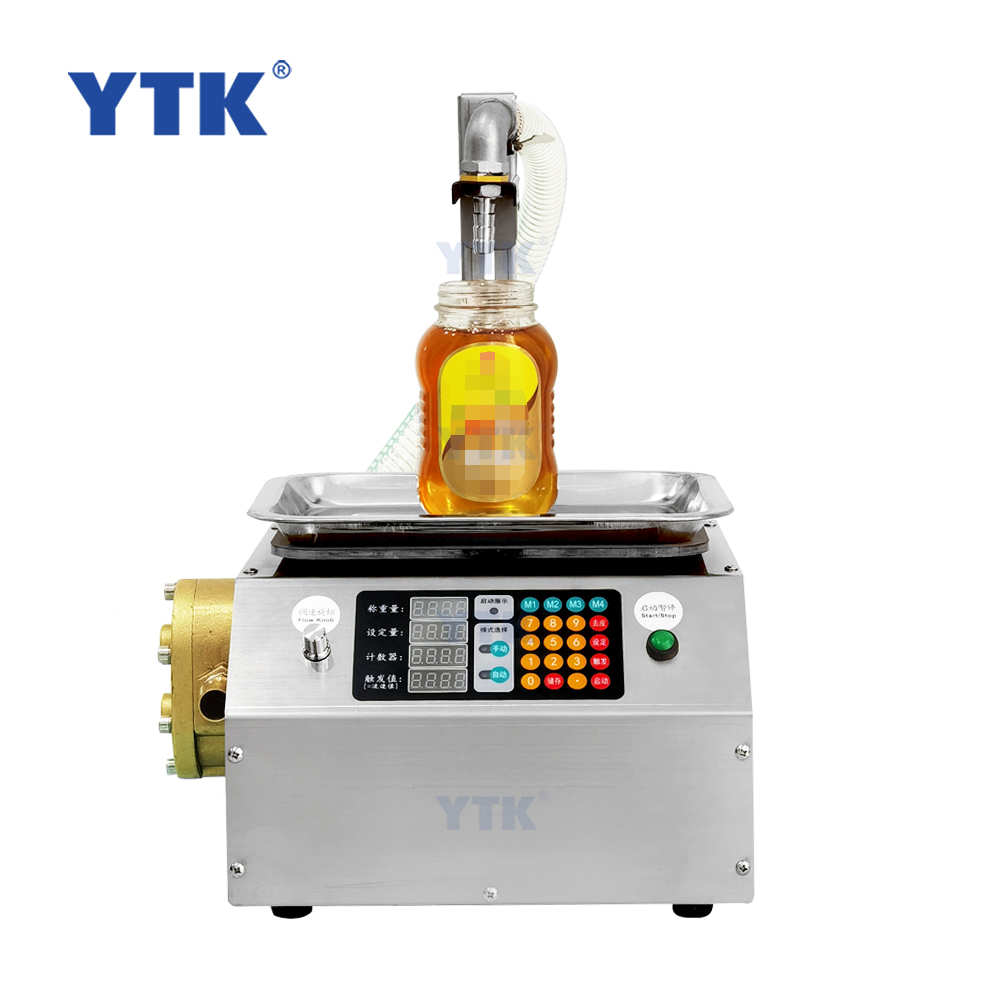

L15 Weighing Filling Machine Honey Thick Paste Edible Oil Glue Viscous Liquid for Small Business

  • Product Item:YTK-L15
  • Dimension(L*W*H): 26*27*20cm
  • Weight: 12.5 KG
  • Filling capacity: 20g-10kg
  • Flow rate: 15L/min
  • Honey Peanut Butter Filler Weighting Oil Jar Cosmetics Lotion Filling Machine
    Inquiry Send Email

    Description

    Weighing filling machines on the market generally use the constant flow rate of the pump for filling. This type of filling machine has the following disadvantages: if the filling efficiency is to be ensured, a large flow rate filling is required, and the error is large when the filling flow rate is large; if the filling accuracy is high and the error is small, it is required to be very low. The flow rate is filled, and the filling flow rate is small, but the error is small but the work efficiency is low. This problem has not been solved.

    YTK-L15 automatic frequency conversion micro-filling machine effectively solves the above problems. It uses a high-precision peristaltic pump to work with the inverter. After the start of filling, the pump first fills at the maximum flow rate, ensuring fast and efficient filling. When the filling volume is about to reach the set weight, the inverter automatically slows down the pump flow rate. When the filling volume reaches the set weight, the pump is turned off to ensure the accuracy of filling. After repeated tests, the accuracy of the actual filling effect is shocking!

    Specification
    Name
    Viscous liquid filling machine
    Model
    YTK-L15
    Voltage
    AC220/50HZ
    Power
    200w
    Flow rate
    15L/min
    Filling capacity
    20g-10kg
    Filling error
    ≤ 2-5g
    Support height
    0-40cm( adjustable)
    Weight
    12.5kg
    Package Size
    35*35*35kg
    Features
    1. Automatic frequency conversion speed reduction, ultra high precision!The high-precision peristaltic pump is used to control the filling by setting the weight of the filling, and the automatic deceleration is approaching the end, and the quantity is automatically stopped. After repeated tests, the filling effect is extremely accurate and zero error.
    2. Put the bottle automatically peeled. Automatically start after peeling, and automatically slow down near the end, the filling volume is automatically stopped, and the bottle is automatically reset.
    3. No need to correct, no need to debug, you can use it. All you have to do during the filling process is to put the empty bottles on them and take them out after filling. The whole process is super easy. Really free labor from complex operations.
    4. The difference in bottle weight is large, filling has no effect! There are many bottles in actual production (such as thick-walled glass bottles, ceramic bottles, steel cylinders, etc.), the weight difference of the empty bottles is very large,which causes the batch weight filling Very troublesome. The product has an automatic peeling function before starting, which perfectly solves this problem, and the empty bottle difference is not affected at all.
    Application
    Suitable for small bottles of various oral liquids, syrups, sprays, perfumes, essential oils, solution reagents, product trials, etc. within 10L.
    Details Images
    Stainless Steel body
    More durable and corrosion resistant
    Electronic weighting
    The high-precision circuit board can store 4 groups of data with intelligent CPU to realize automatic quantification.

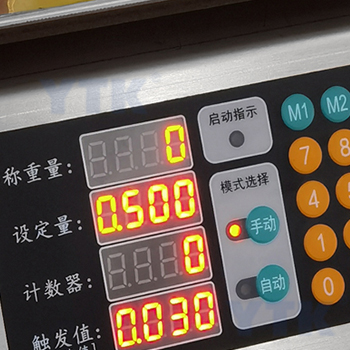

    Intelligent working interface
    Auto mode,manual mode for option Save up to 4 sets of parameters for different-sized bottles and can choose from easily Automatic taring,automatic sensing
    Sliding water pipe holder
    Food grade wired hose
    Anti-drip outlet(0-40cm)

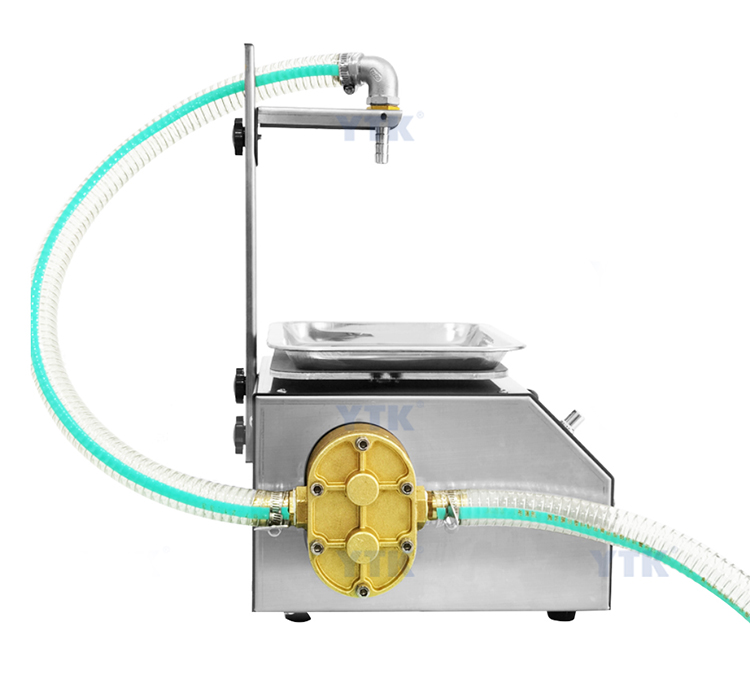

    Pure copper gear pump
    It is made of pure copper,high quality
