Description
Description
This machine adopts ultrasonic to calculate the sealing, and the sealing effect is stable and long-lasting; the lines at the sealing are clear and not deformed;This machine automatically completes a series of actions such as sub-tube/double-layer tube feeding, filling outer tube, benchmarking, filling inner tube, sealing,cutting tail, and finished tube out. It is fully automated, saving labor, reducing production costs, and meeting the demand for differentiated products
Technical Parameters
|
Model |
LT-009S |
|
Voltage |
220/110V |
|
Power |
2.6KW |
|
Frequency |
20kHZ |
|
Workstation |
ten station |
|
Filling range |
10-120ml/25-250ml |
|
Filling accuracy |
±1% |
|
Sealing speed |
10-15pcs/min |
|
Tube height |
50-210mm |
|
Tube diameter |
25-50mm(can custom) |
|
Applicable tube material |
Plastic composite tube, aluminum-plastic tube |
|
Air pressure |
0.5-0.6MPa |
|
Air consumption |
0.48m³/min |
|
Size |
1850*1400*1800mm |
|
Weight |
530kg |
Application

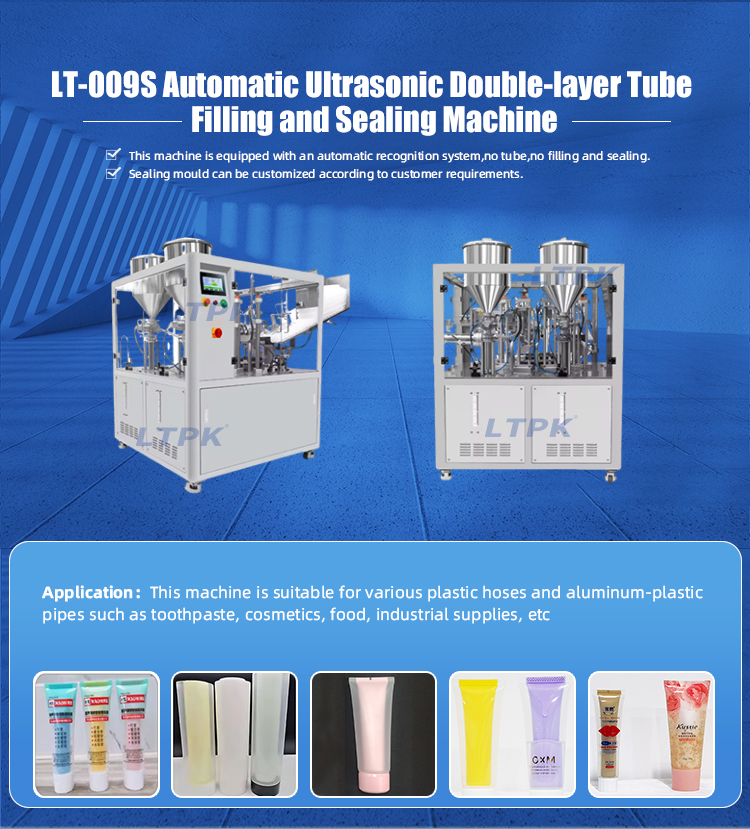

This machine is suitable for various plastic hoses and aluminum-plastic pipes such as toothpaste, cosmetics, food, industrial supplies, etc

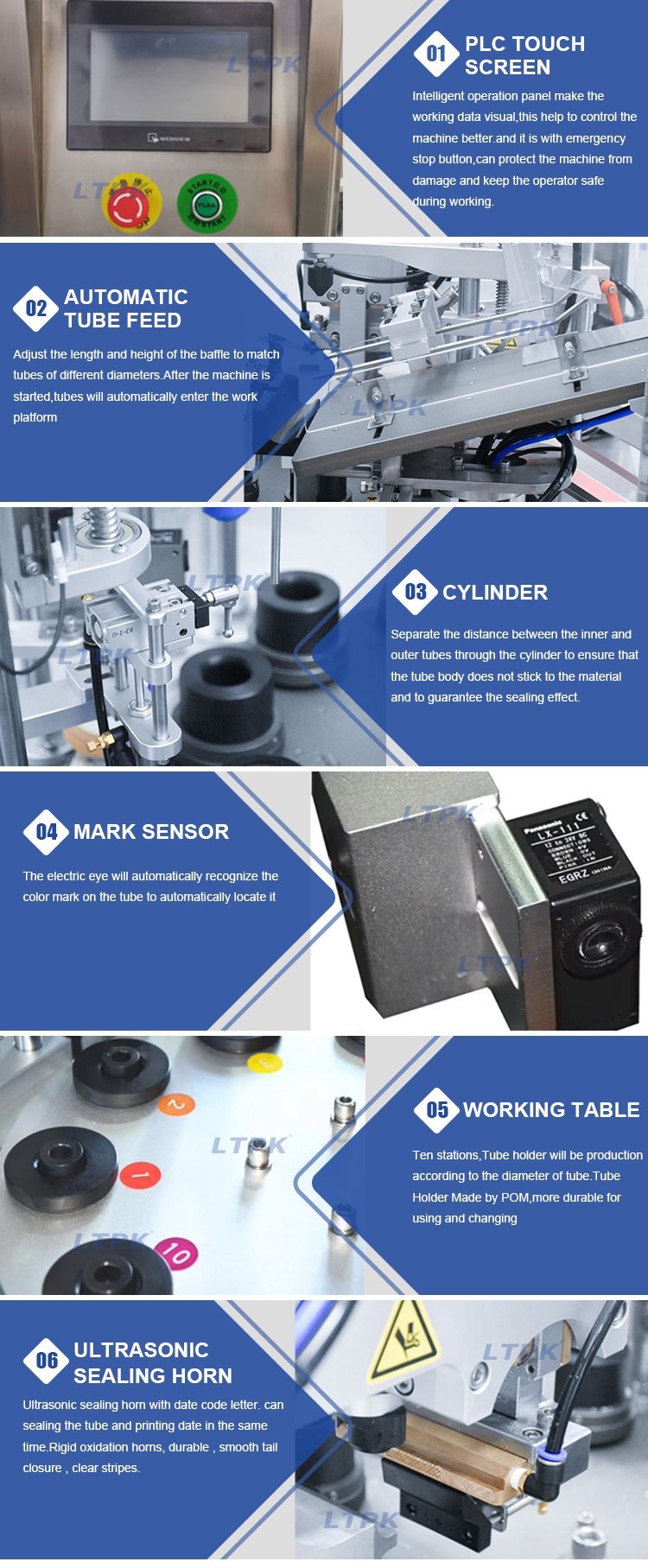

Detail Images
