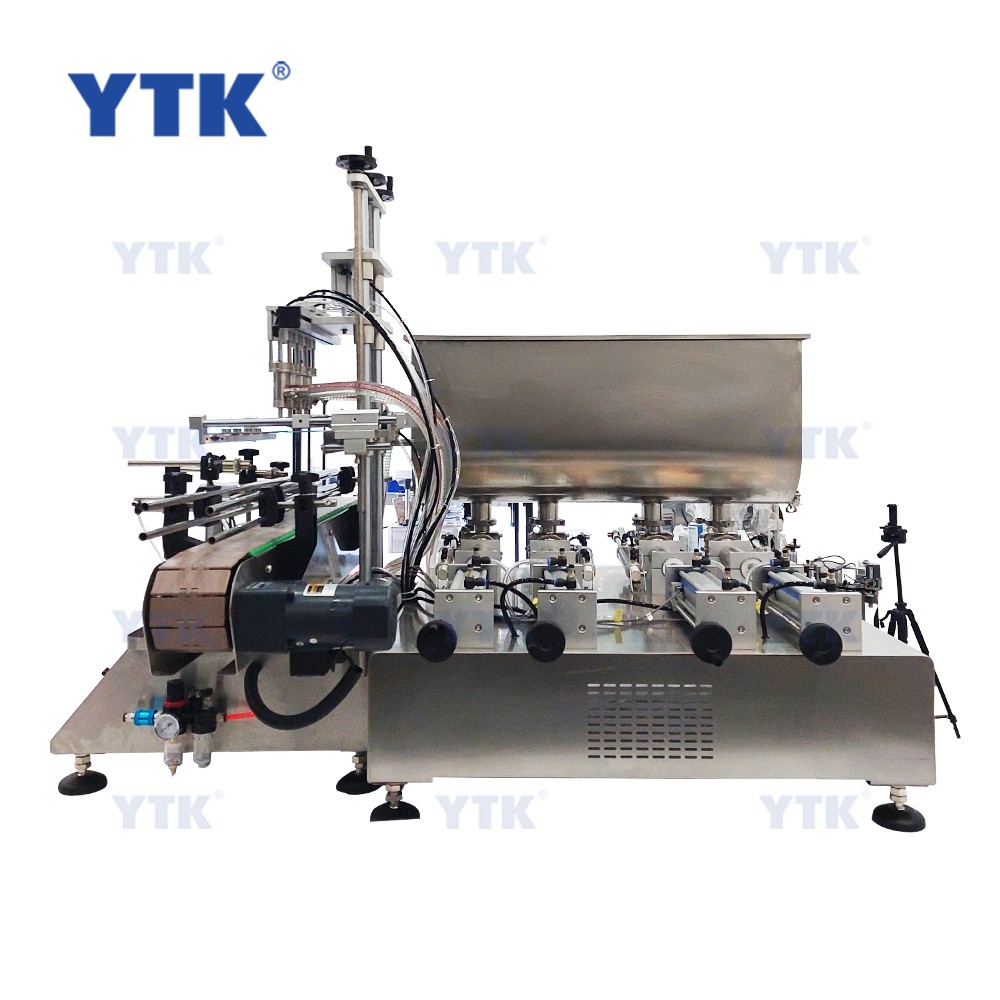

Four Head Desktop Small Piston Gel Aseptic Filling Machinery For Peanut Butter

Four Head Desktop Small Piston Gel Aseptic Filling Machinery For Peanut Butter

Product Item：YTK-MPF4C

Dimension(L*W*H): About 1550*1400*1330mm

Weight: 237 KG

Hopper size: 90L

Conveyor size About: 1300*100mm

Description

Product Description

Designed for filling paste or thick liquid,this machine can work with desktop capping machine and labeling machine to save your working space and improve your production efficiency.Each nozzle of this machine can be controlled separately,we can customize multiple filling nozzles as your production need.This machine is widely used in food,daily chemical,cosmetics industries.



Specification

Machine model	YTK-MPF4C
Power	110/220V 50-60HZ About 300W
Filling range	10-100ml/30-300ml/50-500ml/100-1000ml/500-2500ml/1000-5000ml
Working speed	20-30bottles/min(based on liquid&filling volume)
Hopper size	90L
Conveyor size	About 1300*100mm
Filling nozzle size	OD 10mm(can choose other size)
Filling accuracy	≤±1%
Machine size	About 130014401200 mm
Package size	About 155014001330mm
Package weight	About 237kg

Application

Detail Images

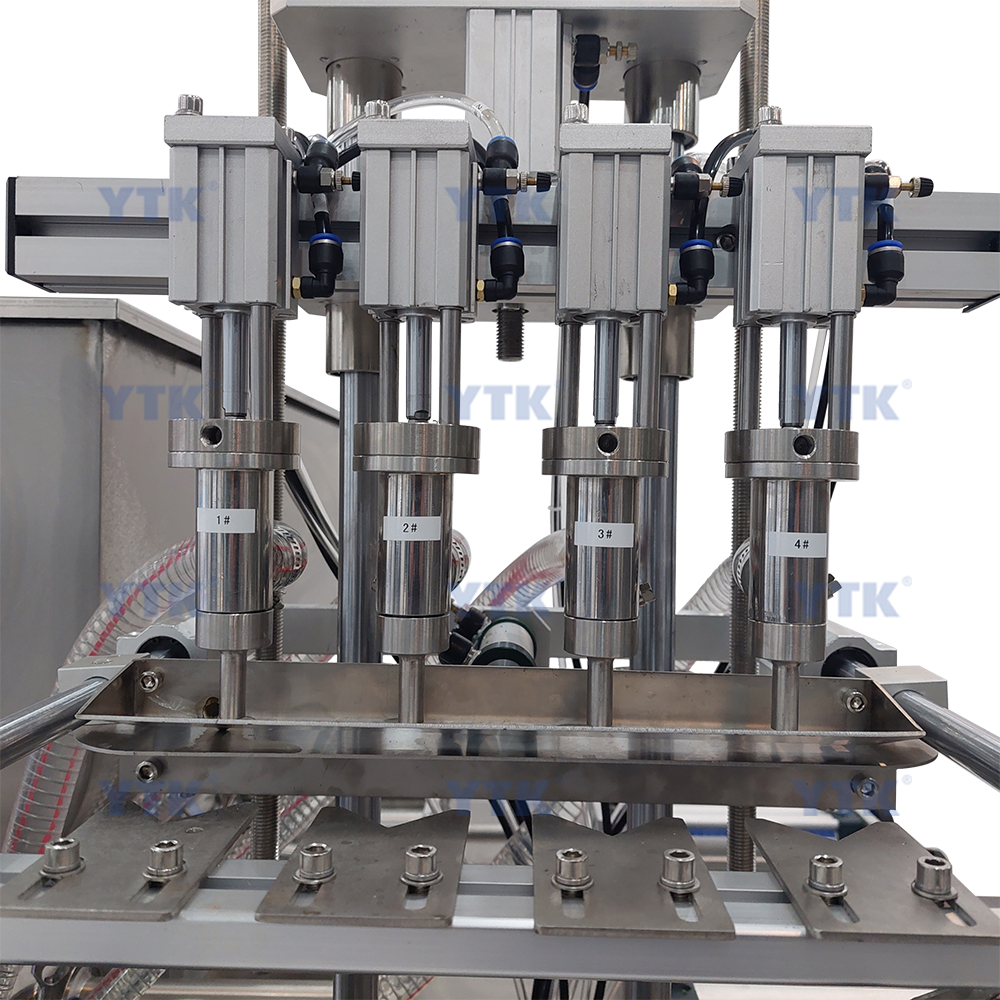

							Equipped with the pneumatic filling nozzle,which has larger power and can improve filling speed when fill thicker liquid.There is

a anti-dripping slot,it can ensure the production cleanliness.The bottle clamping plate will fixed bottles ,this prevent that

bottles fall down during filling.

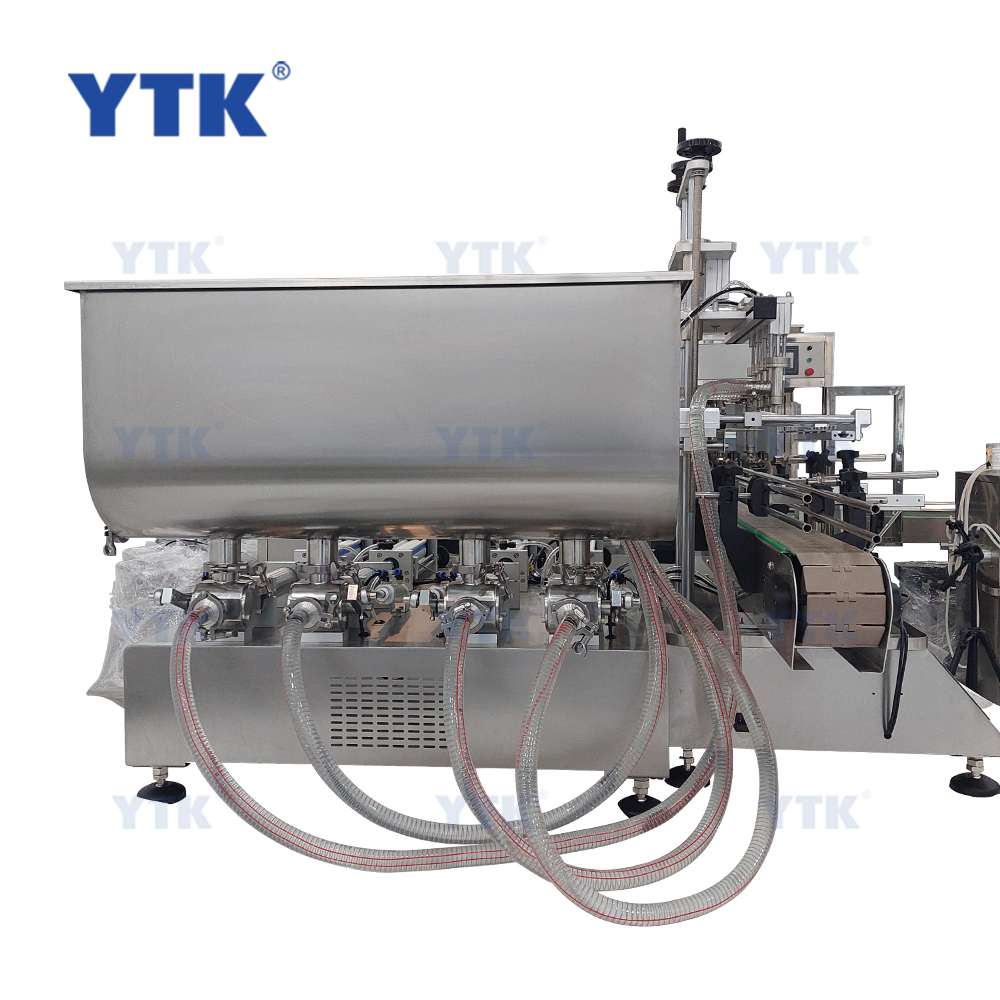

							Equipped with 90L large hopper,this better for making the liquid flow faster and can feed filling material in time,improves working speed.


							The filling volume can be adjusted by the black rotary knob.Through the small knob to adjust the air intake and air output, you can indirectly control the filling speed and waiting time of the machine.

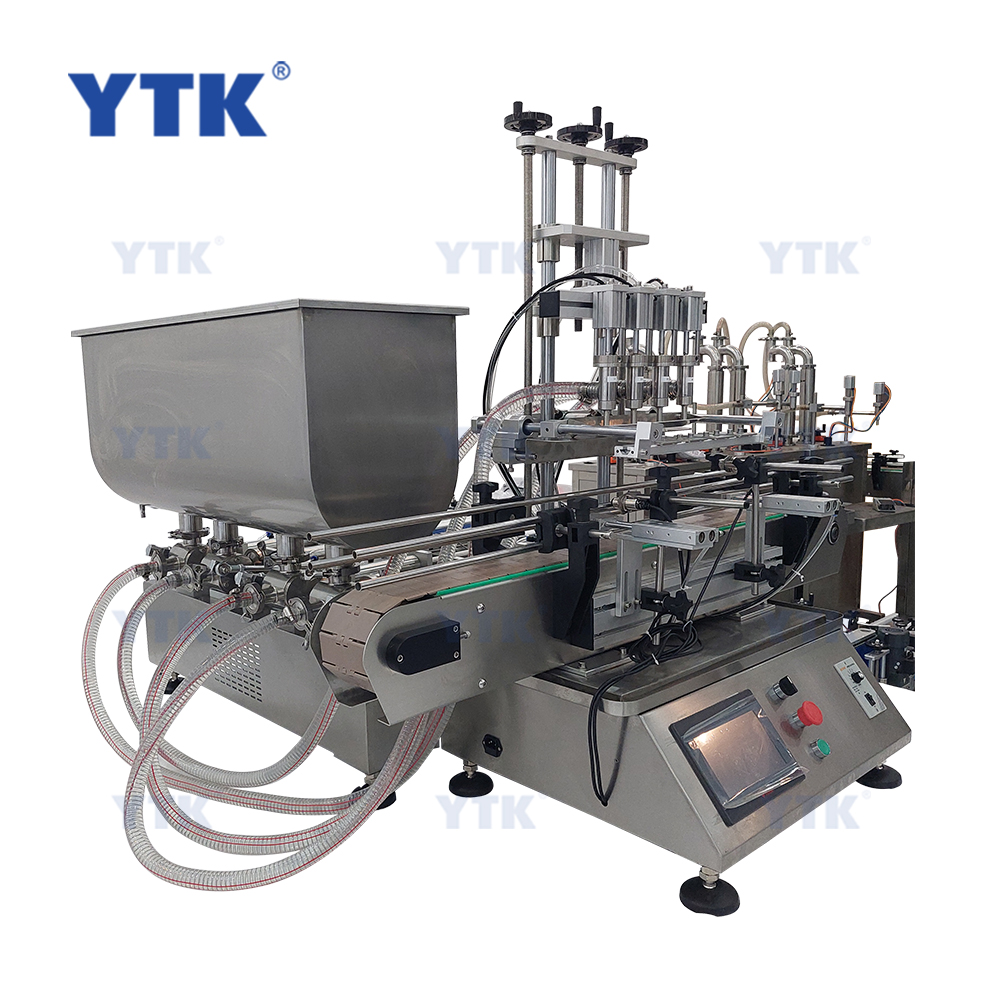

							Designed with PLC touch screen control panel,the digital display makes the working data be visual and can watch the working status of the machine in real time,reduce production error.
