Description
Product Description

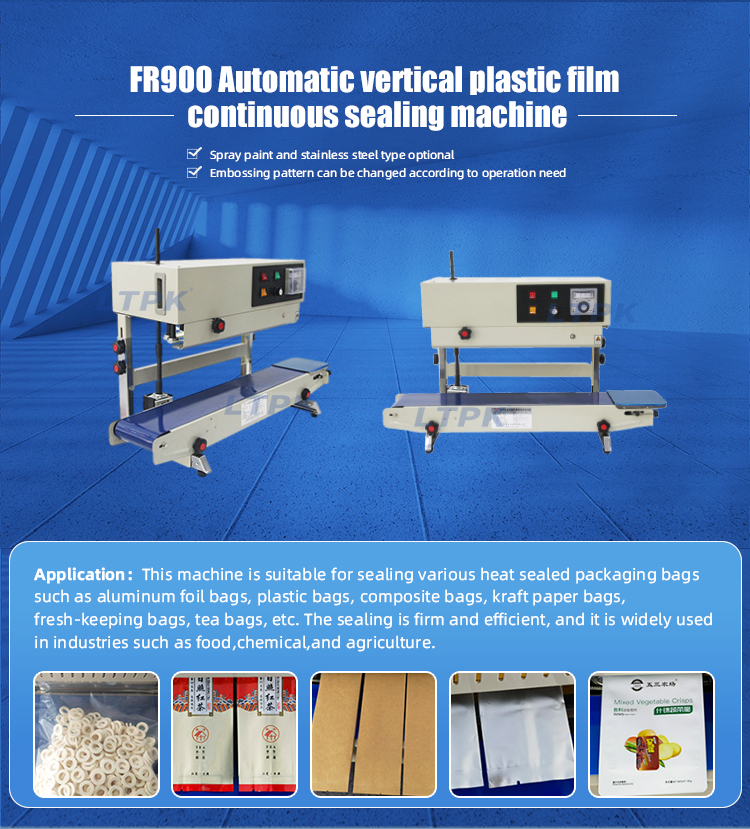

Intelligent electronic constant temperature control, automatic continuous transport device can control a variety of different plastic film strips, can be used on the assembly line, the length of the seal is not limited.
Wide applicability, suitable for aluminum foil bags in various industries, plastic bag sealing
The device has the characteristics of firm sealing and high efficiency, advanced equipment technology and convenient operation.
It can change the font type, adopts the steel printing and printing characters, supports the sealing pattern and the font type replacement, and replaces the font type as needed. It can print the date of manufacture, the shelf life, the storage period and the like at the same time.
Solid liquid can be sealed,The sealing machine can be used in horizontal, vertical and floor type. The solid and liquid are suitable for horizontal sealing and sealing of dry articles, and the vertical type is suitable for liquid packaging and sealing. The seal is firm and beautiful.
Specification
Model:YTK-FR900V
Power: 85W
Voltage: 220V 50HZ/110V 60HZ
Date printing: Stamping
Temperature Control: 0-300℃
Sealing speed: 1-12meters/min
Sealing length: Unlimited
Sealing width: 6-10mm(adjustable)
Sealing thickness: 0.02-0.8mm
Max loading: 5KG
Package size: 88*44*37cm
Package weight:21kg

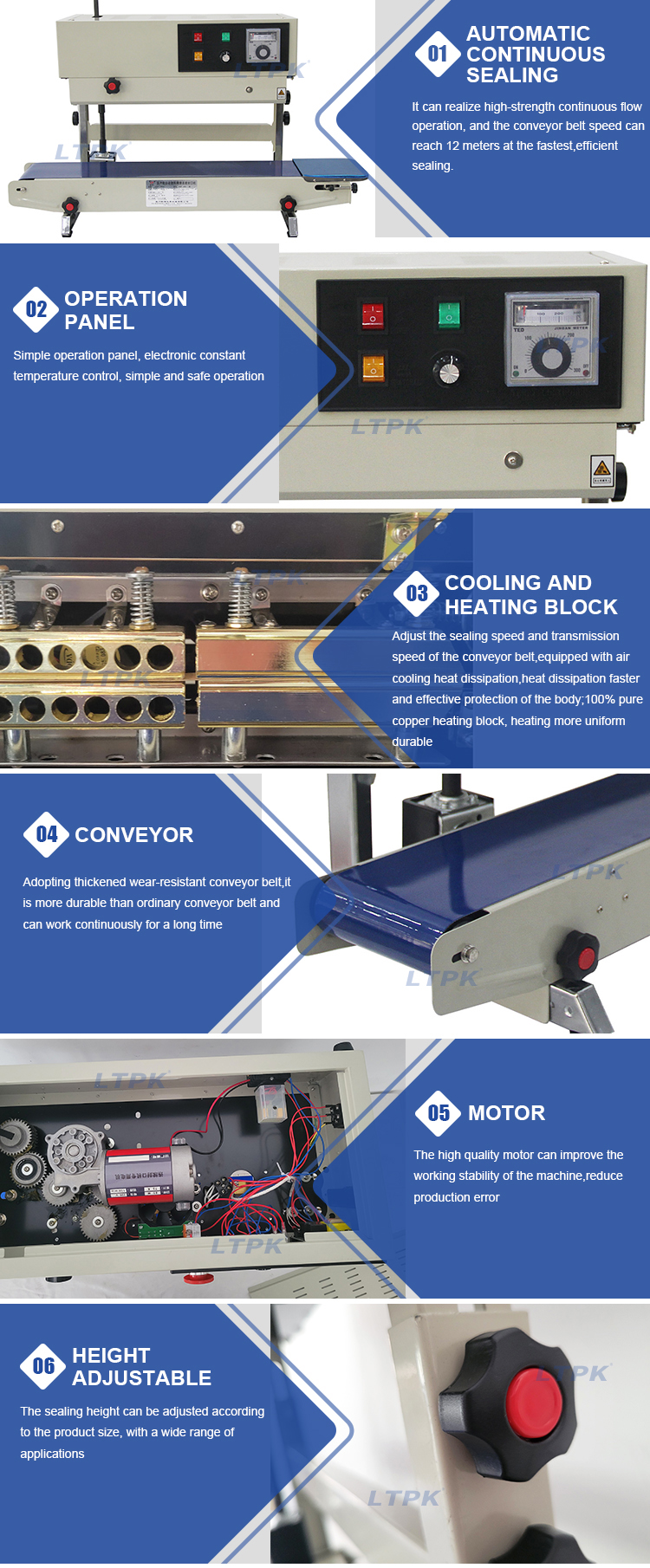

Features
Automatic continuous sealing
Wide applicability
Replaceable font
Solid liquid can be sealed
Details Images

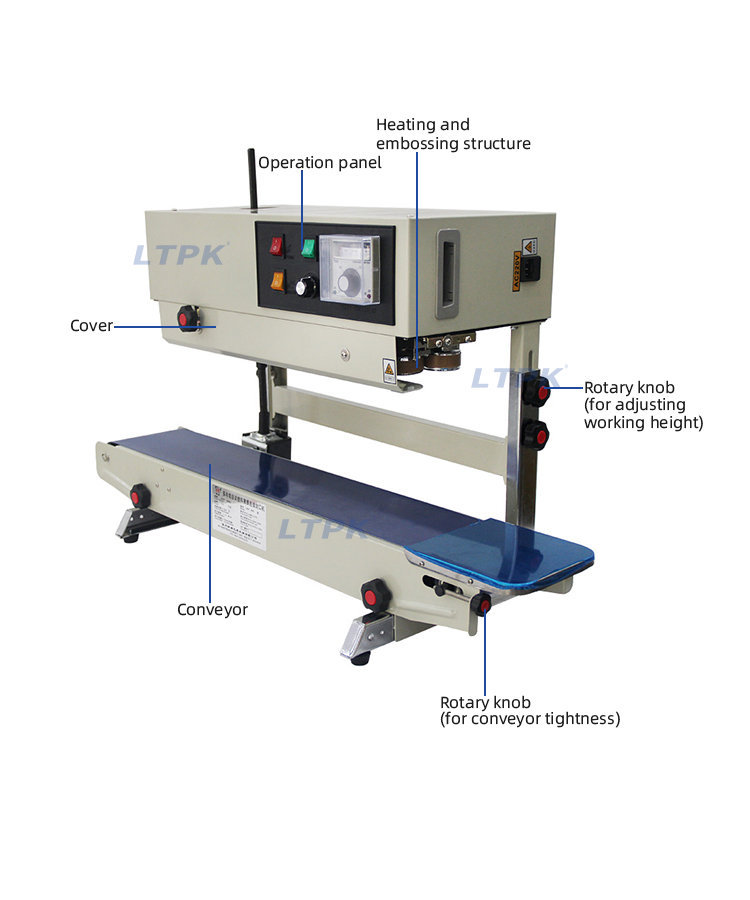

control panel
Window visual design, button with description, double anti-leakage, let you operate safely and safely, easy to use.
Cooling and heating fast
Equipped with air-cooled heat dissipation, faster heat dissipation, effective protection of the body, 100% pure copper heating block, heating more even and durable.
Exquisite embossing wheel
The machine is equipped with a high-quality embossing wheel, which is stable and does not deform. The seal is firm and beautiful, and the printing is clear.
Strengthen the output assembly
With the automatic conveying device, the manufacturer designs and strengthens the thickened active conveying wheel and the passive conveying wheel, and the machine runs more smoothly.
Thickened conveyor belt
The thick wear-resistant conveyor belt is more durable than the ordinary conveyor belt on the market, suitable for long-term continuous work.
Pressure adjustment button
You can adjust the printing pressure according to the actual needs by adjusting the printing pressure knob to adapt to different sealing materials.
Adjustable conveyor
The pitch of the conveyor can be adjusted up and down, and the parameters can be adjusted according to actual needs to improve the working efficiency of the product.
High power motor
High-powered motor with a one-piece turbine box for more powerful power, less noise, more stable performance and smoother machine operation
