Home Products Labeling Machine YTK-50D Manual Round Bottle Labeling Mac
YTK-50D Manual Round Bottle Labeling Machine Labeler Witn Date Coding Date Code PrinterYTK-50D Manual Round Bottle Labeling Machine Labeler Witn Date Coding Date Code PrinterYTK-50D Manual Round Bottle Labeling Machine Labeler Witn Date Coding Date Code Printer

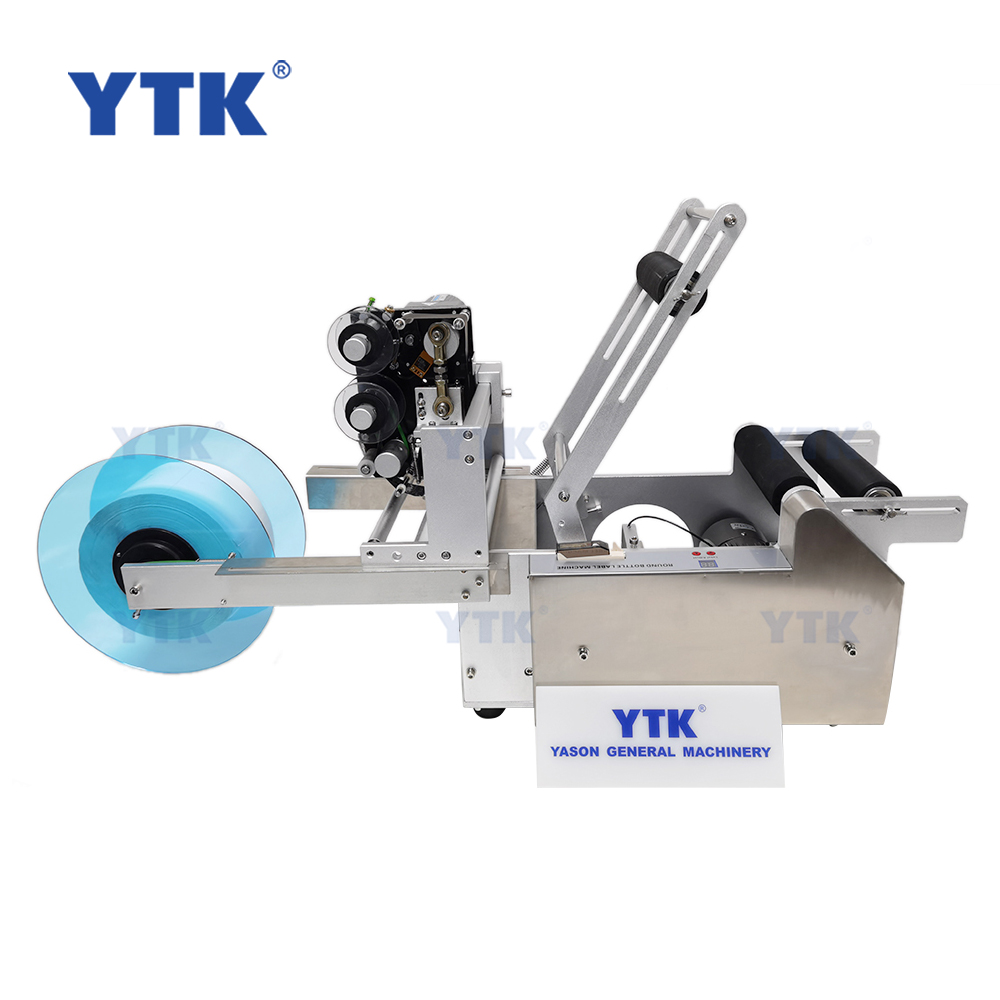

YTK-50D Manual Round Bottle Labeling Machine Labeler Witn Date Coding Date Code Printer

  • Product Item:YTK-50D Aluminium Body
  • Dimension(L*W*H): About 620*320*370mm
  • Weight: About 21kg
  • Machinery Capacity: About 20-40 times/min
  • Input power:220V50/60Hz
  • Table Top Semi Automatic Round Bottle Labeling Machine
    Inquiry Send Email

    Description

    This semi automatic bottle labeling machine is equipped electric eye,which makes it can adjust the labeling accuracy easily.It is easy to operate and suitable for round bottles like wine,drinks,cosmetics.It is widely used in food,beverage,cosmetics and chemical industries.
    Technical Parameters
    Product model
    YTK-50D
    Product diameter
    φ20-φ130mm
    Input power
    220V50/60Hz
    Labeling speed
    20-40 times/minute
    Minimum label size
    W30*L30mm
    Maximum label size
    W130*L300mm
    Label roll inner diameter
    Φ76mm
    Label roll outer diameter
    Φ200mm
    Net weight/Gross weight
    About 21kg/24.5kg
    Machine size
    About 620*320*370mm
    Package size
    About 500*275*220mm
    Application
    Details Images

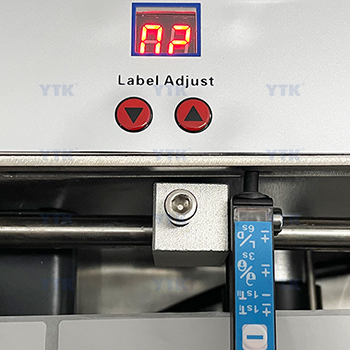

    Adjustable Label size


    The length of the label can be adjusted, and the labeling effect is good.

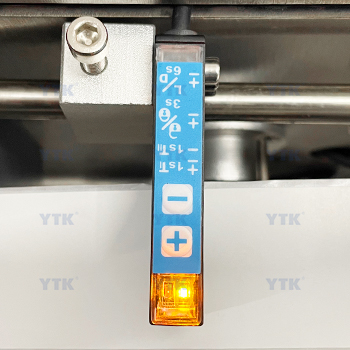

    Label Sensor


    The label sensor can detect the label sticker accurately,prevent from missing label stickers or output them multiple times.Improve the labeling quality.

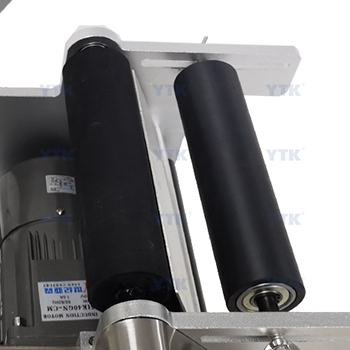

    High quality roller wheel


    The machine can be adjusted according to bottle diameter,it is easy to operate and widen the application range,please make sure these two bar are parallel before labeling.

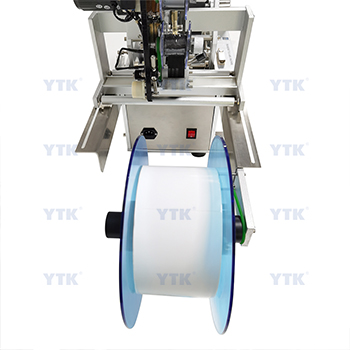

    Adjustable paper tray


    The screws of the label holder can be adjusted according to your needs,make the machine work smoothly,it is more convenient to work.

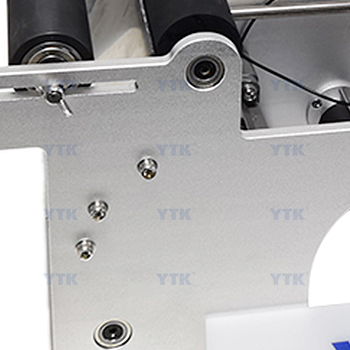

    Thickened aluminum plate body


    The fuselage is durable, corrosion and rust resistant.
