Description
Product Description

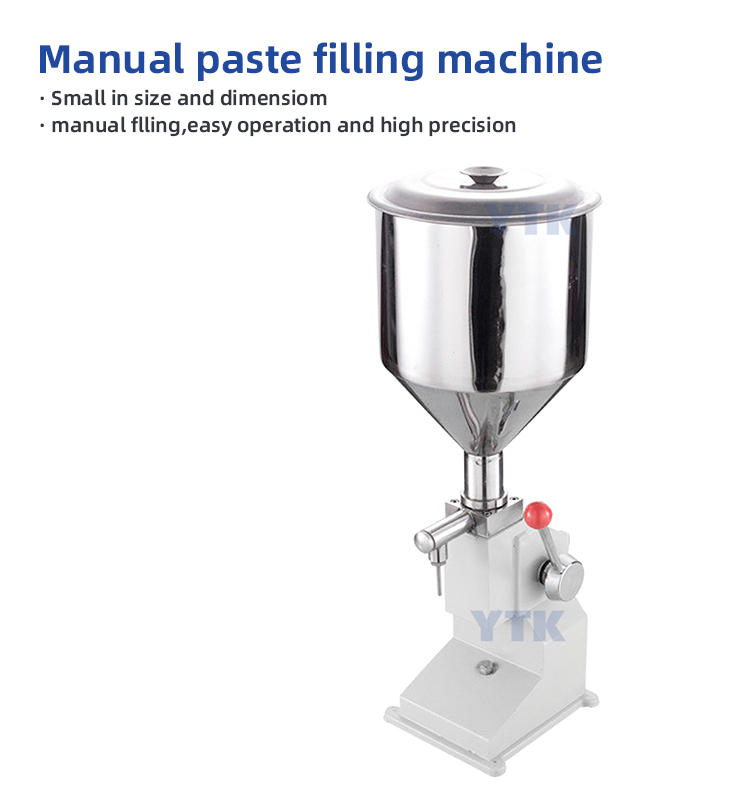

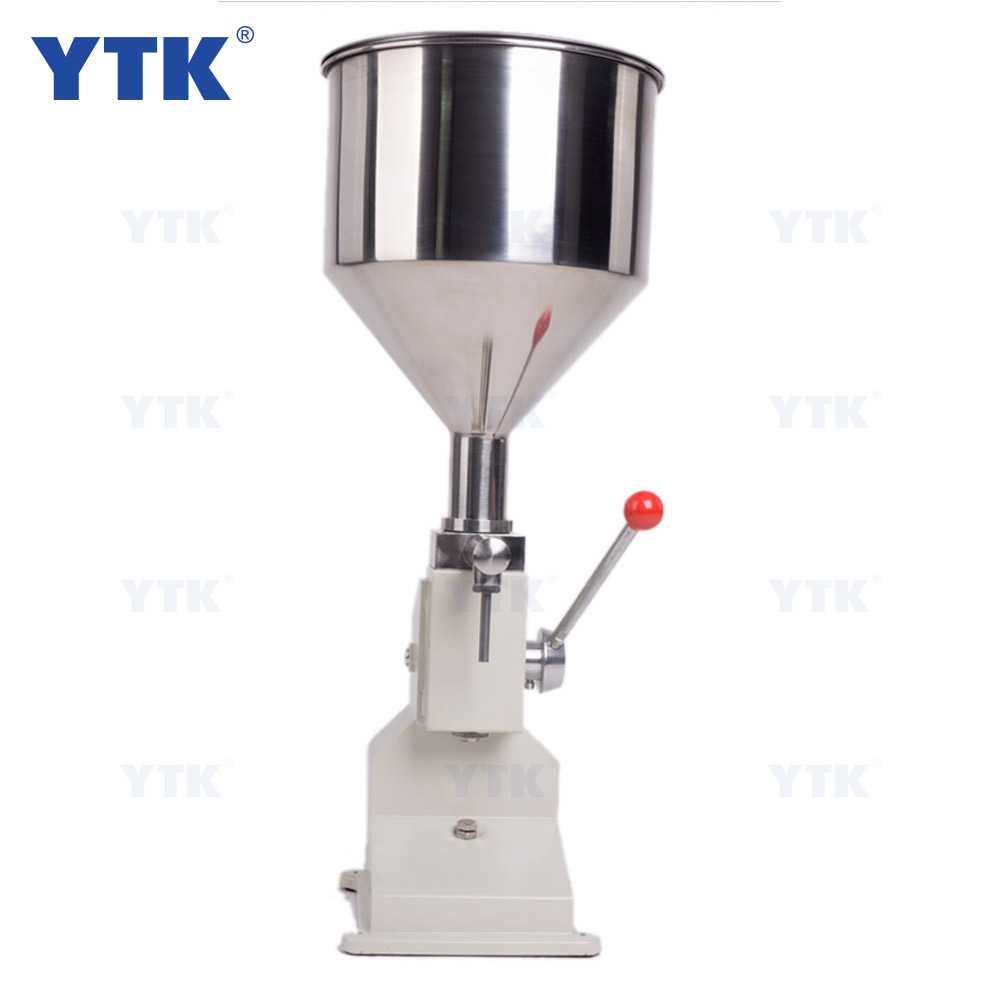

A03 manual paste filling machine adopts piston structure, which can carry out 0-50g quantitative filling of liquid, paste and other materials. It can fill paste liquid substances such as medicinal liquid, liquid food, lubricating oil, shampoo, shampoo and so on. It has the function of an integrated machine for filling paste liquid. It is suitable for pharmaceutical, daily chemical, food, pesticide and special industries. It can also be used for quantitative filling of sealed tail hose. It is an ideal paste liquid filling equipment.
Specification
Fetures
(1)The machine has simple and reasonable structure, convenient manual operation, without any energy.
(2)With the filling volume regulator knob, quantitative discharging, filling rate and filling speed can be controlled manually.
(3)The material uses the 304L stainless steel material, suitable for use under acidic medium, to meet the food, pharmaceutical production and health requirements.
(4)The machine hopper capacity of 10 kg, the user can be set on the filling capacity.
Application

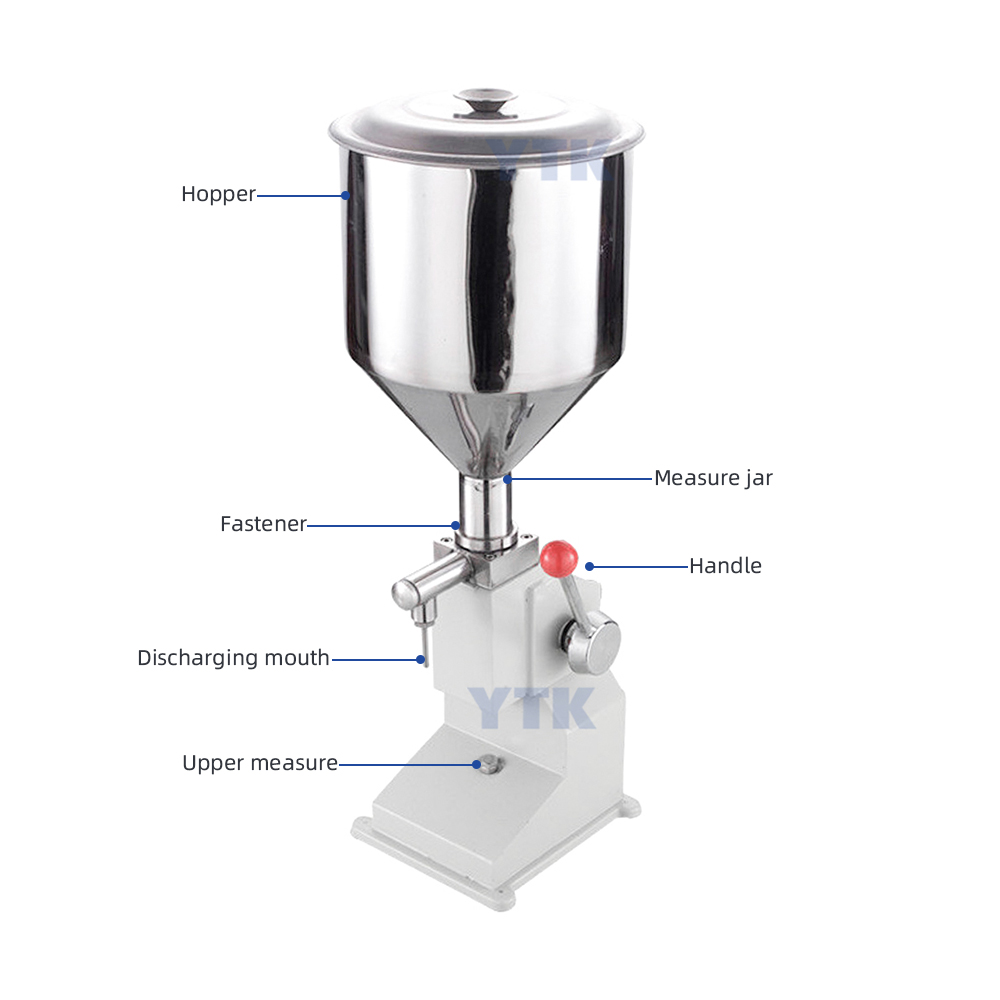

Details Images

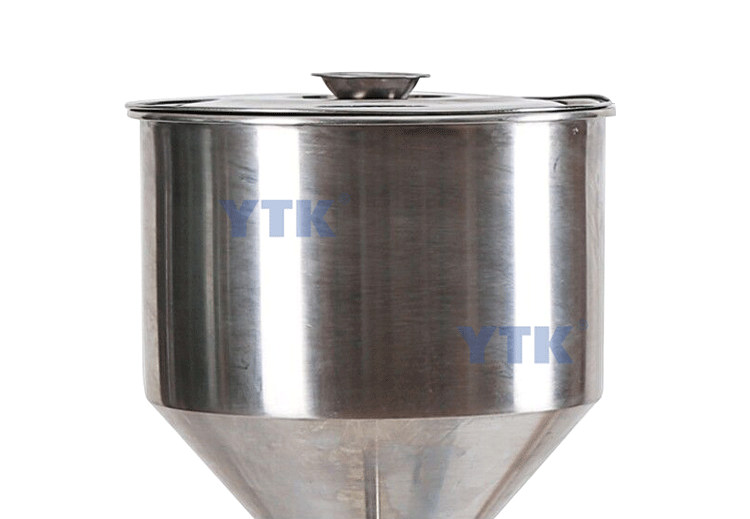

Stainless Steel Hopper
The main machine part is made of 304 stainless steel,suitable for filling food or beverage.The 10L hopper make easier to feed filling material during working.

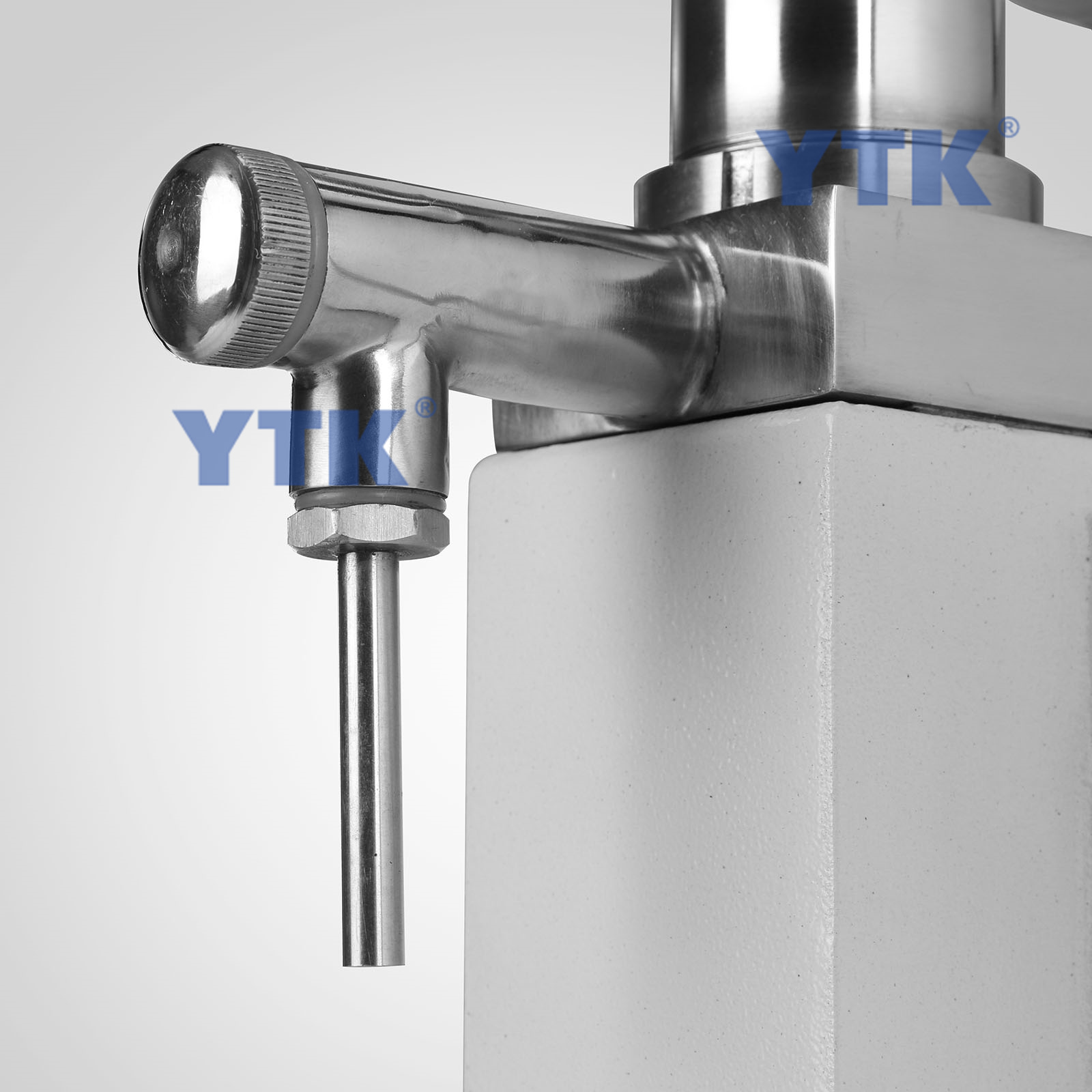

Filling Nozzle
This machine will sent with two sizes of filling nozzle,OD4mm and OD8mm,you can choose the suitable one according to production need.

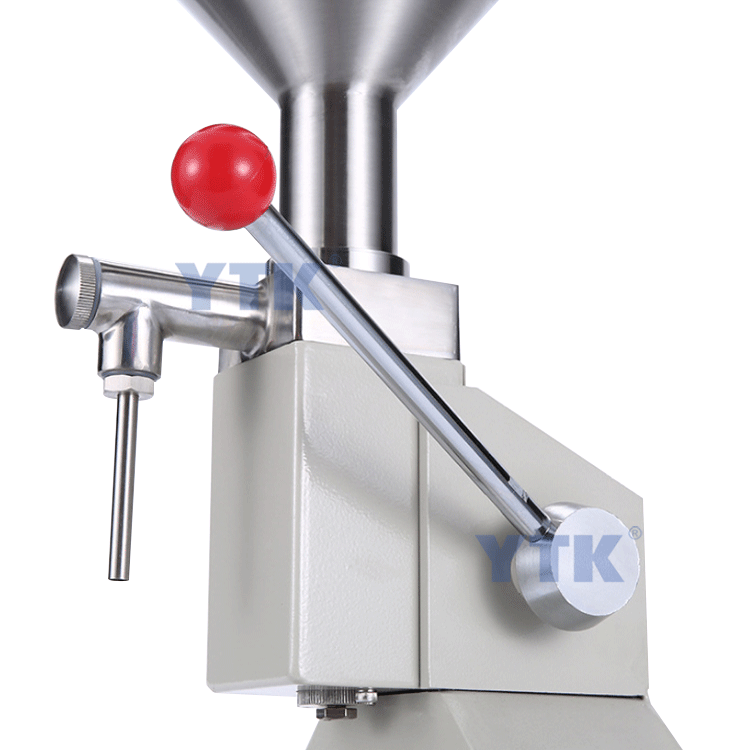

Comfortable Handle
The non-slip handle helps to improve user experience,make it easy to operate during working.

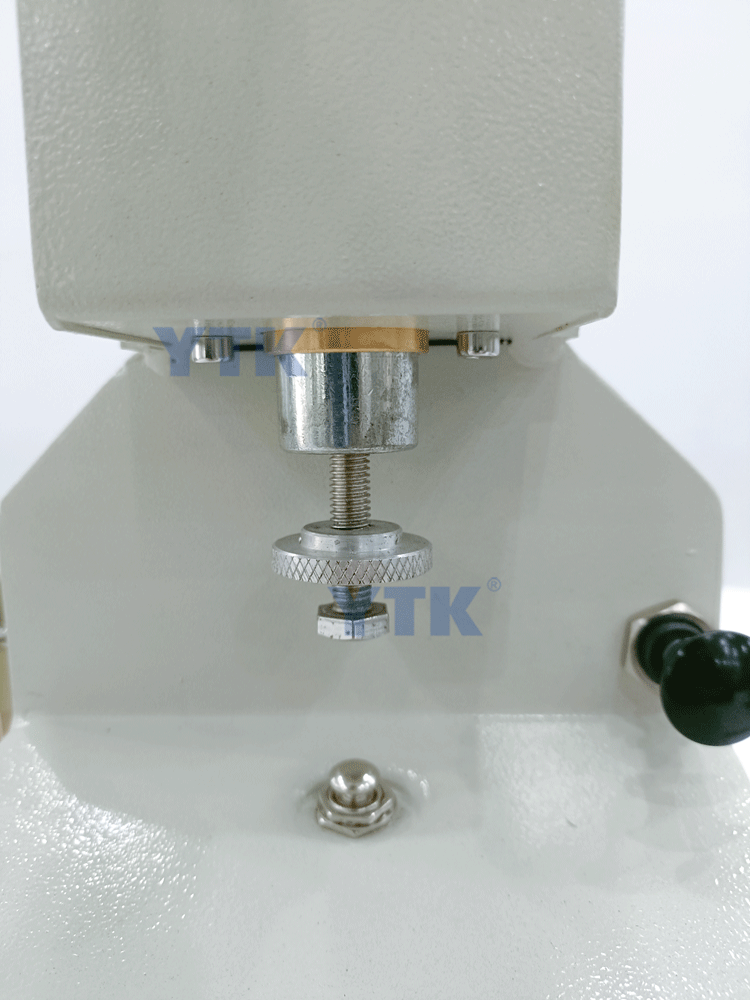

Filling Volume Adjusting Screw
The adjusting screw is designed for controlling the filling range,it can help you adjust the machine faster and easier.
