Home Products Filling Machine Paste Filling Machine Floor Type Single Head Ointment Meat Pas
Floor Type Single Head Ointment Meat Paste Face Cream Filling MachineFloor Type Single Head Ointment Meat Paste Face Cream Filling MachineFloor Type Single Head Ointment Meat Paste Face Cream Filling Machine

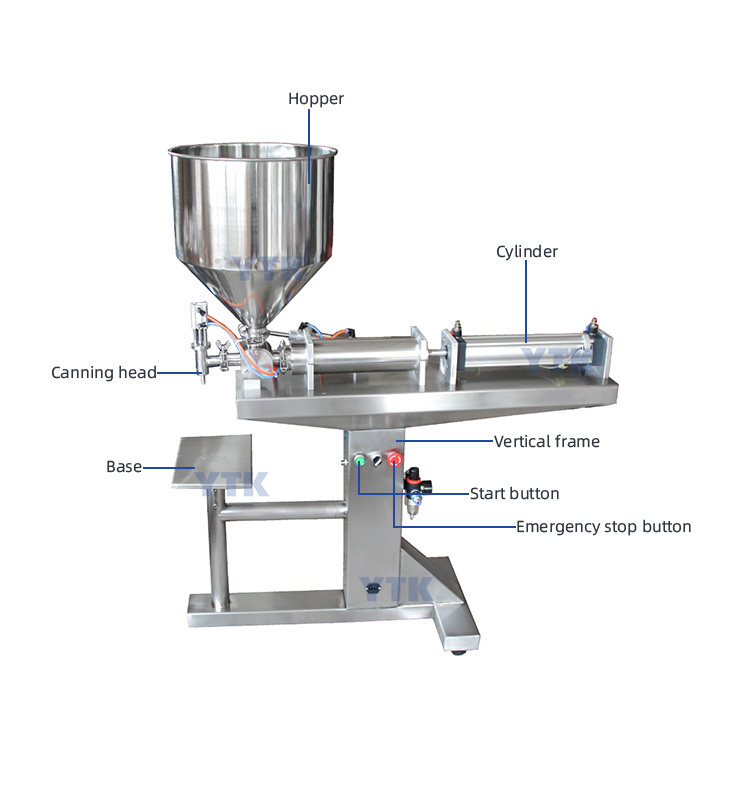

Floor Type Single Head Ointment Meat Paste Face Cream Filling Machine

  • Product Item:YTK-LGF25/100/300/500/1000/3000/5000
  • Dimension(L*W*H): 1310*575*930mm
  • Weight: 72.5 KG
  • Air Pressure: 0.4-0.6Mpa
  • Voltage: 220V/50Hz 110V/60Hz
  • Fully pneumatic single head auto cream sauce filling machine
    Inquiry Send Email

    Description

    The piston filling machine is suitable for filling liquid but can not be used for paste filling like water , juice,milk etc.It can fill liquid accurately ,the filling volume or filling speed can be adjusted according to your needs.Each nozzle of this machine can be controlled separately.This one is with bottle holder,more reasonable design.


    Specification
    Machine Model
    YTK-LGF25/100/300/500/1000/3000/5000
    Voltage
    220V/50Hz 110V/60Hz
    Power
    100W
    Energy Source
    Electric and pneumatic
    Air Capacity
    >30L
    Filling Nozzle
    1 Nozzles
    Filling Range
    5-100mL /10-300mL / 50-500mL /100-1000mL /500-3000mL / 1000-5000mL
    Filling Speed
    About 12-20bottles/min
    Filling Accuracy
    +0.5%
    Air Pressure
    0.4-0.6MPa
    Height of Bottle Holder
    Adjustable
    Package Weight
    72.5kg
    Package Size
    1310*575*930mm
    Features
    Product Detail

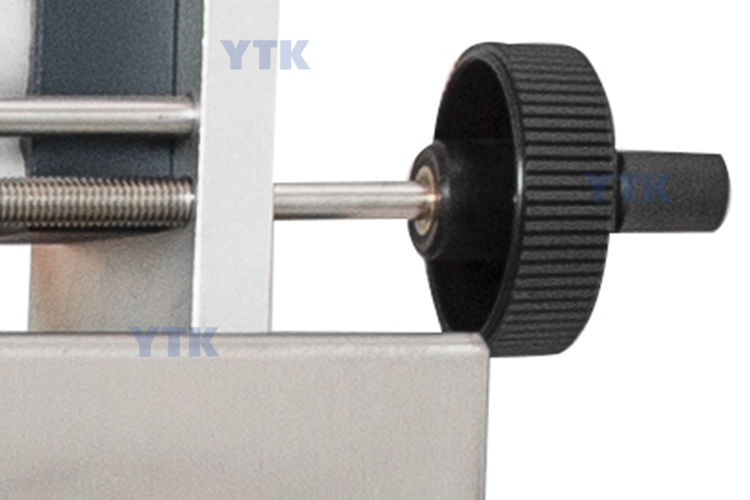

    Filling volume adjustment rocker


    The scale can be freely adjusted according to the filling volume, with a non-slip design, easy to adjust

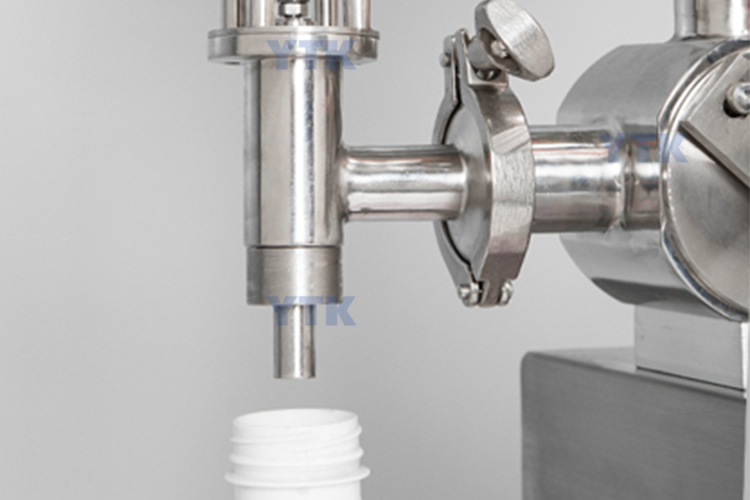

    Anti-drip and anti-drawing outlet


    Anti-drip design, more accurate filling, smooth discharge without clogging

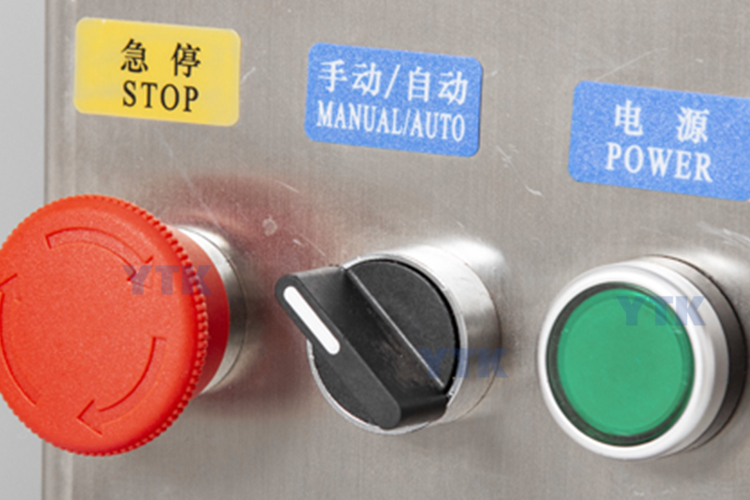

    Humanized design


    It can switch between jog/automatic freely. At the same time, the machine has an emergency stop switch, and the machine is in a safer state during operation.
