YTK-220 Full Automatic Round Bottle Labeling Double Size Hand Sanitizer Sticker Water Bottles Labeling Machine Production Line

YTK-220 Full Automatic Round Bottle Labeling Double Size Hand Sanitizer Sticker Water Bottles Labeling Machine Production Line

Product Item： YTK-220

Suitable labels: H15-200mm,L25-300mm

Power: 1500w

Speed: 20-200 bottles / min(depend on bottles details)

Suitable container: diameter30-120 mm (Note: hand wheel adjustment, replace the disc, accept custom)

Description

Product Description

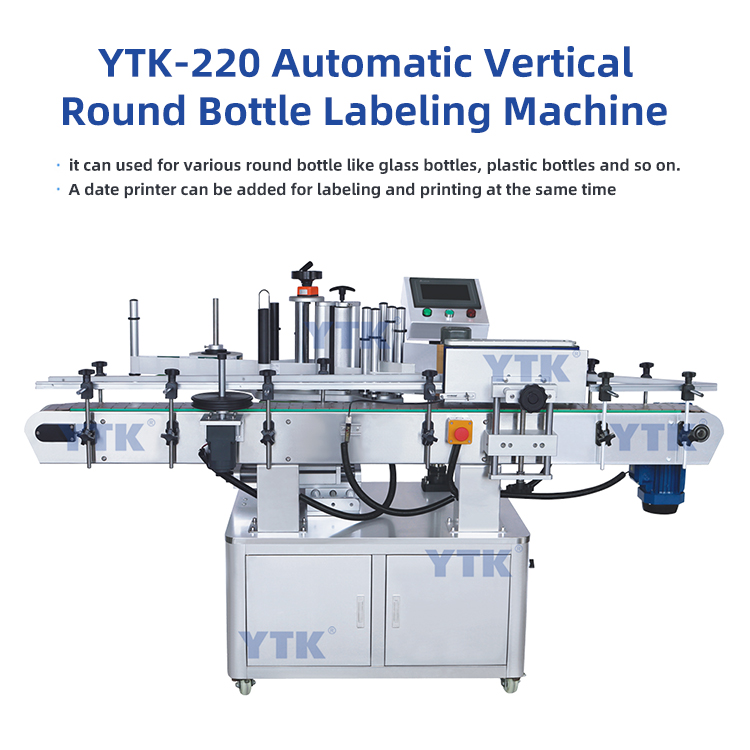

						YTK-220 automatic vertical labeling machine is for glass bottles, plastic bottles and other cylindrical objects, tapered objects can be customized, but also according to product needs to increase the printer; the machine design is simple, light weight, beautiful. And it can be used independently or connected with other machines into production lines.


Specification

Model	YTK-220
Label length	25~300MM
Label width	25~150MM
Suitable bottle diameter	φ20~120mm
Outside diameter of standard roll	Φ300MM
Inside diameter of standard roll	φ76MM
Labeling accuracy	±1MM
Voltage	220V/110V 50-60HZ
Power	1.5KW
Conveying speed	16m/min
Labeling speed	20~160pcs/min
Dimensions	215010001600mm
Machine Weight	About 300KG

Application

Details Images

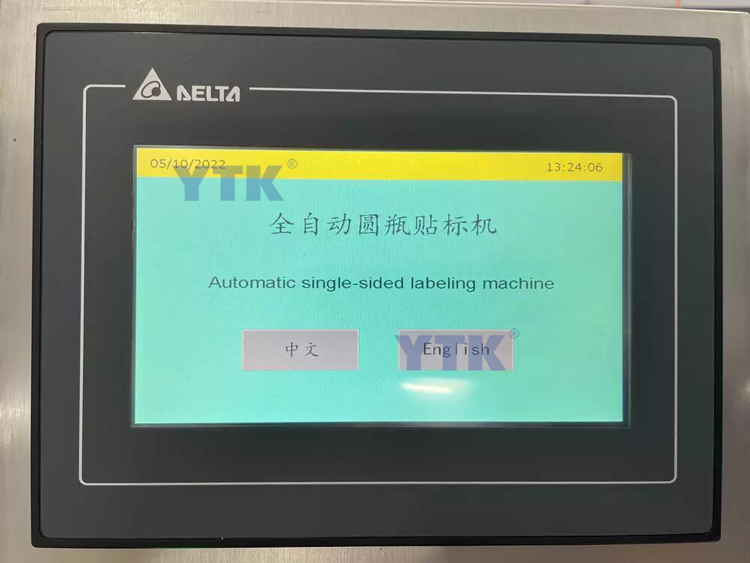

Control panel

							Intelligent operation panel make the working data visual,this help to control the machine better.

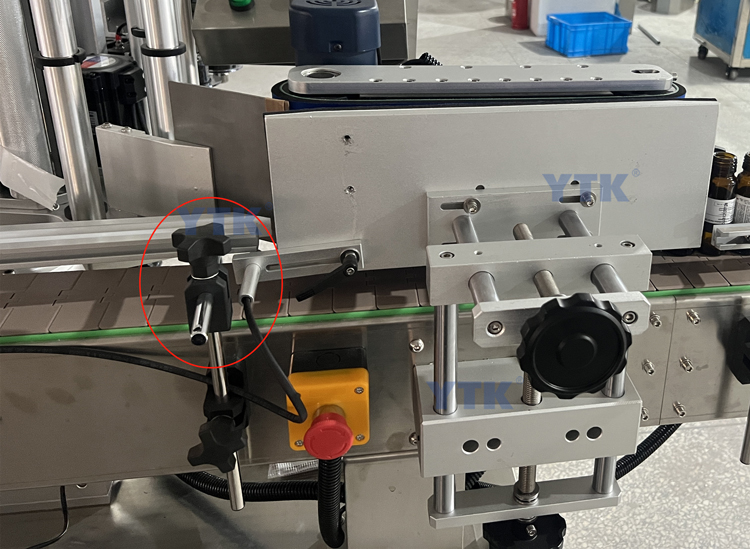

Electric eye

							It can detect round bottles once they are transferred. It won’t work unless the round bottle is detected. This prevents from missing bottles and wasting labels.

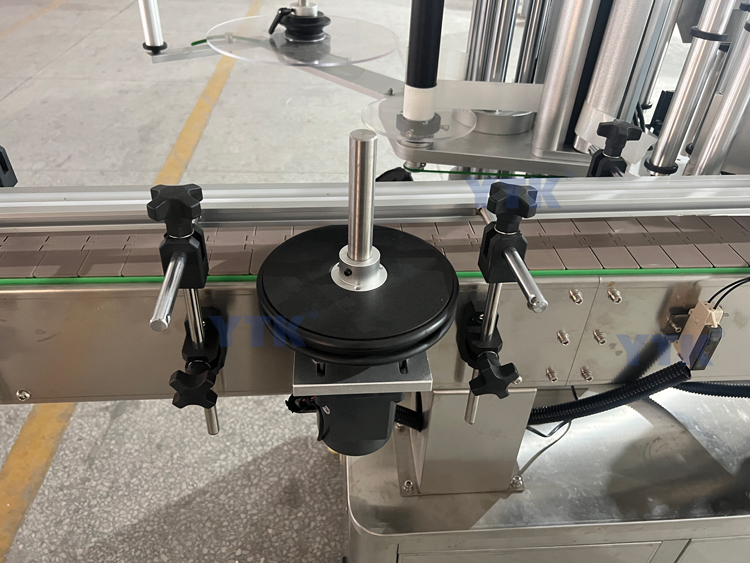

Bottle separating device

							It can separate passing through bottles, help to control the bottle distance.

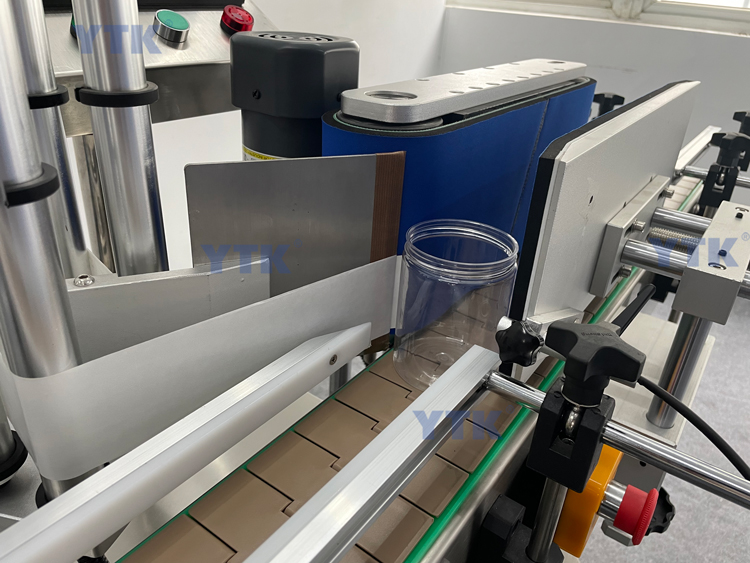

Conveyor

							The conveyor is used to transfer round bottles. The working speed is adjustable, operator can adjust the speed according to their need. The width of feeding inlet can be adjusted according to bottle diameter。
