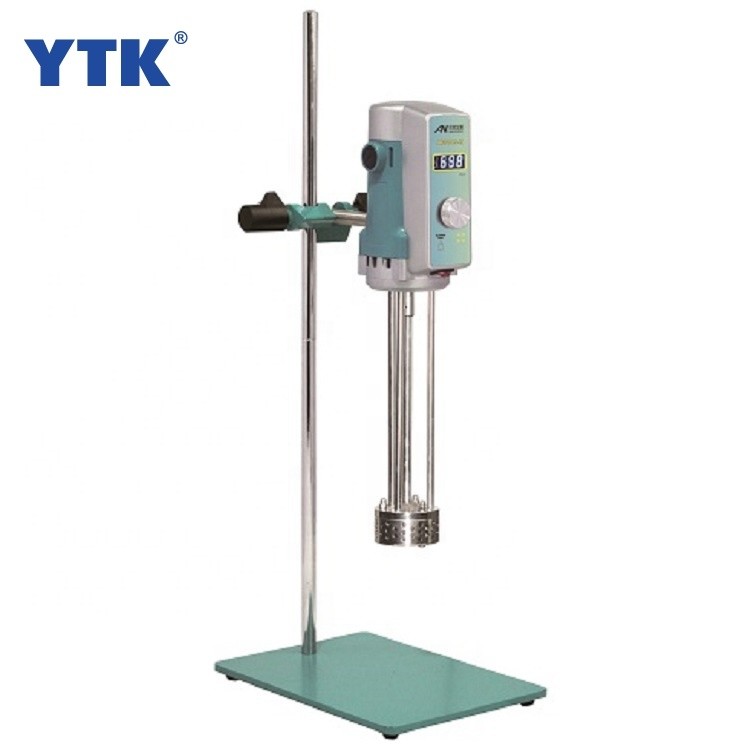

AE500S-H (70G 90G 50G)Portable Homogenizer Cream Cosmetic Making Emulsifying Mixer Machine

Product Item：AE500S-H(70G/40L)AE500S-H(90G/60L)AE500S-H(50G/20L

Dimension(L*W*H): 215 * 310 * 720mm

Weight (KG): 22 KG

Rotor maximum linear velocity: 18m/s

Wordhead Material: 304L Stainless Steel

Description

Product Description

						AE500S-H( 70G 90G 50G) laboratory high-shear emulsifying machine with compact structure series miniature high-speed motor driver, suitable for lab or pilot plant of low to medium and high viscosity liquid mixing, crushing particle material shearing emulsification in liquid medium. The machine working head, shear emulsifying by high speed motor and speed regulating controller, etc. Drive host adopt high quality engineering plastic and die casting aluminum alloy as the body, stable operation; Head is made of high quality stainless steel refining, experimental application domain is extensive; Running speed is controlled by microprocessor, instantly effective compensation because of load change and the power supply voltage fluctuation caused by the change of speed, constant speed and reliable; The built-in soft starting, automatic overload protection, protect the safety of the full load run continuously for a long time; Speed step-less adjustment, meet the experiment of stirring speed correction at any time.


Specification

Model:	AE500S-H(50G)	AE500S-H(70G)	AE500S-H(90G)
Rated voltage:	220	220	220 ±10 ％
Rated frequency:	50 / 60	50 / 60	50 / 60
Input power:	850	850	1350
Output power:	500	500	800
Rated torque:	34.1	34.1	69.5
Work mode:	S1 (Continuous)	S1(Continuous)	S1(Continuous)
Speed control:	Stepless	Stepless	Stepless
Speed range:	1～1000	2000～14000	2000～11000
Speed display:	1000 ～14000	LED (number)	LED
Speed motion detection function:	LED (number)	Yes	Yes
Timer function:	Yes	Yes	Yes
Speed memory function:	Yes	Yes	Yes
Overload protection:	Yes	Yes	Yes
Working head material:	Stainless steel 316 L	Stainless steel 316L	Stainless steel 316L#
Working head diameter:	Φ 50	Φ 70	Φ 90
Working head Maximum torque:	34.0	34.1	69.5
The maximum line speed of the rotor:	20.5	20.5	22

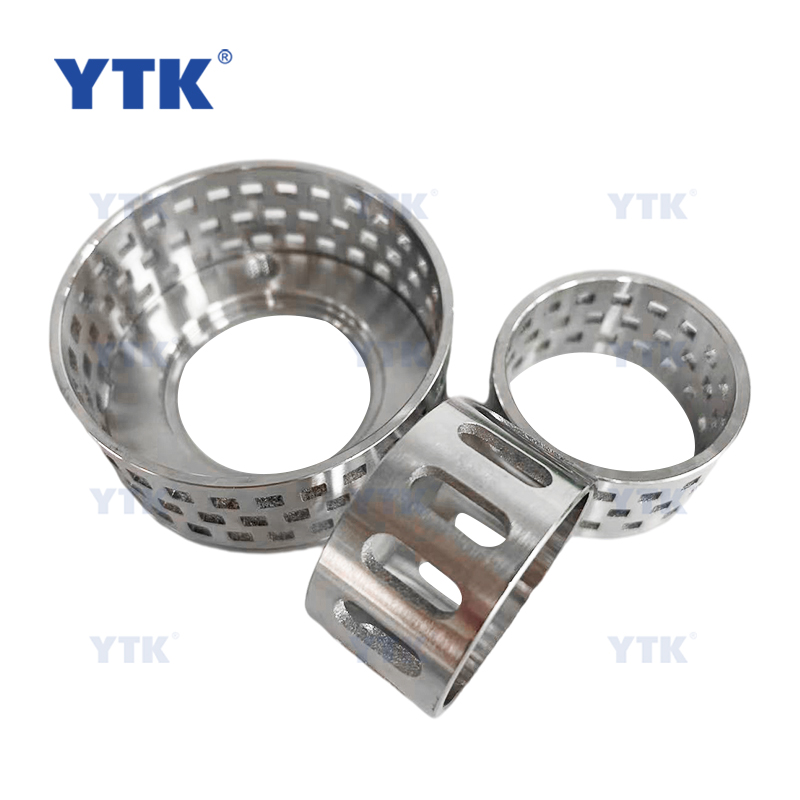

Stator Standard configuration:	square hole / long hole / oblique hole	5 / 20 / 50	5 / 20 / 50
Mixing capacity（H2O）:	300～20000	500～40000	500～40000
Maximum processing viscosity:	8000	8000	8000
Permissible ambient temperature:	Lower than 40	Lower than 40	Lower than 40
Permissible relative humidity:	Less than 80	Less than 80	Less than 80
Size of the mixer（T×B×H）:	215×310×720	215×310×720	215×310×720
Weight:	9.2	9.2	10.8
