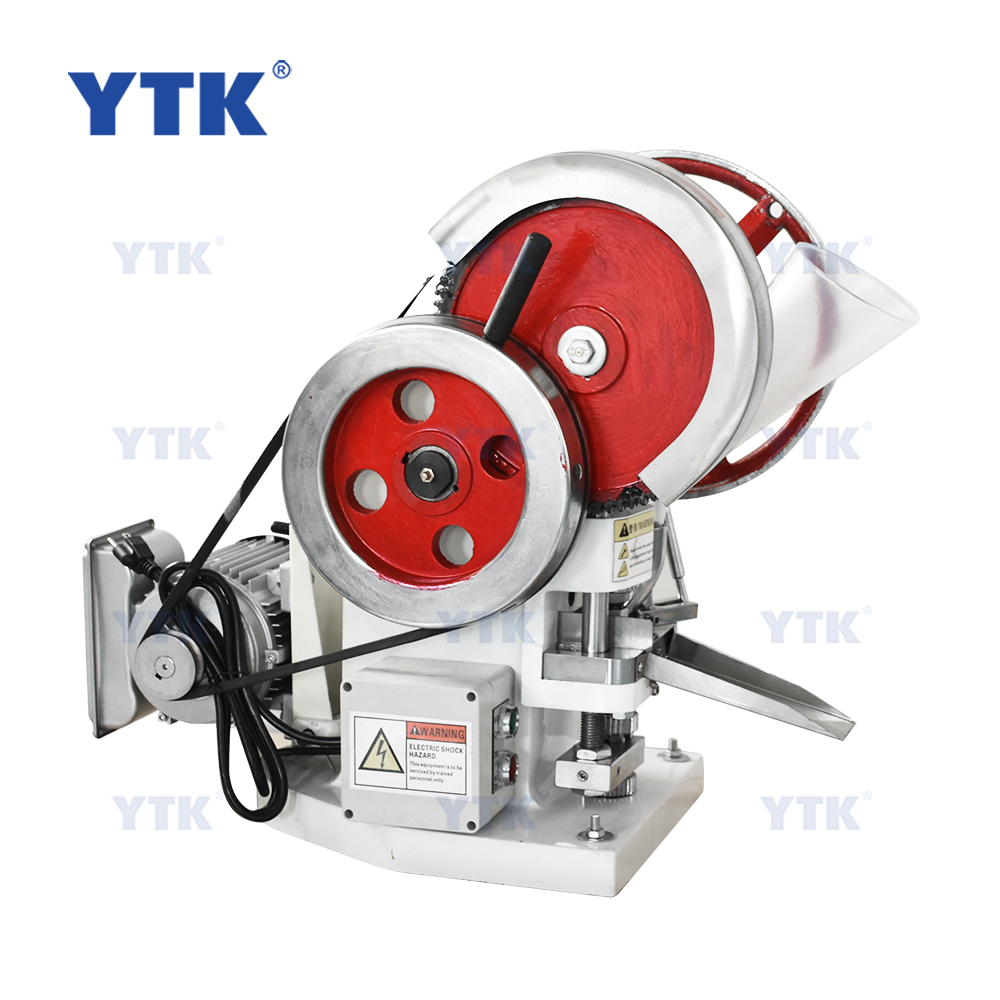

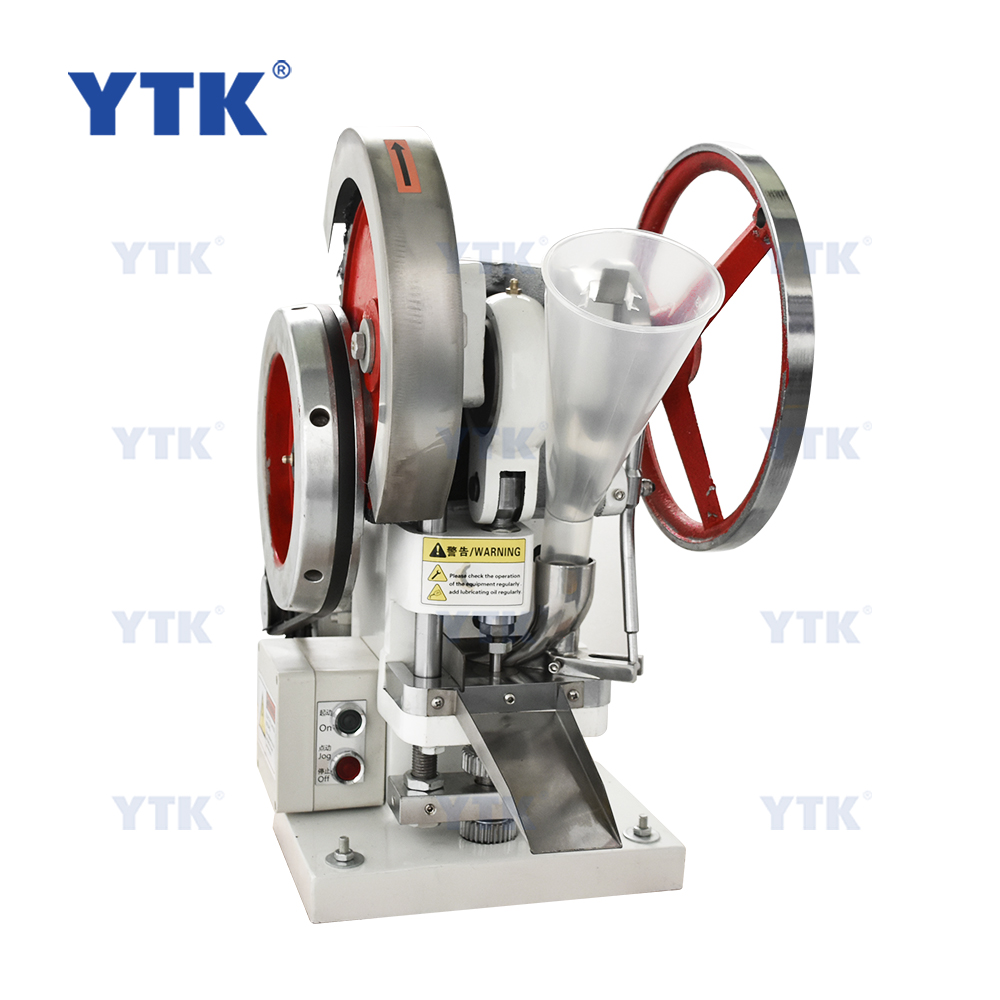

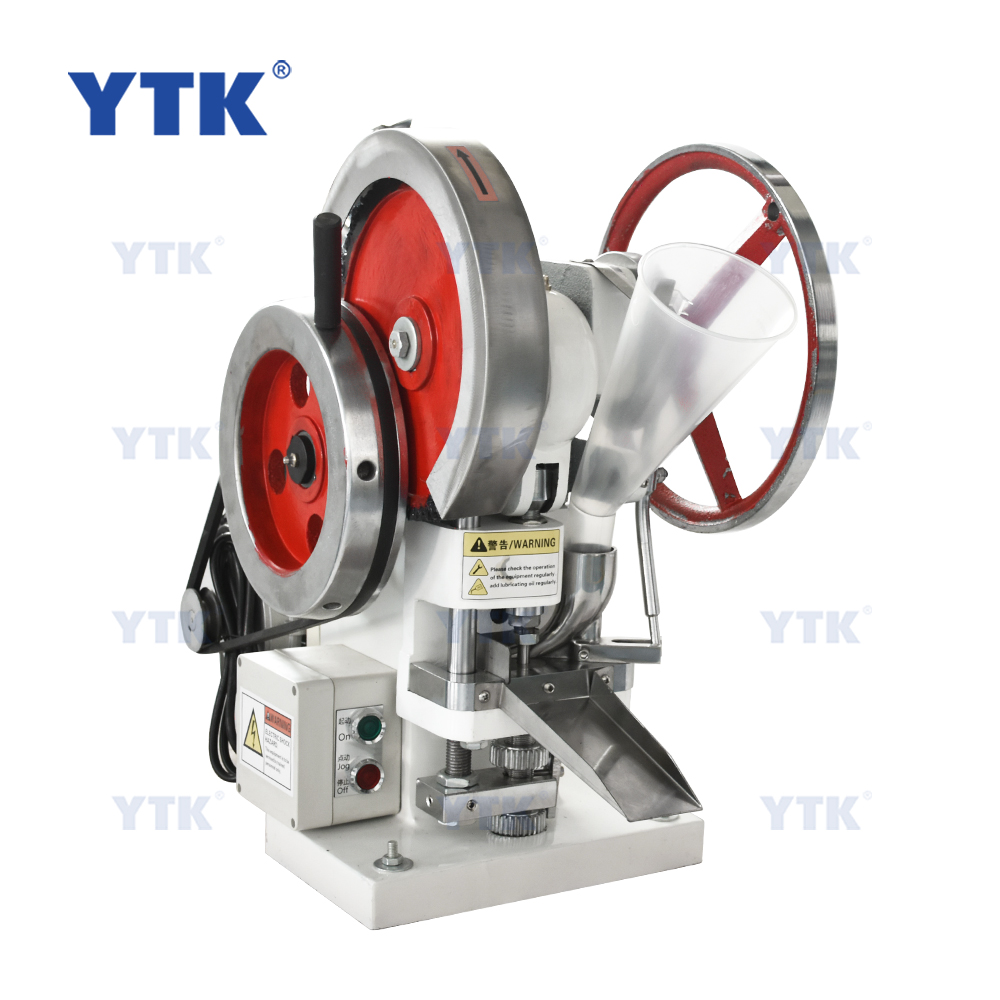

TDP-5 Single Punch Tablet Press, which can press the powder material into tablet and can be widely used in pharmaceutical factory, chemical factory, hospital, R&D institution, laboratory. It is suitable for small batch production.
This machine is with good performance, strong suitability, simple operation, easily repairs, small cubage and light. Even under the conditions or power cut, hand swing available. It is only with one set of die, the depth of filling and the thickness of tablets is adjustable.
Compare to original TDP model press machine, it is enlarged the machine intensive and engine power with bigger strength. In the meantime enlarge the filling depth, hence to expand the specification range of tablet. Therefore, this machine can meet the demand of different kinds of Chinese traditional medicine and Western medicine and other similar product’s requirements. It’s deeply welcome by our customers in different field.
Max. pressure (kg)
Max. tablet diameter (mm)
Max. filling depth (mm)
Max. tablet thickness (mm)
Production capacity (tablet/hr)
Net weight (kg)
Net weight of packaging
1.Before connected to electrical power,the motor should be connected to ground to ensure safety.First demolition the V-belt,connected to electrical power,starting the motor,observe motor rotation direction whether correct(Motor shaft rotation direction should be with the protective cover or hand-wheel in the opposite direction of the arrow).If the rotation in the wrong direction,another separate cable connection.Then make V-belt installed.
2.Unloading punch dies and adjustment of tablet press.
a,Installation punch dies.
b,Putting out the adjustment.
c,The adjustment of filling the depth(tablet weight adjusted).
This type of single punching machine is suitable for pressing all kinds of granules, powders and other raw materials, and shaped tablets, suitable for laboratory trial production or small batch production of various tablets, sugar tablets, calcium tablets, etc.
Out of district
It is made of stainless steel and its surface is smooth, which can effectively reduce the problems such as edge missing, crack and deformation caused by tablet discharging
Large pore size, faster and more uniform feeding which could improve the feeding dissatisfaction caused by poor raw material fluidity
Belt gear drive
Belt gear transmission pressure is large,make the press more smooth
Both working model:manual adjustment or electric tablet pressing
High pressure and small body size
Compact and stable body, pressure and press thickness all can be adjusted
