TDP1 Single Punch Tablet Pill Press Machine Candy Tablets Press Machine For Lab UseTDP1 Single Punch Tablet Pill Press Machine Candy Tablets Press Machine For Lab Use

TDP1 Single Punch Tablet Pill Press Machine Candy Tablets Press Machine For Lab Use

  • Product Item:YTK-TDP1
  • Dimension(L*W*H): 450 * 370 * 570mm
  • Weight (KG): 35 KG
  • Power (kW): 0.37
  • Production Capacity: 3000pcs/h
  • kapoor making machine tablet press
    Inquiry Send Email

    Description

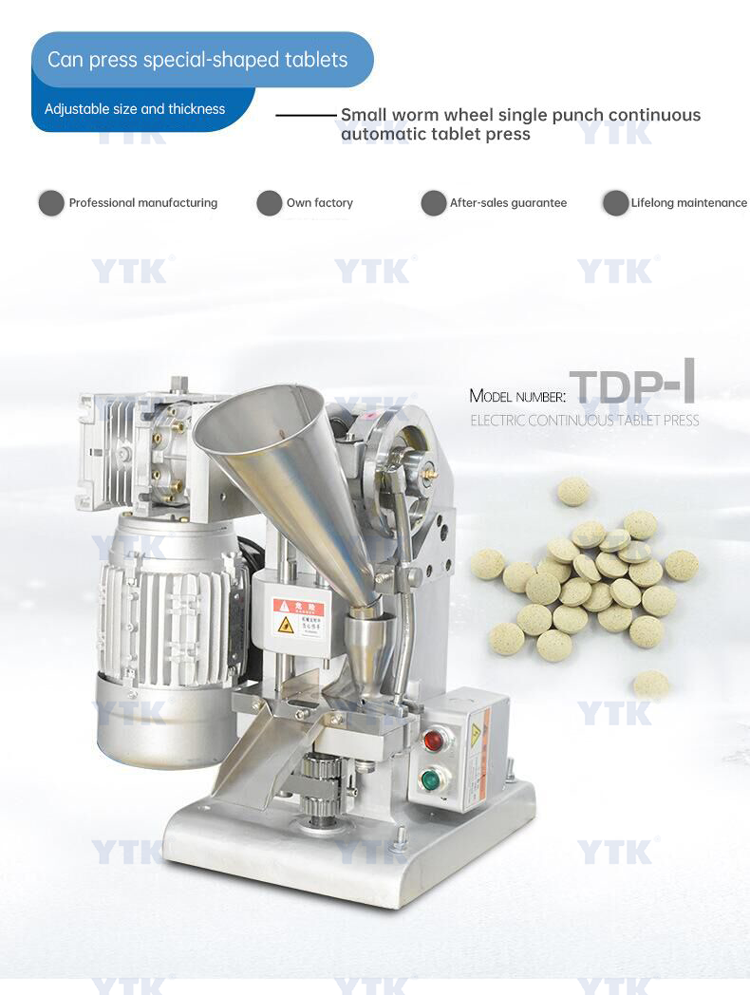

    This machine is a small desktop electric continuous punching machine. Compared with the ordinary single punching tablet machine,it has a worm gear transmission, no power transmission belt,and very low noise. This machine can press various granular,crystalline or powdery materials with good fluidity into disc, cylindrical, spherical, convex, concave and other geometric products.The filling depth and pressing thickness of the material can be adjusted, that is, the weight, thickness and hardness of the product can be adjusted, and different products can be suppressed as long as different molds are replaced.
    Specification
    Product model
    YTK-TDP1
    Maximum tablet pressure
    15KN
    Maximum tablet diameter
    12mm
    Maximum fill depth
    12mm
    Maximum tablet thickness
    6mm
    Production capacity
    50-60pieces/min
    Dimensions
    450 * 370 * 570(mm)
    Host weight
    35kg
    Package dimensions
    480 * 410 * 600(mm)
    Net weight of packaging
    48kg


    Application
    This type of single punching machine is suitable for pressing all kinds of granules, powders and other raw materials, and shaped tablets, suitable for laboratory trial production or small batch production of various tablets, sugar tablets, calcium tablets, etc.
    Detail Images

    Worm gear case


    Turbine equipment is used to reduce noise


    Hopper Display


    The stainless steel inclined funnel makes the material feeding smoothly and is convenient for adding materials


    Lifting cam


    The lifting cam, the eccentric wheel, operates in conjunction with the rotating shaft. Make mechanical power more powerful and make medicines faster.

    Export blade


    The surface of the discharge port is smooth,which can reduce the problems such as chipping,cracks and deformation caused by the tablet discharge.
