NJP200 Miniature Fully Automatic Pharmaceutical Capsule filling machine
1. This model is an intermittent motion and hole plate type-filling fully automatic capsule filling machine.
2. It adopts optimization design for meeting the characteristics of Chinese medicine and the requirement of GMP,
3. It has the characteristics of compact mechanism, small volume, lower noise, precision filling dosage, muti-function, stable running etc.
4. It can finish the following motion at same time: Capsule feeding, capsule separating, powder filling, capsule rejecting, capsule locking, finished capsule discharge and die hole cleaning etc.
5. It is the most ideal hard capsule filling equipment for pharmaceutical and health food industry.
Specification
Features
Touching-Screen, PLC program control panel with LCD.
Capsule vacuum positioned mechanism to make the capsule qualified over 99%.
Removable powder hopper for cleaning and easy auger adjustment easy to change fills weights.
Easy speed selection and closed capsule length adjustment.
Electrical Appliance control system approved to CE, and international standard.
Quick and accurate change part set-up, easy to remove rotary table and ring carrier assembly.
Fully enclosed dosing stations and rotating table for integration of the whole capsule filling plants.
Large cam mechanism keeps the rotating table of mould together with the whole equipment running with balance, and completely guarantees the machine operating with highest precision and accuracy.
Detail Images
Vibrating feeder
Pneumatic adjustable vibration feeder. It can solve the problem of material blanking with poor fluidity.
Material recovery bin
304 stainless steel material recycling bin for easy material recovery and cost saving
Gating system
During the working process, any door is opened and the equipment is alarmed and stopped, which is the safety target for the
operator to work normally outside the screen door.
operator to work normally outside the screen door.
Emergency stop switch
In the event of an emergency, the machine can be stopped immediately to prevent injury.

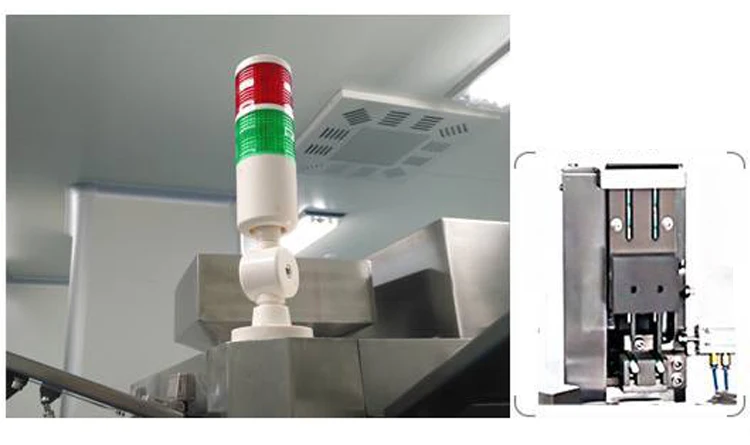

Warning Light
Lack of material, lack of capsules and mechanical failure will automatically alarm, flashing lights and whistling at the same time reminding, causing the attention of the operator Broadcasting and safety control switch The pneumatic control of the pod is not required to be manually operated. When the machine is running, the personnel are completely isolated to avoid contact with the hands and cause danger.
Filling mechanism new patent
The filling mechanism has obtained a new national patent and adopts three-dimensional adjustment to make the measuring plate evenly, accurately and quickly adjust the load, and is equipped with a powder recovery device. The recovery rate is 100%, reducing waste and improving economic efficiency.
Sealing system
Suction bags, bags, lock bags and waste shafts are specifically designed for double seal configurations. The first seal uses NBR butt rubber to prevent loss of lubricant, and the second seal uses imported SIL silicone rubber seals to prevent powder from entering the bearing. Solved the problem that the powder enters the bearing and causes the card machine.

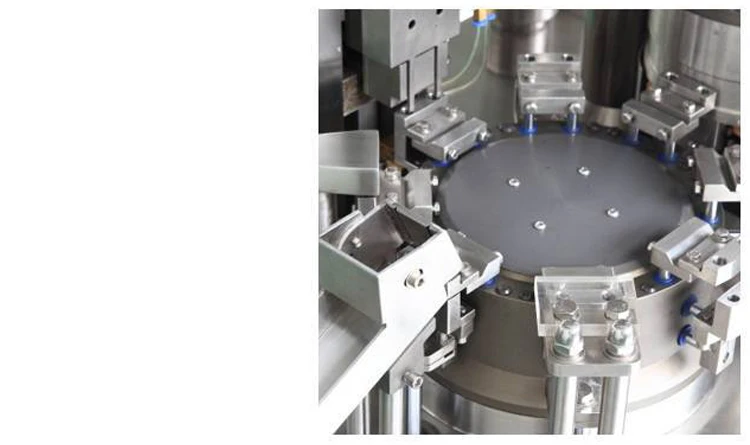

New patent for turntable design
The design of the turntable has obtained a utility model patent, and the SIL imported rubber silicone seal ring is used to effectively block the powder from entering the turntable. Good sealing performance, no dust overflow pollution; PTFE oil-free bearing for horizontal double shaft of turntable, no need for refueling, lifetime maintenance; modular structure, with a little moving operation, easy to disassemble and clean, replace mold, complete within 15 minutes.
Accurately fill
Separator (separator): The separator uses German 3-second Zeiss optical indexing head indexing. The indexing axis is completed at one time, and the loading accuracy is high, and the error is ≤3%.
Concentrated water and electrical interfaces
Easy to operate, maintain and discover faults.
