Description

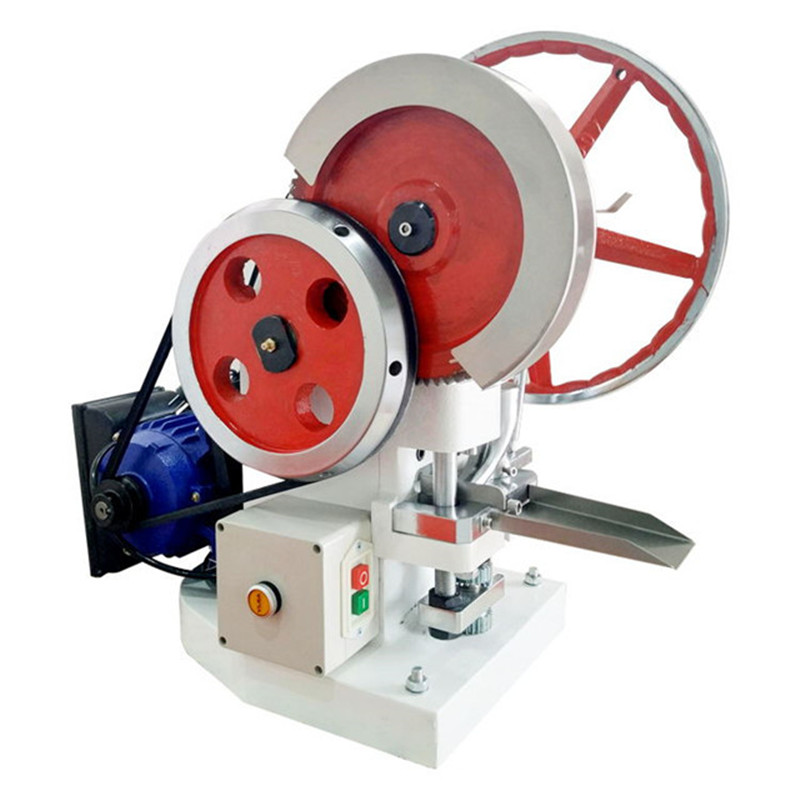

Cheap TDP-5 Single Punch Salt Pill Press Candy Tablet Press Machine
ITEM
TDP-1.5
TDP-5
TDP-6
Max. Pressure(KN)
15
50
60
Max. Dia of Tablet(mm)
12
20
25
Max. Depth of Fill(mm)
12
18
16
Max. Thickness of Tablet(mm)
6
6
10
Production Capacity(PC/h)
5000
5000
4000
Motor
550w1400r/min
750w1400r/min
1100w1400r/min
Machine Size(mm)
570x380x630
650x440x650
580x600x700
Net Weight(Kg)
92.5
125
160

Outlet
Made of stainless steel, the smooth surface treatment can effectively reduce the problems of missing edges, cracks and deformation caused by the discharge of tablets.
Stainless steel hopper
Large pore size, faster and more uniform feeding, and improved feeding dissatisfaction caused by poor raw material flow
Belt gear transmission
Belt gear transmission, greater pressure
Hand shake
Hand-adjustable adjustment
Big pressure, small body
Compact and stable
Pressure and sheet thickness can be adjusted
Outlet
Made of stainless steel, the smooth surface treatment can effectively reduce the problems of missing edges, cracks and deformation caused by the discharge of tablets.
Stainless steel hopper
Large pore size, faster and more uniform feeding, and improved feeding dissatisfaction caused by poor raw material flow
Belt gear transmission
Belt gear transmission, greater pressure
Hand shake
Hand-adjustable adjustment
Big pressure, small body
Compact and stable
Pressure and sheet thickness can be adjusted
Details pictures
This machine is designed for pressing tablets from various granular materials,which is used for pharmaceutical,chemical,food, hospital,science research institution is applicable to trial manufacturing in lab or produce in small amount different kinds of tablet, sugar piece, calcium tablet and tablet of abnormal shape.It features a small desktop type press for motive and control sheeting.It can also be hand -operated easy to be operated and maintained ,small volume, light weight. one set of punch and de is mounted the depth of the filling material tablet press and thickness of the tablets can be adjusted high precision of filling, low-noise, low-consumption of material, and it works smoothly. The minimum consumption of lab material is just 200g.
It is a good machine designed for the lab used for research and for development in hospital and industry and for small-scale production.
Applic
Application
This type of single punching machine is suitable for pressing all kinds of granules, powders and other raw materials, and shaped tablets, suitable for laboratory trial production or small batch production of various tablets, sugar tablets, calcium tablets, etc.
